Turbowing RY-2.4 2.4G Radio Signal Amplifier Booster for 2.4G Transmitter

This original Turbowing RY-2.4 Signal Amplifier is especially designed for 2.4Ghz long range RC application like FPV flight, high output power provides you much further controlling distance.



Features:

Lightweight, mini size with metal cover and heat dissipation design.

11dB transmitting gain can enhance the signal by 20 times.

1000mW output power features a much further control range.

2.5dB noise figure can increase the sensitivity and the receiving distance.

Plug and use, no need for any software setup.

Lower than 15v is ok, but you will get less range.



Specifications:

Output power: 1000mW

Frequency range: 2.4-2.5Ghz

Operating voltage: 6V-15.8V (4S lipo recommended for maximum range)

Supply current: 435mA at 9V

Receiving gain: 10dB±1

Transmitting gain: 13dB±1

Input power: 3-20dB

Noise figure:<2.5dB

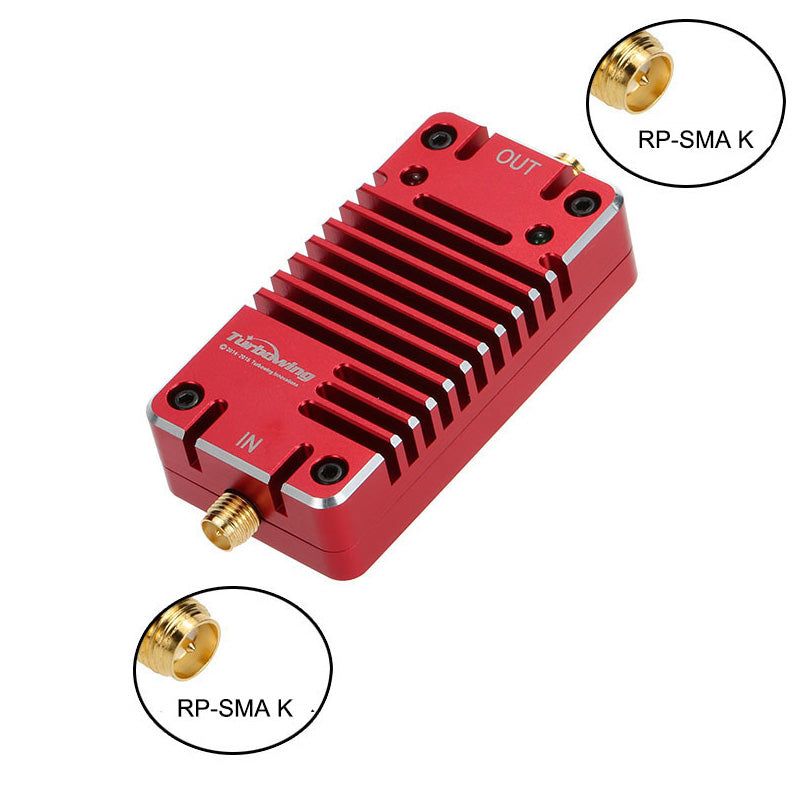

Antenna connector: 2 * RP-SMA K

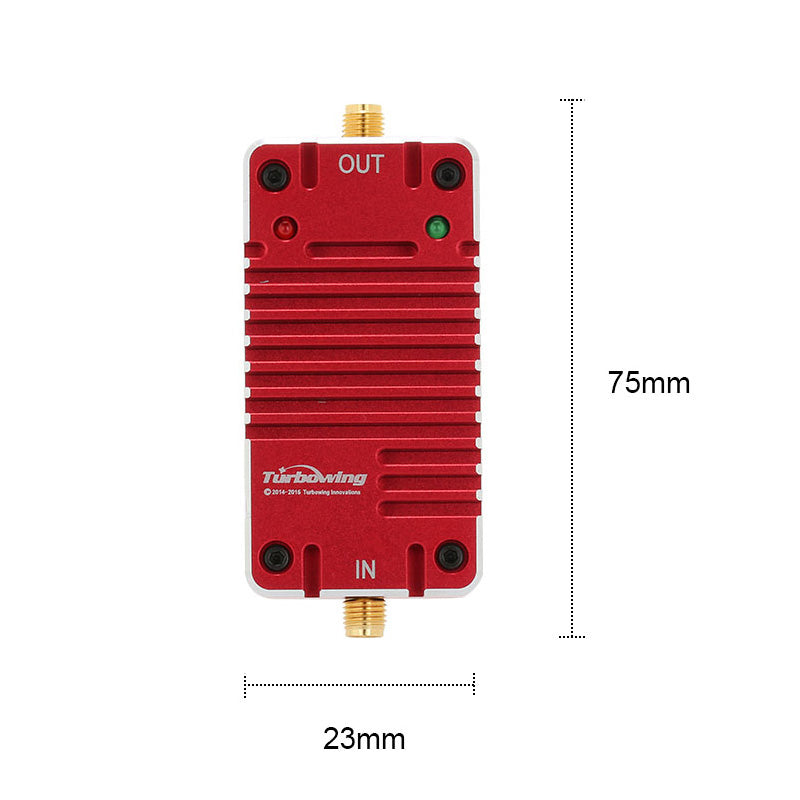

Dimension: 75 * 32 * 23mm

Weight: 56.4g



Package information:

Package size: 8.5 * 7 * 5cm / 3.4 * 2.8 * 2.0in

Package weight: 95g / 3.8oz

Polybag package

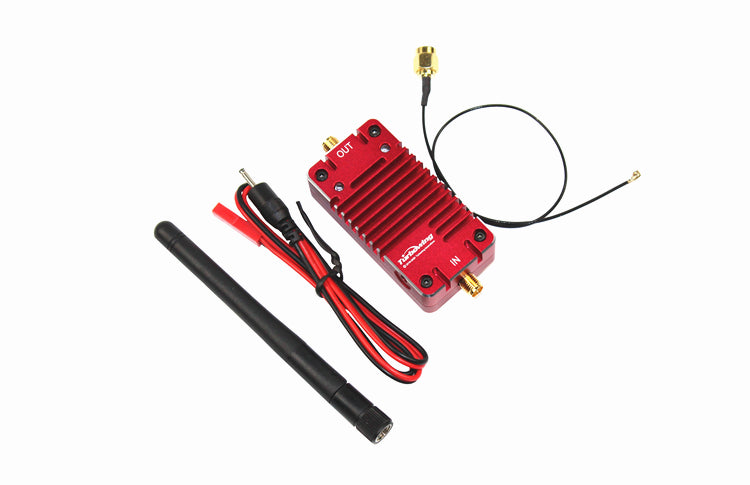

Package list:

1 * Turbowing RY-2.4 Amplifier

1 * Power Cable

1 * Signal Cable
