Traxxas TRX4 Sport 1:10 4X4 Electric All-Terrain Crawler Truck with Clipless Body - TRX82224-4-BLUE

Purpose Built
TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a clipless lightweight pickup truck body for a leaner, performance-focused truck. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.

New Clipless Body Mounting
New to TRX-4 Sport, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

• Length: 21.93 inches (557 mm)
• Front Track: 9.78 inches (249 mm)
• Rear Track: 9.78 inches (249 mm)
• Ground Clearance: 3.14 inches (80 mm)
• Weight: 5.79 pounds (2.63 kg)
• Height: 9.47 inches (241 mm)

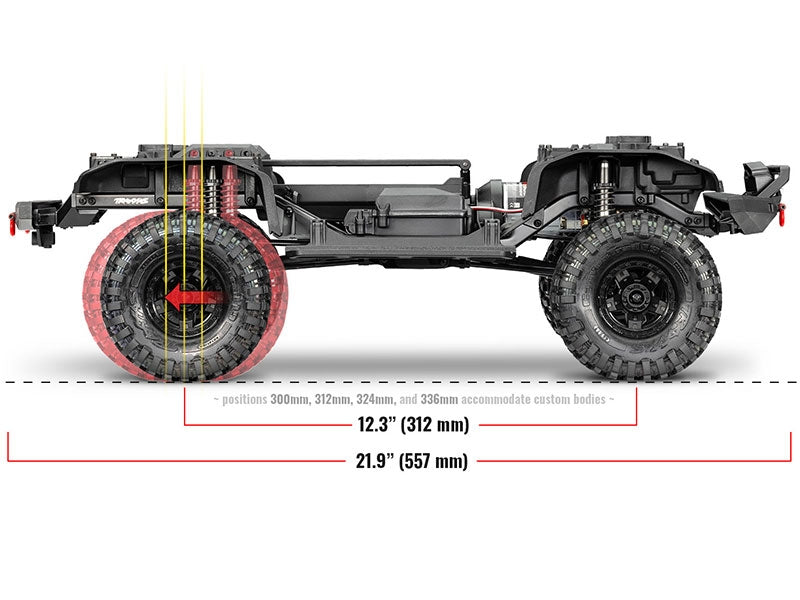

• Wheelbase: 12.28 inches (312 mm)
• Approach Angle: 58.82°
• Departure Angle: 45.83°
• Breakover Angle: 59°
• Front Shock Length: 3.54 inches (90 mm)
• Rear Shock Length: 3.54 inches (90 mm)
• Front Wheels: 1.9″ x 1.02″ (49 x 26 mm)
• Rear Wheels: 1.9″ x 1.02″ (49 x 26 mm)
• Front Tires: 4.64″ x 1.89″ (118 x 48 mm)
• Rear Tires: 4.64 x 1.89″ (118 x 48 mm)
• Hex Size: 12 mm
• Speed Control: XL-5™ HV
• Motor (electric): 21T reverse rotation
• Transmission: Single speed
• Gear Pitch: 32 pitch
• Differential Type: Spool (no differential)
• Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft driven 4WD
• Steering: Chassis mounted servo
• Servo: 2075X metal gear
• Transmitter: TQ™ 2.4 GHz 2-channel transmitter
• Receiver: 6519
• Skill Level: 1
• Battery Tray: 158.75 L x 47 W x 23/26 mm H

What’s In The Box:

• TRX-4, Ready-To-Drive model
• XL-5 HV waterproof electronic speed control
• Titan™ 21T reverse rotation motor
• TQ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:
Batteries

• TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.

Charger

• Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).

AA Alkaline Batteries

• Four AA alkaline batteries for the transmitter.
