The legend is back. After 25 years, the Bronco has returned as Ford's top-performing 4X4 and America's most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.
Remote Locking Differentials
Traxxas gives you the versatility to lock and unlock the front and rear differentials to suit your driving needs directly from your transmitter. Leave the differentials unlocked for relaxed driving on the trail with smooth, tight turning and better handling at high speeds. When the trail gets technical, lock the front and rear differentials, or just the front, for superior grip over extreme terrain. This patented design has been proven rugged and capable in the Traxxas Summit. Sleeved micro cables control the differential action for scale appearance, without limiting the huge suspension articulation.
Hi/Low Range Transmission
When the going gets tough, use your transmitter to shift into low range for incredible 4-wheel drive pulling torque. Shift into high range for blasting down the trail. The plush suspension design absorbs rough terrain with ease and delivers outstanding scale appearance. Unmatched versatility makes the TRX-4 Scale and Trail Crawler adaptable to just about any situation or driving style.
Traxxas was the first to bring you fully waterproof RC vehicles years ago with their innovative designs. The TRX-4 Scale and Trail Crawler is fully waterproof for how you like to really play, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to tackle creeks, snow, and mud without worrying about water in your electronics.
Torque Twist Eliminated
The portal axles use gear reduction right at the wheels that dramatically reduces undesirable torque twist. Total axle gear reduction is over twice non-portal designs. The Titan 550 motor torque is translated into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.
The Power of Portals
The TRX-4 Scale and Trail Crawler is equipped right out of the box with Traxxas' game-changing portal axle set. Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles (and not get stuck), your tires would have to be over an inch taller than the TRX-4's tires. Straddling boulders with ease, the TRX-4 chassis definitely takes the path less traveled and simply leaves all the others behind.
Portal axle geometry raises the axle link mounts and center driveshaft, greatly reducing critical driveshaft and suspension link angles. This means less strain on the driveshafts, and the higher suspension links provide greater clearance with less scraping and dragging across the rocks. The steering drag link and tie rod are also raised up and out of harm's way.
Rigid Steel Frame
A heavy-duty formed-steel ladder frame with molded cross members creates an extremely rigid backbone that lets the suspension do the work it was designed to do. You’ll feel the difference on trails where the elimination of chassis flex allows for precise wheel placement when navigating technical terrain.
The TRX-4 Trail and Scale is being shown with the legendary Ford Bronco Ranger XLT body, complete with exciting scale details for an authentic 4-wheelin’ experience. The rugged chrome bumpers provide clearance and protection and are equipped with recovery D-rings. The front bumper is designed to be compatible with many popular off-road accessories.
Aluminum GTS Shocks
Oil-filled coil-over GTS shocks were created exclusively for the TRX-4 chassis. These silver-anodized aluminum units deliver silky-smooth damping performance and feature threaded shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better with an O-ring cap seal and dual X-ring shaft seals.
Metal Gear Digital Servo
A full-metal gear digital servo gives you the durability and steering authority you need to confidently and reliably power through tough situations.
The Traxxas TQi radio system is equipped with cruise control for long-distance treks. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower to precisely match the pace of your caravan of trail explorers. Cruise control makes it easy and comfortable for the TRX-4 Scale and Trail Crawler to be your companion for hours of driving fun and exploration.
3S Power System
The XL-5 HV electronic speed control brings 3S LiPo capability for stronger, more efficient running. Updated speed control profiles have been added for smooth and precise control. A Trail profile facilitates smooth driving for most of your adventures, while a Crawl profile introduces hill hold and instant reverse for extremely technical courses. Either will help you navigate obstacles with ease, right from the start. Long run times, up to 2 hours, are possible with a Traxxas 3S 5000mAh iD LiPo battery pack!
Canyon Trail 1.9 Tires
The 1.9 Canyon Trail tires and tuned foam inserts are super-soft and grippy to deliver superior bite on rocky surfaces with convincing scale realism. The 12mm steel hex drive makes the TRX-4 chassis compatible with popular 1.9 wheel and tire combinations.

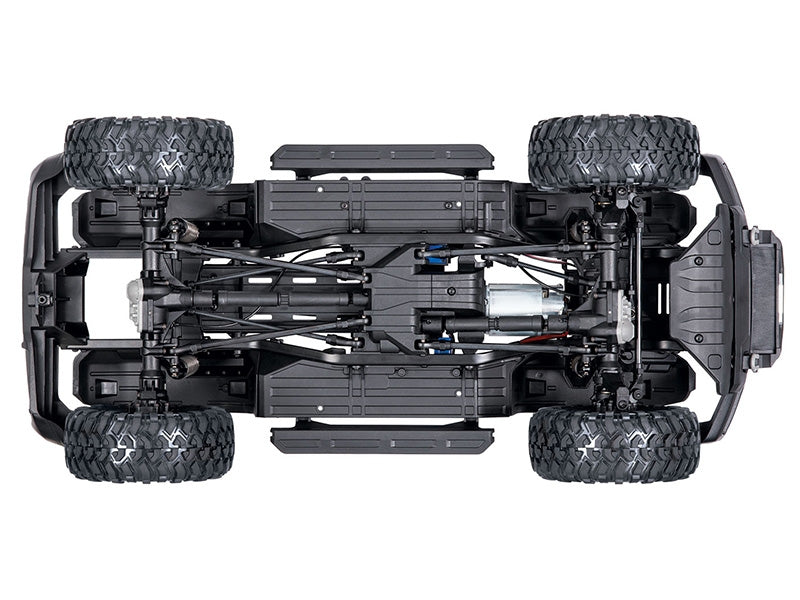

Leave the tools in the bag! The Traxxas TRX-4 chassis is built to handle the rigors of remote locations and all-day driving fun. The foundation begins with a pair of 1.5mm thick steel frame rails. Large diameter steel links and heavy-duty, extra-wide rod ends keep the suspension firmly mounted. Hardened steel CV-style half-shaft joints are ultra reliable, while the brushless-ready steel portal axle and transfer case gears are smooth and quiet. Traxxas’ composite materials have been refined over three decades for the ultimate in strength and durability.
- Length (overall): 22.98 inches (584mm)
- Length (chassis): 21.59 inches (549mm)
- Front Track: 9.78 inches (249mm)
- Rear Track: 9.78 inches (249mm)
- Ground Clearance: 3.14 inches (80mm)
- Weight: 6.42lb (2.91kg)
- Height: 9.4 inches (239mm)
- Wheelbase: 12.8 inches (324mm)
- Front Shock Length: 3.54 inches (90mm)
- Rear Shock Length: 3.54 inches (90mm)
- Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
- Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
- Front Tires: 4.64 x 1.89 inches (118 x 48mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
- Approach Angle: 52°
- Departure Angle: 49°
- Breakover Angle: 58°
- Hex Size: 12mm
- Speed Control: XL-5 HV
- Motor (electric): 21T Reverse Rotation
- Transmission: 2-speed Hi-Lo, Remote Shifting
- Gear Pitch: 32P
Stunning Scale Detail - Injection-moulded door handles, mirrors, and fender flares plus a functional spare tyre deliver incredible realism. Unique "Trail Sights" extend to the LED-ready grille, and rugged replica bumpers feature a fairlead, tow hooks, and receiver hitch.
NEW CLIPLESS BODY MOUNTING SYSTEM
The Bronco introduces a new level of realism and convenience to the TRX-4. Traditional posts and body clips are gone and instead, an integrated quick-release system secures the body invisibly. The hidden mechanism holds tight on the trail yet releases in just seconds to access the chassis.
The features that make TRX-4 an award-winning favourite are all built into the Bronco. That includes high-clearance portal axles; remote-operated T-Lock differentials; High/Low 2-speed transmission; aluminium GTS shocks; steel ladder frame…and more.
THE POWER OF PORTALS
Portal axles lift the truck at the wheels for huge centre pumpkin ground clearance. In order to achieve the same clearance with straight axles, your tyres would have to be over an inch taller than the tyres on the TRX-4 Bronco.
TORQUE TWIST ELIMINATED
The portal axles use gear reduction at the wheels to virtually eliminate torque twist. The Titan 550 motor's torque translates into straight, powerful, forward motion, rather than wasted energy twisting your rig right off the rocks.
The Traxxas TRX-4 Bronco instantly obsoletes the status quo with greatly expanded features, versatility, and capability. Performance and technology combine in a revolutionary new chassis that looks as good as it performs.
RIGID STEEL FRAME
A heavy-duty formed-steel ladder frame with moulded cross members creates an extremely rigid backbone. You'll feel the difference on trails when navigating technical terrain.
GTS ALUMINIUM SHOCKS
Oil-filled coil-over GTS shocks deliver silky-smooth damping performance and feature threaded aluminium shock bodies for easy ride height adjustments. The convincing scale realism looks great and they perform even better.
3S POWER SYSTEM
The XL-5 HV electronic speed control brings 3s LiPo capability for stronger efficient running. The powerful 21T Titan motor provides torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3s 5000mAh iD LiPo battery pack!
TQI RADIO SYSTEM
Operate the 2-speed transmission and T-Lock diffs with a touch, and activate Cruise Control to hold the throttle for long-haul comfort—it's all built into the TQi. You can even customise settings via smartphone with the #6511 Wireless Module.
The TRX-4 Bronco shrugs off mud, snow, and steams with its waterproof electronics. The speed control and servos are waterproof, and the receiver is fully protected by a watertight enclosure. TRX-4 delivers all-season, all-weather adventure.
ACCESSORY LED LIGHTING SYSTEM AVAILABLE
Take Bronco's realism to the next level with the optional Pro Scale Advanced Lighting System. The waterproof system adds fully functional lighting front and rear, including brake and reverse lights, turn signals, multiple driving modes, and much more.
Brushed Car Technical Specifications
Weights & Dimensions
