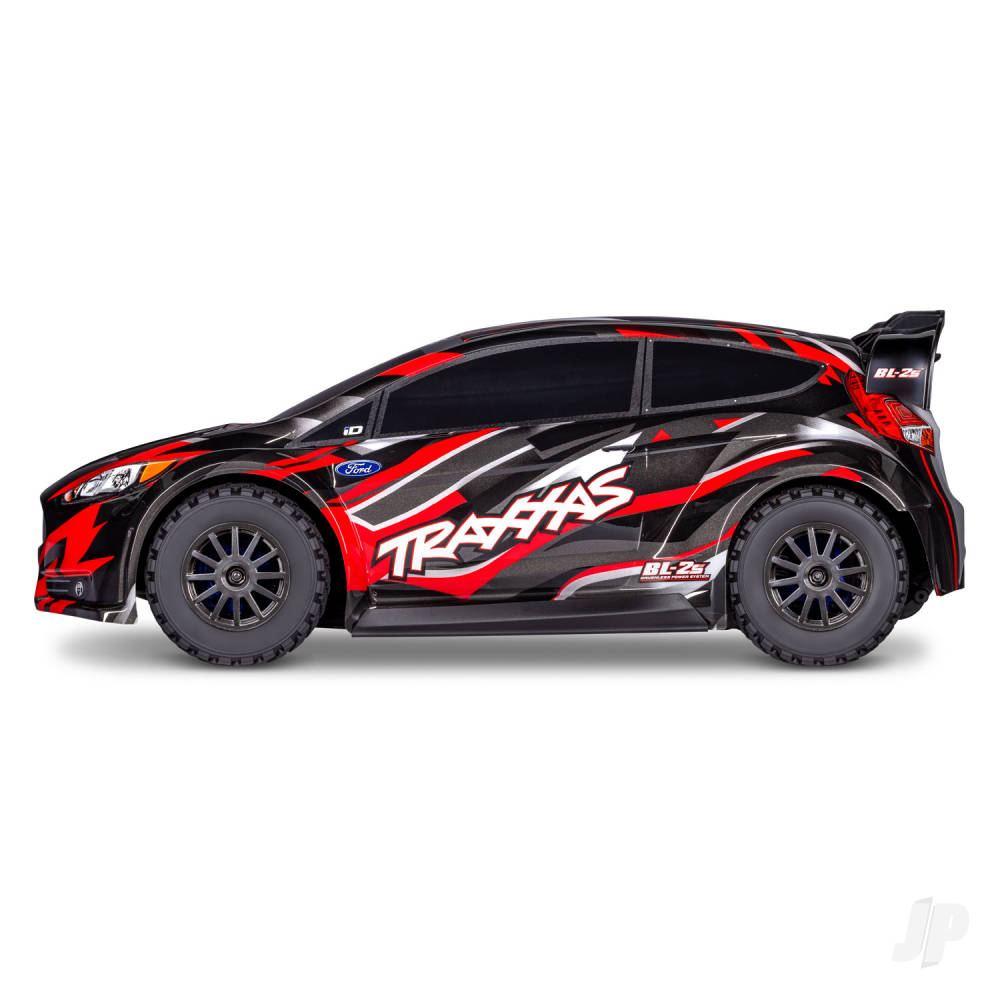

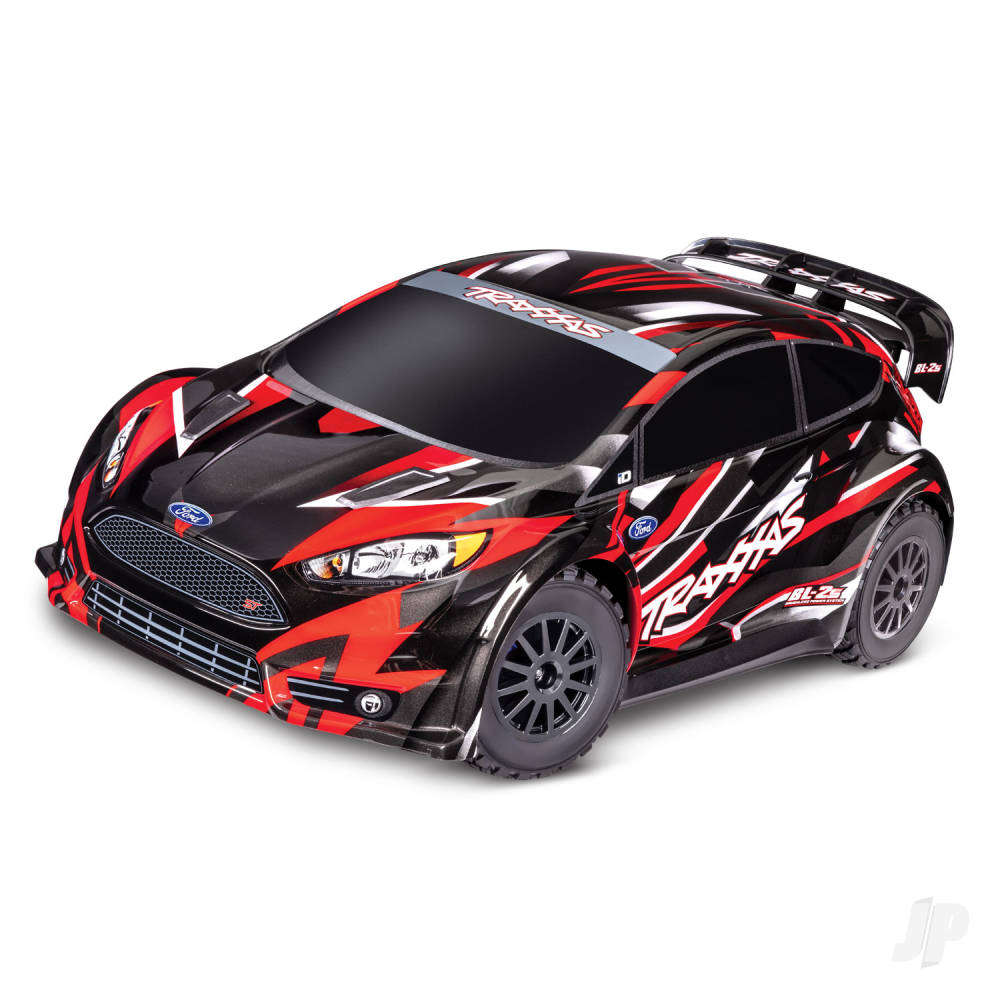

Traxxas Ford Fiesta ST Rally BL-2S Rally Car - Red TRX74154-4-RED

The Traxxas Ford® Fiesta® ST Rally dominates the track with agile handling and superior AWD traction. Rally’s officially licensed clipless body and high-grip gravel tires offer the full rally racing experience. The new BL-2s™ brushless power system delivers effortless high-speed power with an added boost of torque for powerful acceleration. Additionally, Fiesta ST Rally now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit for game-changing strength and durability.

Features

• Length: 21.00 inches (535 mm)
• Front Track: 11.00 inches (281 mm)
• Rear Track: 11.00 inches (281 mm)
• Ground Clearance: 0.80 inches (21 mm)
• Weight (no battery): 5.8 pounds (2.63 kg)
• Height (overall): 8.10 inches (206 mm)
• Wheelbase: 12.8 inches (324 mm)
• Shock Length (front): 3.45 inches (88 mm) - Long
• Shock Length (rear): 3.98 inches (101 mm) - XX-long
• Speed Control: BL-2s™ electronic speed control

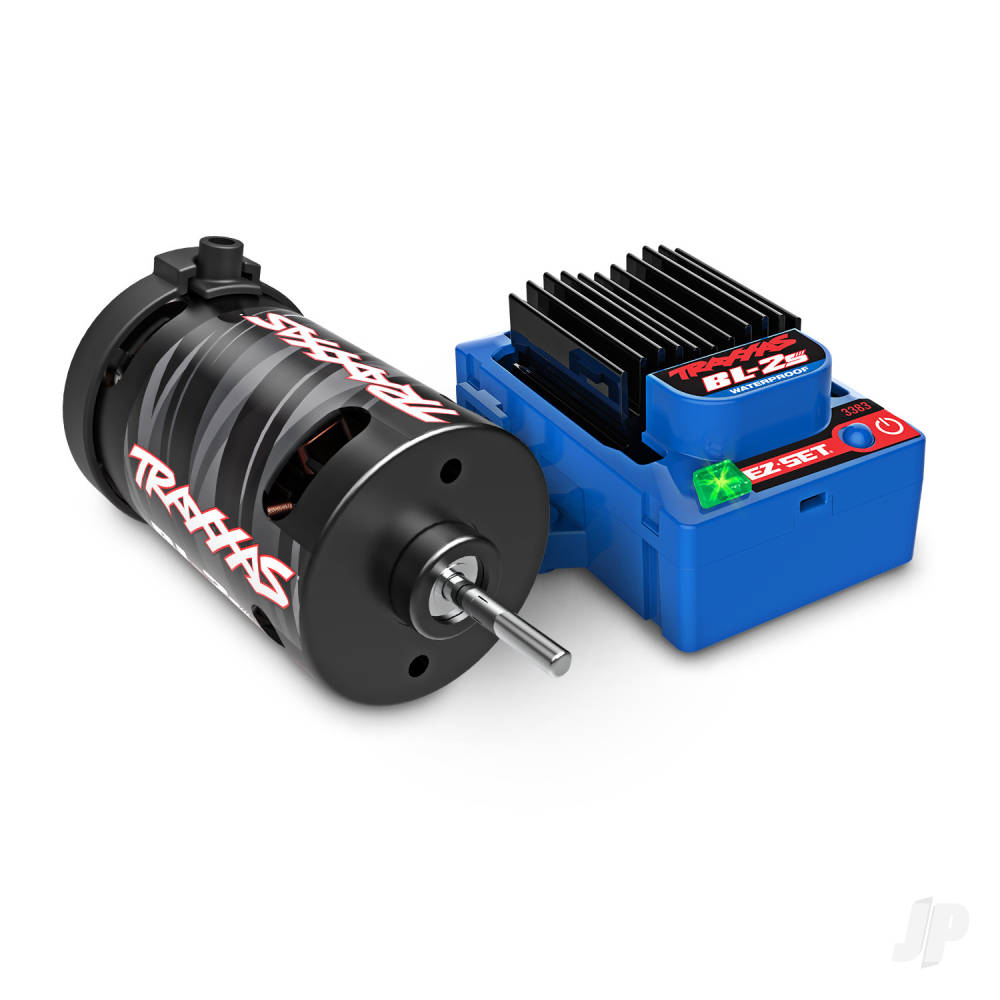

• Motor (electric): BL-2s™ 3300 kV sensorless brushless
• Overall Drive Ratio: 11.82:1

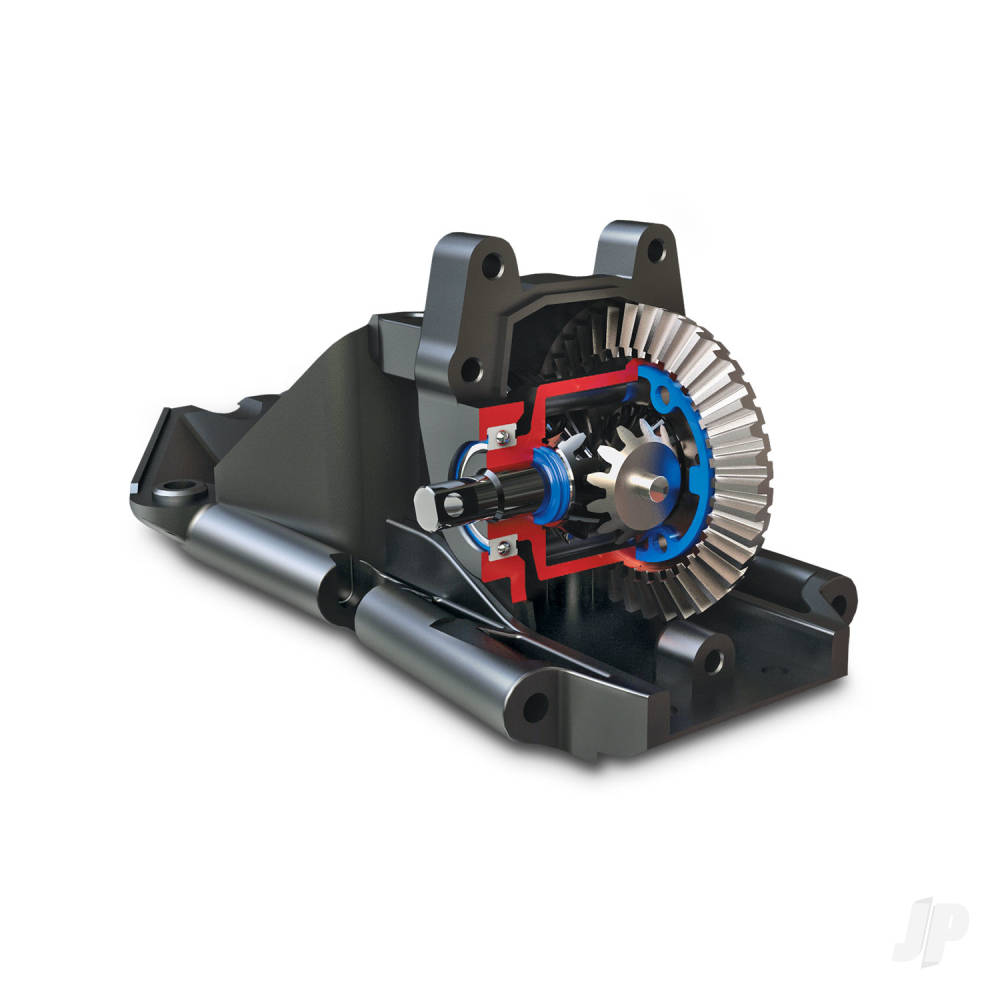

• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32 pitch

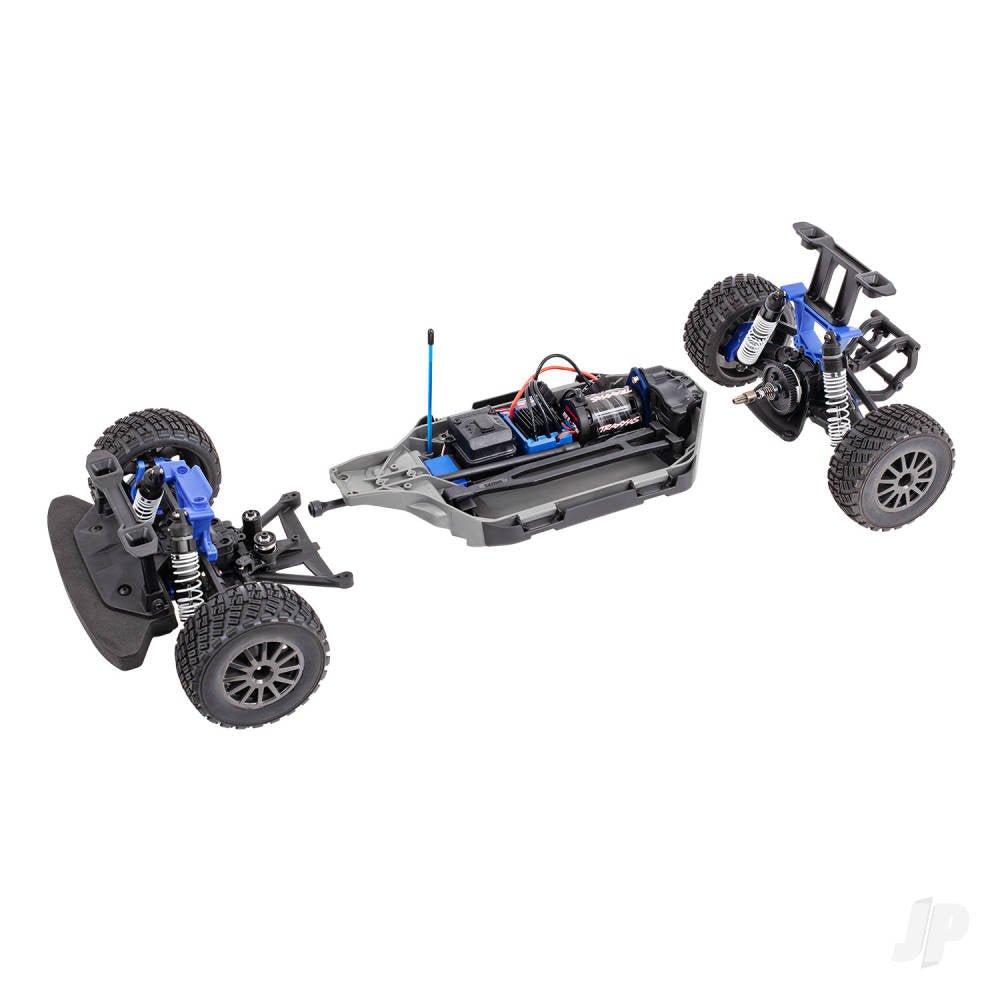

• Chassis Structure/Material: Composite tub

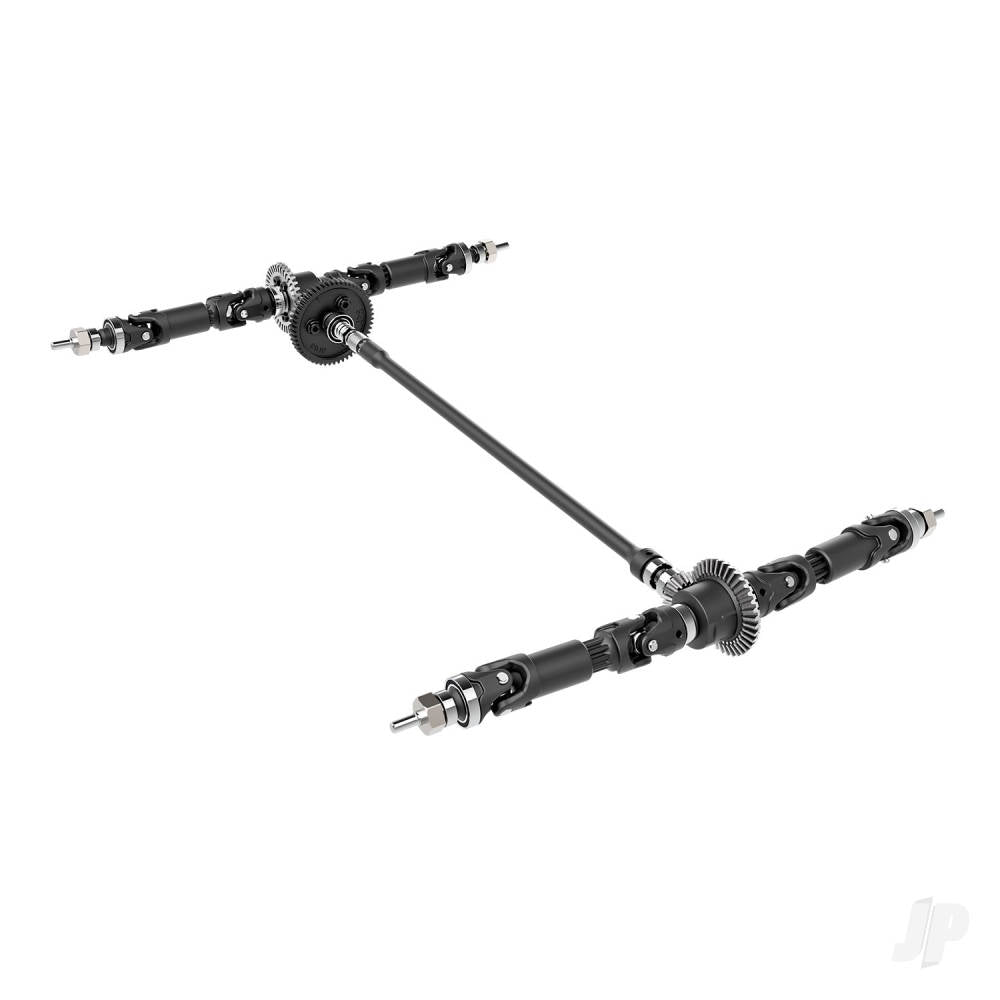

• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Tires: Gravel pattern directional with foam inserts
• Tire Diameter: 3.0 inches (76 mm) (front and rear)
• Wheels (front/rear): 12-spoke rally wheels
• Wheel Diameter: 2.2″ (56 mm) (outer), 3.0″ (76 mm) (inner)
• Radio System: TQ™ 2.4 GHz (2-channel)
• Servo: Waterproof digital 2056 servo (80 oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 165 x 50 x 23/26 mm

What’s In The Box:

• Fiesta ST Rally with BL-2s ESC and 3300 kV motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High quality maintenance tools

Needed to Complete

• 4x AA batteries (for the transmitter)
• Rally requires a single NiMH or LiPo battery
• 1x Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance
