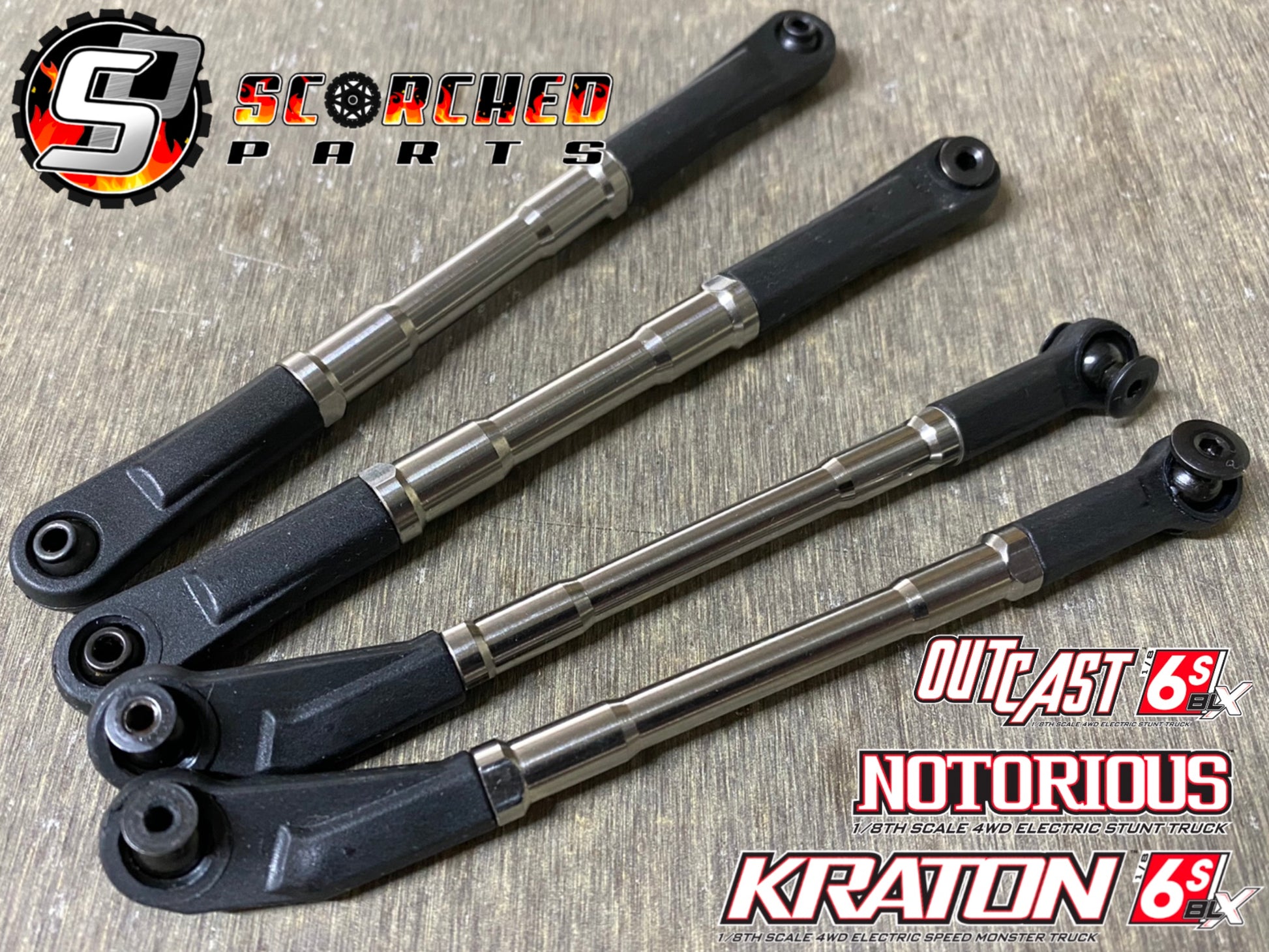

Precision machined Grade 5 Titanium Female Turnbuckle Set.

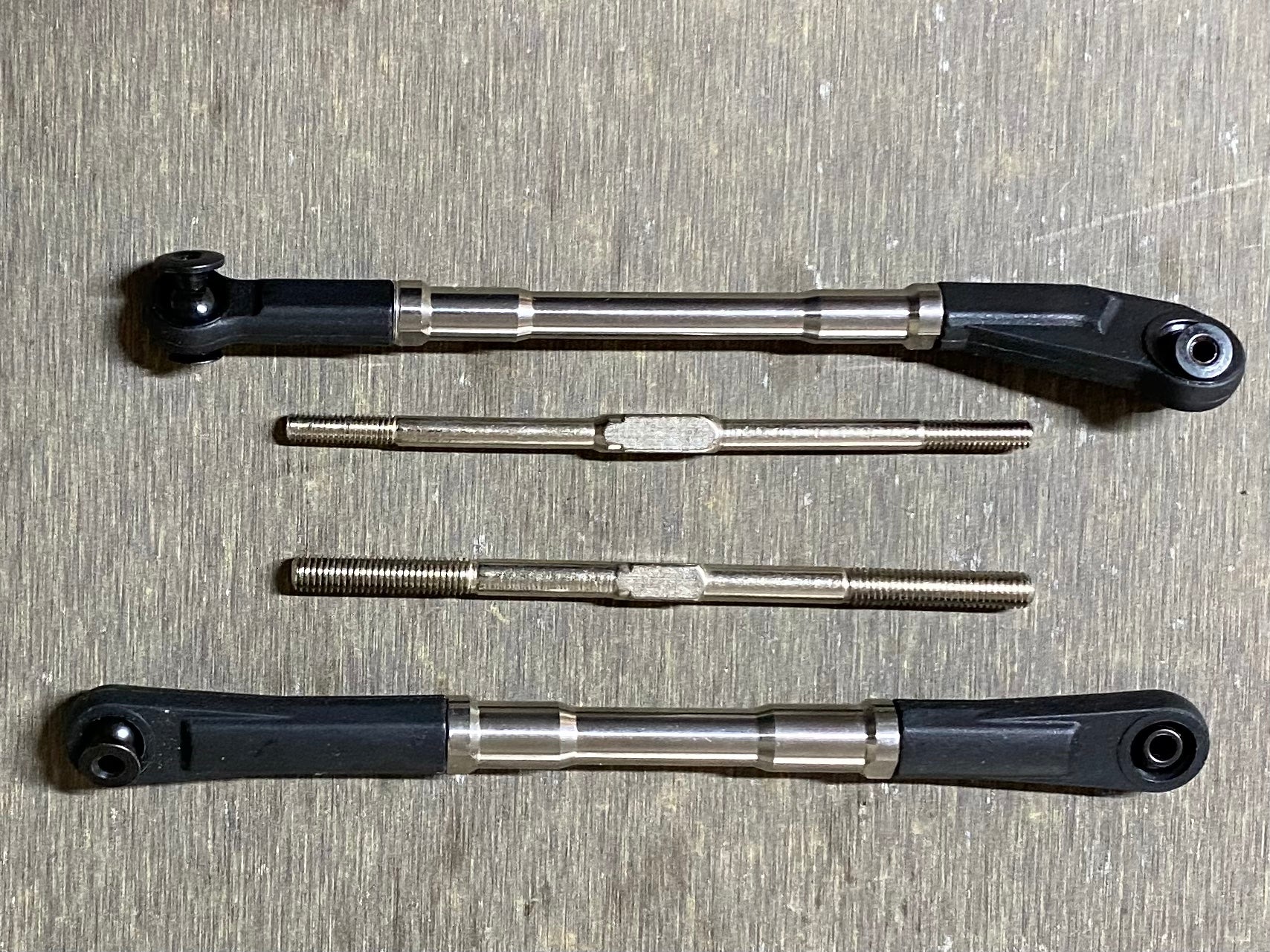

Massive strength with only a couple of grams difference in weight. This design is based on the style of links used on quality big scale vehicles. We’ve found these to be the strongest links we’ve used and tested - a clear step up from stock links

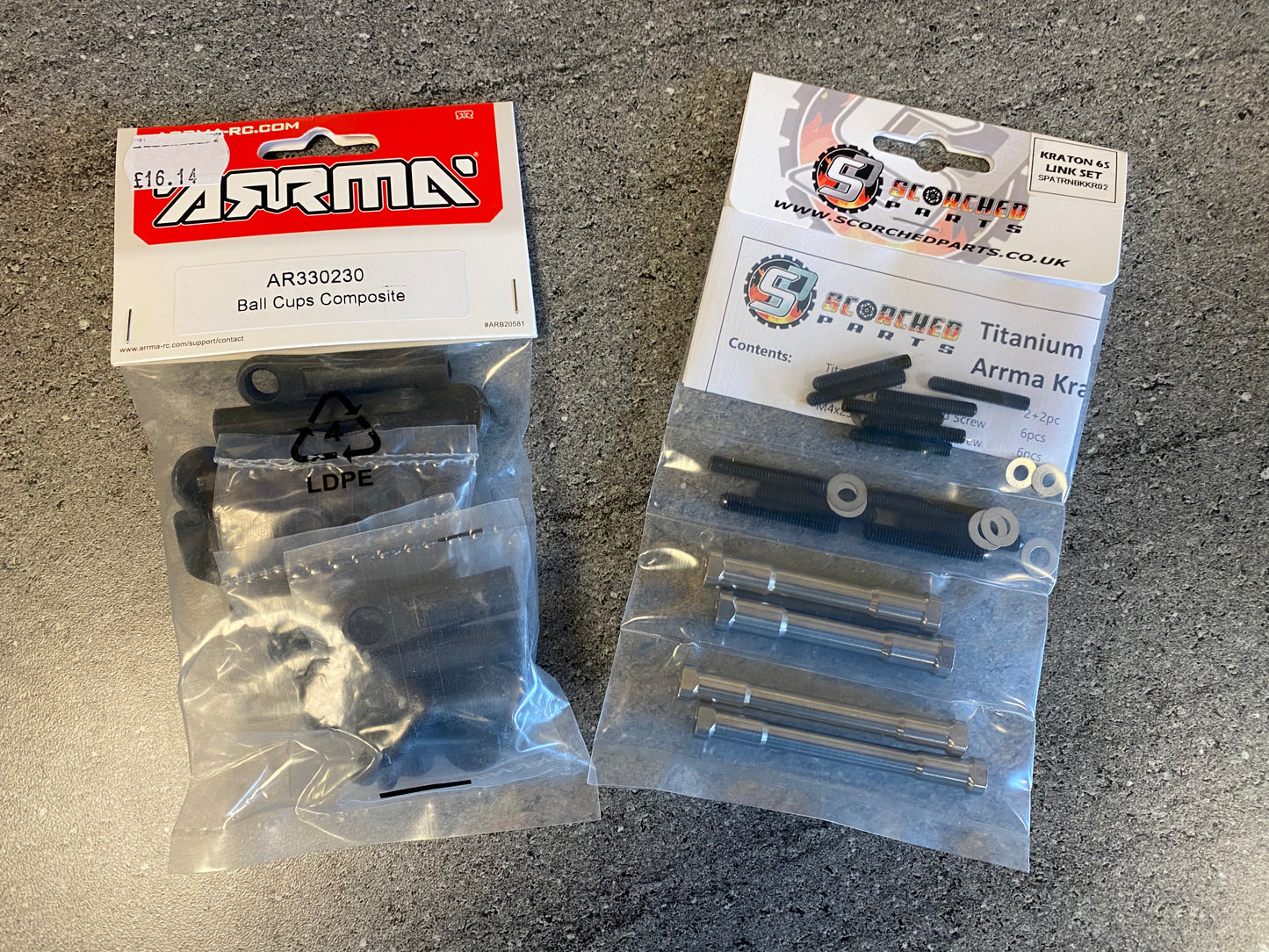

Direct replacement for original steel turn buckle. LINK ENDS NOT INCLUDED. Original link ends are re-used. New Arrma ball / ends kit Z-AR330230 is available on this website (see below)
The links themselves are incredibly strong. The end grub screws are high tensile 14.9 grade. Should the end screws become bent, they are easily and cheaply replaced. 4 extra screws are provided in each kit. Fronts are standard 14.9 grade M4x25 grub screws, rears are M5x30.
The grub screws are screwed into the rod ends first, to their FULL DEPTH to reinforce the plastic part. Stock turn buckles only screw part way in leaving them prone to break.

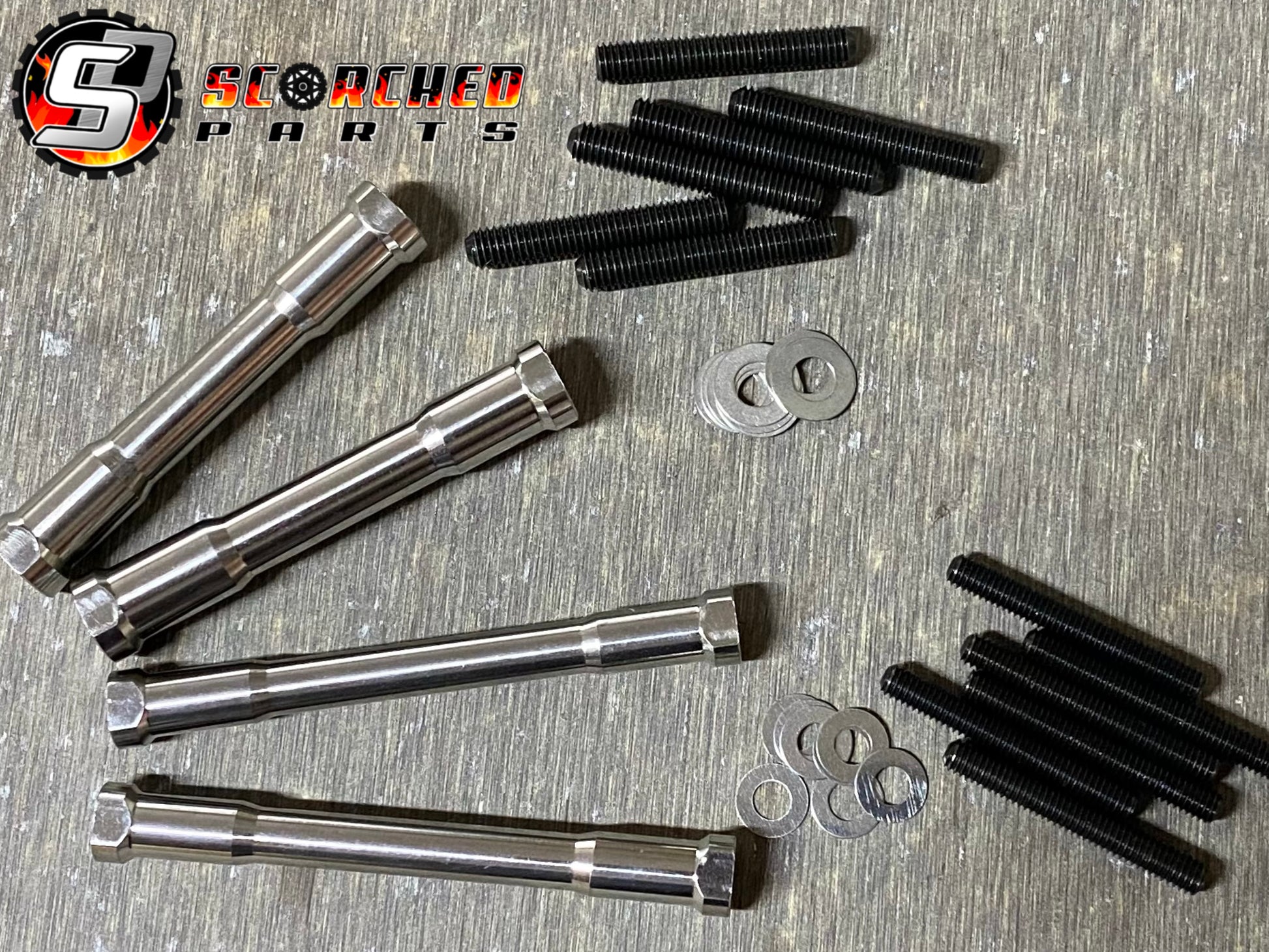

Kit includes 2 pair of link assemblies. 1 set of M4 front steering rods. One set of M5 rear upper tie rods.
Length adjustment is achieved using 0.2mm spacing shims. 8xM4 and 8xM5 stainless steel shims are provided. For stock settings use 1 shims in each front link and 2 shim in each rear link.
