SP8 High Power Antispark Bullet Connectors - Double Pair

This re-writes how we connect high power cars - especially when using multiple batteries.

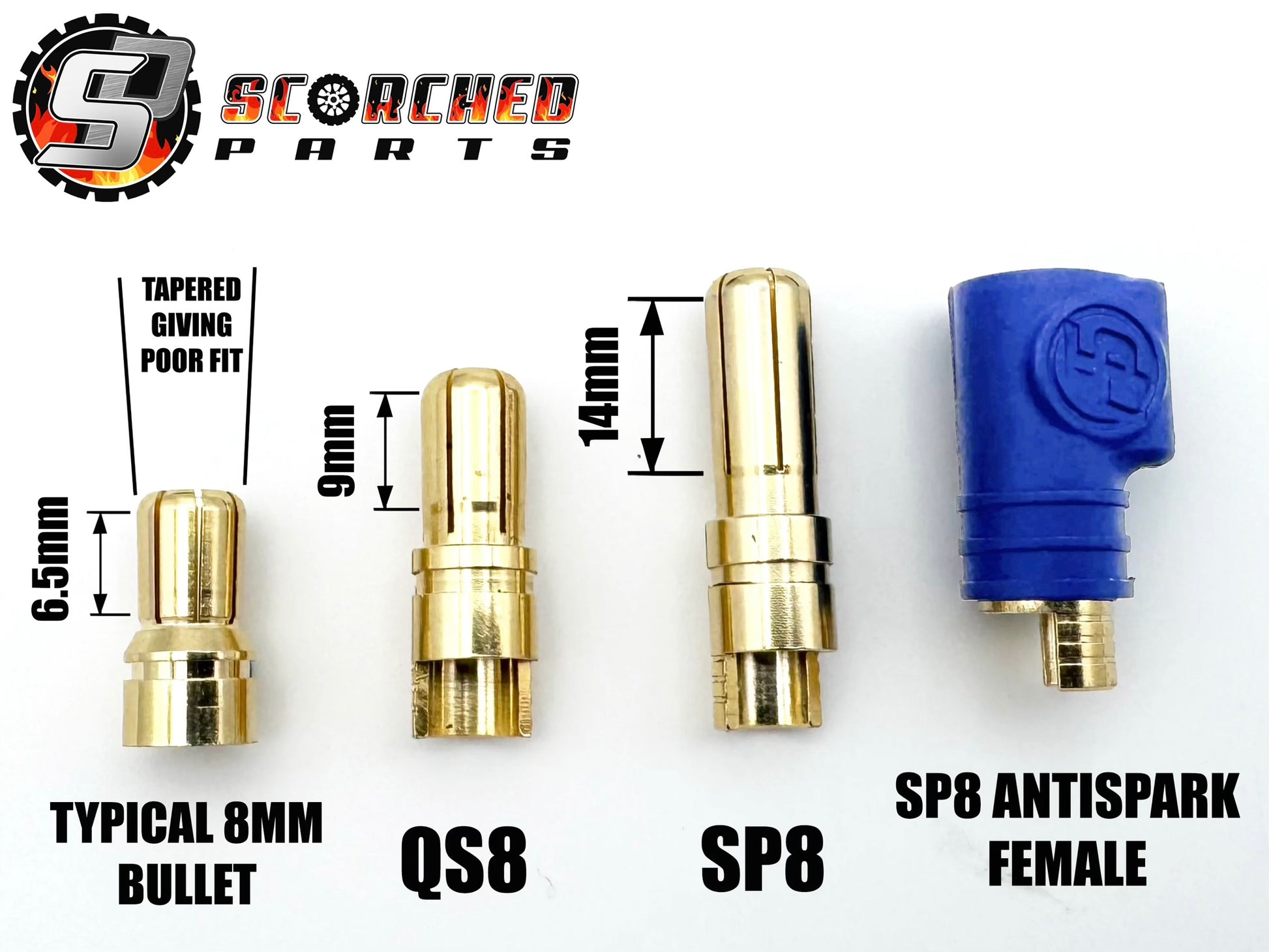

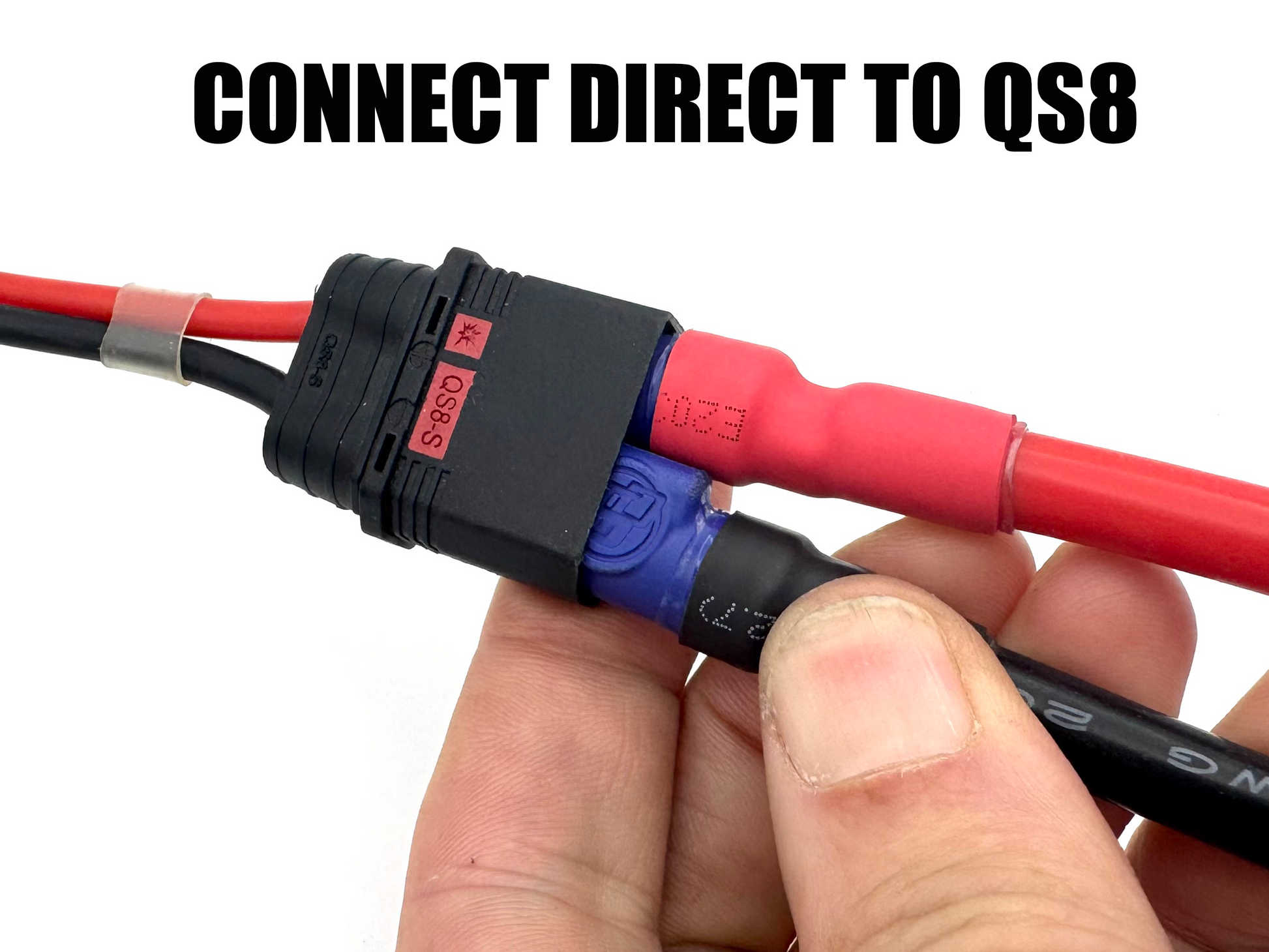

This brand new connector is a development from the QS8 type block connectors. This makes them 100% Compatible with standard QS8 connectors, so no need to change all of your connectors.

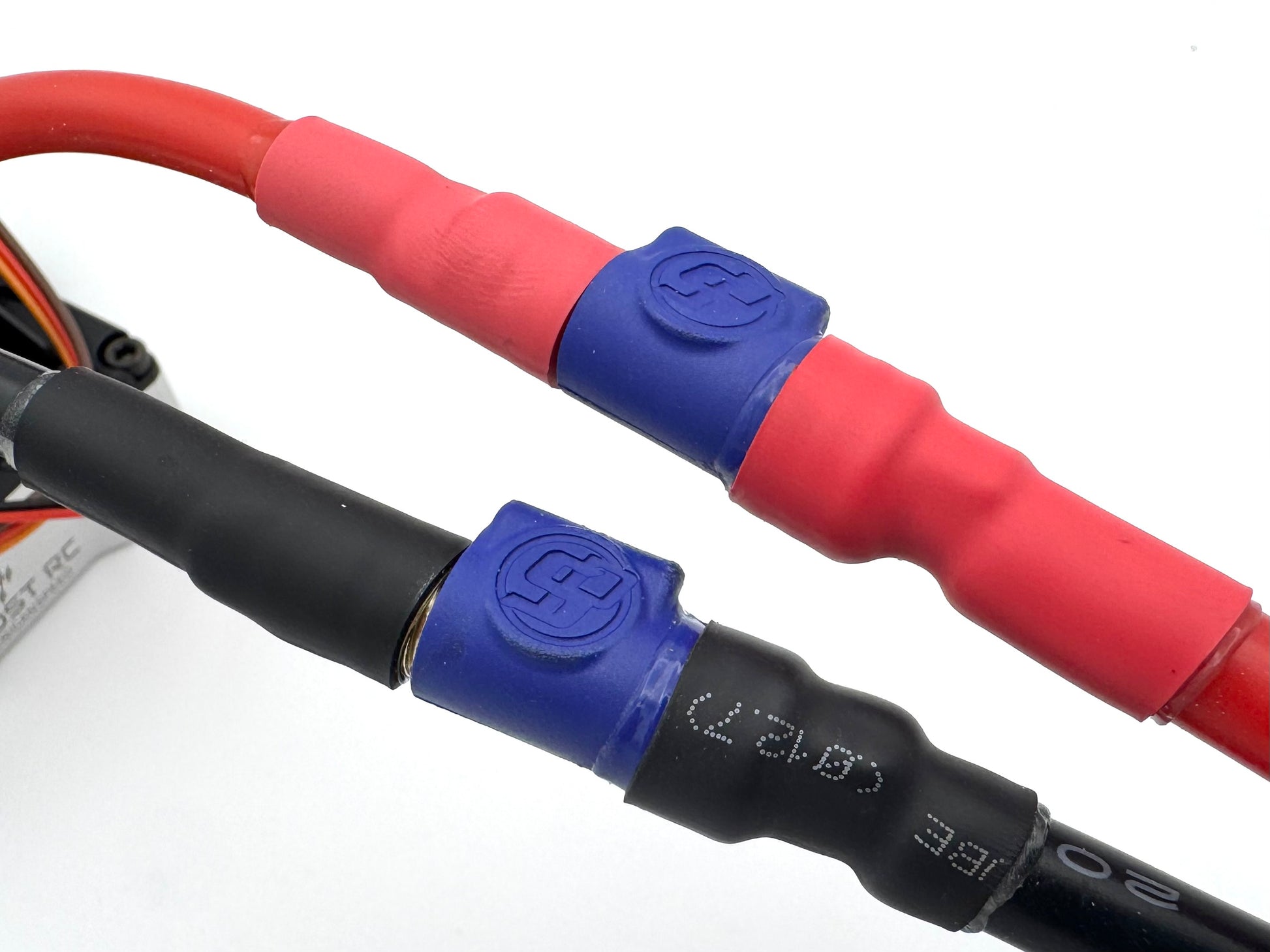

By using single bullet connectors, every connection is 'felt' and verified during every connection. Separation is easy!

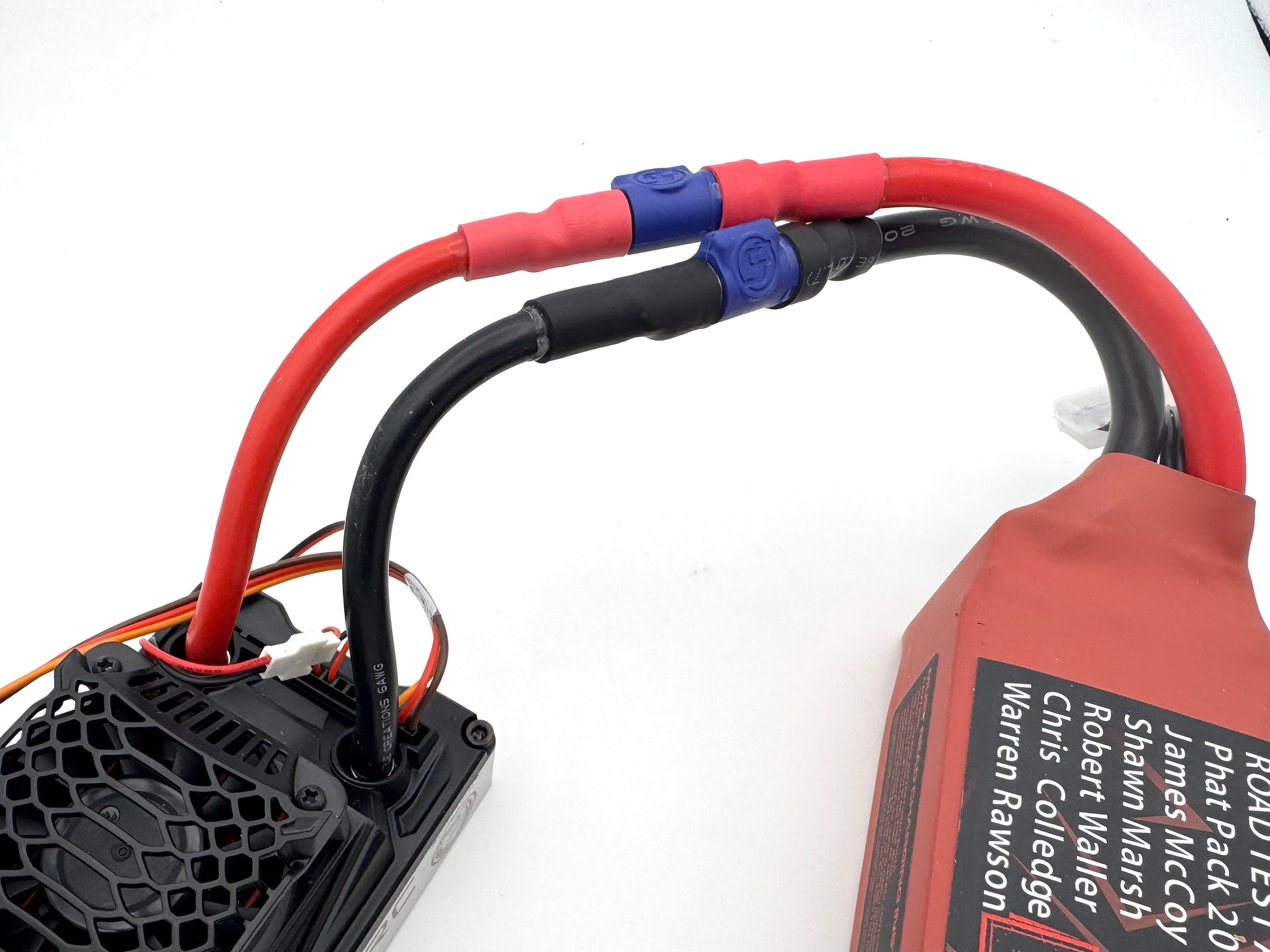

When using multiple batteries, the 'loop' wire on the ESC side can be eliminated.

2 ways to do this:

1) use Male / Female connectors on the battery Negative / Poitive, and connect the batteries directly together, eliminating the loop wire altogether.

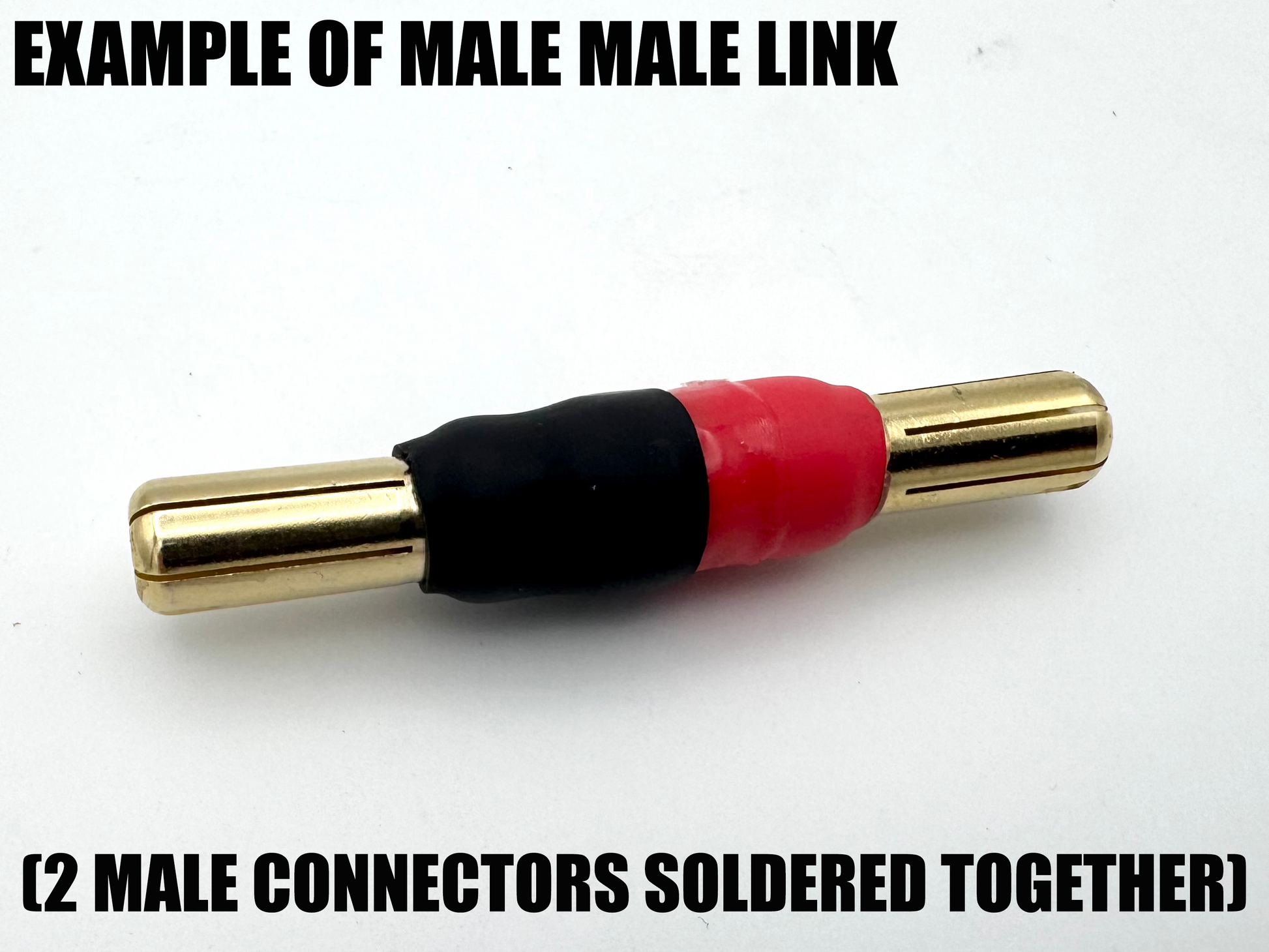

2) Use a double ended male adapter to connect the batteries together. The adapter can be 2 Male bullets soldered directly together, or with a very short section of 7AWG or 6AWG wire

Capable and proven of handling big power for 8S+ rigs, Speed runners and Drag Racers

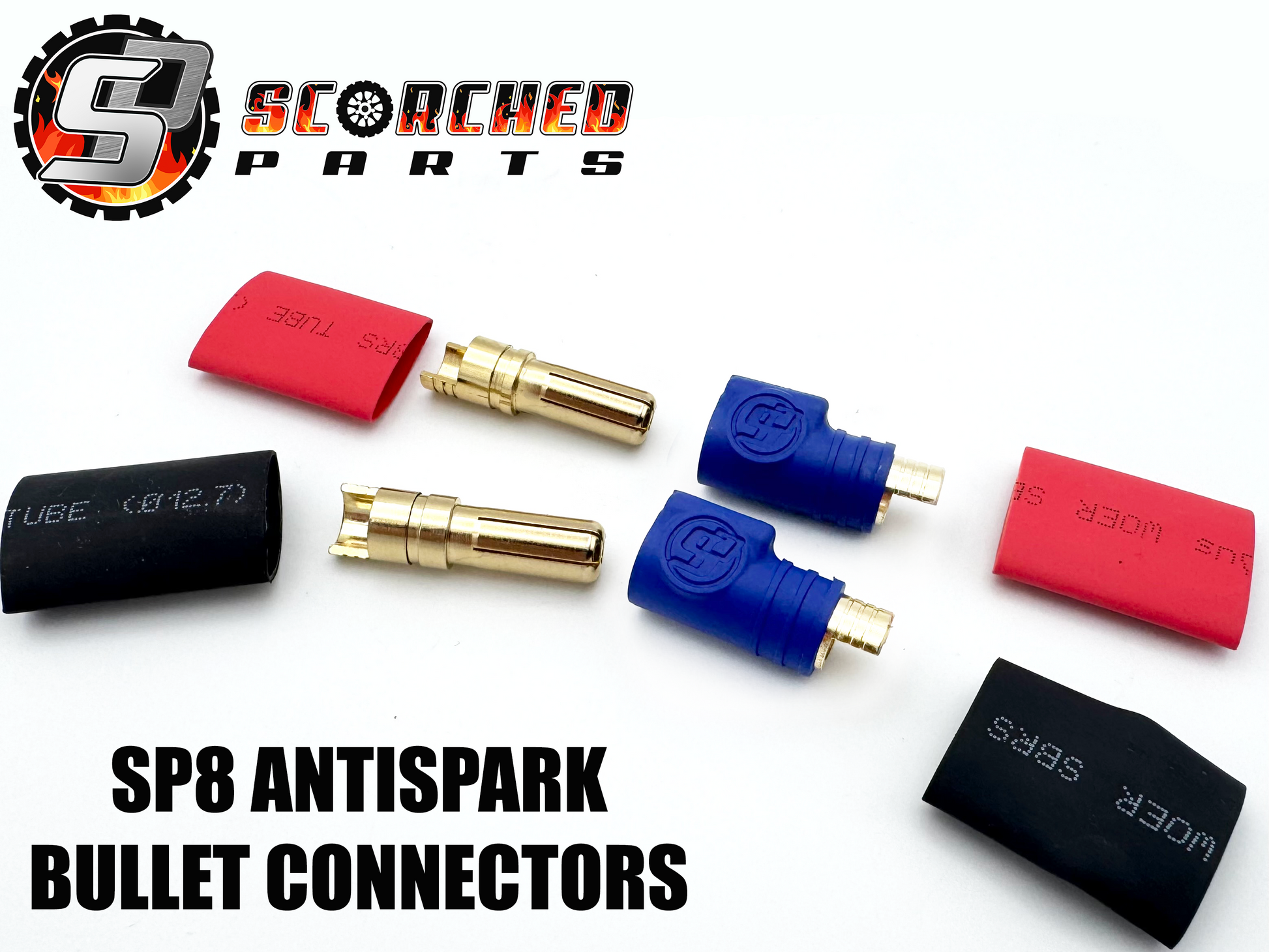

Sold in double pairs (2 male, 2 female connectors)

Includes self adhesive shrink tube in black and red

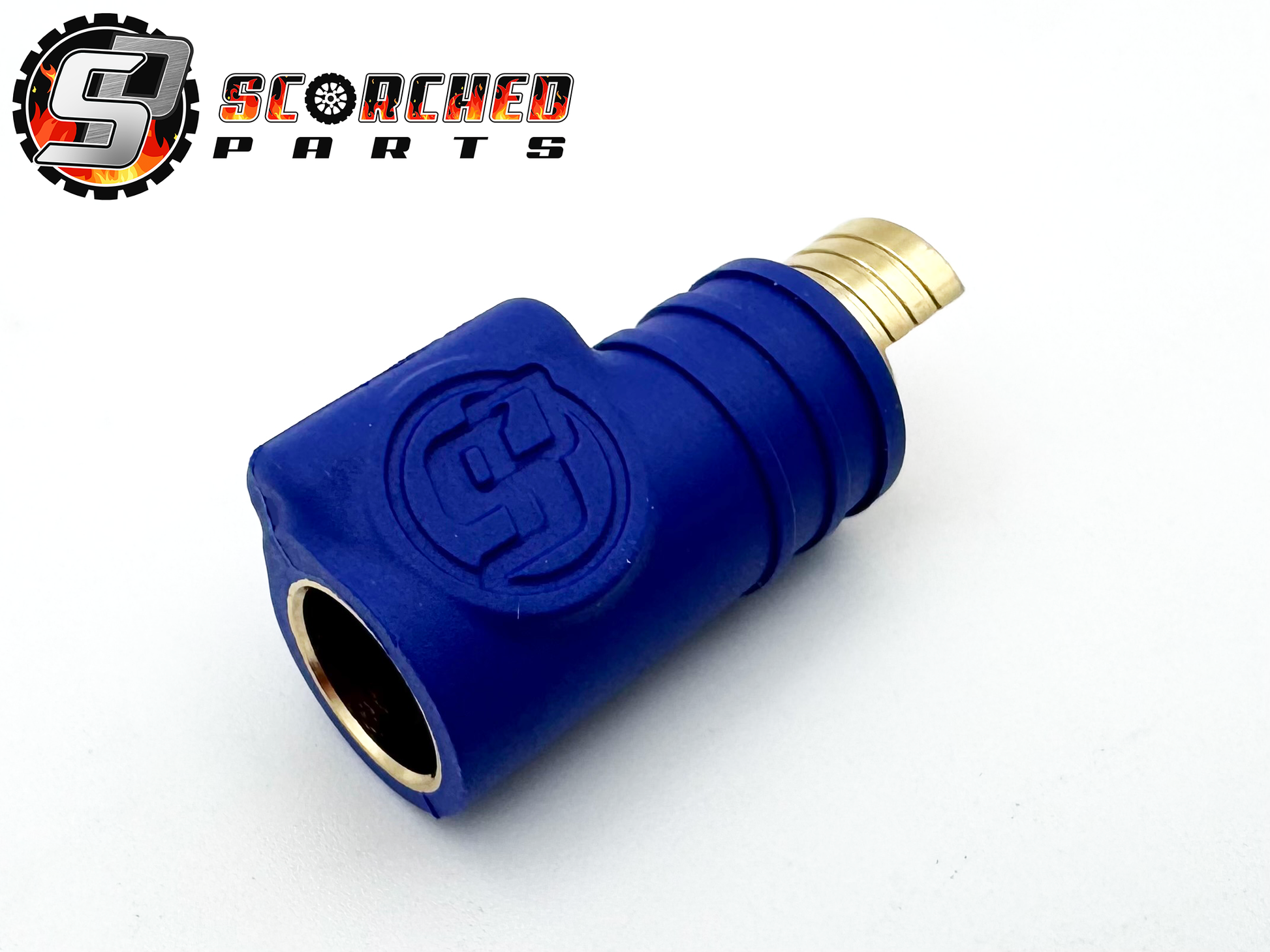

Anyone that's ever powered up a 8s or higher power system know the dreaded spark that scares us all to death and at the same time ruins the connector. This gold plated bullet connector has a anti spark housing that will reduce this spark to almost nothing. These are a must for high current/high voltage brushless power systems.

Specs:
Diameter: 8.00mm

Max momentary peak current in RC car application: 700A

Continuous Current: 130A

Contact resistance: 0.51mΩ

Metal Material: Gold Plated Brass

Plastic Material: Nylon with fiber.

Flame retardant rating: UL94 V2

Temperature Range: -20C to +100C

Max Wire: 7AWG and some 6AWG
