Carbon Fibre GT width Chassis Kit 328mm / Arrma Short Wheelbase

Scorched Parts unique Carbon Fibre and 7075 Chassis, NOW IN SWB / TYPHON FULL LENGTH VERSION! 328mm Wheelbase

This is an Expert level build kit.

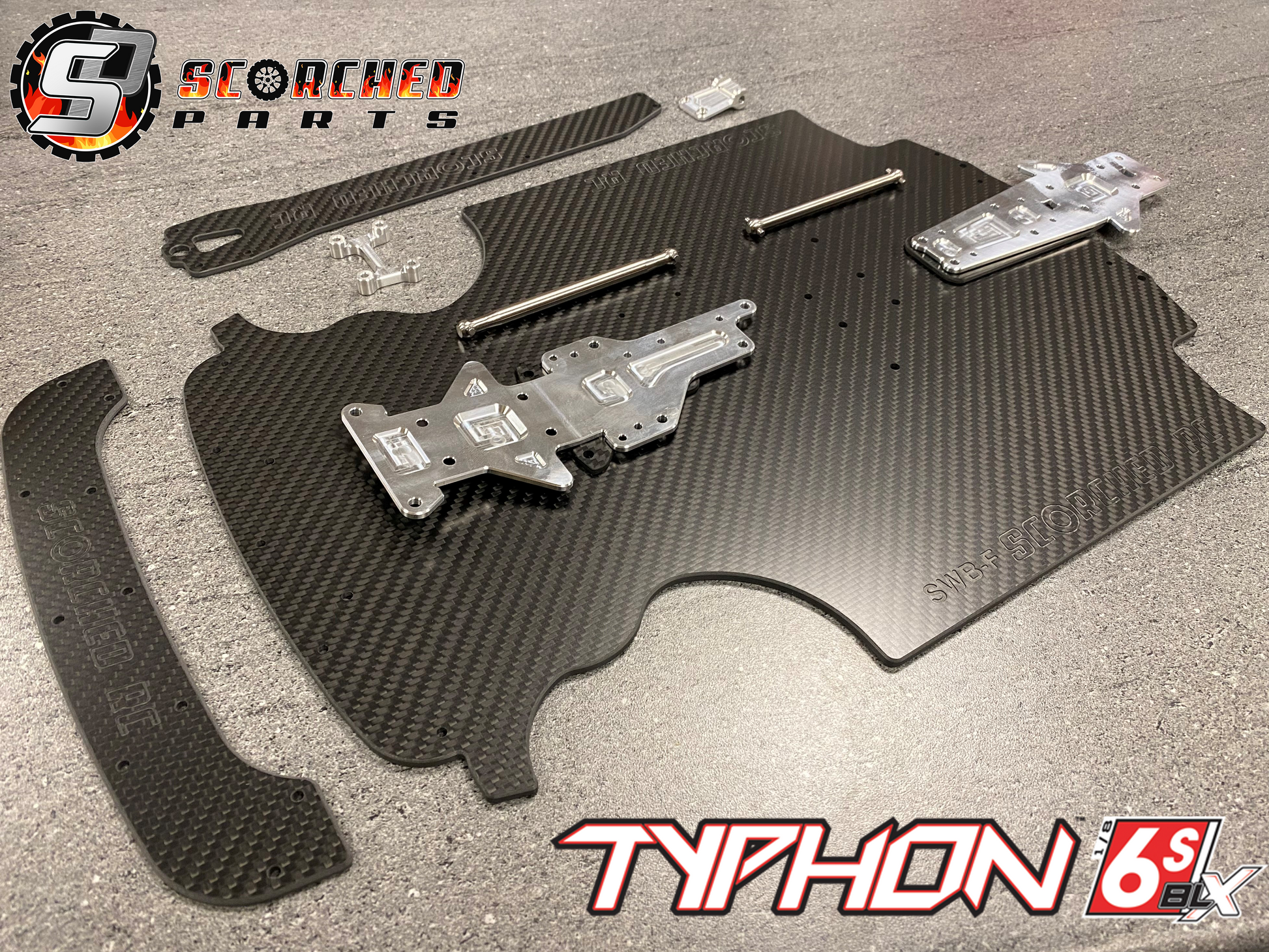

INCLUDES the Carbon fibre FULL LENGTH Chassis kit

INCLUDES full top deck brace assembly

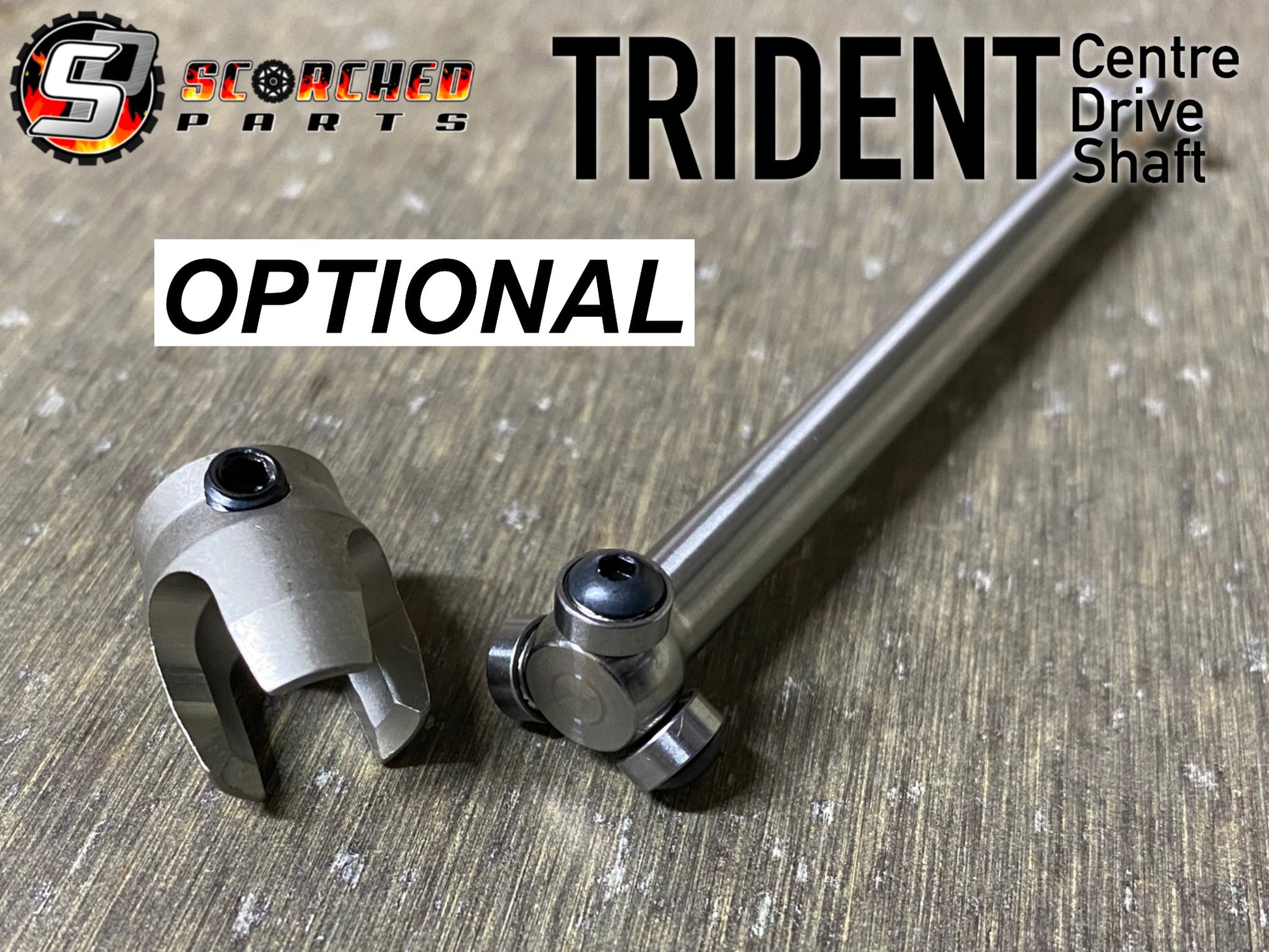

INCLUDES Titanium centre drive shafts (Trident type optional)

Allows use of full Limitless/Infraction type front end and splitter assembly, plus the rear diffuser and rear wing assembly

The centre spool is mounted centrally, straightening out the centre drive shafts, reducing friction and wear. Uses 102mm front and 90mm rear centre shafts (INCLUDED!)

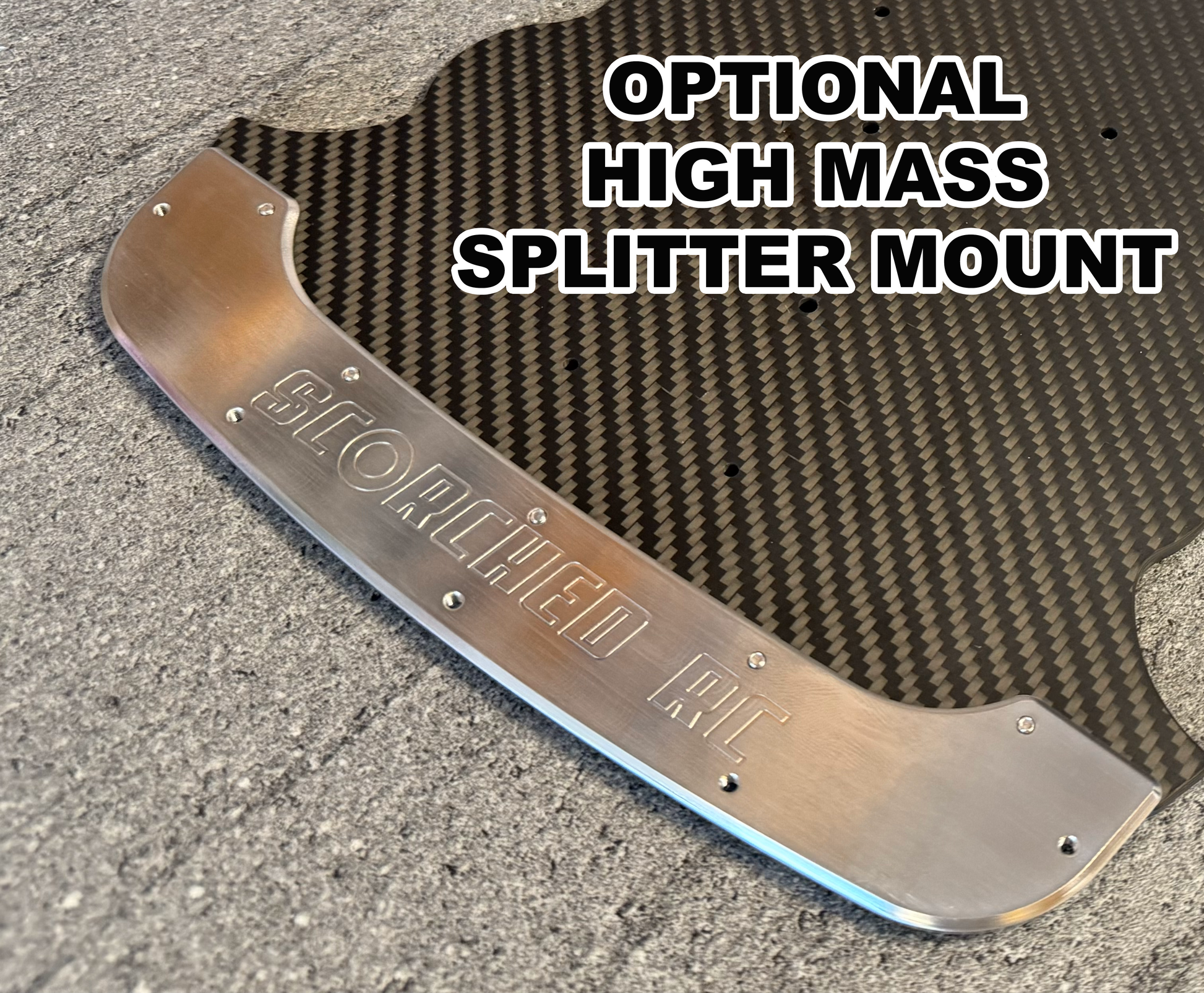

Full 300mm GT width. Ready for fitment of Limitless type front splitters (NOT INCLUDED), plus full rear diffuser and wing

This chassis has a 4mm base giving massive stiffness to resist torque twist. End sections are 7075 T6 aluminium. No problems with droop screws bedding in or weakness in thin sections. Includes correct chassis 'kick up' at the front to maintain correct steering geometry.

Chassis braces are not required, and will not fit.

Made from top quality Toray 3k carbon fibre, providing fantastic strength to weight ratio. Precision machining for a perfect fit and a high quality satin finish.

Chassis is drilled for and Arrma type stand alone servo mount (available separately) and motor mount only.

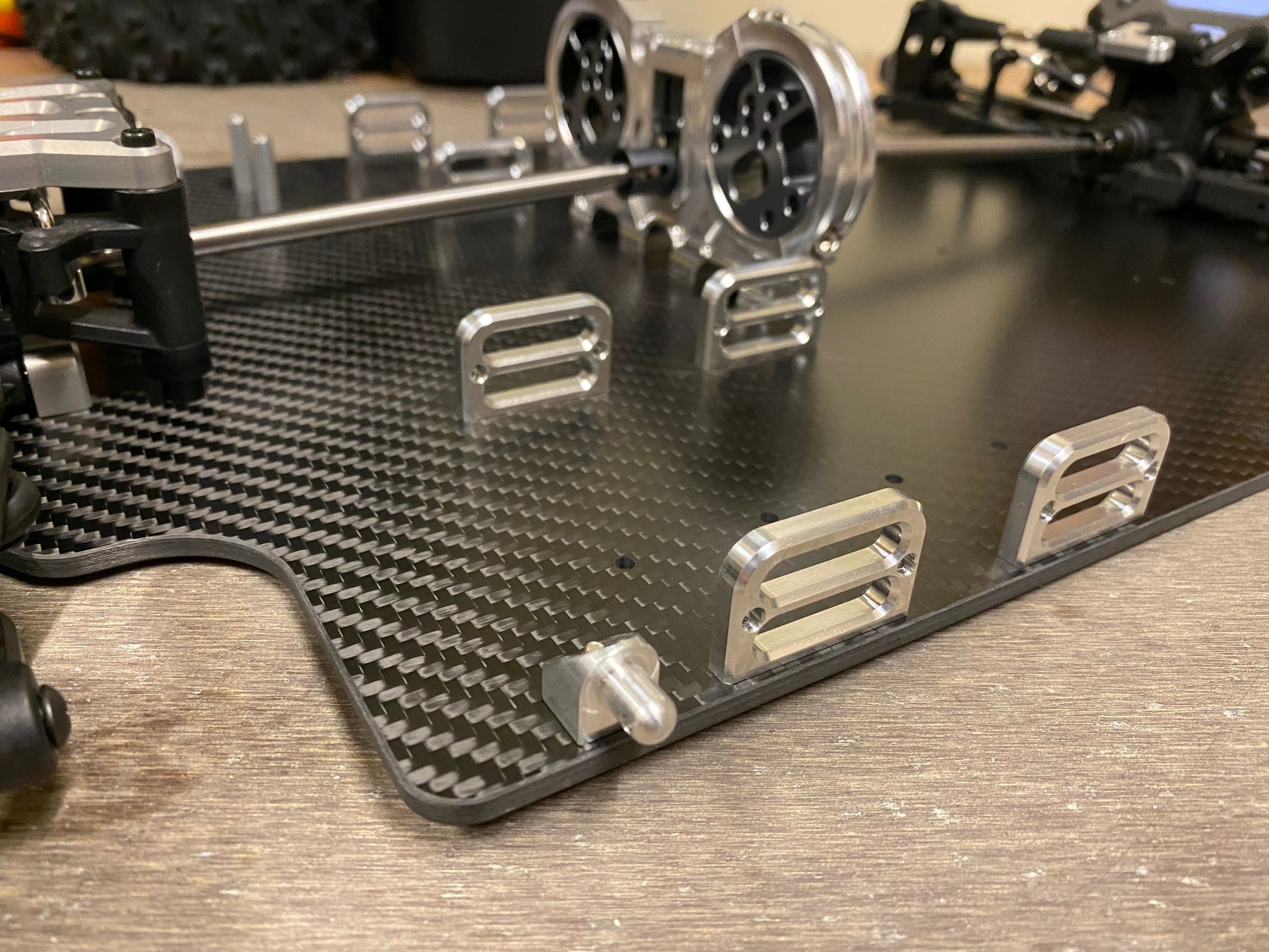

Check out our Side Body Posts and awesome battery strap mounts that enable custom battery positioning!

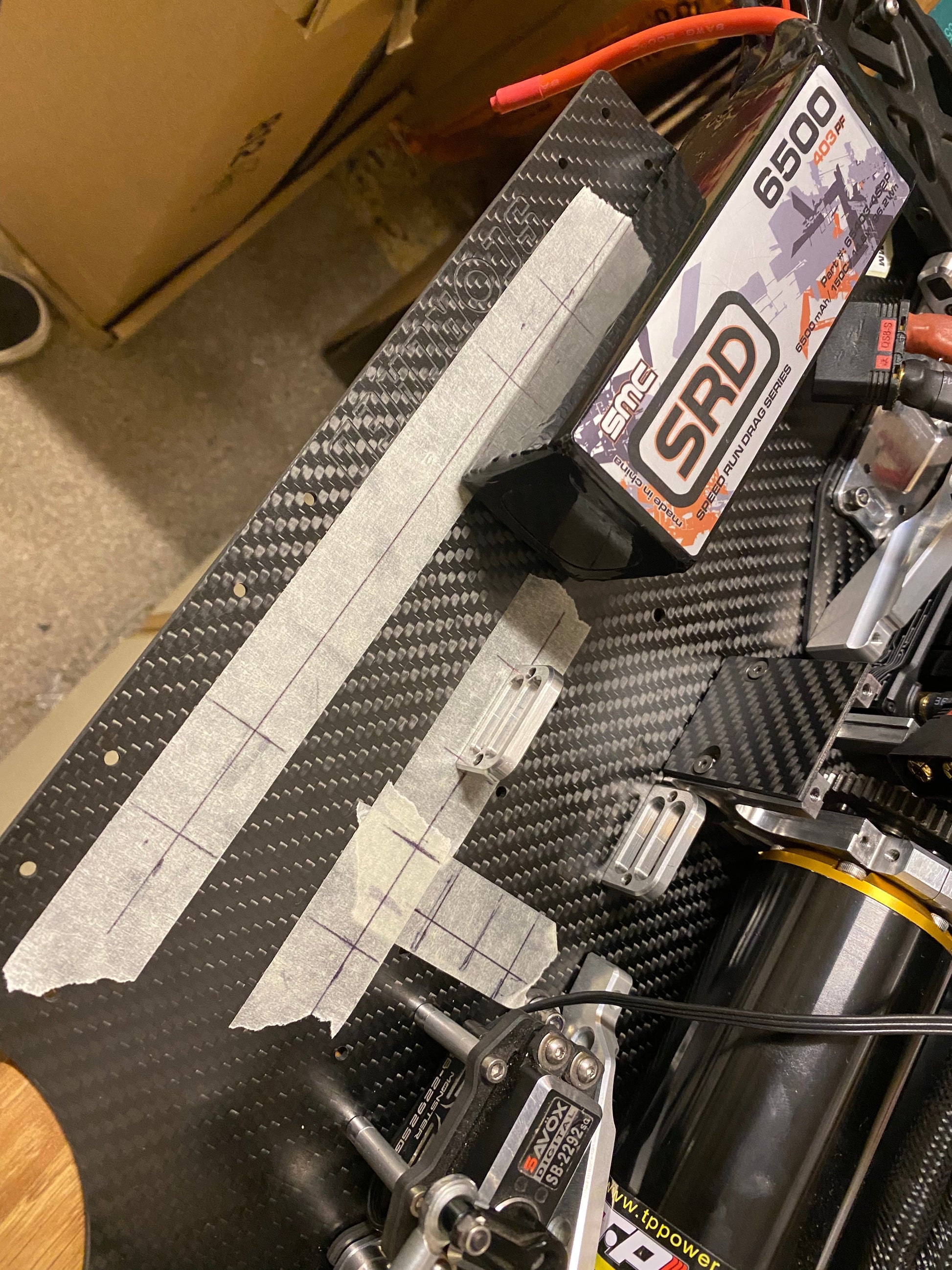

To mount components, we recommend using masking tape to mark out and drill the chassis. Please see our Drill and Countersink set also available on the website

Modifying your RC from stock condition can result in unexpected results. Operation of modified models must take this into account. Always follow the original manufacturers instructions. Whilst we build our parts to the highest standards we are able, like all rc parts, our parts cannot be guaranteed for performance, strength and durability in every situation or configuration. Do not use your RC in public areas. Do not use your RC where unexpected results could cause injury or damage to property. High Speed RCs require GREAT CARE and a responsible attitude to use safely.
