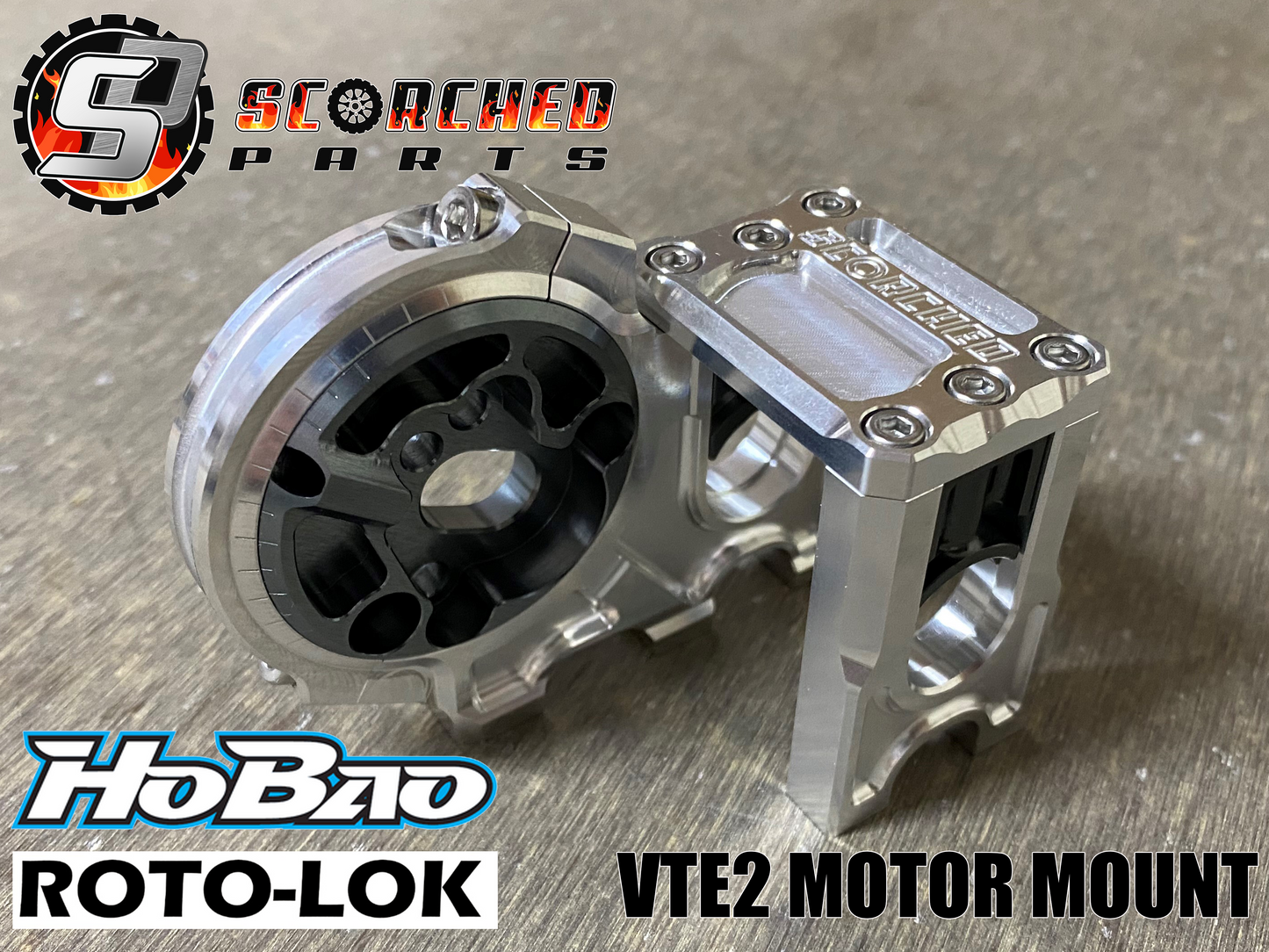

Roto-lok Motormount - for HOBAO VTE VTE2 GTB etc
Roto-lok Motormount - for HOBAO VTE VTE2 GTB etc
Scorched Parts Rotolok heavy duty motor mount. Universal fit for motors with 25, 25.4 and 30mm motor mount spacing and up to 58mm diameter.
NOW IN 7075 T6 ALUMINIUM!
Designed to fit all common motor formats, fitting with three bolts for rock solid mounting. No other mount on the market is able to do this.
The Roto-lok mount offers precision vernier mesh adjustment and a step change in motor rigidity. Machined from 7075 T6 aluminium.
360 degree hoop clamping of the motor gives huge rigidity.
Rotational adjustment with vernier adjustment marks gives precision and great control over mesh setting.
Big range of adjustment:
30mm motor screw spacing: 72 to 96 total tooth count
25mm motor screw spacing: 67 to 100 total tooth count
VTE2 top brace will require two 3mm holes drilling for the bearing retainers (very easy job - just drill through using the metal top plate as a guide)
Max spur gear 52t
