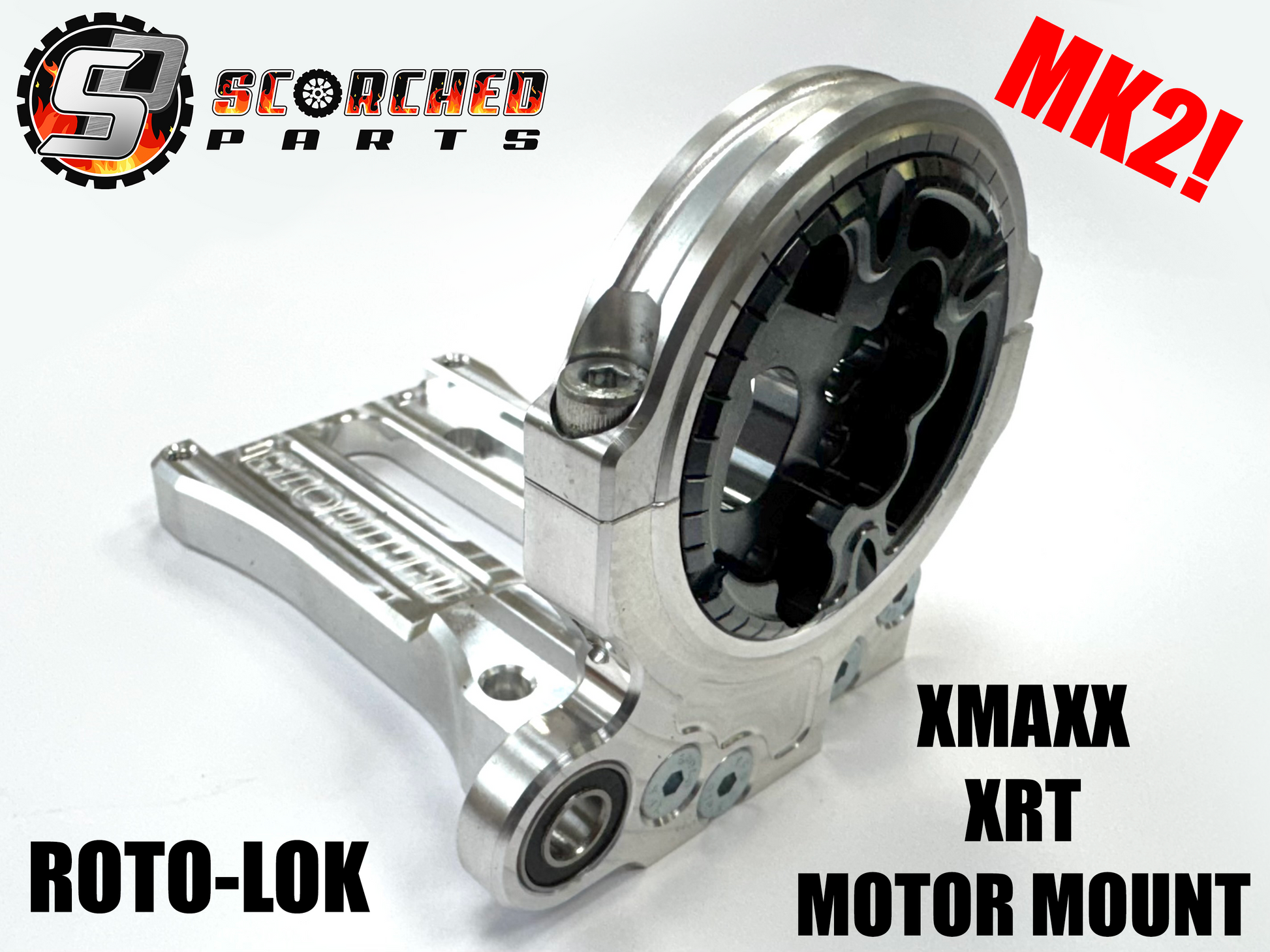

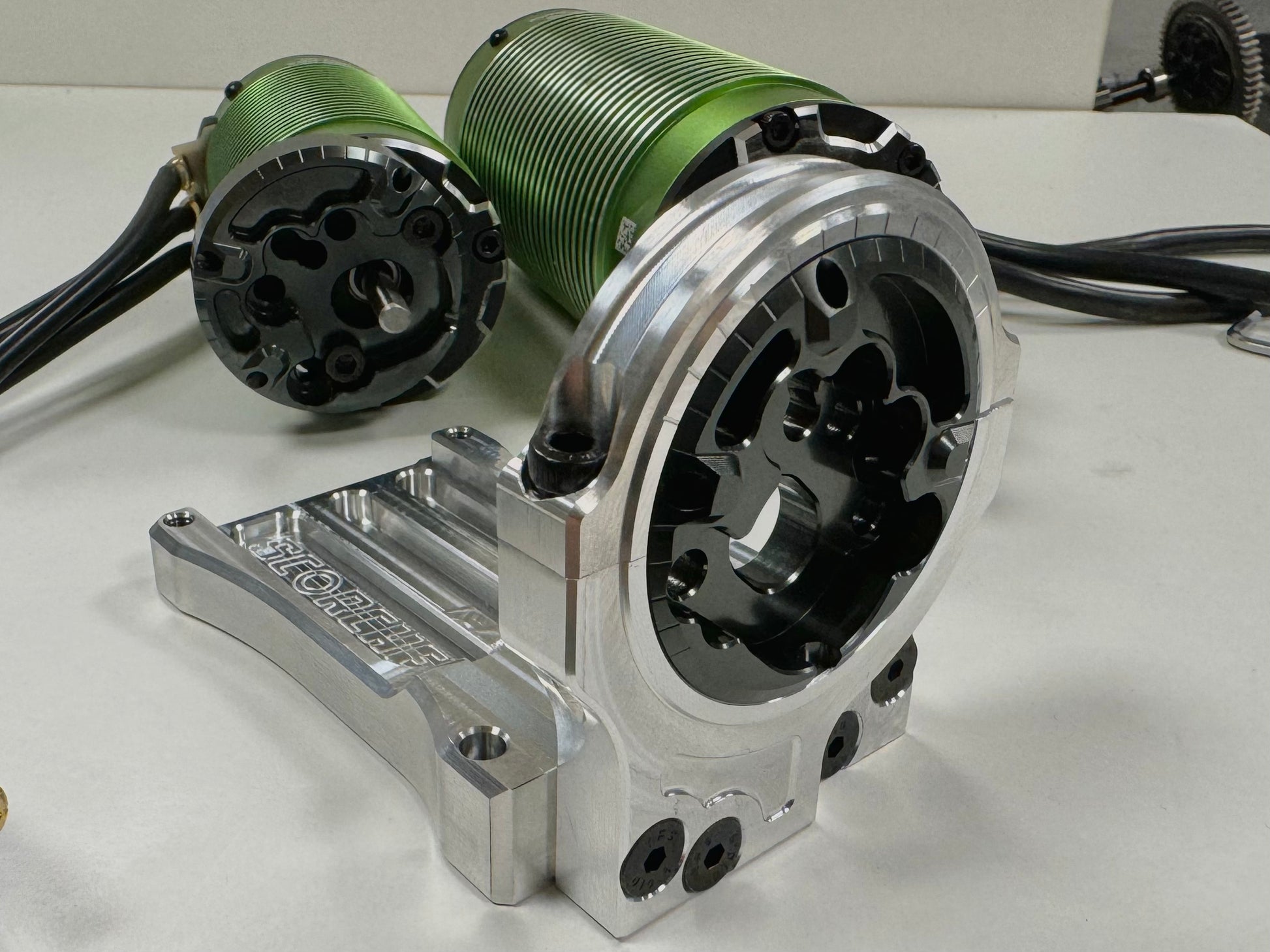

Scorched Parts Roto-lok heavy duty motor mount.
The Roto-lok mount offers a step change in motor rigidity. Machined from 7075 T6 aluminium, they have incredible strength. Where other motor mounts support the motor on thin arms, once the rotolok is assembled the parts are locked together and act as a single solid body. Crash tested in our speed car multiple times over 200mph and proven at a world record breaking 224mph!
UNIVERSAL fit for all common upgrade or replacement motors with 25, 25.4 and 30mm motor mount spacing and up to 56mm diameter. (Stock motor does not fit)
Ideal for Hobbywing Max6, Max5 and Castle Creations 17 series and 2028 Motors
With the Rotolok mount, all motors get the extra rigidity of 3 bolt fixing. For powerful motors that weight up to 1kg, we felt that 2 small M4 screws was not enough!

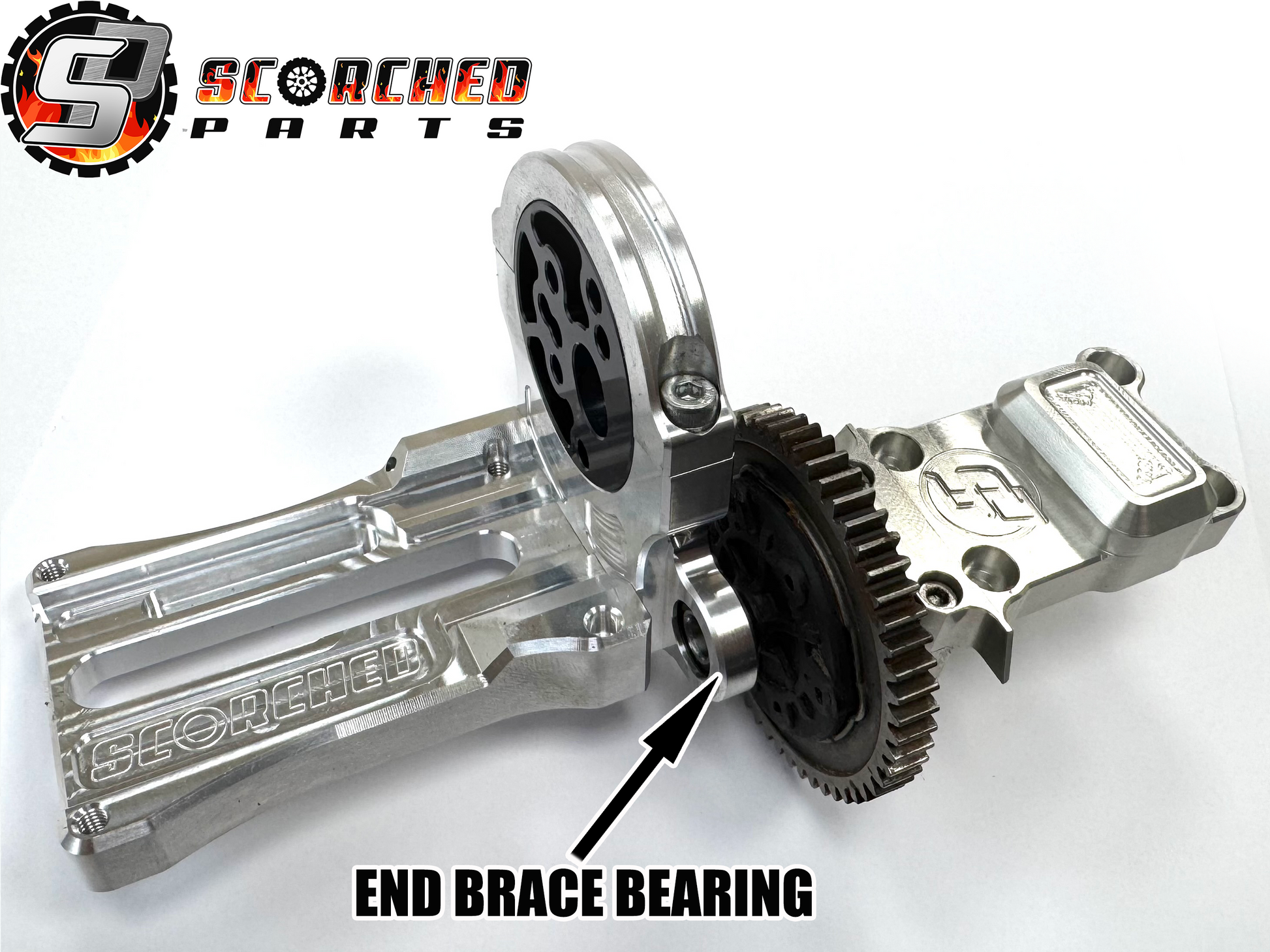

2 part construction using 4 high tensile steel bolts to give great strength at the critical corner region.

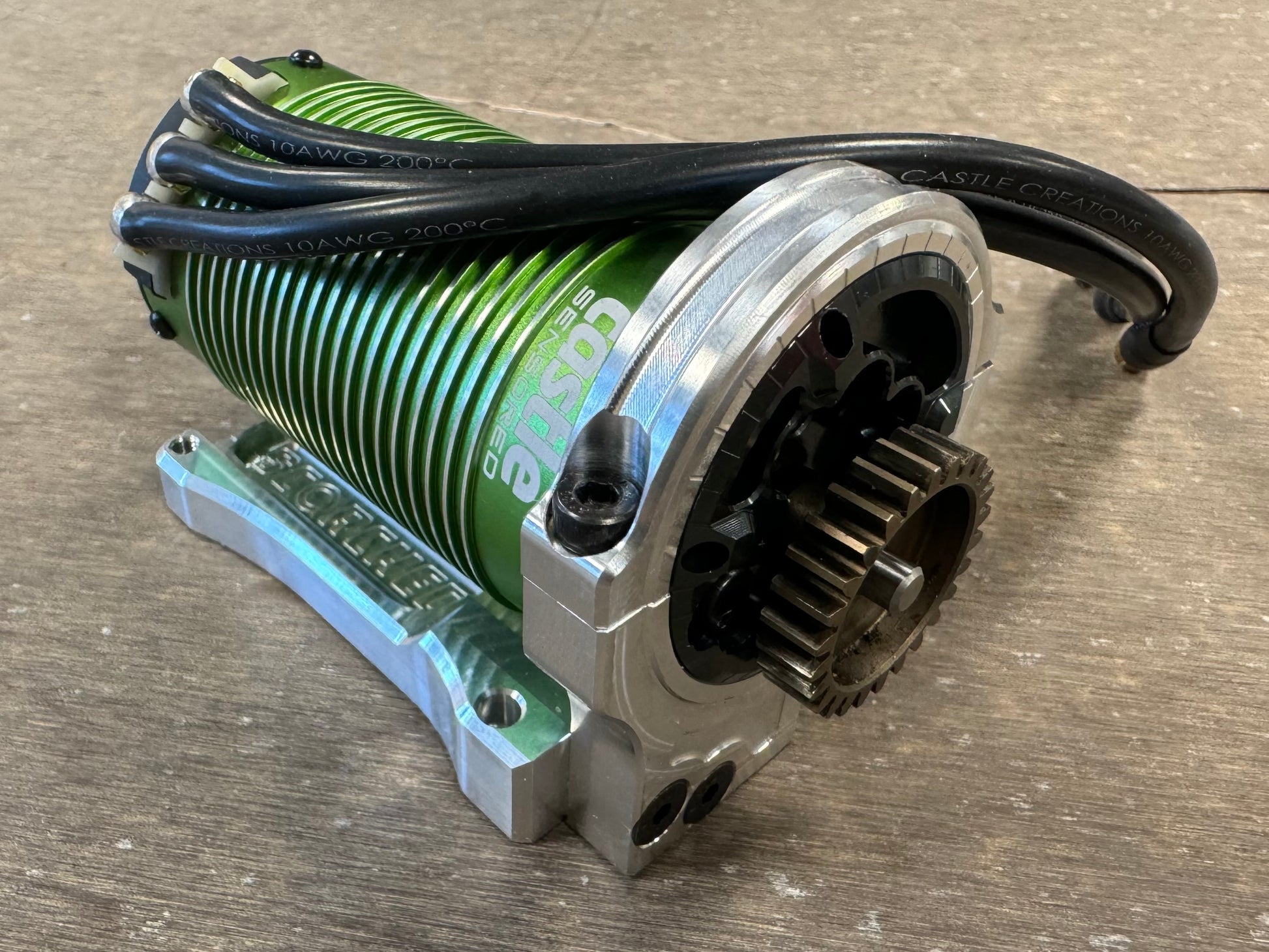

360 degree hoop clamping of the motor solidly locks in the mesh setting and won't interfere with mesh setting as you tighten it. Nothing else on the market is as easy to adjust!
Rotational adjustment with vernier adjustment marks gives unmatched precision and control over mesh setting. Adjustment is incredibly easy, fast and precise.
Big range of adjustment:

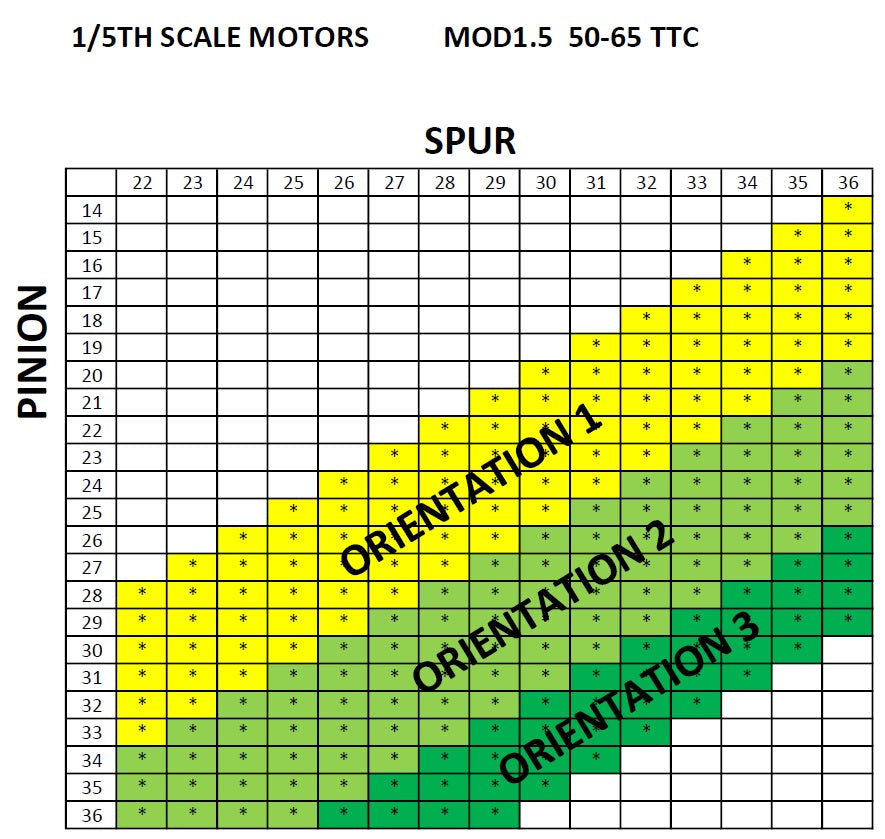

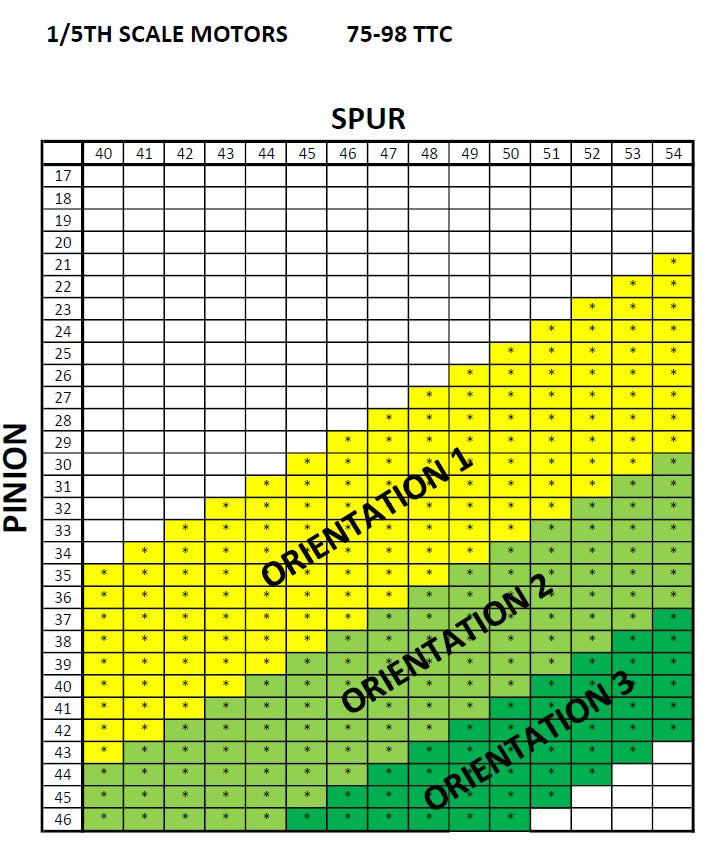

1/5th Scale motors: 75 to 98 total tooth count

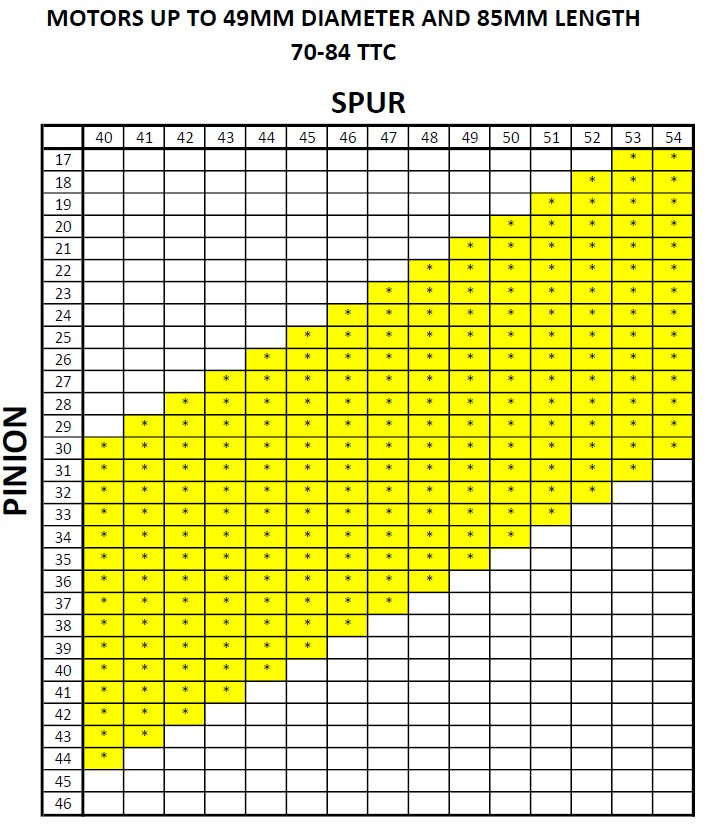

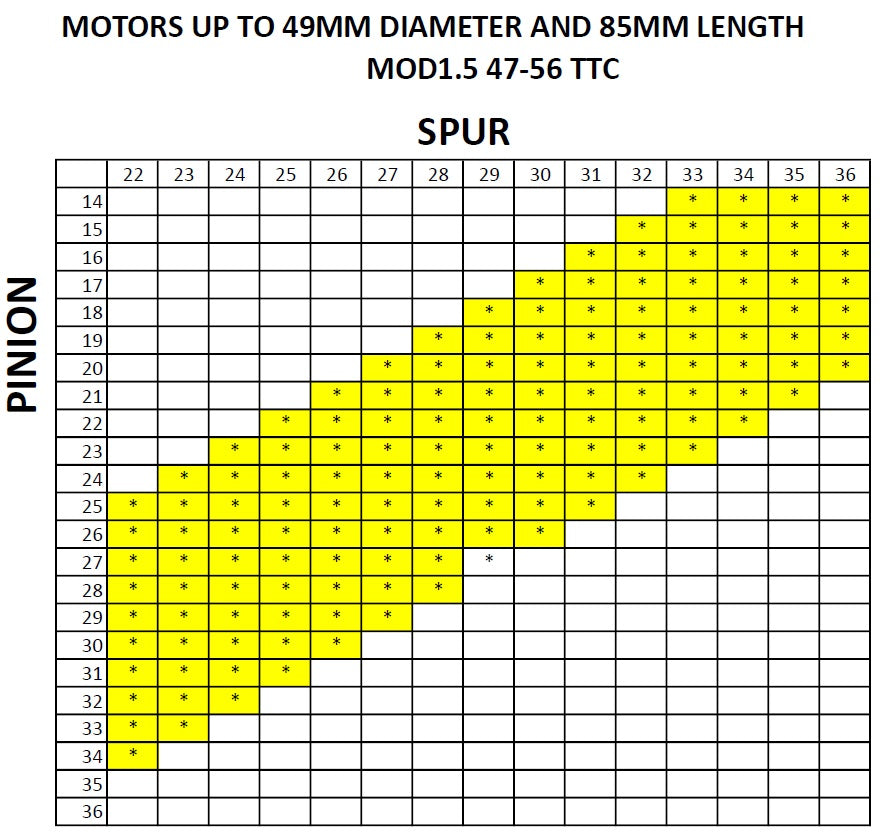

Up to 4985 size mount motors: 70 to 86 total tooth count

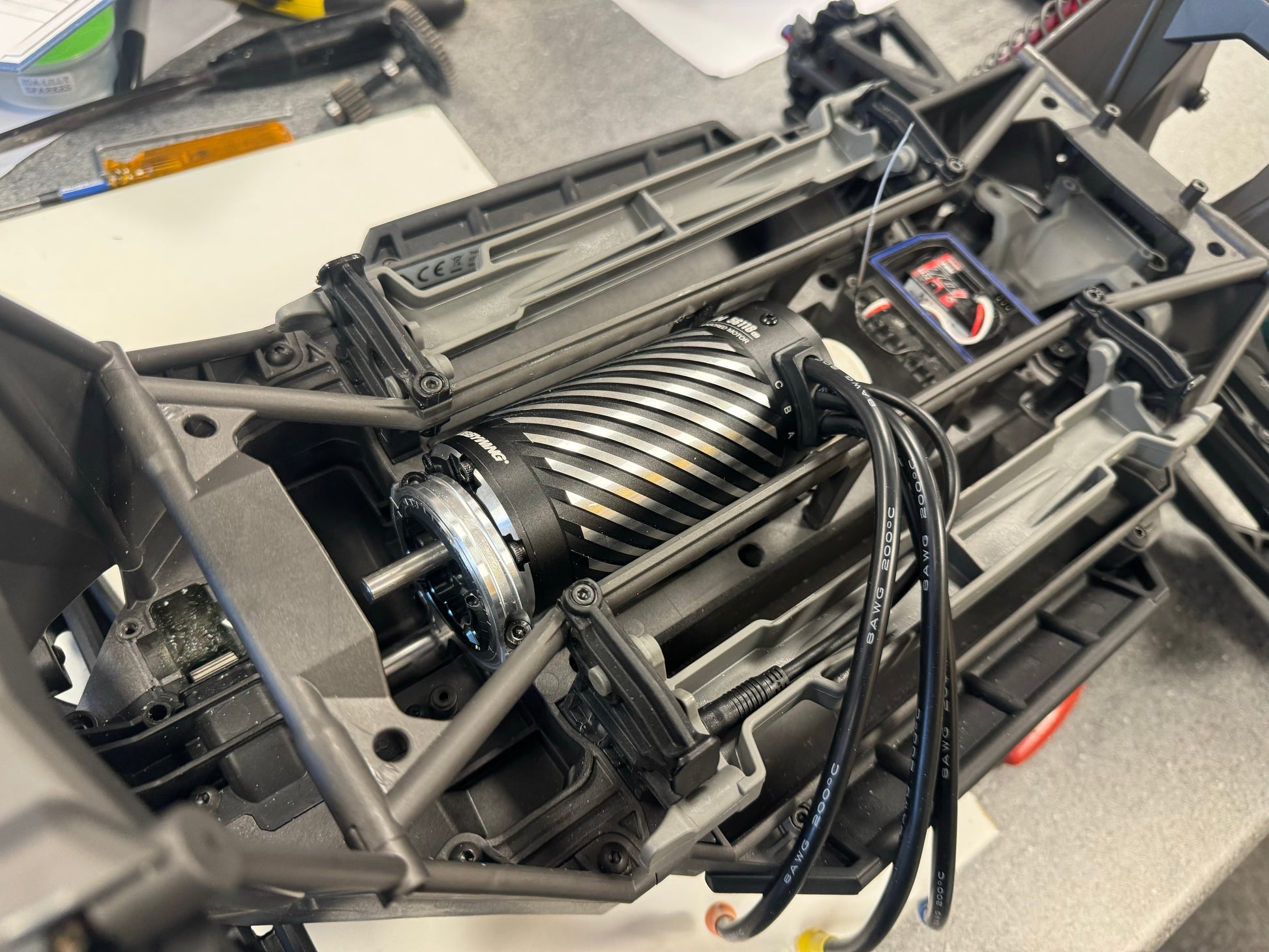

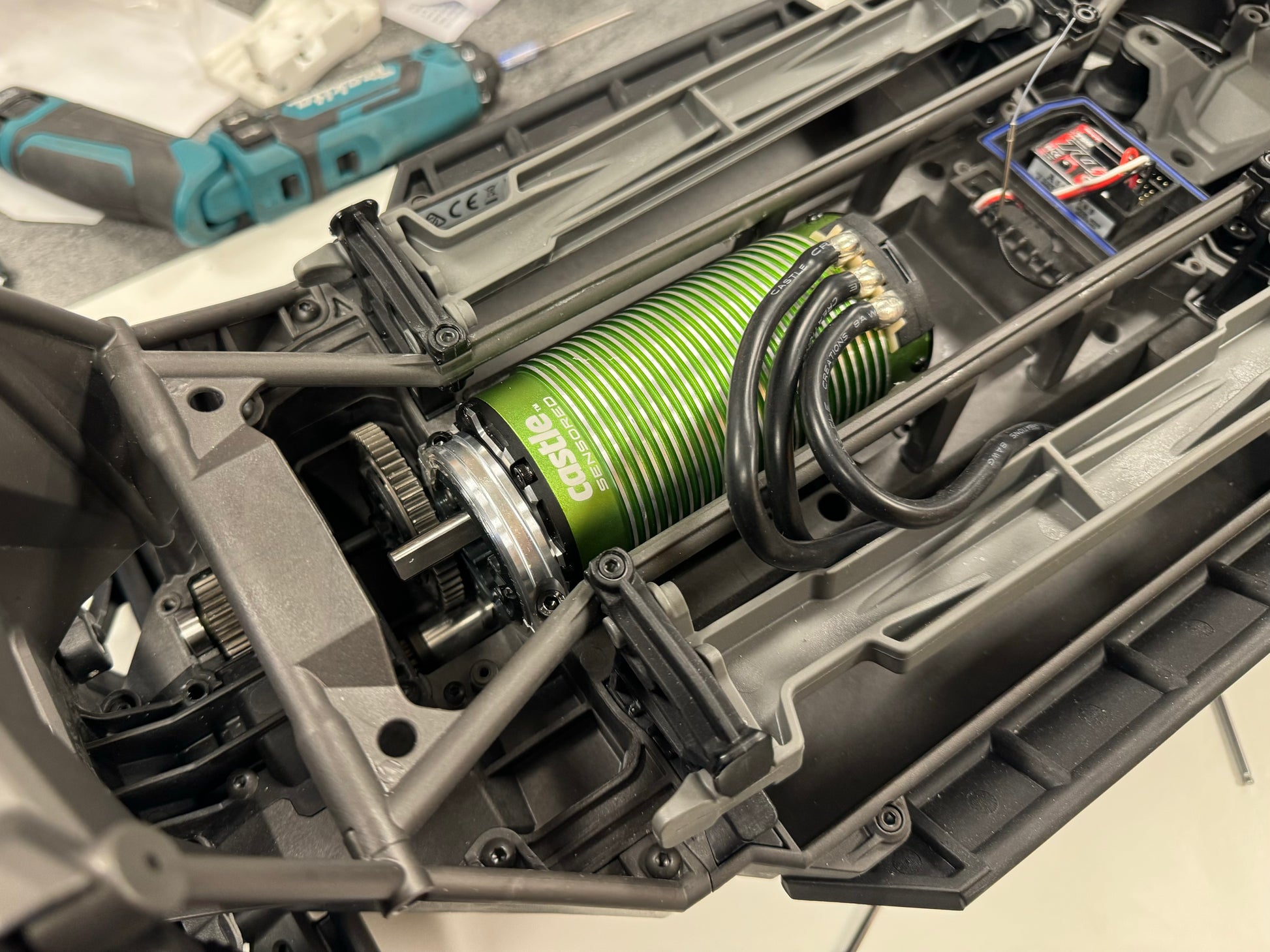

Gearing recommendations: We are always being asked about gearing! Everyone has their own preferences, and different experienced people will tell you different things. In our test truck, we have a Castle 2028 1100kv. I run 37/50 Mod1 gears (our own gears, obviously!) This gives a good balance between high speed, drivability, motor heat and amp draw for MY driving style and locations. For an 800kv motor, the same top speed would require perhaps 43/43 gearing, or gears to give the same ratio
