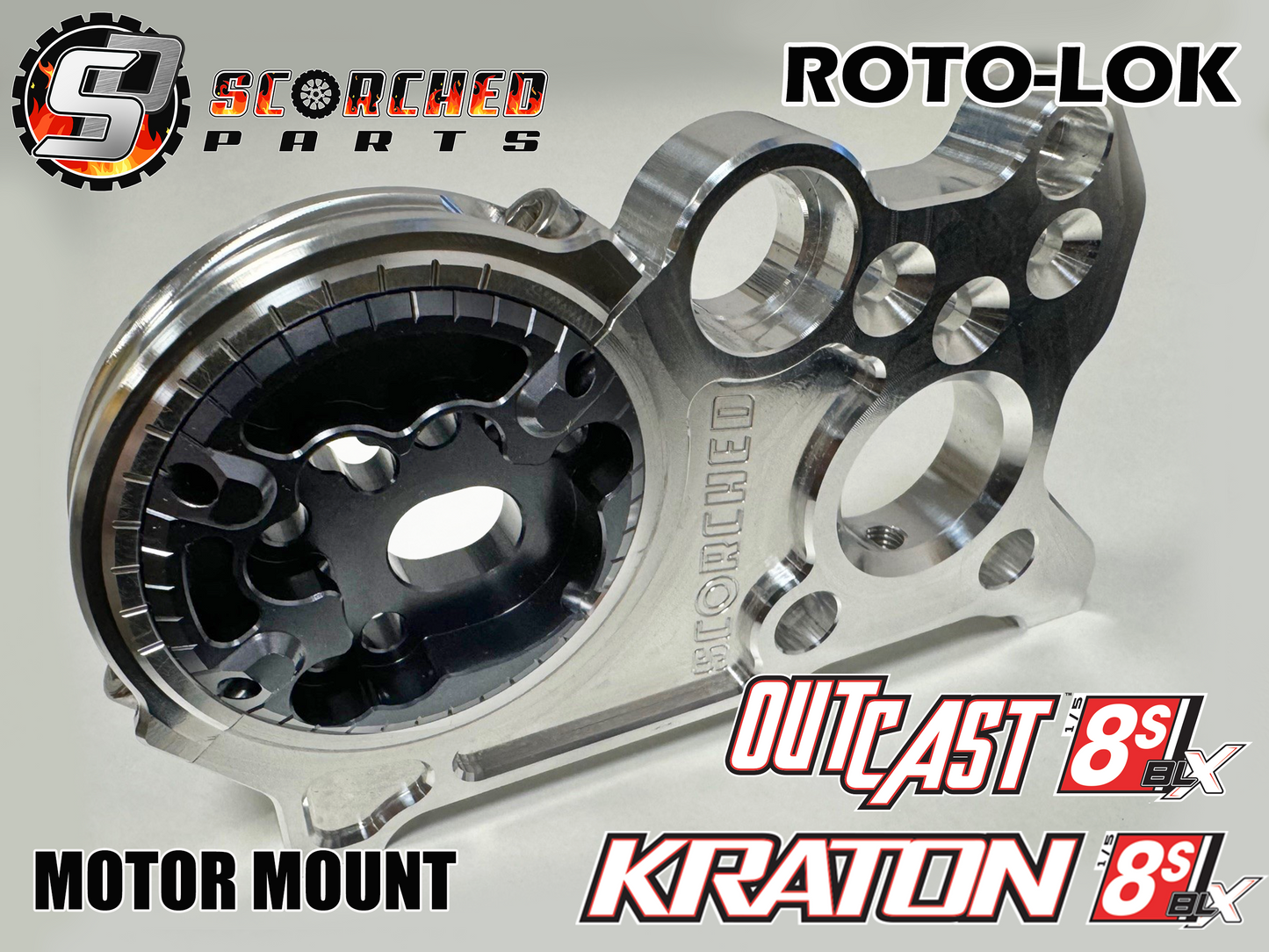

Roto-lok Motormount - for Arrma 8s Kraton and Outcast

Scorched Parts Roto-lok heavy duty motor mount.

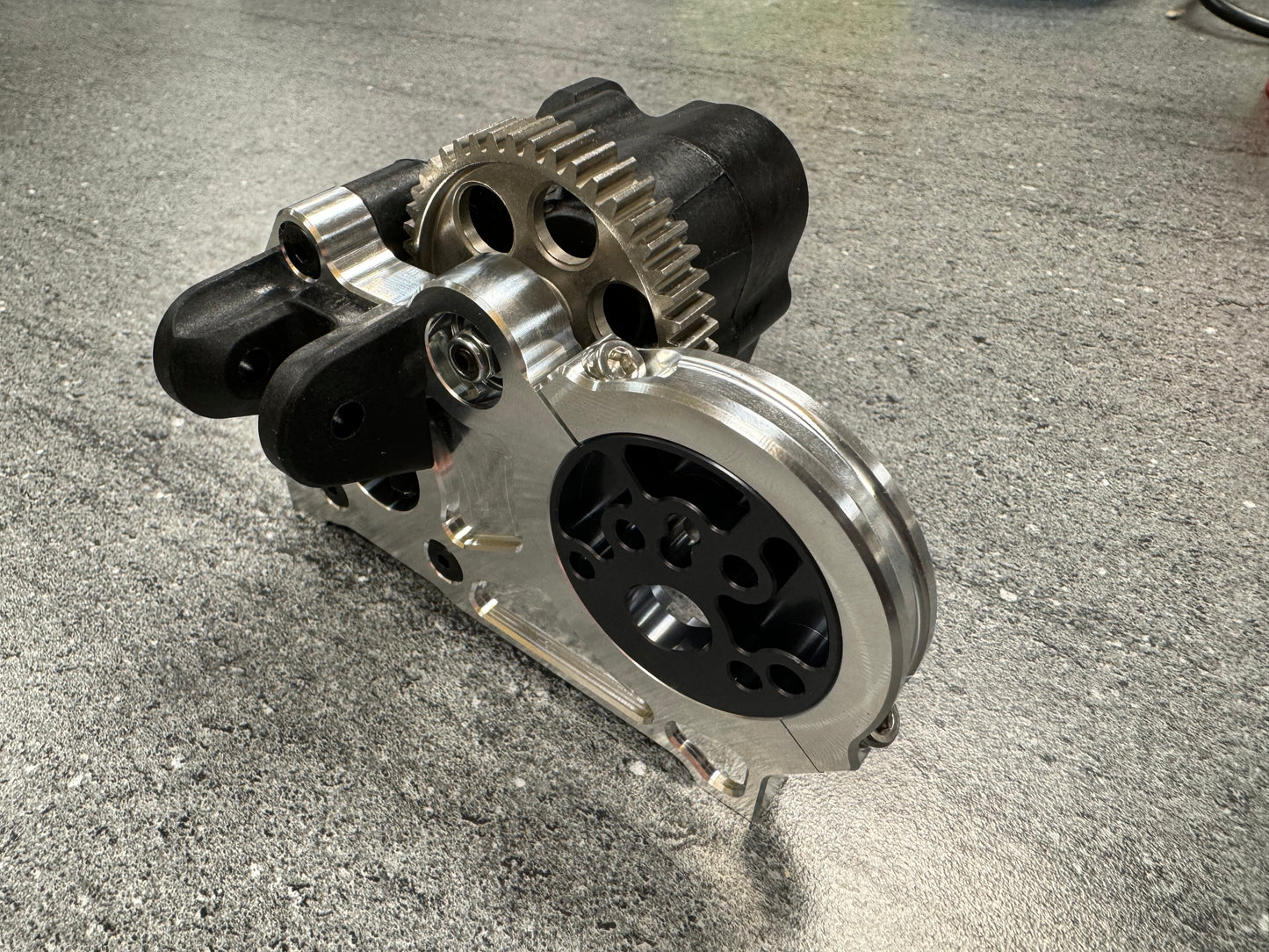

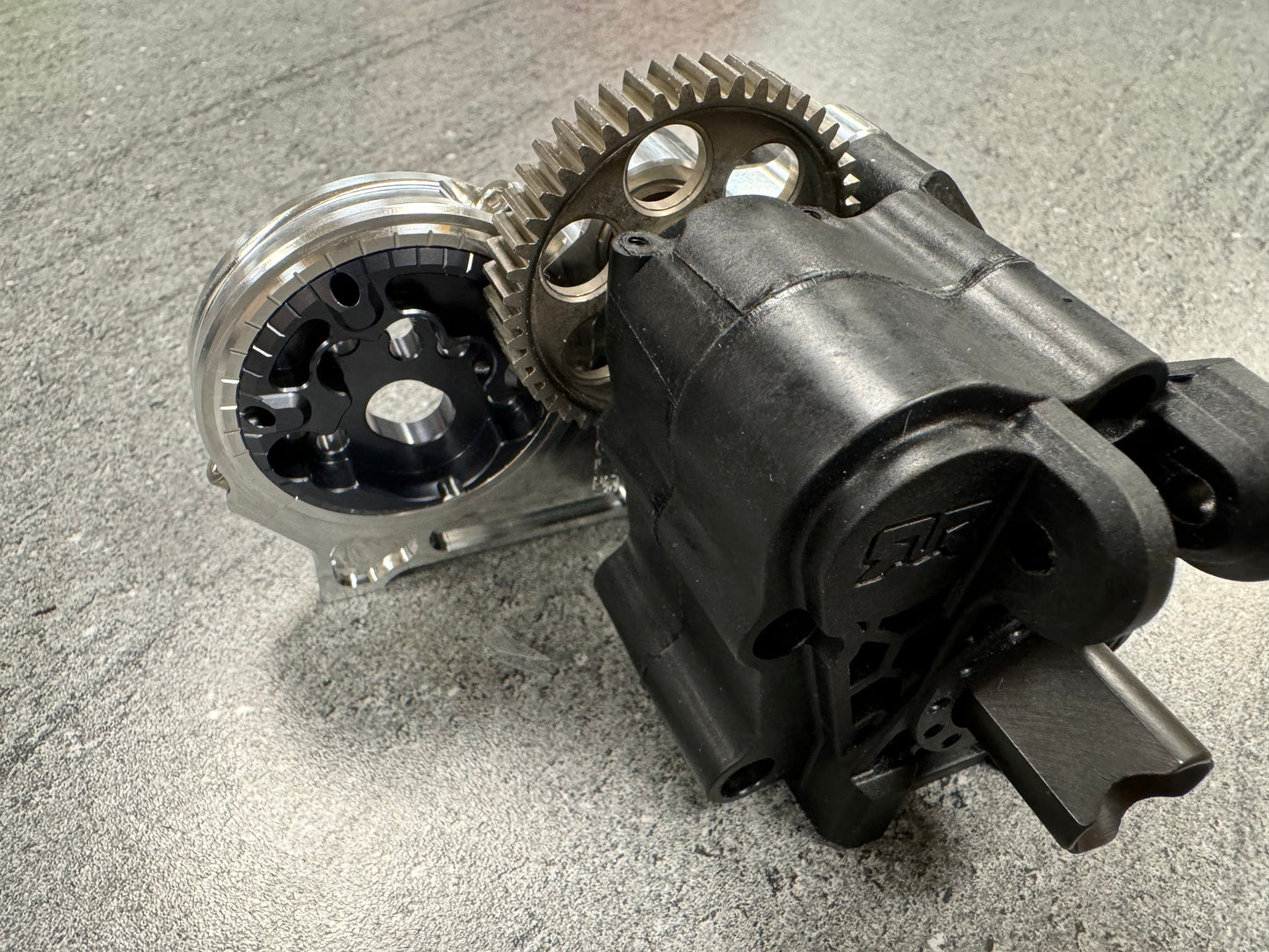

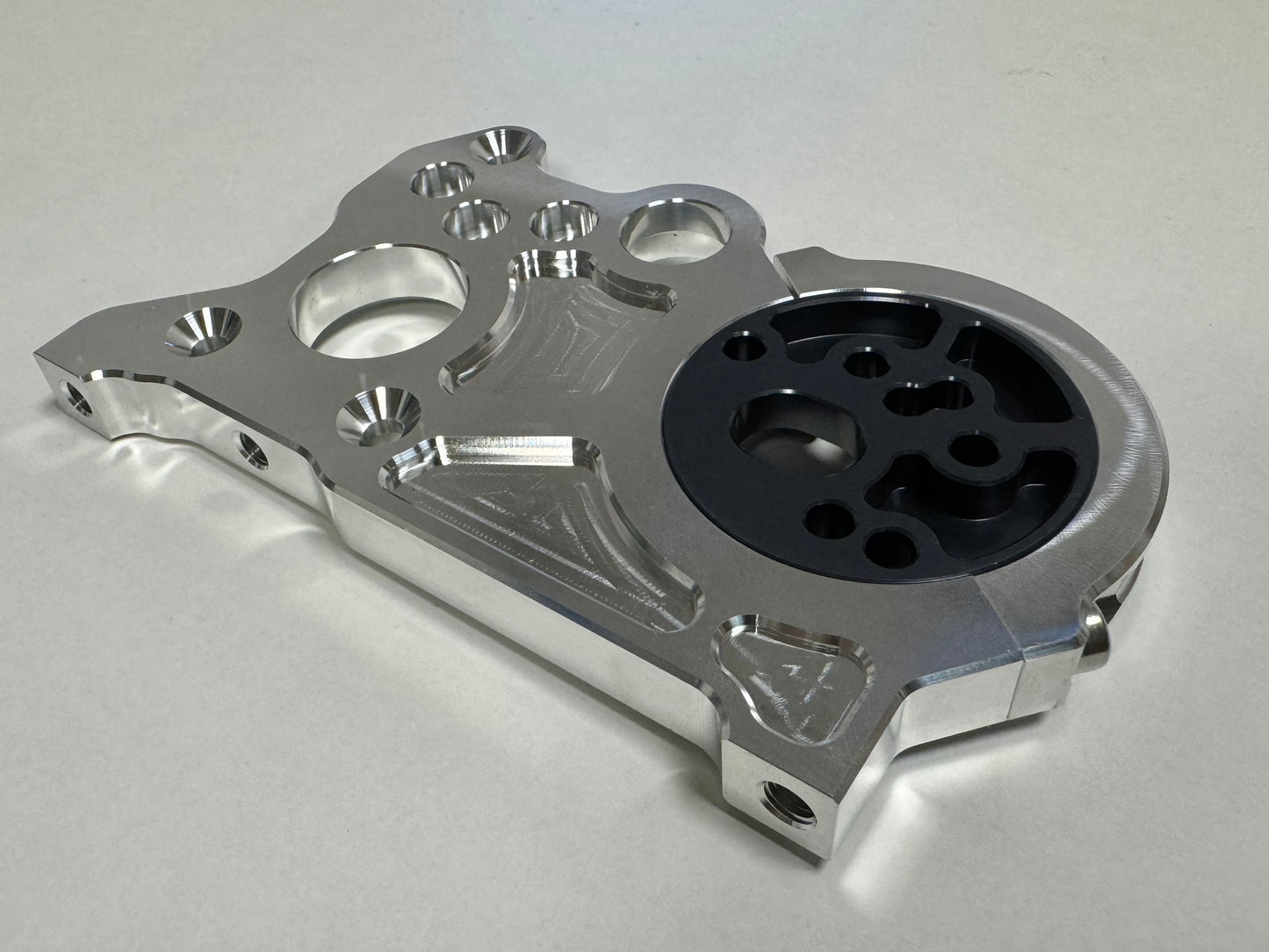

The Roto-lok mount offers a step change in motor rigidity. Machined from 7075 T6 aluminium, they have incredible strength. Where other motor mounts support the motor on thin arms, once the rotolok is assembled the parts are locked together and act as a single solid body. Crash tested in our speed car multiple times over 200mph and proven at a world record breaking 219mph!

UNIVERSAL fit for all common upgrade or replacement motors with 25, 25.4 and 30mm motor mount spacing and up to 56mm diameter. (Stock motor does not fit)

Ideal for Hobbywing Max6, Max5 and Castle Creations 17 series and 2028 Motors

With the Rotolok mount, all motors get the extra rigidity of 3 bolt fixing. For powerful motors that weight up to 1kg, we felt that 2 small M4 screws was not enough!

Huge gearing range! Pinion gears with stock 47t idler:

Smaller Motors (25mm mount spacing) 13T-46T

Bigger Motors (30mm mount spacing) 15T - 42T

360 degree hoop clamping of the motor solidly locks in the mesh setting and won't interfere with mesh setting as you tighten it. Nothing else on the market is as easy to adjust!

Rotational adjustment with vernier adjustment marks gives unmatched precision and control over mesh setting. Adjustment is incredibly easy, fast and precise.

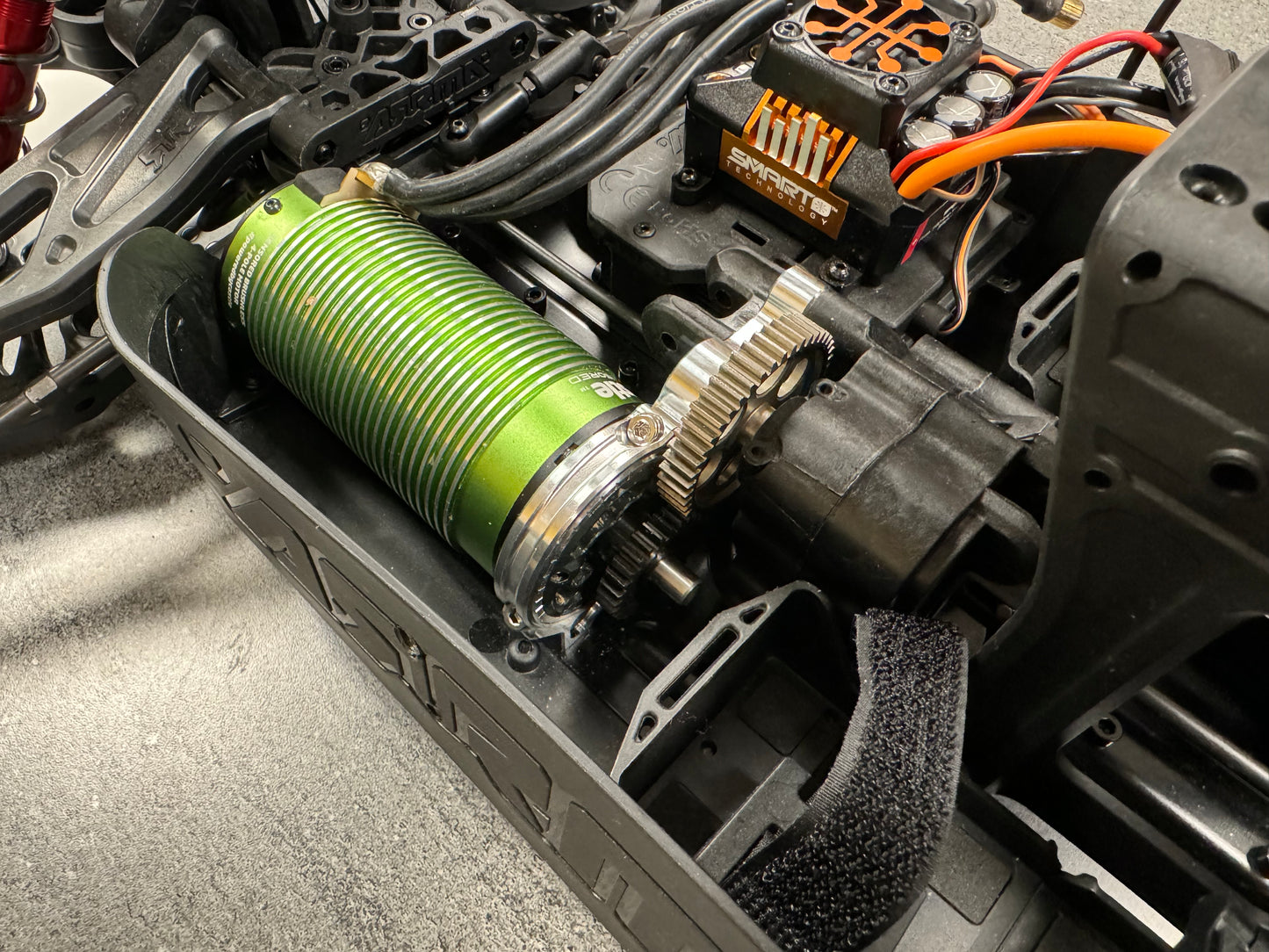

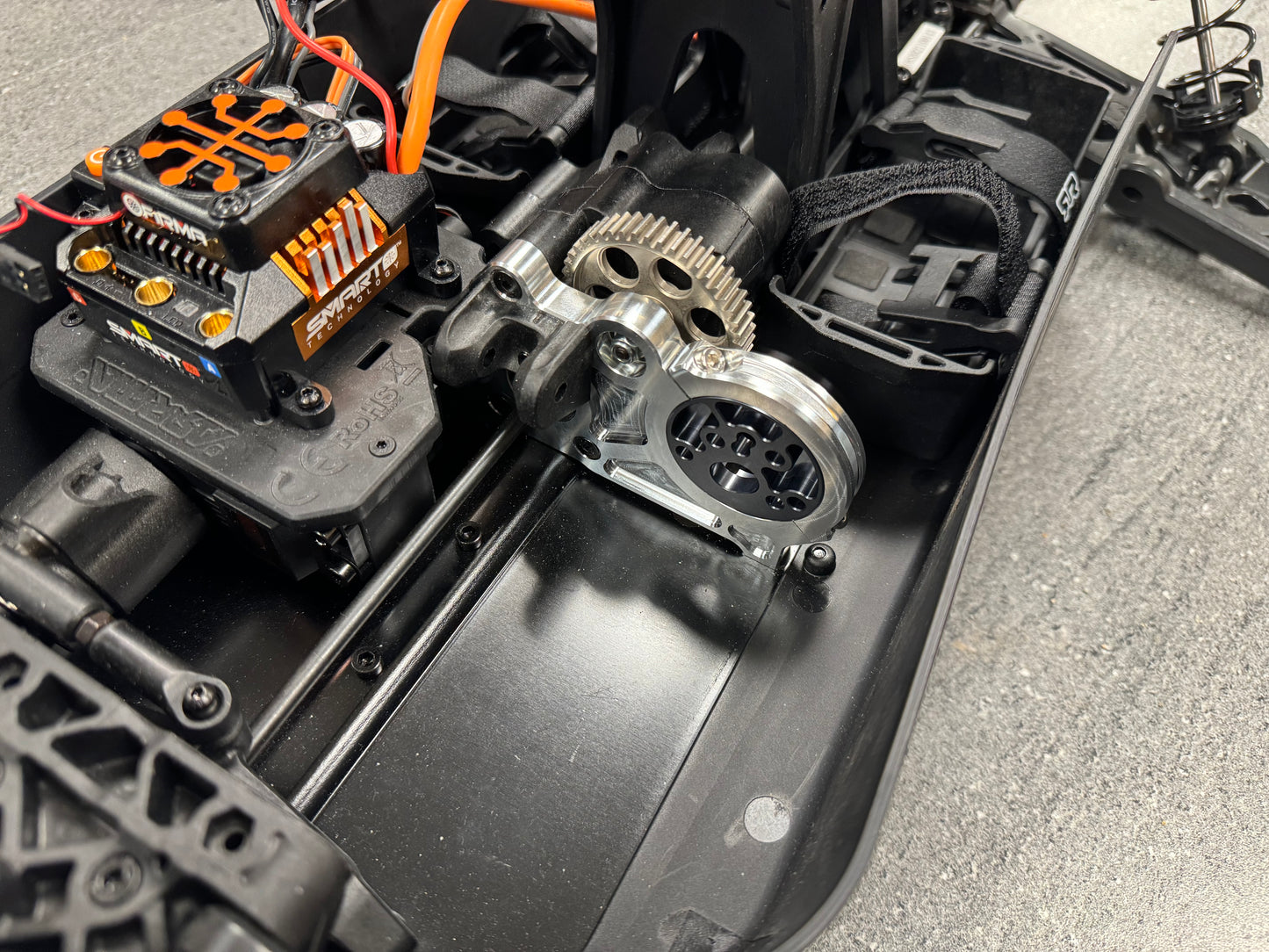

Requires a small hole drilling in the side guard - as pictured.

Motors can be fitted in a low or high position.

Modifying your RC from stock condition can result in unexpected results. Operation of modified models must take this into account. Always follow the original manufacturers instructions. Whilst we build our parts to the highest standards we are able, like all rc parts, our parts cannot be guaranteed for performance, strength and durability in every situation or configuration. Do not use your RC in public areas. Do not use your RC where unexpected results could cause injury or damage to property. High Speed RCs require GREAT CARE and a responsible attitude to use safely.
