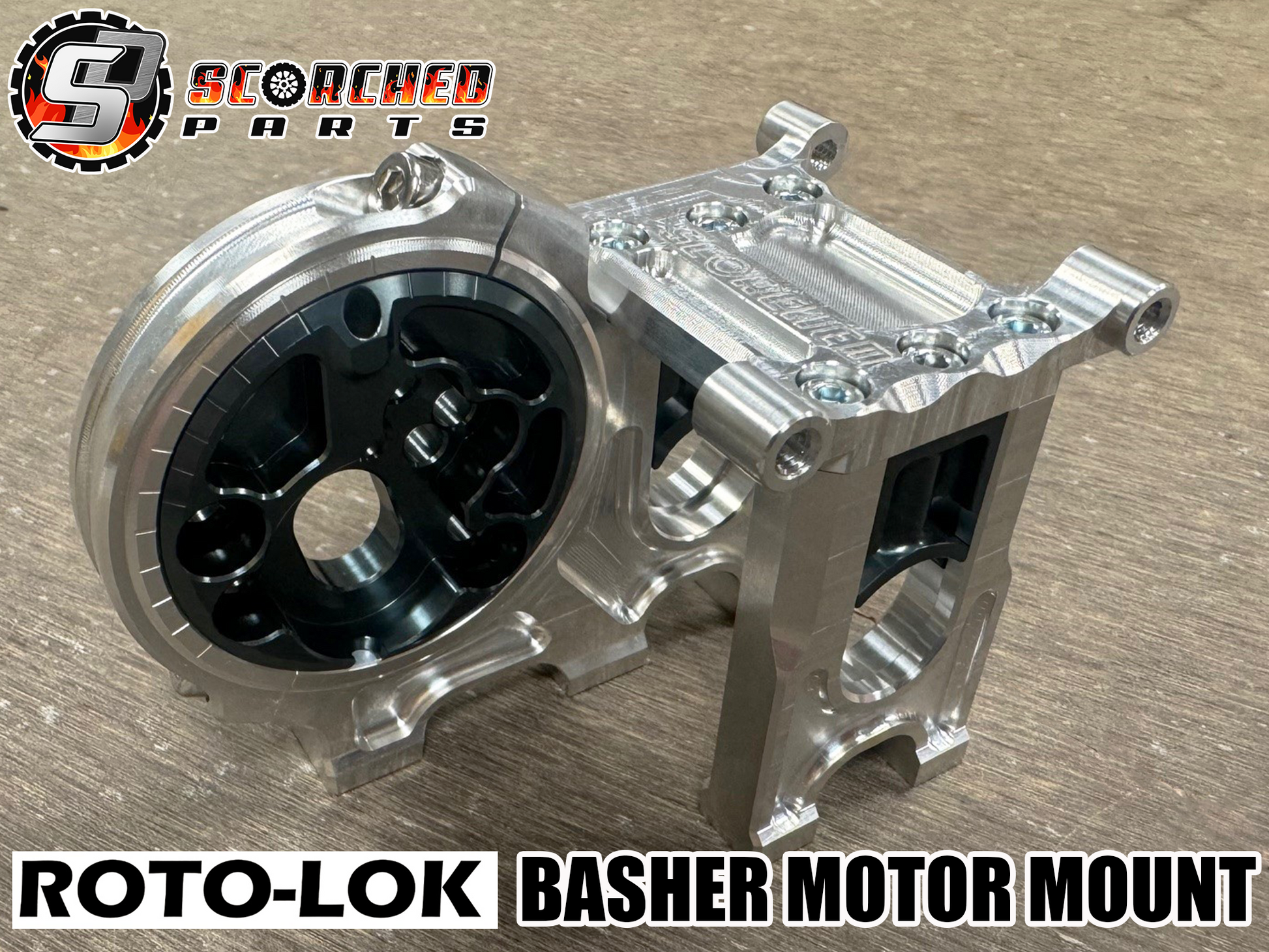

Roto-lok Motormount - for Arrma 1/8th 6s and 1/7th trucks BASHER VERSION

Scorched Parts Rotolok heavy duty motor mount.

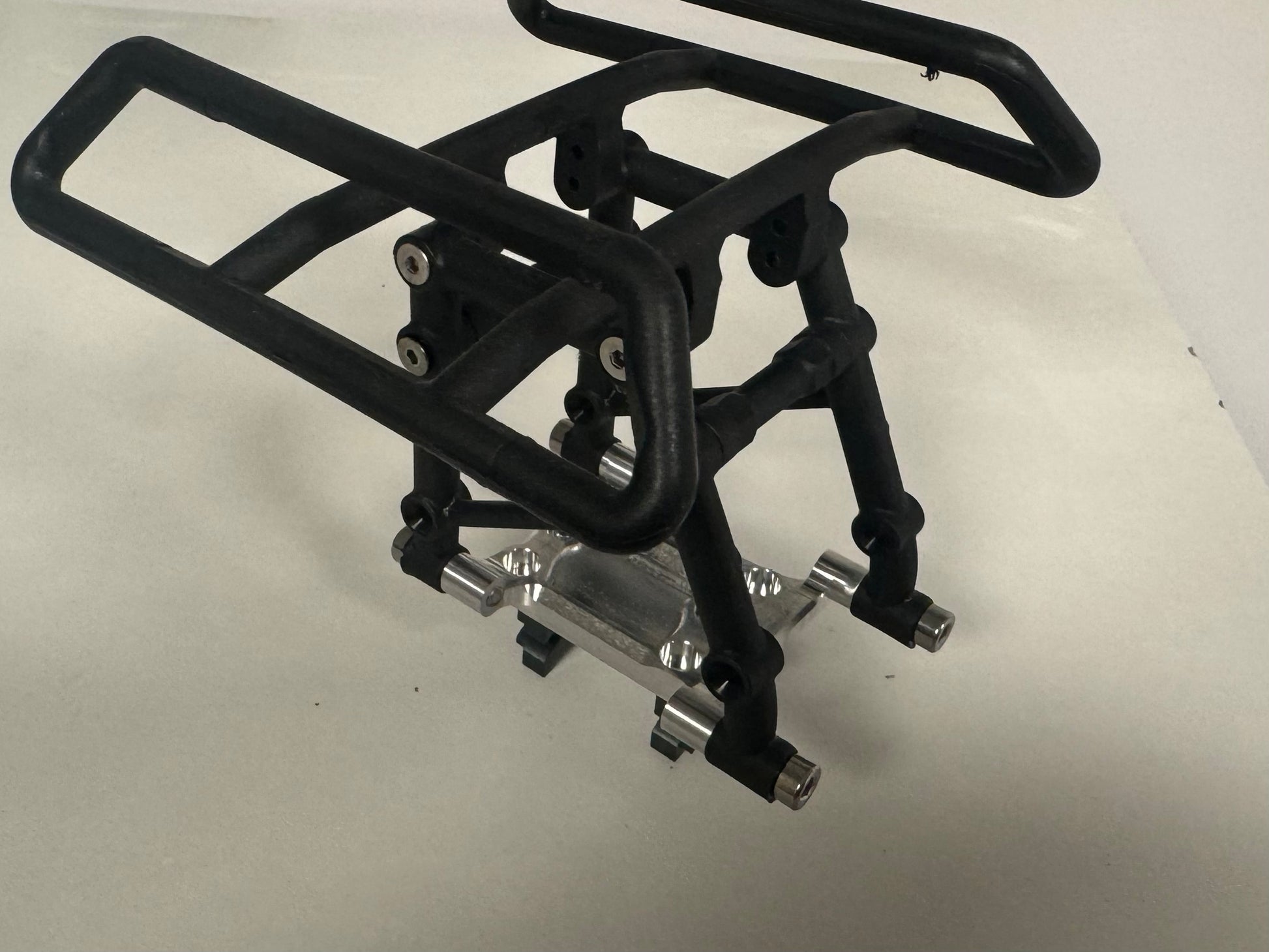

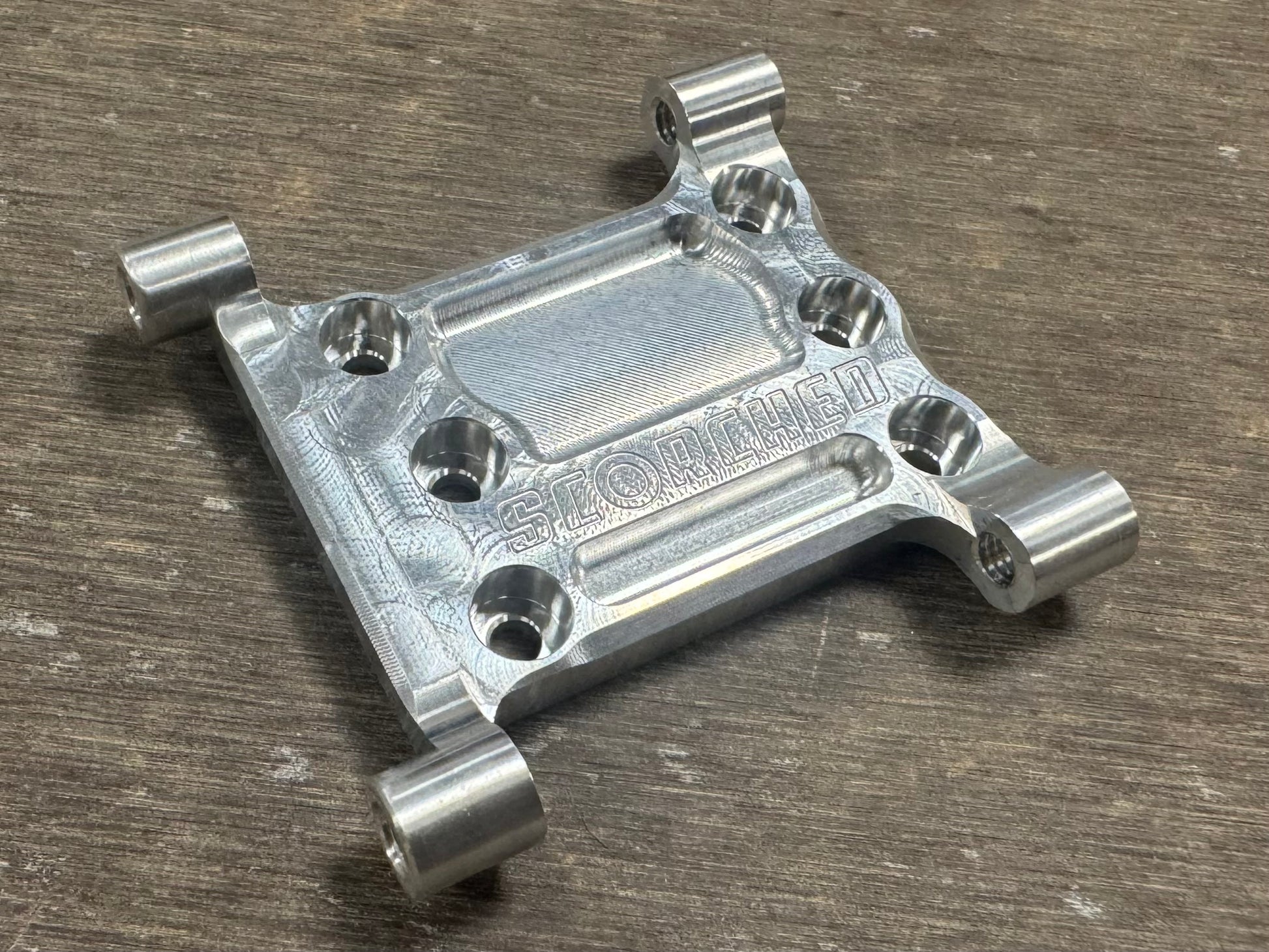

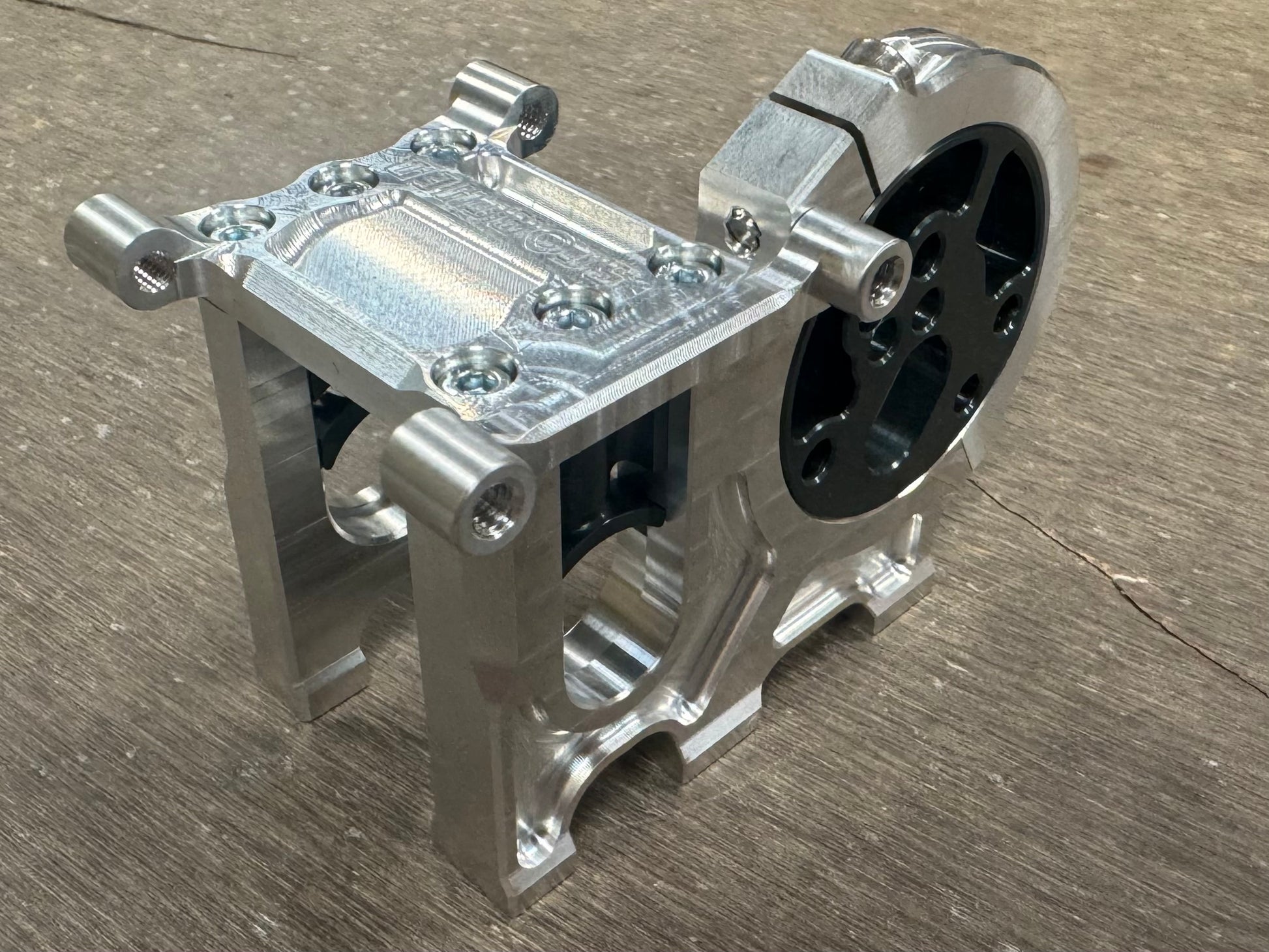

NEW VERSION WITH INCLUDED MOUNTS FOR BODYSHELL SUPPORT!

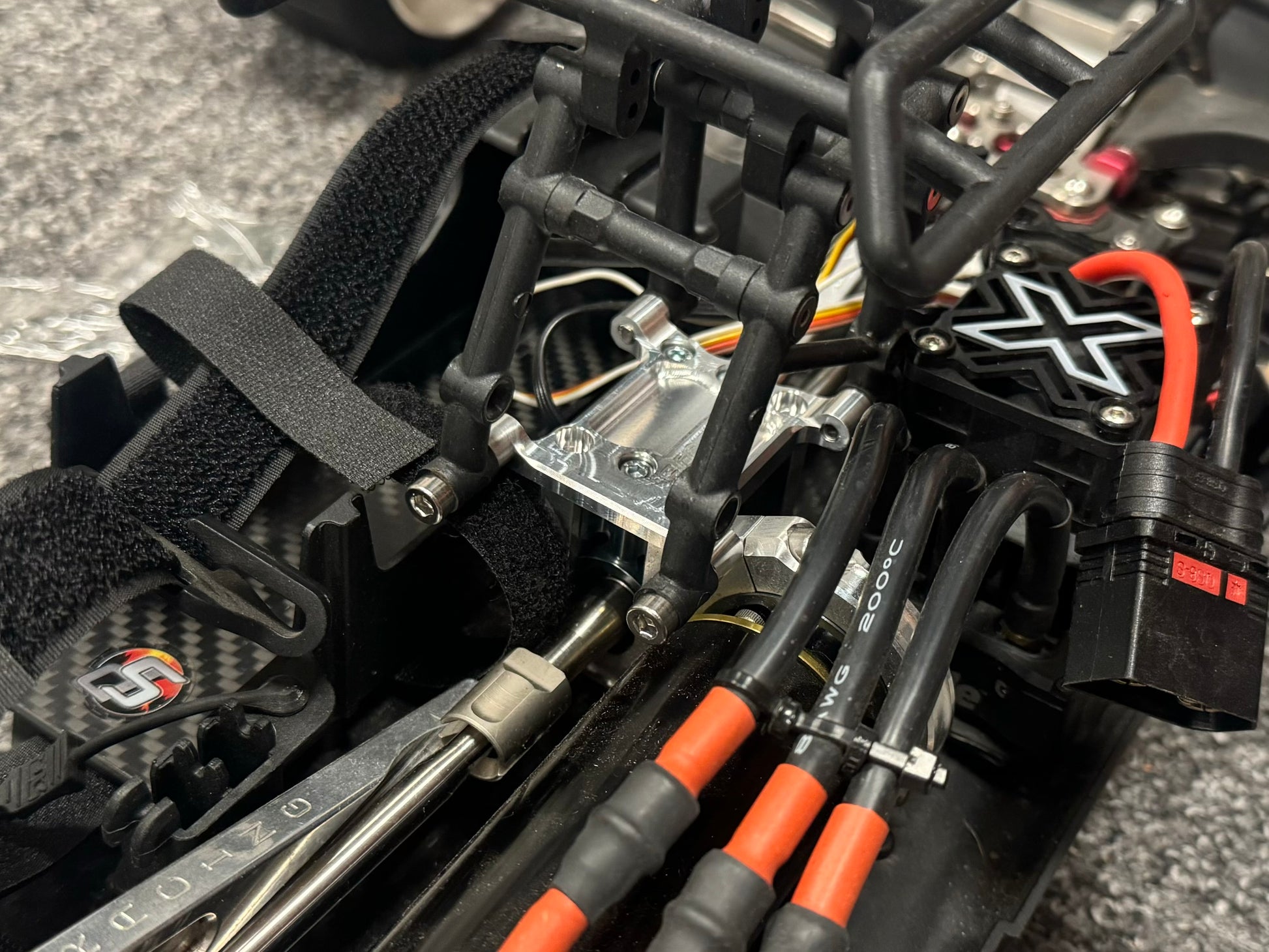

Suitable for Arrma 1/8th 6s and 1/7th cars that have the internal bodyshell support assembly or handbrake module. For Limitless and Felony vehicles, please see the non-basher version of the rotolok

UNIVERSAL fit for all common motors with 25, 25.4 and 30mm motor mount spacing and up to 60mm diameter. All 1/8th and 1/5th scale motors. Recently updated to improve fit on Limitless V2.

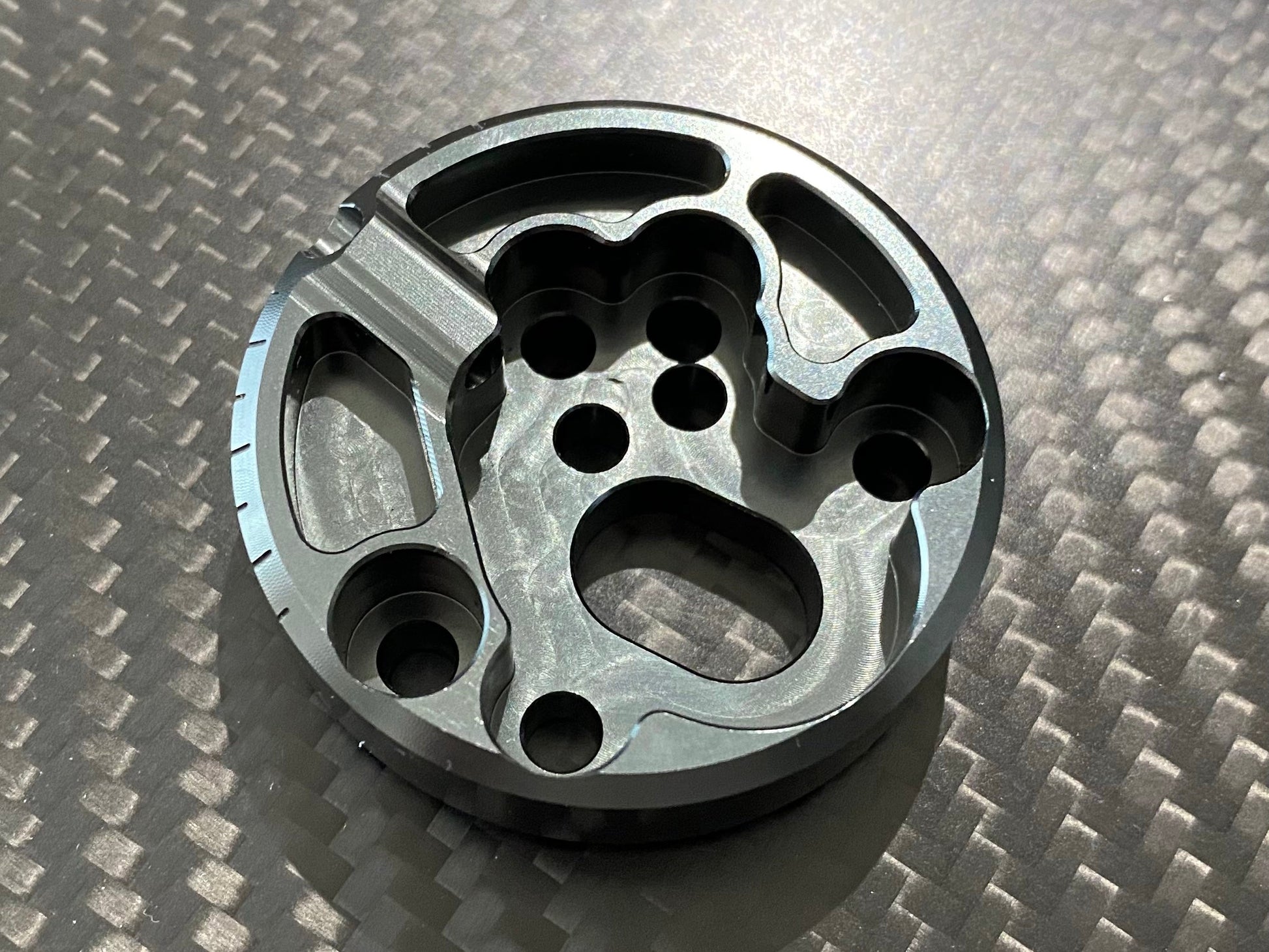

Unique to the Rotolok mount, all motors get the extra rigidity of 3 bolt fixing. For powerful motors that weight up to 1kg, we felt that 2 small M4 screws was not enough!

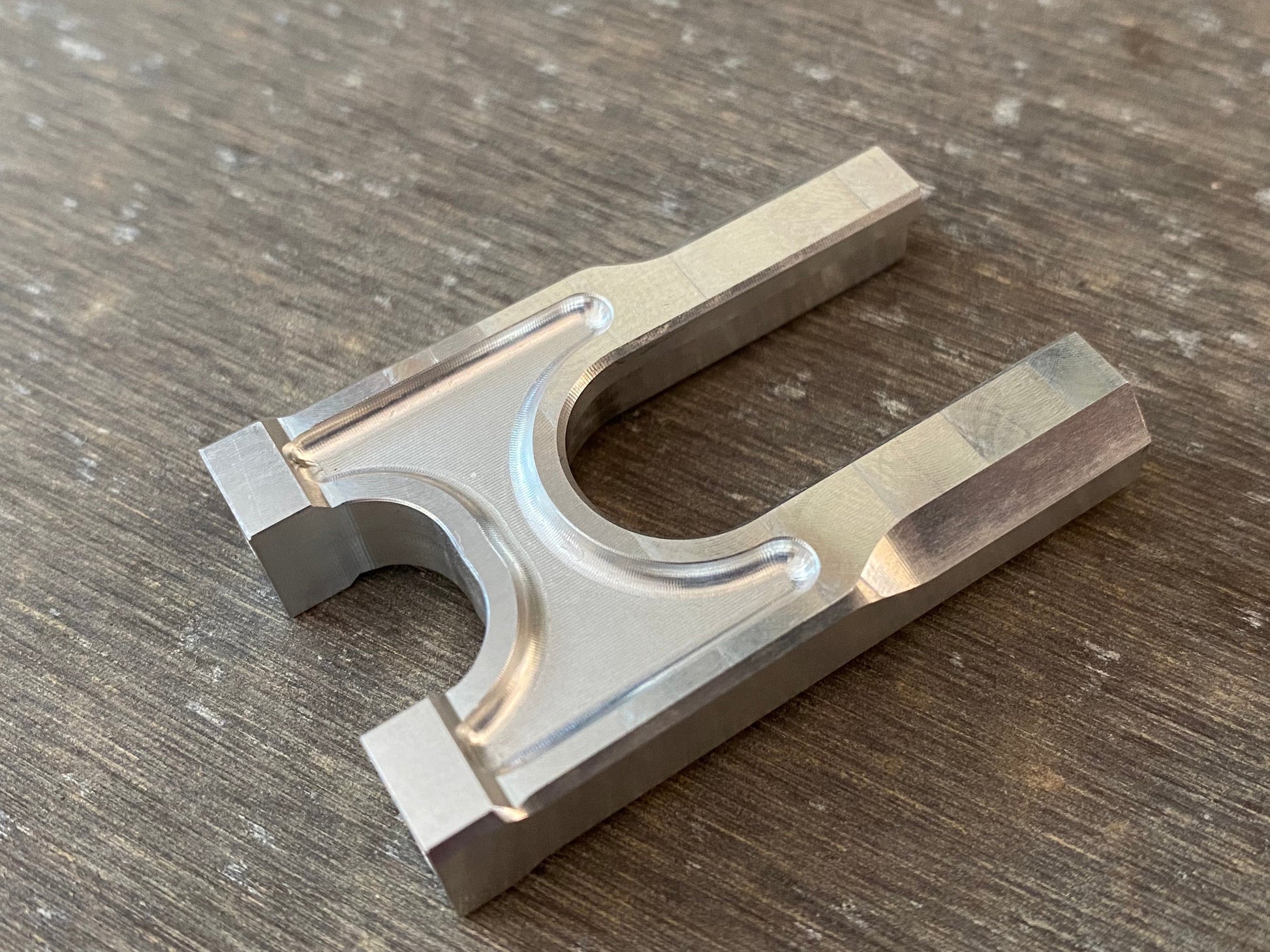

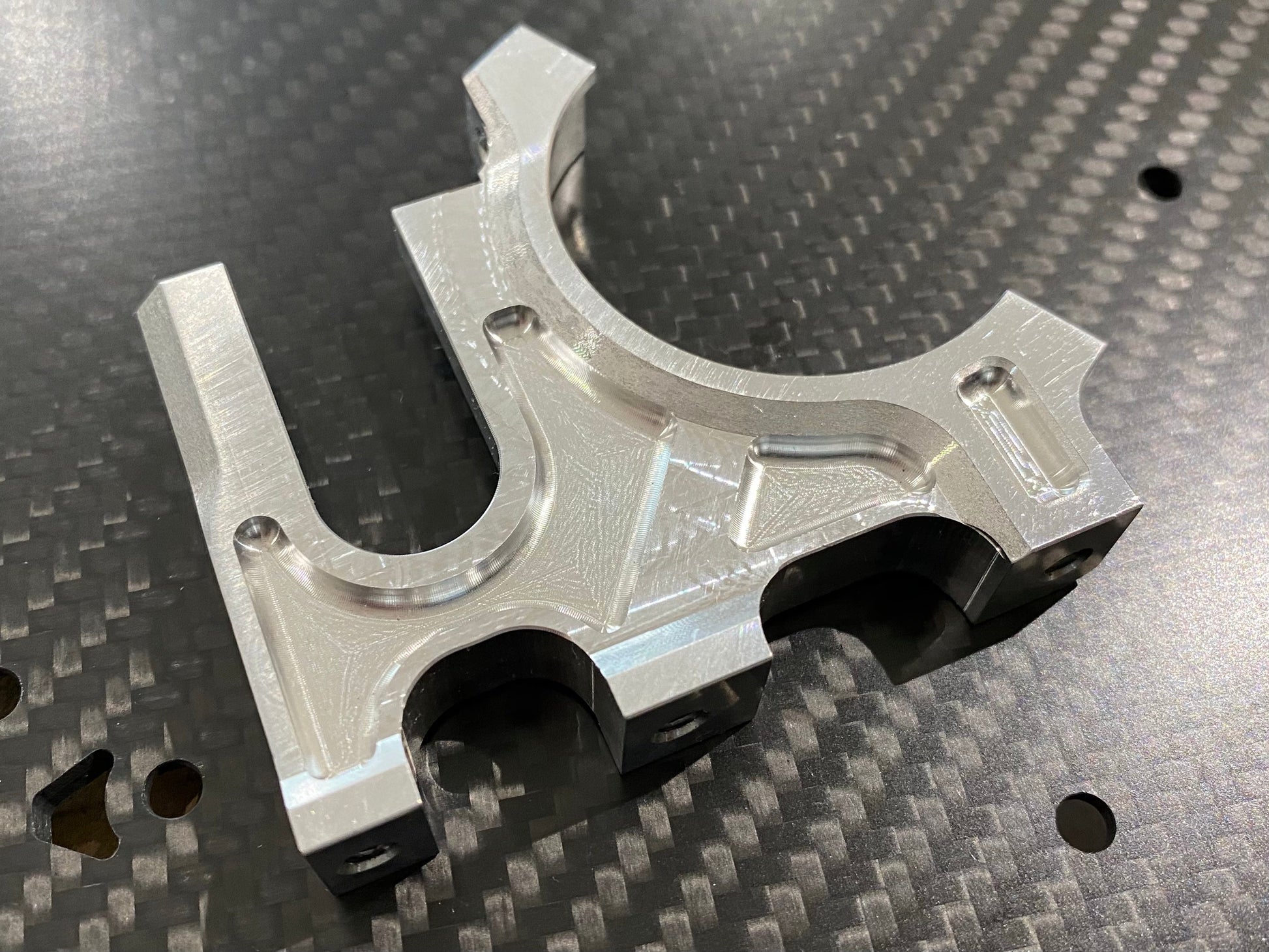

The Roto-lok mount offers a step change in motor rigidity. Machined from 7075 T6 aluminium. As well as a far stronger body, the feet of the mount are enlarged to aid rigidity at the chassis face.

360 degree hoop clamping of the motor gives huge rigidity and won't interfere with mesh setting as you tighten it.

Rotational adjustment with vernier adjustment marks gives unmatched precision and control over mesh setting. Adjustment is incredibly easy, fast and precise.

Range of adjustment:

25mm mount motors (1/8th): 66 to 99 total tooth count

30mm mount motors (1/5th): 72 to 95 total tooth count

* 66 MIN TTC MEANS WITH A 50T SPUR, THE MIN PINION SIZE WILL BE 16T *

**Please be aware that 4990 motors, due to the large diameter, will interfere with the bodyshell support bracket limiting the min TTC to 71. With a 50t, you would need a min 21t pinion - which is about the right gearing for 1650kv anyway.  For 1/5th scale 56mm dia type motors- some modification may be needed to fit such big motors**

Video here: https://youtu.be/sb4aR1tcQ5A

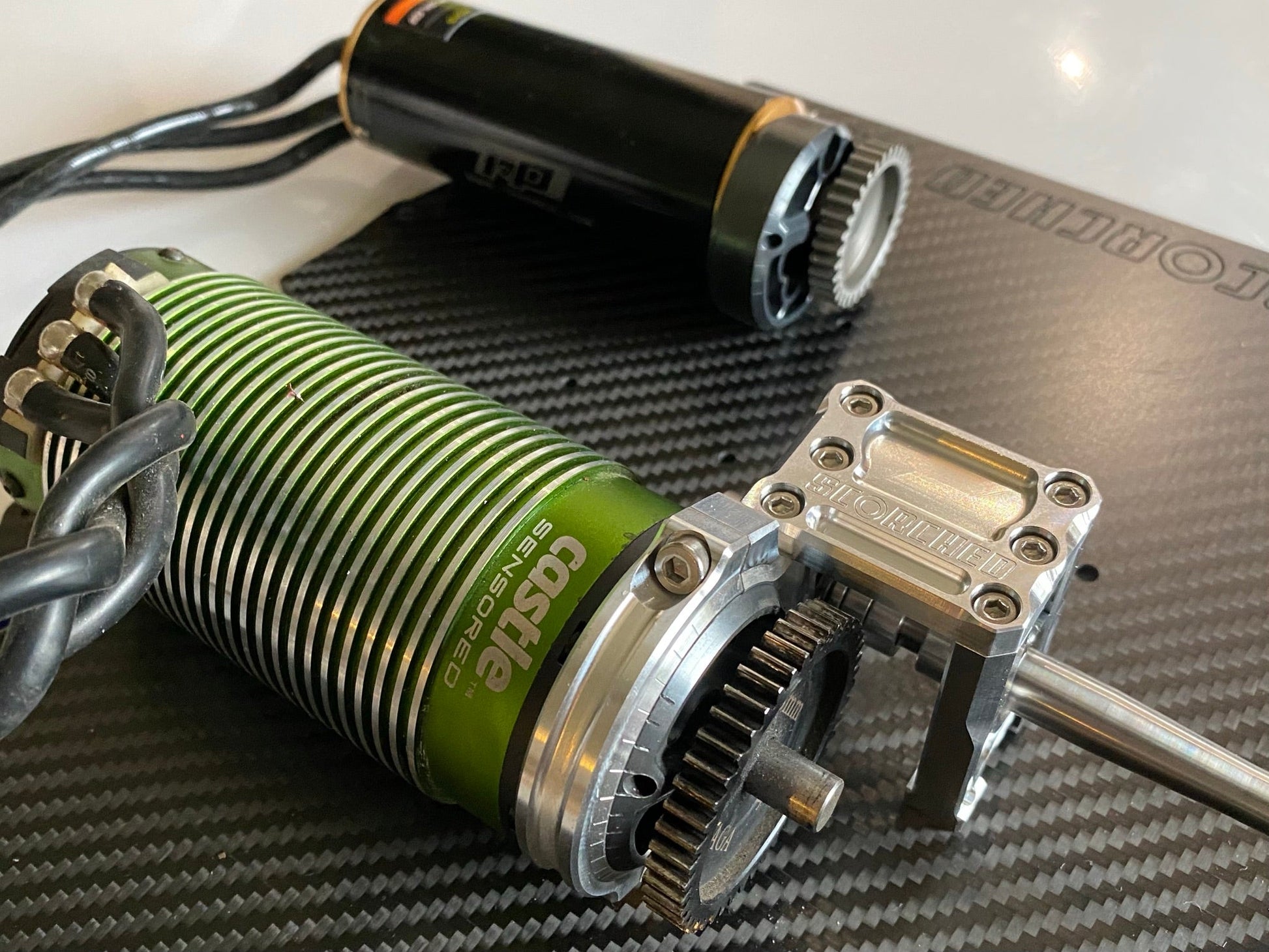

Ideal for Hobbywing 1/8th and 1/5the scale motors, Castle 1715 1717 1721 2028 and TP40xx TP56xx and TP58xx type motors.

PLEASE NOTE! Adjustment / Rotation of motor will require motor fan arrangements to accommodate a range of movement.

Modifying your RC from stock condition can result in unexpected results. Operation of modified models must take this into account. Always follow the original manufacturers instructions. Whilst we build our parts to the highest standards we are able, like all rc parts, our parts cannot be guaranteed for performance, strength and durability in every situation or configuration. Do not use your RC in public areas. Do not use your RC where unexpected results could cause injury or damage to property. High Speed RCs require GREAT CARE and a responsible attitude to use safely.
