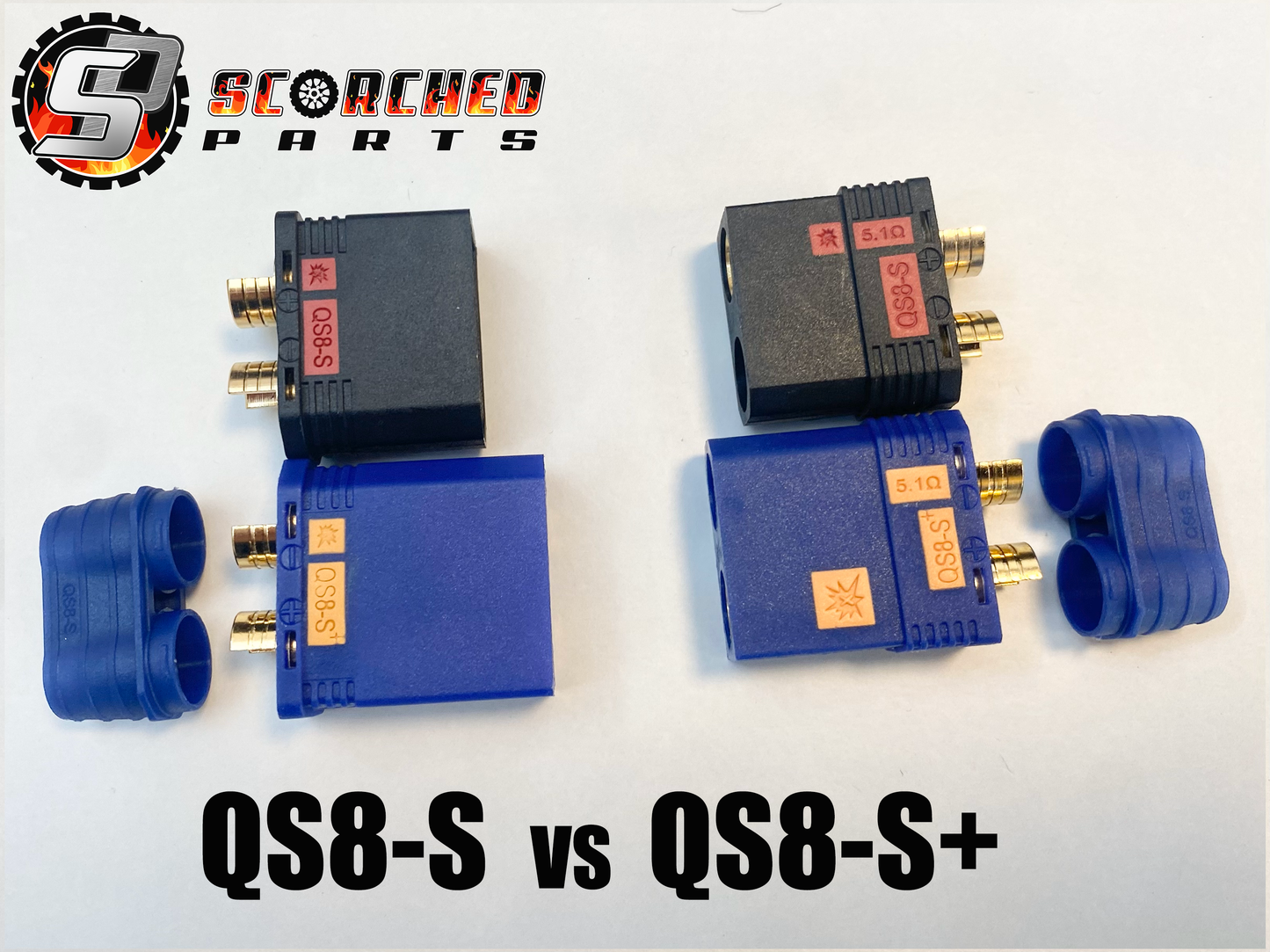

NEW! 'Plus' version of the industry standard QS8 connector.
This brand new connector has a 15% higher current carrying capacity
Compatible with standard QS8 connectors, so no need to change charge leads!
We buy all our connectors direct from the QS factory.
Capable of handling big power for 8S+ rigs, Speed runners and Drag Racers

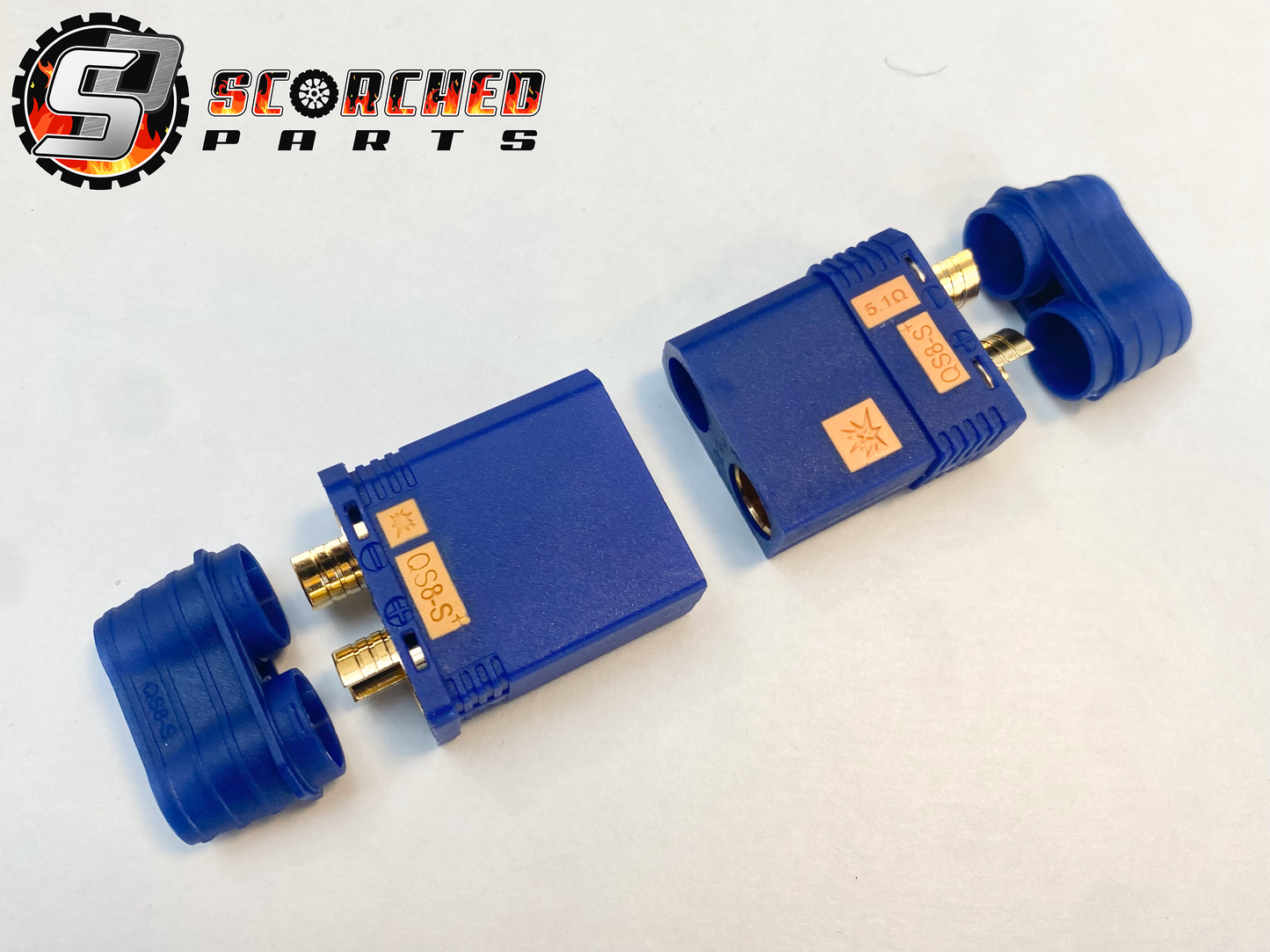

Sold in pairs (1 male, 1 female connector)

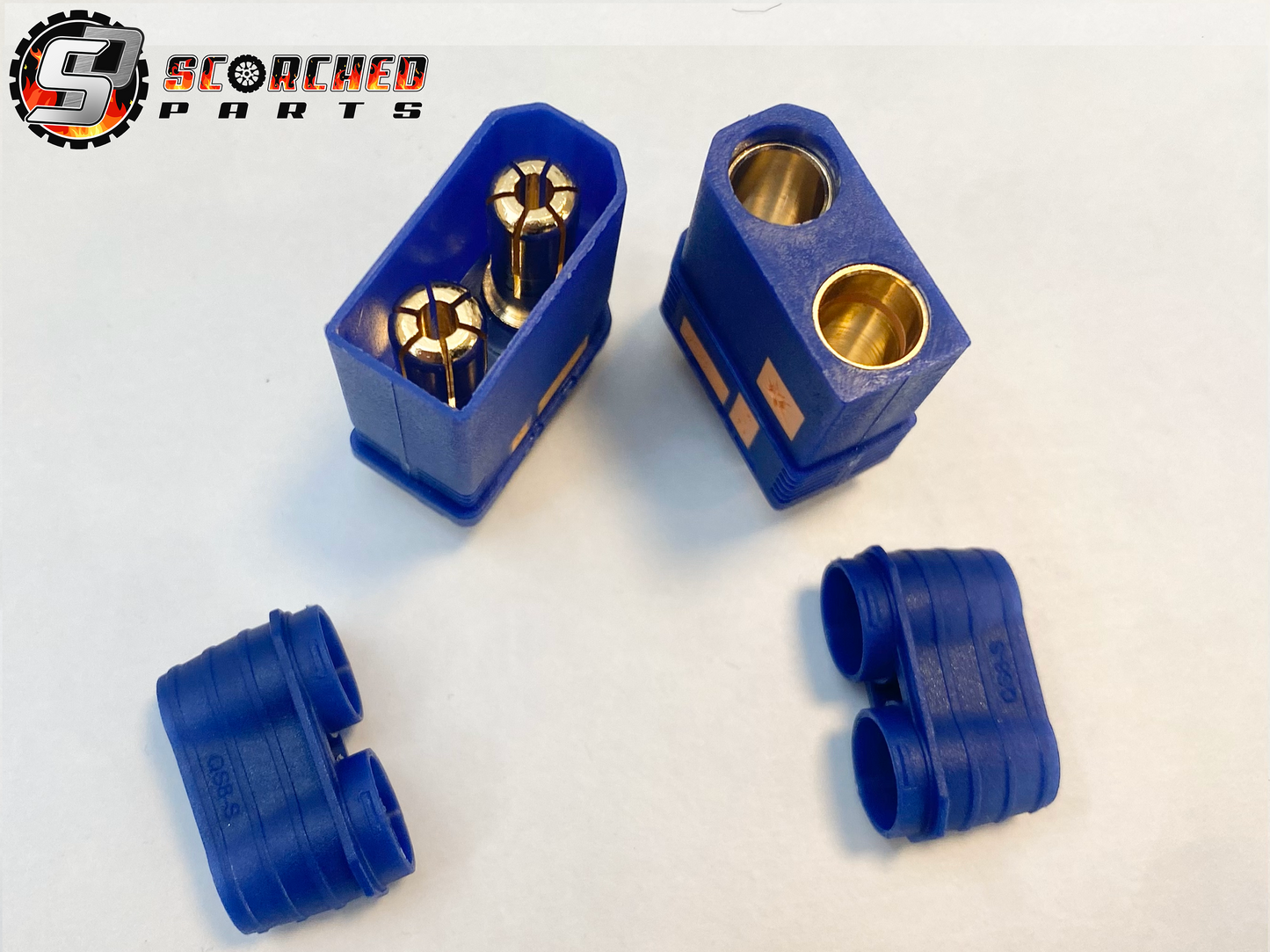

Anyone that's ever powered up a 8s or higher power system know the dreaded spark that scares us all to death and at the same time ruins the connector. This gold plated bullet connector has a anti spark housing that will reduce this spark to almost nothing. These are a must for high current/high voltage brushless power systems.
Max momentary peak current in RC car application: 690A
Continuous Current: 130A
Contact resistance: 0.51mΩ
Metal Material: Gold Plated Brass
Plastic Material: Nylon with fiber.
Flame retardant rating: UL94 V2
Temperature Range: -20C to +100C
Weight: 36G (1.3oz) per set.
Max Wire: 8AWG
