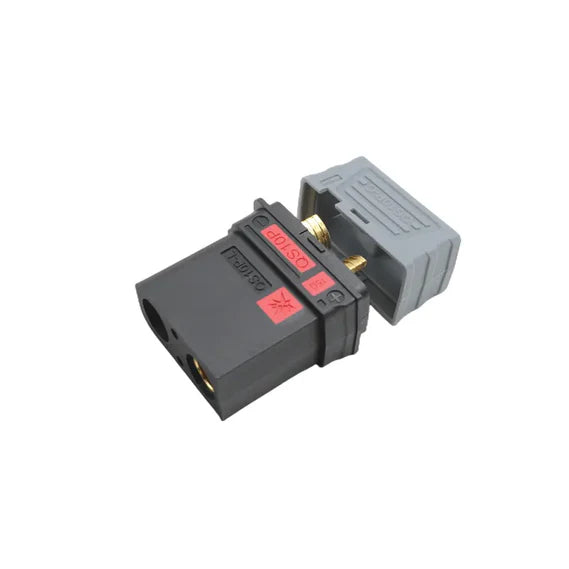

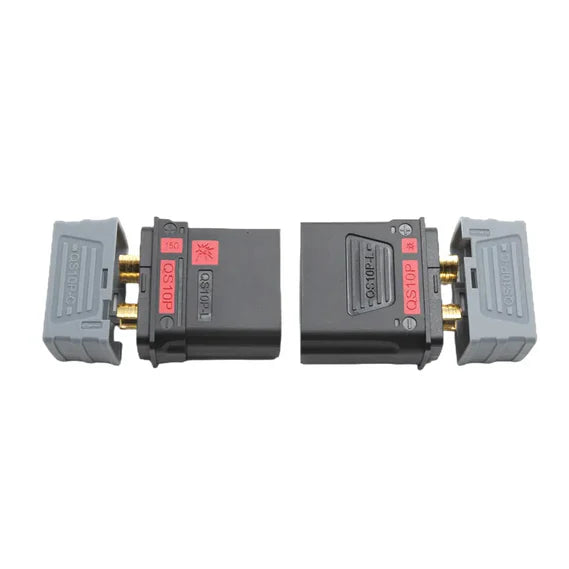

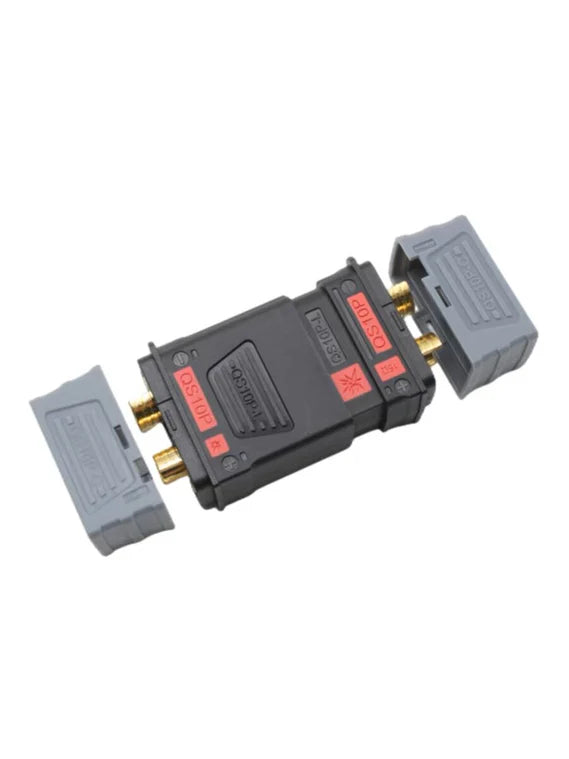

Descriptions: QS10P-L is a high strength anti spark resistance plug, used to avoid sparks in the initial connection.
Reverse design unpolarization.
Model: QS10P-L.
Size: 42.5mm x 22.5mm x 86.25mm (connected pair)
Plastic material: Nylon.
Connector material: gold plated copper 8mm.
Maximum temperature: 200 ℃.
Rated voltage 600 V.
Temperature range: 30 ° C to 200 ° C
Maximum: six stars.Current: 210A-270A.For large current
Customizable wire: provide specifications(Recommended Wire:4AWG-10AWG)
QSP10P-L is a new member of QS series, which is specially designed for high current charging such as new energy, energy storage, folding lithium electric vehicles, electric motorcycles and electric bicycles. QSP10P-L has a wire-throwing sheath. It has many advantages such as small volume and large current, and the current can reach 210-270A.
