Titanium Centre Drive Shaft and Pinocchio spool set for Arrma Mojave

Complete central drive set for extreme high speed running. The long nose Spool shaft enables the removal of the long shaft that can be prone to vibration and replaces it with a shorter shaft.

ONLY SUITABLE FOR CUSTOMISED SPEED RUNNERS AND DRAG RACERS

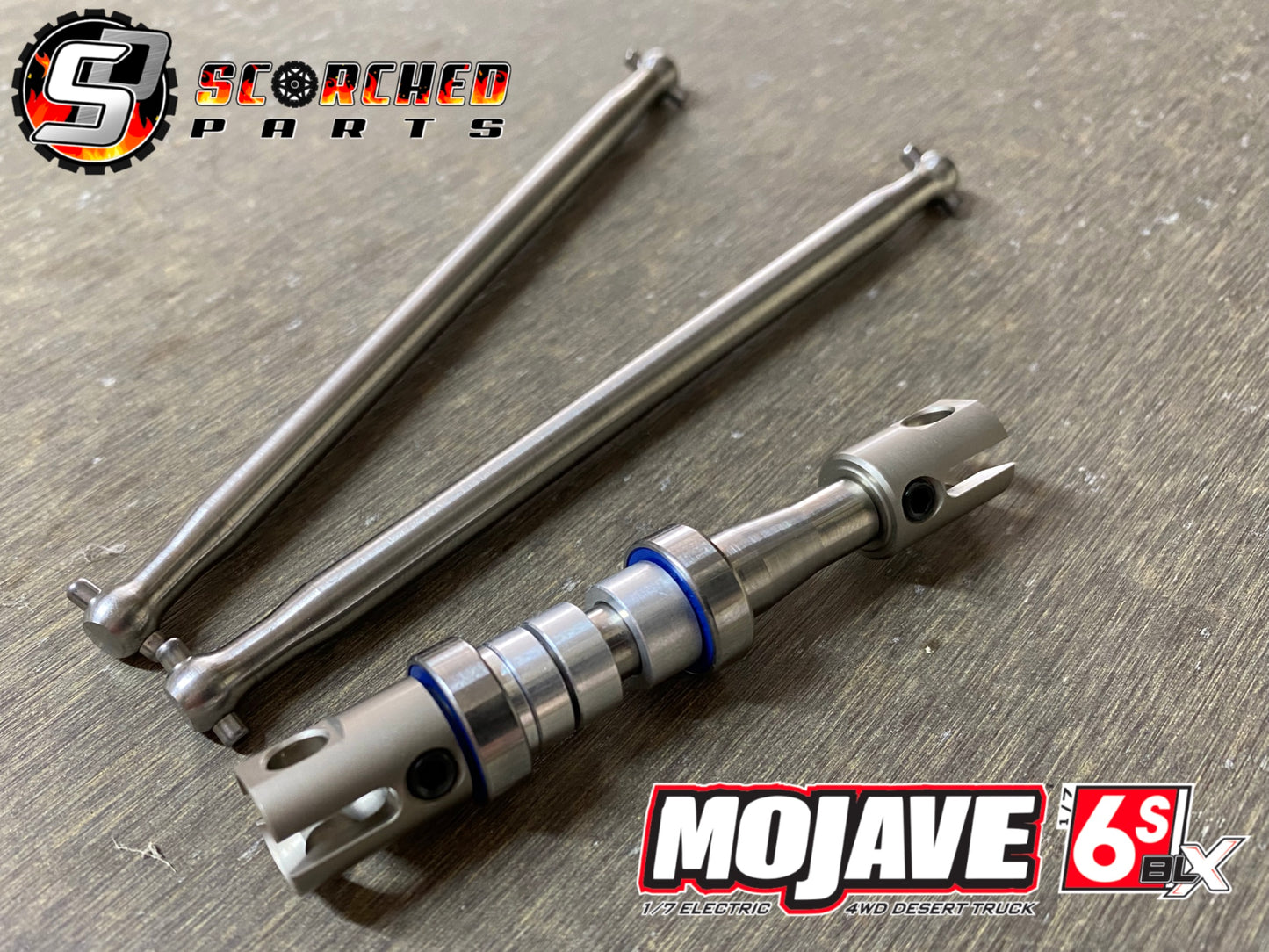

Includes front and rear centre drive shafts, centre spool shaft, two drive couplings, two hybrid ceramic bearings and 4 piece spur gear spacers.

Now with updated cup type that is 50% stronger and has better connection to the shaft.

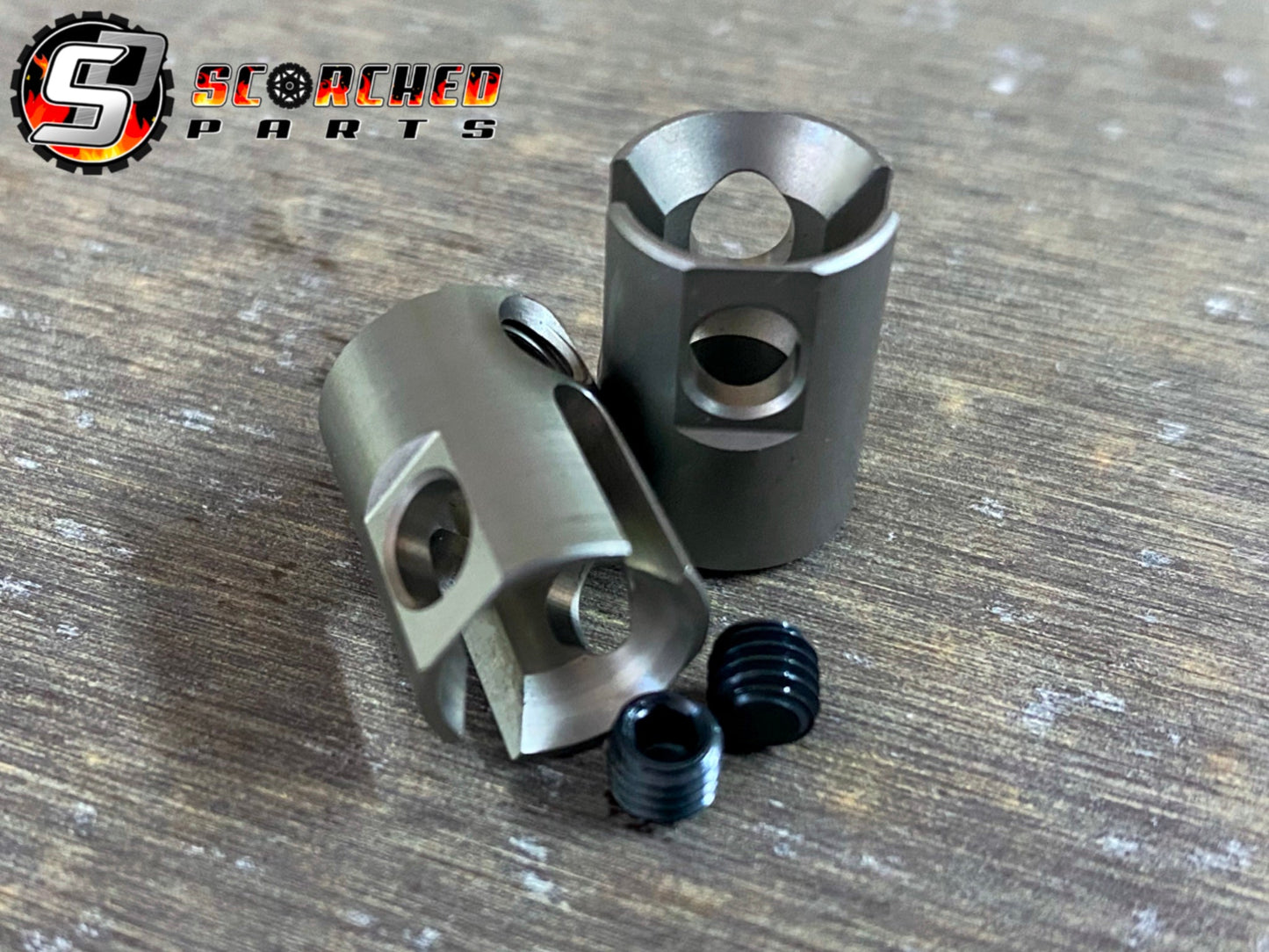

With unique 6mm drive cups the long nose spool is a fully machined solid 10mm shaft, not just a plain 8mm shaft with a cheap spacer. The spool centre portion is 8mm diameter to take standard 8mm bore spur gears (NOT INCLUDED).

Our renown titanium dog bone shafts have been developed over 2 years with some of the fastest builders in the world using them. These are fully machined shafts with the main diameter tuned to 7mm diameter to save weight - again, its not just a plain 8mm bar or a part from ebay. Our specially sourced pins are top quality hardened carbon steel, not just stock dowels. A developed and proven product.

Chassis braces and / or servo mount may need filing down to clear the shafts.

The 4 piece spacers are designed to give a few spacing options including for Arrma or Saga spur gears. Other spur gears may be different widths and may require different spacers.

Like other drive components, these require degreasing and high strength loctite (including in the drive cup main bore) if you want them to stay together.

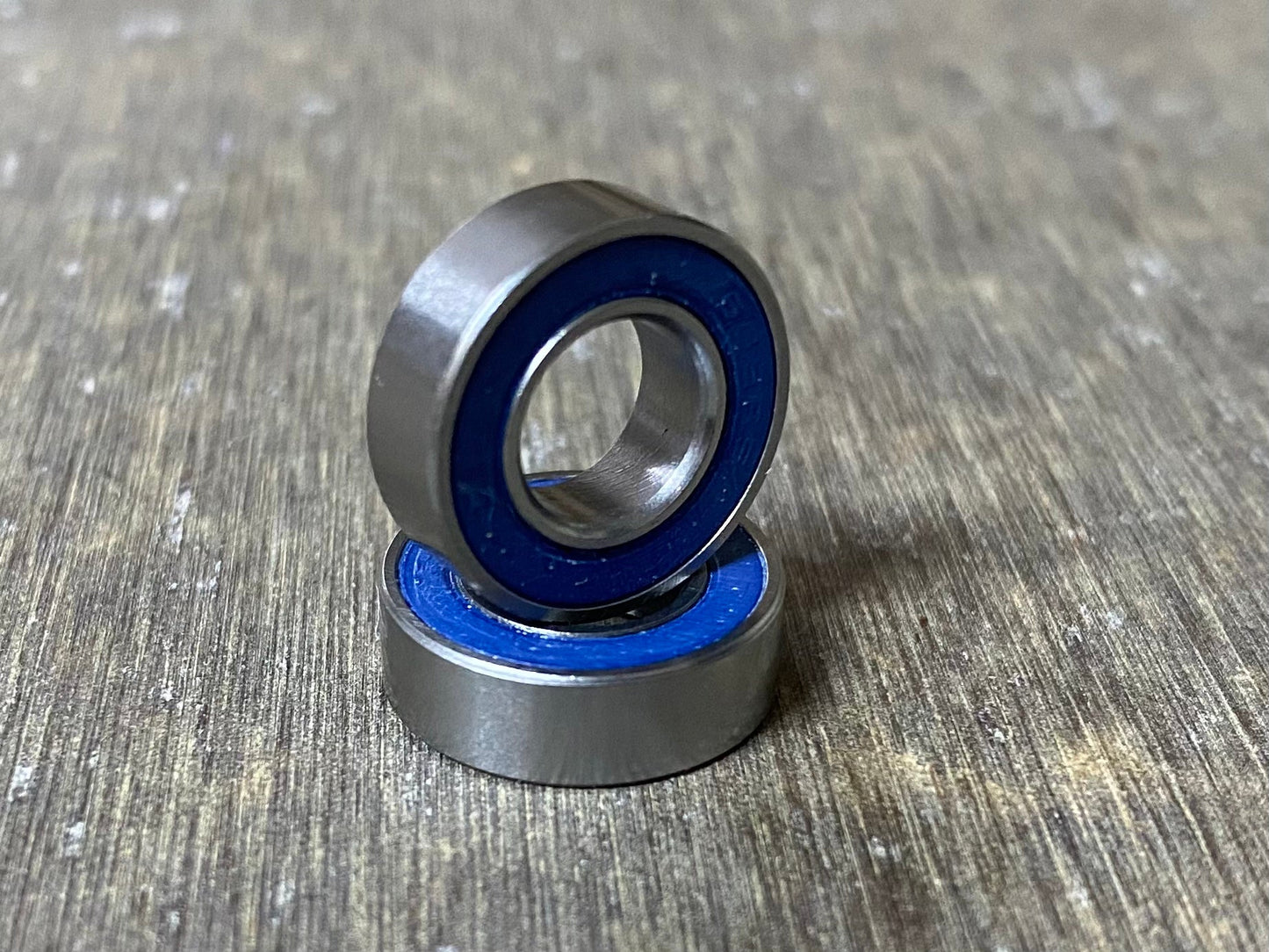

Bearings require oiling before use. Some bearings have been pre oiled by our supplier. The oil is a little thick for our liking, so we clean and re-oil for our own builds. Check out our precision oil applicator too!

Modifying your RC from stock condition can result in unexpected results. Operation of modified models must take this into account. Always follow the original manufacturers instructions. Whilst we build our parts to the highest standards we are able, like all rc parts, our parts cannot be guaranteed for performance, strength and durability in every situation or configuration. Do not use your RC in public areas. Do not use your RC where unexpected results could cause injury or damage to property. High Speed RCs require GREAT CARE and a responsible attitude to use safely.
