Hobbywing

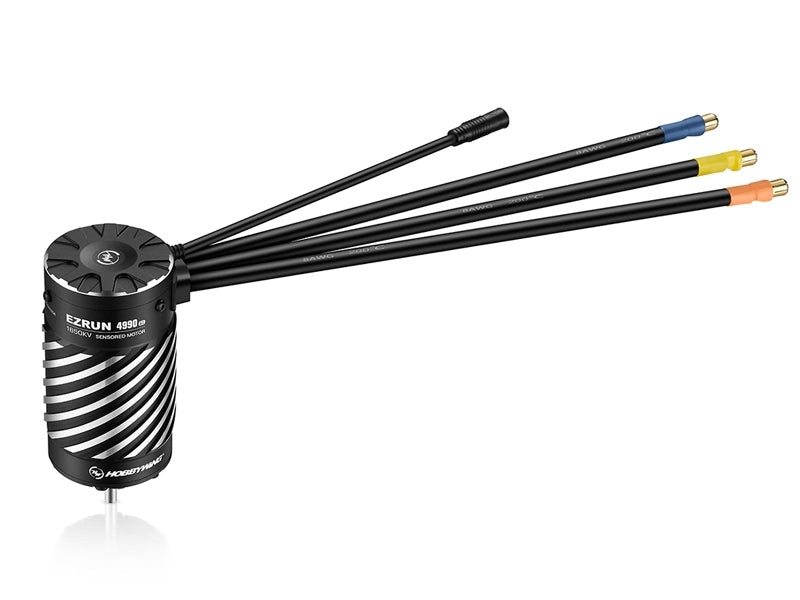

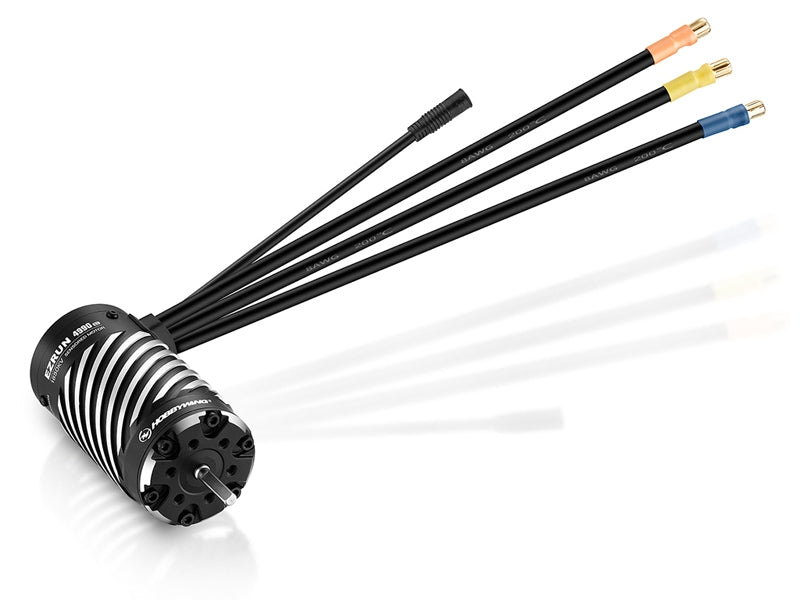

HobbywingEZRUN - 4990SD - 1650KV - Black - G2 Motor
HobbywingEZRUN - 4990SD - 1650KV - Black - G2 Motor
Couldn't load pickup availability
Elegant Appearance
The motor casing adopts an innovatively spiral groove heat dissipation structure. It not only has good heat dissipation, but visually appealing.
8S Sensored Motor
Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.
New Sensor Line Interface
All Weather Operation Capability
All weather sensor plug system
The EzRun 4990/5690 is equiped with the HOBBYWING all weather sensor harness that makes all conditions, water proof, sensored combos a reality. This proven sensor harness keeps the elements out so your system can maintain fully sensored operation even in the worst conditions.
Note:
The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.
Module design for easy maintenance
The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.
Specification
- Scale - 1/7th-1/8th
- Brushed/Brushless - BL
- Sensored/Sensorless - SD
- Pole Count - 4
- KV Rating - 1650KV
- LiPo - 3-8s
- No-load Current(A) - 7.0A
- O.D. (mm) - 49
- Length (mm) - 90
- Shaft Diameter (mm) - 5
- Weight (g) - 701g
- Front Bearing - D19*D6*T6
- Rear Bearing - D19*D6*T6
- Timing - Fixed
Applications -
- 1/7th On-road,Short course truck,Truck
- 1/8th Heavy-duty Monster truck
- Examples: ARRMA Mojave/ Kraton 6S/Outcast 6S,
- Traxxas XRT/X-MAXX
