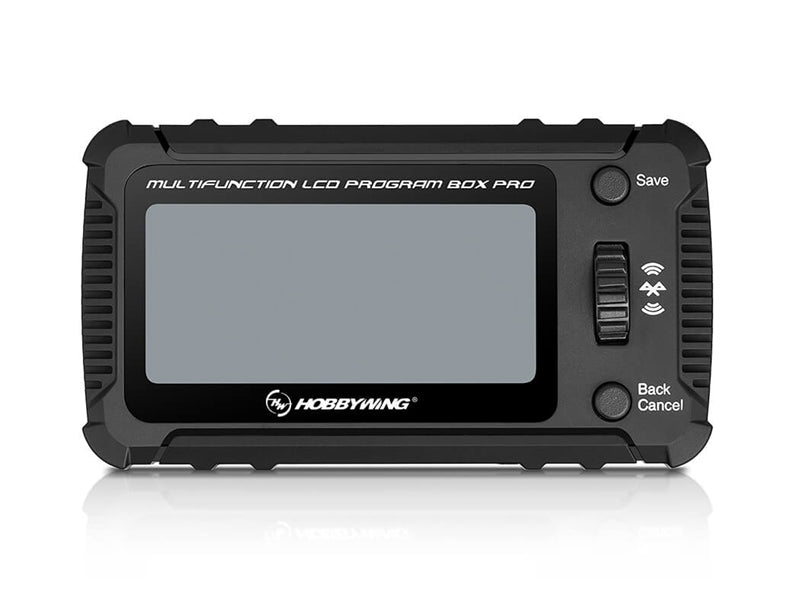

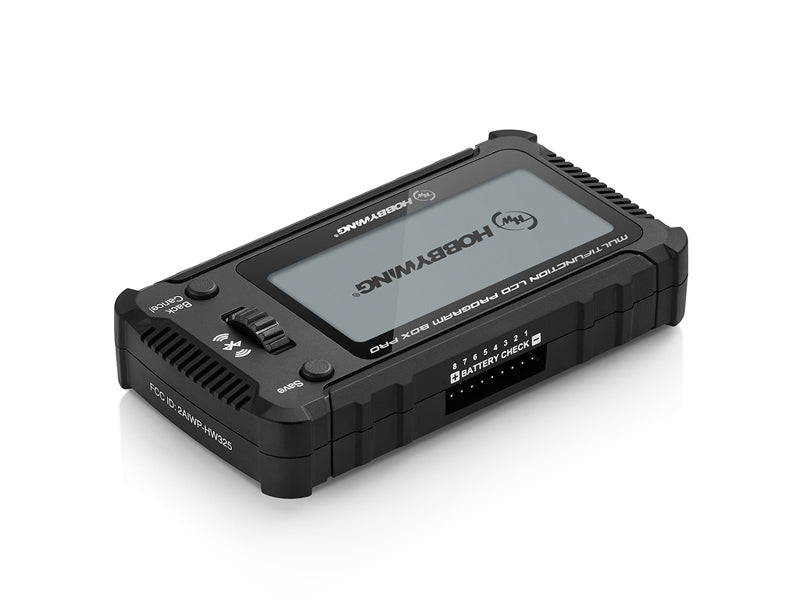

Hobbywing Multifunction LCD Program Box Pro HW30502002

Hobbywing Multifunction LCD Program Box Pro

Features

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
• The OTA Bluetooth module: Using the mobile APP to set ESC parameters, upgrade firmware, and read data.
• Detect the overall voltage of the lithium battery and the individual voltage of each cell.
• The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.

Scope of Application

• XERUN series car model brushless ESC (V2.0 and above)
• EZRUN series car model brushless ESC (V2.0 and above)
• PLATINUM series air model brushless ESC
• SEAKING Pro series ship model brushless ESC
• Some ESCs of QUICRUN series
• Remarks: 1. The scope of application here can also be understood as all the escs that the old LCD G2 program box and OTA Bluetooth module can support.
• 2. Whether the programmable box is supported depends on the specific ESC model. If necessary, you can check the ESC information introduction on the official website or consult the


Specifications

• Size: 105.6x59x24.4mm(LxWxH)
• Weight: 85g
• Input Voltage: 5-12.6V (a separate battery is needed for powering this program box when ESC has no built-in/external BEC)
• Interface: TYPE-C USB,ESC interface(Futaba plug), Power supply interface(Futaba plug)
• Display Screen: LCD

JR/Futaba lead supplied.
