Hobbywing EZRUN - 4268SD - 2500KV - G2R Motor

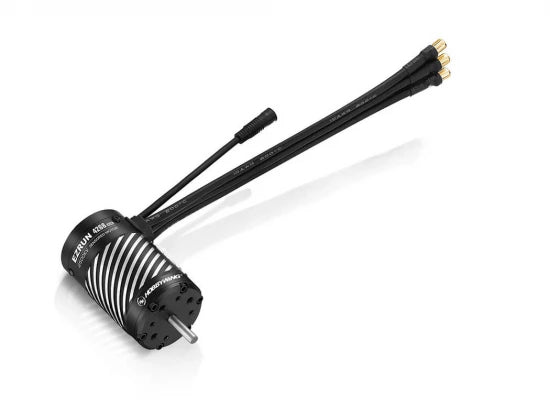

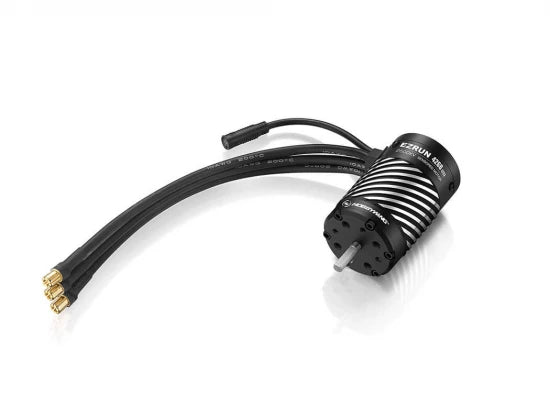

The Hobbywing EZRun 4268SD 2500Kv Black G2R 1:8 Sensored Motor (part number HW30402140) is a 4‑pole brushless unit for 1/8 scale applications, supporting 3–4S LiPo power. With a 42 mm outer diameter, 68 mm length and 5 mm shaft, this 4268-size can provides a familiar form factor for installations where a sensored setup is required.

Rated at 2500Kv with a listed no‑load current of 5.0 A and weight of 360 g, the EZRun 4268SD G2R suits systems that call for a sensored 1/8 motor in this Kv range. The motor is presented in a black finish as part of Hobbywing’s G2R line.

Key Specifications

• Scale: 1/8th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Pole Count: 4
• KV Rating: 2500Kv
• LiPo Cells: 3–4S
• No‑load Current (A): 5.0 A
• O.D. (mm): 42
• Length (mm): 68
• Shaft Diameter (mm): 5
• Weight (g): 360
• Front Bearing: D16×D5×T5
• Rear Bearing: D11×D5×T5

Suggested Compatibility & Use

Manufacturer details list the EZRun MAX8 G2S ESC for pairing and note vehicle applications including 1/8th buggies and 1/10th heavy‑duty monster trucks as suggested compatibility.
