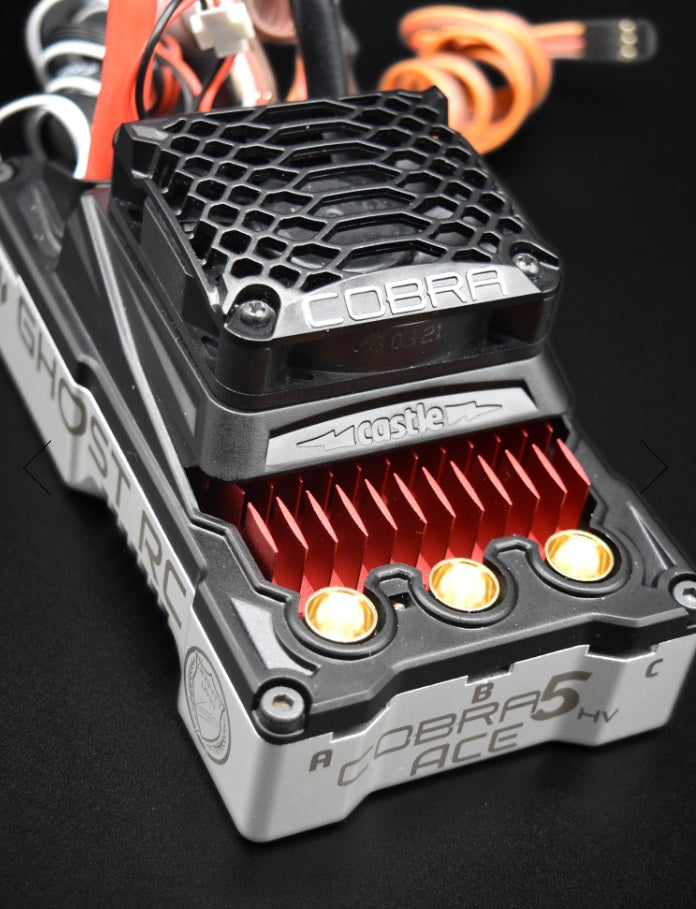

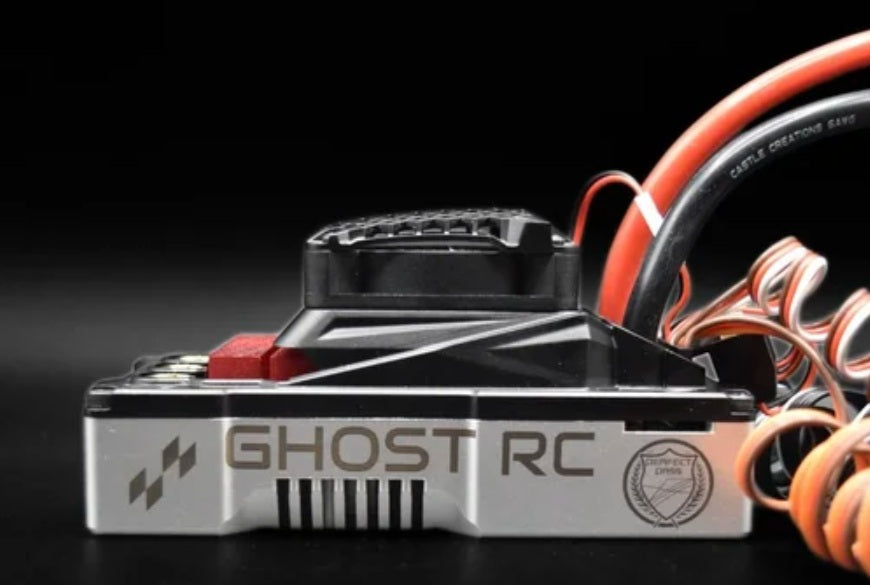

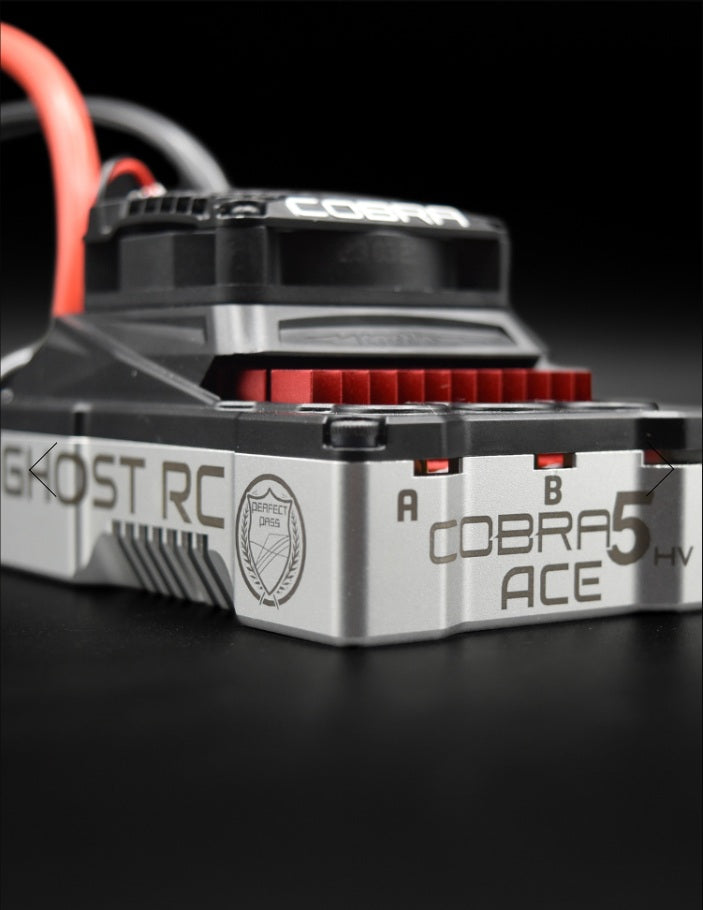

Cobra 5 ACE HV 12S Speedrunner / Drag ESC

Introducing the Cobra 5 ACE HV! This powerhouse is 12s (50.4v) capable and loaded with all the cutting-edge features you expect from the ACE lineup by Ghost RC, along with the Perfect Pass function.

Engineered for the hardcore speed enthusiast and rigorously tested to dominate the record book, this beast has shattered long-standing single-motor speed records during testing!

If you’re eager to push your setup beyond the limits and soar past 200 mph, the Cobra 5 ACE HV is the product to get you there!

**SPECS:**

- **BATTERY:** Min: 6S LiPo; Max: 12S LiPo, 50.4V

- **WEIGHT:** 16.8oz. (479 grams)

- **MOTOR CONNECTORS:** 8.0mm female bullets; matching 8.0mm male bullets required.

-**POWER WIRE** 6 AWG.

- **PEAK BEC:** 5.0V - 8.5V adjustable in 0.1V increments; (20A Peak, 5.5V default)

---

**FEATURES:**

- **32-BIT PROCESSOR:** High-performance 32-bit microprocessor provides expanded computing power.

- **DESIGN:** Robust 1:4 scale construction.

- **PROGRAMMING:** Castle Link USB V4 programmer (included) or via Transmitter (limited), Bluetooth adapter (coming soon).

- **TIMING:** 45° boost OR 45° turbo. RPM and Time-based ramping (requires Sensored Motor).

- **PERFECT PASS RAMP:** Programmable throttle acceleration (0.1S to 25S).

- **ENHANCED DATA-LOGGING:** Higher sample rate and more data points with added capacity.

- **G-FORCE METER:** On-board accelerometer logs G-forces during each run.

- **REV LIMITER:** Prevents motor damage in the event of a broken gear or other failure.

- **CURRENT LIMITING:** 100A-700A or Disabled.

• **SENSOR SUPPORT:** Smart Sense Brushless and Sensored only.

Normally these ESC’s are sold with zero warranty. Buy from Scorched and we offer Tier 2 warranty. Return you damaged RC and we’ll replace it for 2/3 retail price
