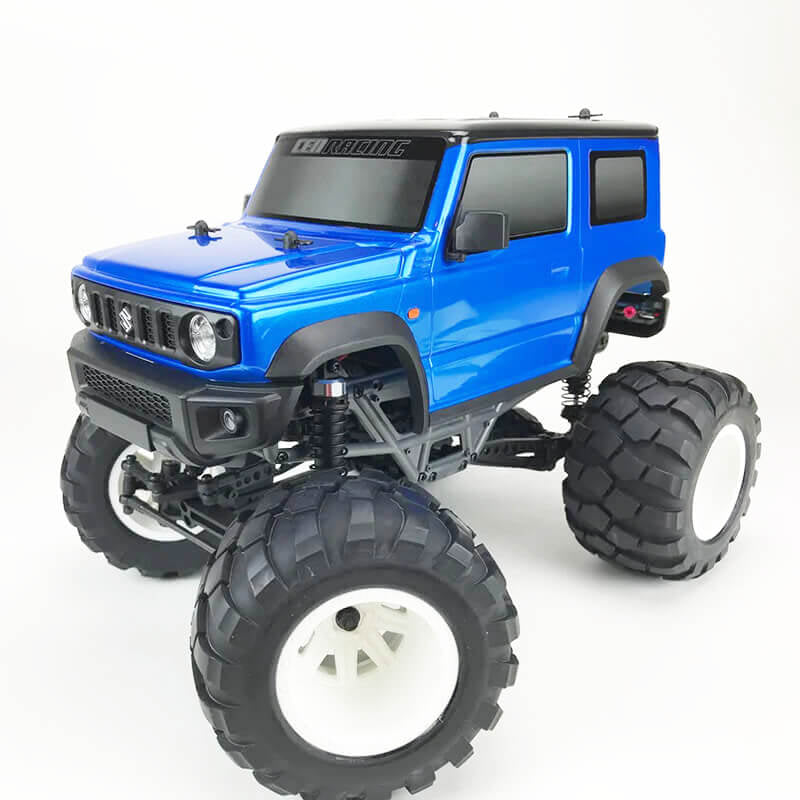

CEN RACING Q-SERIES SUZUKI JIMNY BLUE 1/12 SOLID AXLE RTR TRUCK CEN8937

CEN RACING Q-SERIES SUZUKI JIMNY BLUE 1/12 SOLID AXLE RTR TRUCK

FEATURES

ESC

• 40A WP-1040-Brushed (Powered by HOBBYWING).
• Water-proof and dust-proof for all weather.
• Built-In Capacitor Module.
• Automatic throttle range calibration.
• Low voltage cut-off protection for Li-Po (lithium polymer) and NiMH battery.
• Over-Heat protection and throttle signal loss protection.
• Easily programmed with jumpers.

Motor

• RS-540High Torque Motor.
• Powered By Mabuchi Motor.

Servo

• 6Kg Servo O.E.M. by Savox.
• 4.8V 0.16 sec/60° 4.2 kg-cm.
• 6.0V 0.14 sec/60° 6.5 kg-cm 25T.
• Horn Gear Spline.

Radio System

• Pistol-Grip Mod-3S 3 Channel Transmitter.
• Digital Trimming.
• Steering Dual-Rate (ST D/R) Adjustment.
• End Point Adjustment (EPA).
• Build in Failsafe.
• Power Alarm Transmitter.
• Model: 82190.
• Frequencies: 2.4GHz.
• Weight: 375gm.
• Power Supply: 4 AA Alkaline Dry Cells DC 6V.
• Receiver Receiver Model: G82191.
• Frequency: 2.4GHz.
• Power Supply: DC 4.8~6.0V.

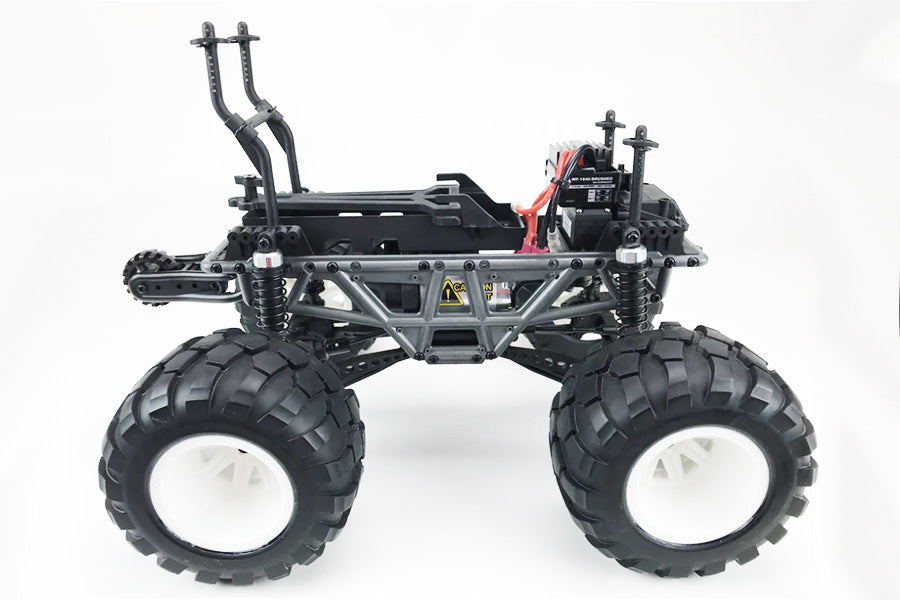

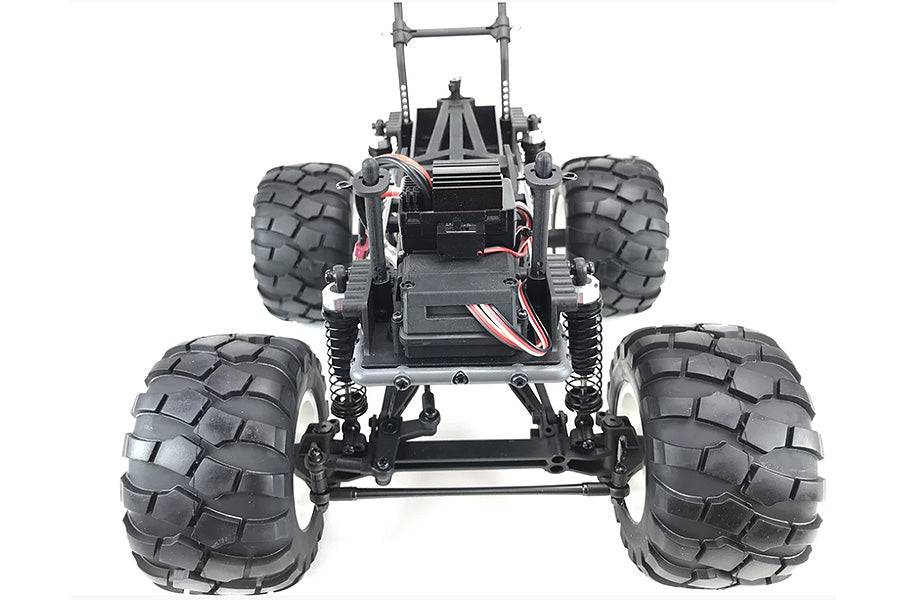

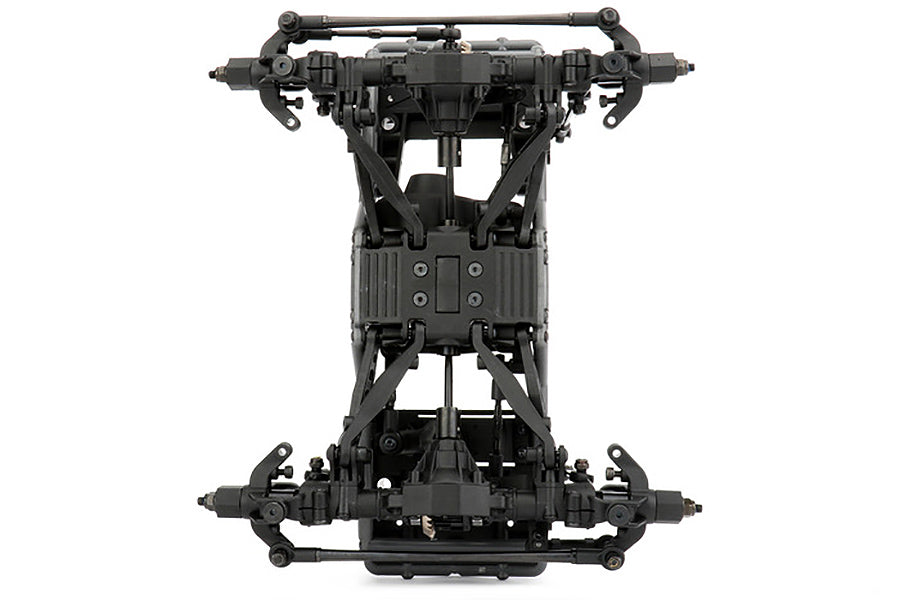

Chassis

• DVP (Dual Vertical Plate) Chassis Design.
• Sealed Receiver Compartment.
• Easy Access/Quick Release.
• Battery Tray.
• Battery Tray Size 146x50x25mm.

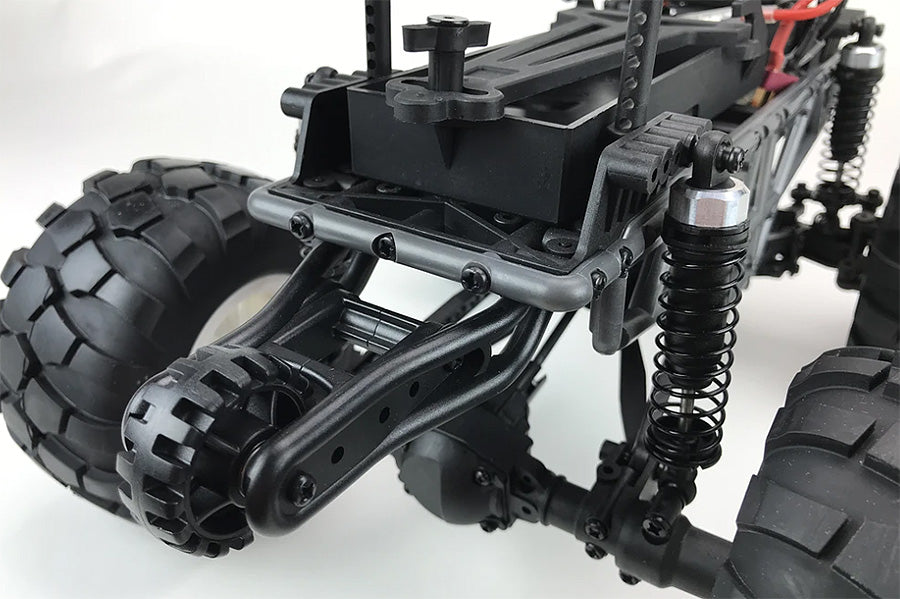

• Adjustable Wheelie Bar Ready (w/Ball Bearing).
• Full Precision Ball Bearing Support.
• Adjustable Turnbuckles.
• Harden Steel Steering Drag Link.
• Fully Equipped with Allen Hex Screws.
• Adjustable Body Post.
• High Torque Servo Horn Safer.
• Optional 4-Wheel Steering Design.

Suspension

• Big Bore Oil Filled Coil Over Shocks.
• Aluminum Shock Caps.
• 10mm over size shock body with 3mm hardened steel polished shaft.
• Stiff Hard Racing Spring.
• Fixed Wheelbase.
• Ride Height - Adjustable with pre-load.
• Realistic 4-Link Suspension design.

Drivetrain

• 2 Wheel Drive.
• Center Shaft Drive Train for more power transferred to the wheels.
• Hight Efficient Transmission System.

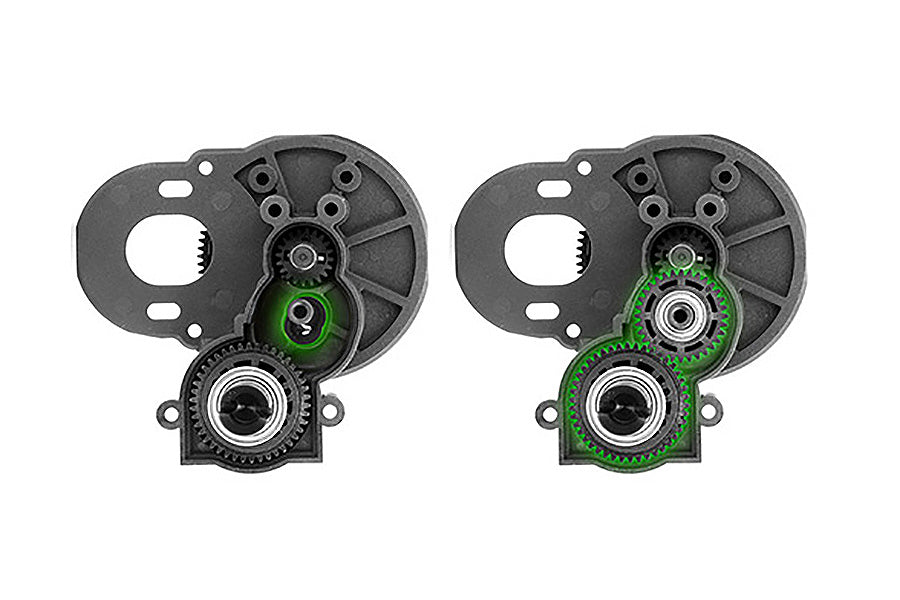

• Wide Range Easy Changeable Gear Box Design.
• Sealed transmission eliminates dirt and dust substances to get in.

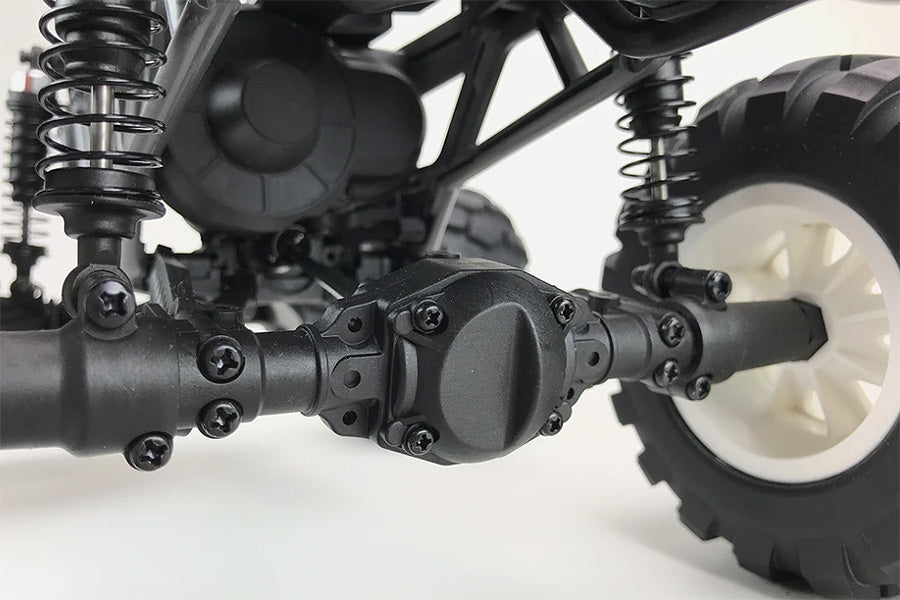

• Sealed Axle housing.
• 5mm Hardened Steel Axle shaft.
• Differential Metal Center Locker Front/Rear Planetary Gear Type.
• Ring & Pinion 30/15T.

SPECIFICATIONS

Length: 11inch (280mm)
Width: 10.60inch (270mm)
Wheelbase: 8.2inch (210mm)
Ground Clearance: 2.6inch (65mm)

Please note: This kit requires the following for completion: battery and charger.

Although the images show white and chrome wheels, the production items only come with white wheels
