Castle MOTOR COOLING FAN, 17XX SERIES 011-0162-00
Castle MOTOR COOLING FAN, 17XX SERIES 011-0162-00
Couldn't load pickup availability
Product #: 011-0162-00
Run Cooler*!

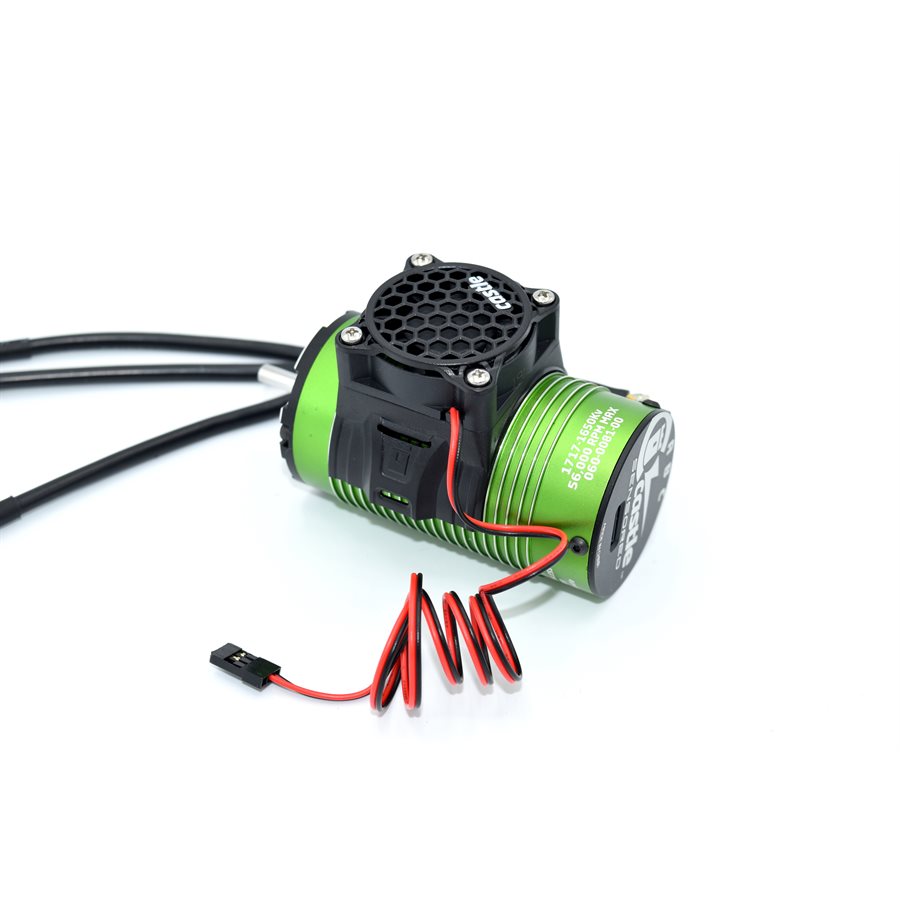

CC Blower plugs directly into your receiver for power and helps maintain motor temperature!Our newly redesign Motor Blower Fans make it easy to mount a cooling fan directly to any Castle 17xx series (or 46mm diameter) motor. Installation is simple using just zip ties.
The new design also allows taller, optional 40mm fans to be attached with longer mounting screws.
Fits on motors with outside diameters of 46mm.
| Designed for use with: | |
|---|---|
| 060-0082-00 | 1717-1260Kv Brushless Sensored Motor |
| 060-0081-00 | 1717-1650Kv Brushless Sensored Motor |
| 060-0091-00 | 1721-2400Kv Brushless Sensored Motor Able to fit two Shrouds |
| 060-0100-00 | 1721-1260Kv Brushless Sensored Motor Able to fit two Shrouds |

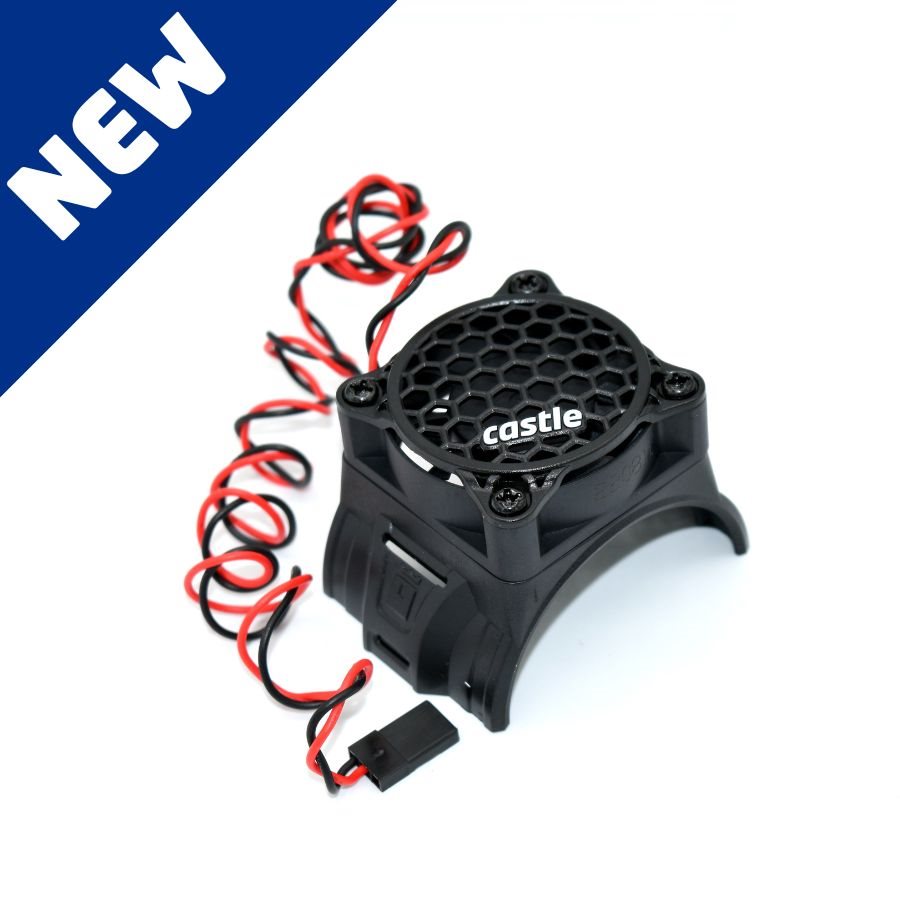

Includes fan, shroud, and two (2) black zip ties.
For installation instructions click here.
| Technical Specs: | |
|---|---|
| Input Max Voltage: | 8.4v |
| Maximum RPM: | 10,000 |
| Fan Size | 40mm x 40mm x 7mm |
| Waterproof: | No, remove before exposing fans to moisture. |
*This product is for supplemental cooling purposes only and should not be used to push the motor beyond its recommended limits or cover up heating issues caused by your setup. Temperature drop will vary depending on setup.
Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.
This product may contain chemicals known to the State of California to cause cancer and or birth defects or other reproductive harm.
Product designed in Olathe, Kansas USA.
Product made in China.
