Castle MAMBA MICRO X2, 16.8V, WP ESC WITH 0808-5300KV COMBO 010-0169-02
Castle MAMBA MICRO X2, 16.8V, WP ESC WITH 0808-5300KV COMBO 010-0169-02
Castle MAMBA MICRO X2, 16.8V, WP ESC WITH 0808-5300KV COMBO 010-0169-02

Castle MAMBA MICRO X2, 16.8V, WP ESC WITH 0808-5300KV COMBO 010-0169-02

Regular price
Sold out
Sale price
Unit price
Shipping calculated at checkout.

Product #: 010-0169-02

Putting the X in Extreme!

The Mamba Micro X2 is a refresh of our popular 1:18 scale Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle.  Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).

This is the perfect upgrade for 1:18 scale RC vehicles, up to 3S LiPo and weighing in at up to 2lbs. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, Axial Yeti Jr.

Important Product Update, 6/14/2023.
The internal BEC is back! All Micro X2s made on or after June 2023 will again have the internal BEC. You can check the date of manufacture on the side of the ESC box or on the ESCs receiver wire. ESCs made between August 2022 and May 2023 do not have an internal BEC and include an external 10-amp CC BEC; click here for more information.

The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

  • Input Voltage range 2S-3S (with included 0808-4100Kv motor)
  • Waterproof design.
  • Convenient transmitter programming for six common adjustable settings.
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake.
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions.
  • Designed and manufactured in Olathe, Kansas and is backed by our 1-year warranty.

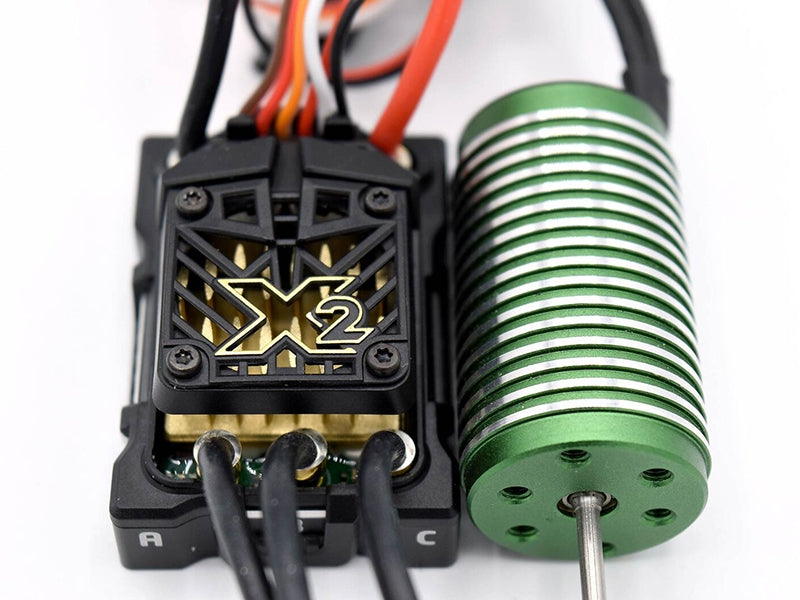

Mamba Micro X2 w/0808-5300Kv Motor Purchase Includes:
  • Mamba Micro X2 ESC

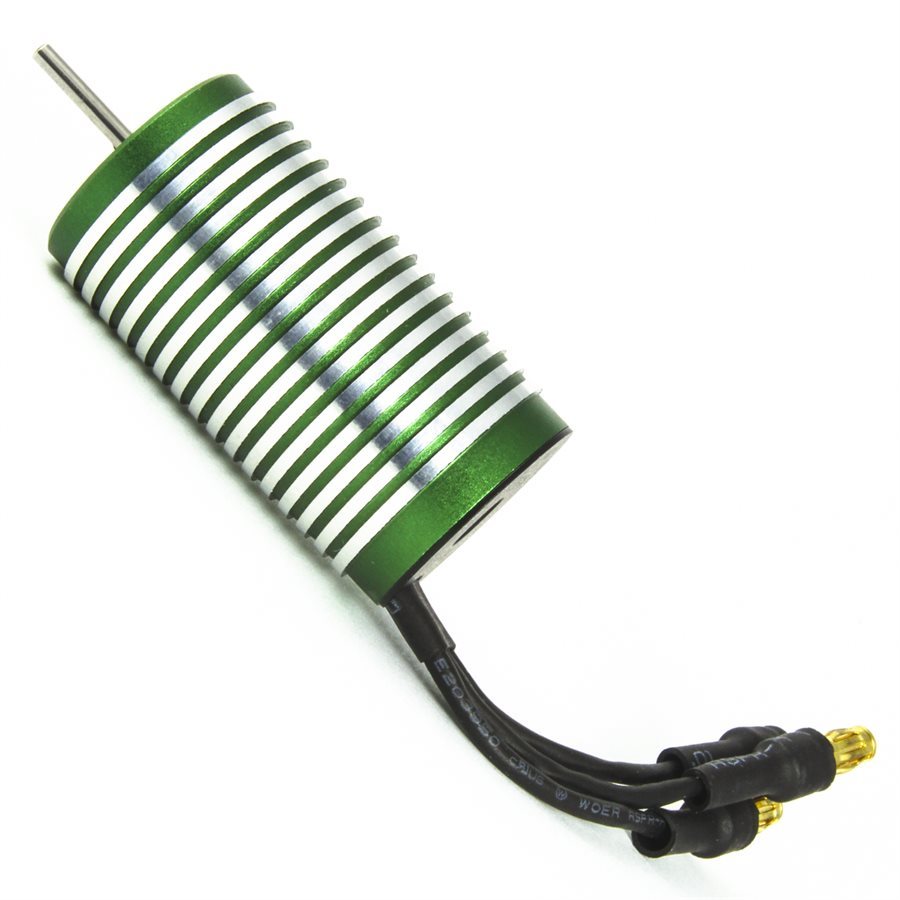

  • 0808-5300Kv Brushless Sensorless Motor
  • Coupon for free Castle Link USB adapter
  • Quick Start Guide
  • Castle Decals
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
Mamba Micro X2 Quick Start
Mamba Micro X2 Drivers Ed Guide
0808 Motor Gearing Chart
Mamba Micro X2 FAQ
Audible Alert Reference Chart
