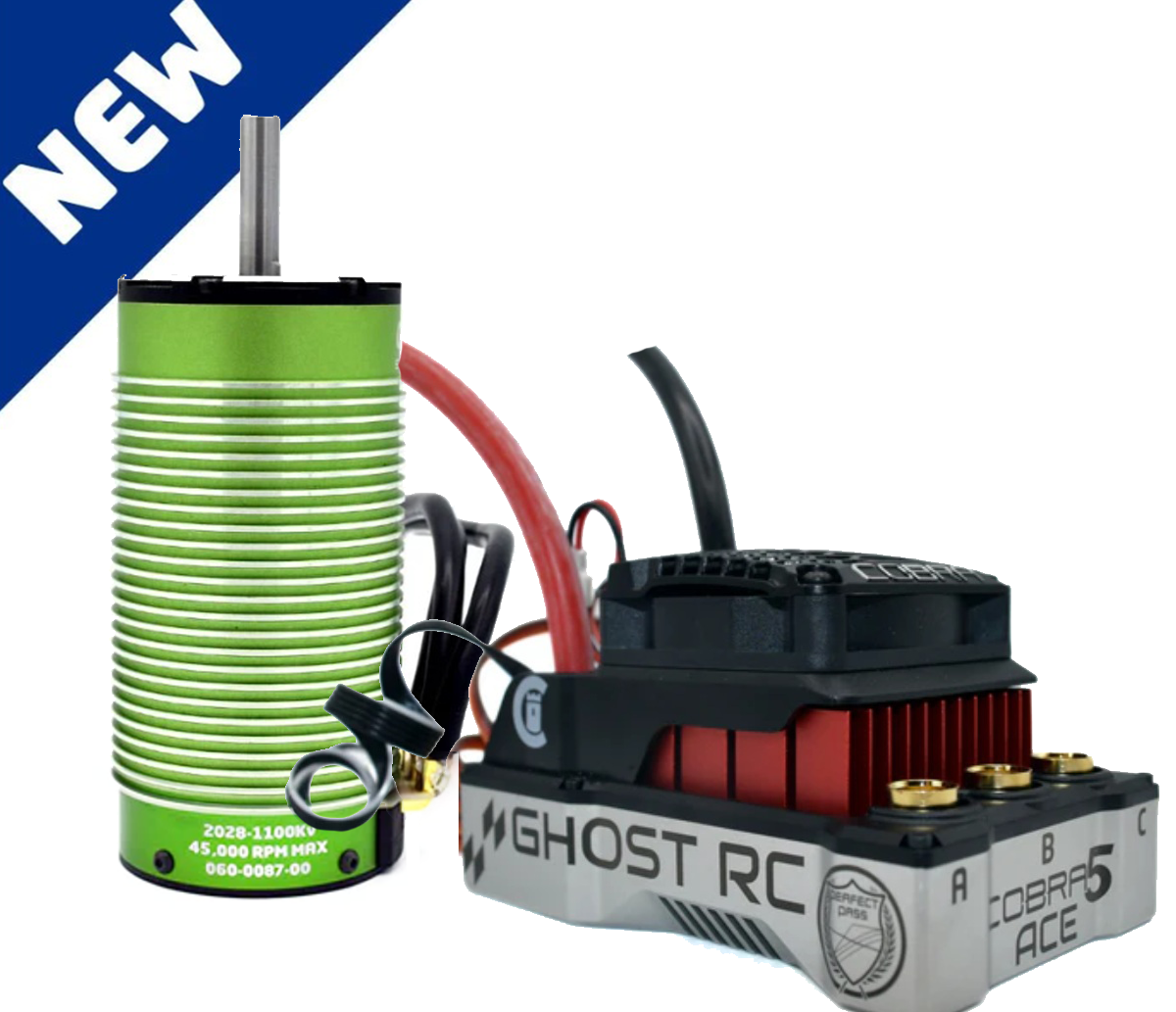

Castle Creations Ghost RC Cobra 5 ACE & 2028 1100KV Motor Combo
Castle Creations Ghost RC Cobra 5 ACE & 2028 1100KV Motor Combo
Couldn't load pickup availability
Cobra 5 ACE ESC – Co-Developed by Castle Creations, GhostRC & Perfect Pass RC
Introducing the Cobra 5 ACE—an unlimited, high-performance ESC engineered for those who live for speed runs and drag racing. Born from an exclusive collaboration between Castle Creations, GhostRC, and Perfect Pass RC, this next-generation speed controller redefines what’s possible in RC performance.
Built to dominate straight-line speed and withstand the most extreme power setups, the Cobra 5 ACE delivers insane amperage capability, lightning-fast response, and BUILT IN PERFECT PASS LAUNCH CONTROL!! — making it the top choice for serious RC speed enthusiasts around the world.
WARNING - UNLIMITED ESC!
NO PROTECTIONS - CAN BE DANGEROUS!
LIMITED WARRANTY!
Key Features:
• ⚡ Unlimited Power – No restrictions. Run high-amperage setups with the 6 gauge power wires and push the limits without any compromises.
• 🏁 Speedrun & Drag Racing Optimized – Tuned specifically for elite top-speed builds and drag setups.
🧠 32-Bit Processing Power – Next-level throttle precision, faster response times, and smarter tuning.
• ❄️ Advanced Cooling Design – Built to stay cool under extreme loads with precision thermal engineering.
• 🔧 Castle Link Tuning – Fully compatible with Castle’s advanced tuning software for dialed-in performance.
• 🛠️ Built by the Best – A true three-way partnership: Castle’s electronics legacy, GhostRC’s innovation, and Perfect Pass RC’s speed-run expertise.
The New Standard for ESCs
This isn’t just another speed controller—it’s the ESC that everyone will be chasing. Designed from the ground up by the people who live and breathe RC performance, the Cobra 5 ACE is your unfair advantage on the road, the strip, or the track.
If you want to go faster, run harder, and leave limits behind, the Cobra 5 ACE is your next upgrade.
BEFORE PURCHASING - PLEASE READ ALL DISCLAIMERS REGARDING WARRANTY AND PRODUCT USE WARNINGS ABOUT THIS PRODUCT.
2028 - 1100KV
The Castle 2028 Extreme 1100KV motor is a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. If you need LARGE-SCALE POWER for LARGE-SCALE VEHICLES the new BRUSHLESS SENSORED 2028-1100KV motor will no doubt hold up to the heavy throttle and extended usage that 1/6th scale vehicles like the Arrma Kraton 8s and Traxxas X-Maxx encounter. It is the perfect upgrade for any 1:6 scale RC hobby vehicles (including gas to electric conversions) weighing up to 30 lbs. The 2028 Extreme can easily run in the 10 horsepower range*
*Burst power output for durations typical of vehicle acceleration. FEATURES:- Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Dual sensor ports to ensure optimal installation in your large-scale vehicle.
- Updated modern and sleek design; looks as cool as it performs.
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.
| Technical Specs | |
|---|---|
| Input Voltage Range: | 10S MAX |
| Kv: | 1100 |
| Max. RPM: | 45,000 |
| Size: | Length: 4.4" (112.7mm) Diameter: 2.2" (56.3mm) |
| Weight (w/wires): | 44 oz./1.25kg |
| Shaft Size: | Length: 30mm Diameter: 0.315" (8mm) |
| Mounting Hole Specifications: | 4mm @ 30mm |
| Cooling Fan: | Available, but not included. See 011-0153-00 here. |
| Connectors: | 8.0mm male connectors, 250mm sensor wire. |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below) |
| Product Use Statements: | Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC. Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty. |
| Application Guidelines: | The 2028-1100KV is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments. Recommend starting gearing (pinion/spur) for 8s operation in popular vehicles: Traxxas X-Maxx - 23/35 (mod 1.5) or 34/54 (mod 1.0) Arrma Kraton 8s - 32/47 Tire size, driving style, driving conditions, battery quality and connectors can impact vehicle performance and acceptable gearing. |
| Recommended ESC(s): | Mamba XL X Mamba XLX2 |
| Max. Recommended Vehicle Weight: | RC vehicles weighing less than 30lbs. |
| Tech Notes: |
Running modes: Sensorless and Sensored |
