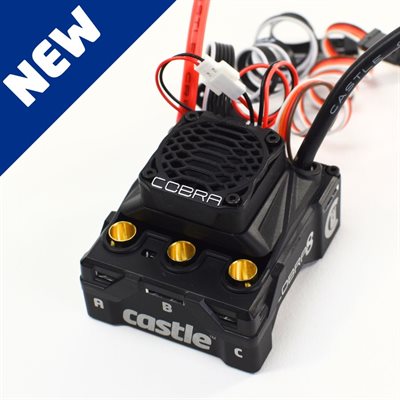

CASTLE COBRA 8 ESC, 25.2V ESC 010-0172-00
CASTLE COBRA 8 ESC, 25.2V ESC 010-0172-00
CASTLE COBRA 8 ESC, 25.2V ESC 010-0172-00
CASTLE COBRA 8 ESC, 25.2V ESC 010-0172-00

CASTLE COBRA 8 ESC, 25.2V ESC 010-0172-00

Regular price
£254.95
Sold out
Sale price
£209.95
Unit price
per
Shipping calculated at checkout.

We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 15 lbs.

Note: The Cobra 8 ESC is not intended for drag racing applications.

The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.

Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles.

Castle is proud to partner with Ghost RC and offer a drag specific version. It contains drag specific settings to control launch, manage power, and offers 166% more electrical motor timing. Visit Ghost-RC.com for more details.

NEW FEATURES:

  • 32-Bit Processing power for smoother motor control and improved response time.
  • Enhanced Data Logging includes:
    • Double the maximum sample frequency of older generations.
    • 8x increased logging time of older generations.
    • Data point for ESC electrical motor timing.
    • Data point for acceleration via onboard accelerometer.
    • Looping feature prevents interruptions in data log recording.
    • Ability to download specific sessions.
  • Additional tuning features include:
    • Improved braking adjustability
    • Separate brake and reverse curves
    • Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
  • Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
  • Mounting holes located in bottom of aluminum case for installation into vehicle.

MORE FEATURES:


  • Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
  • SmartSense™, Sensored Only and Brushed Motor Operation Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 30mm cooling fan
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Includes Castle Link V4 USB adapter for Windows.
  • Cobra 8 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty


COBRA 8 COMES WITH:

  • Cobra 8 ESC
  • Castle Link V4 USB Adapter
  • 300mm Direct Connect Sensor Wire
  • Cobra Decals
  • ESC Quick Start Guide


Resources
Cobra User Guide
Cobra Quick Start
 Motor Quick Start

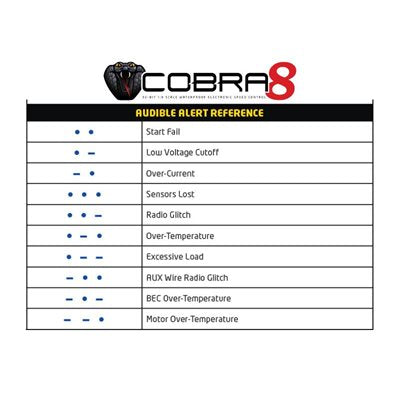

Transmitter Programming Audible Alert Reference Chart
