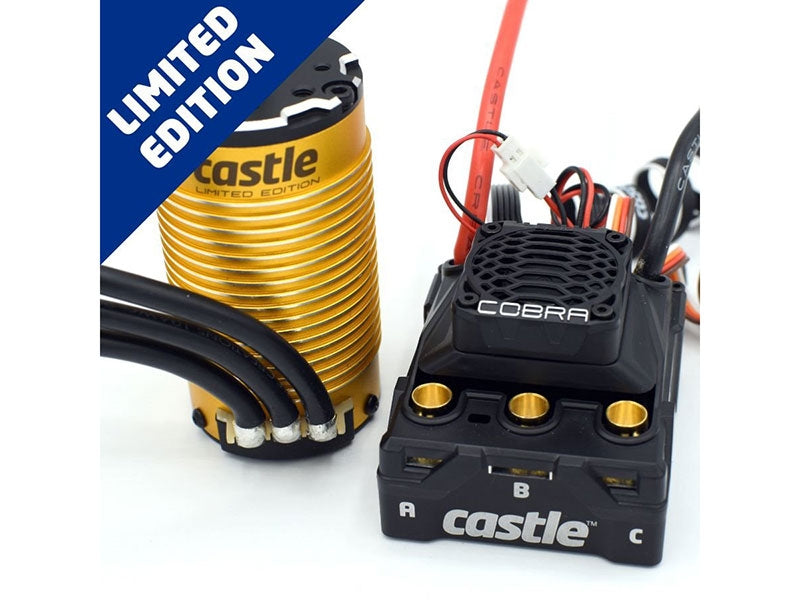

Castle COBRA 8, 25.2V ESC with Limited Edition Gold 1515-2200KV V2 Motor

Castle COBRA 8, 25.2V ESC with Limited Edition Gold 1515-2200KV V2 Motor

£386.99 GBP
£386.99 GBP
Sale Sold out
. Shipping calculated at checkout.

To commemorate the launch of the next generation we have produced a small quantity of LIMITED-EDITION GOLD COMBOS. This one-of-a-kindcombination fuses unparalleled performance with a touch of opulence. The gold1515-2200Kv V2 motor, meticulously engineered for precision and power, pairs seamlessly with the Cobra 8 ESC, delivering an unmatched level of speed,control, and style.


 We're thrilled to introduce the Cobra 8, our next generation electronic speed controller (ESC) for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 15 lbs.

The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.

Crafted with a CNC aluminum bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

One of its defining features is our acclaimed CRYO-DRIVE™ technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

We’ve packaged the Cobra 8 with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles, this combo includes a Castle 1515-2200Kv Sensored Motor. The 1515-2200KV combo is incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monstertrucks weighing up to 15 lbs.

MORE FEATURES:

  • Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
  • SmartSense™, Sensored Only and Brushed Motor Operation Modes
  • Powerful Integrated 8A Peak Adjustable BEC (5.00V - 8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 30mm cooling fan
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Includes Castle Link V4 USB adapter for Windows.
  • Cobra 8 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

MOTOR FEATURES:

  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Dual sensor ports to ensure optimal installation in your large-scale vehicle
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Technical Specs
Controller
  • Input Voltage Range: MIN: 2s LiPo
  • MAX:  6s LiPo (25.2V)
  • BEC Specifications: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
  • Operating Environment: Waterproof* design allows for use in nearly any environment.
  •  Running Modes:  SmartSense Brushless, Sensored Only, Brushed
  • Brake: Proportional
  • Reversible: Yes, but may be disabled for racing.
  • On/Off Switch: Yes, waterproof
  • Cooling Fan: Yes, factory equipped (30MM),** temperature controlled
  • Size: 60mm x 52mm x 43mm (2.36" x 2.04" x 1.69")
  • Weight (with no battery connector): 5.84 oz. ( 165.6 grams)
  • Connectors: 6.5mm female bullets for motor connection, matching 6.5mm male bullets included with motor.
  • Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
Product Use Statements: *Although the Cobra 8 ESC and Castle brushless motors are waterproof, they are not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Application Guidelines:  Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
Programmability: Fully programmable Castle feature set using the included FREE Castle Link USB adapter and freely downloadable NEW Castle Link 2 Windows™ software.
Castle Link Mobile App:  Not compatible at this time.
Telemetry Link Capable: Not Supported

Motor Specs
  • Input Voltage Range: 2S-6S LiPo
  • Kv: 2200
  • Max. RPM: 60,000
  • Size: Length: 75.4mm
  • Diameter: 40mm (41.4mm with fins)
  • Weight (w/wires): 426g (15.1oz) ; 380g without wires
  • Shaft Size: Length: 20mm
  • Diameter: 5mm
  • Mounting Hole Specifications: M3 and M4 @ 25mm
  • Cooling Fan: Optional
  • Connectors: 6.5mm male connectors on 10-gauge wire
Application Guidelines: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1)
Tech Notes:  Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.

COBRA 8 / 1515-2200kv V2 COMBO COMES WITH:

  • Cobra 8 ESC
  • 1515-2200kv V2 Sensored Brushless motor
  • Castle Link V4 USB Adapter
  • 300mm Direct Connect Sensor Wire
  • Cobra Decals
  • ESC Quick Start Guide
