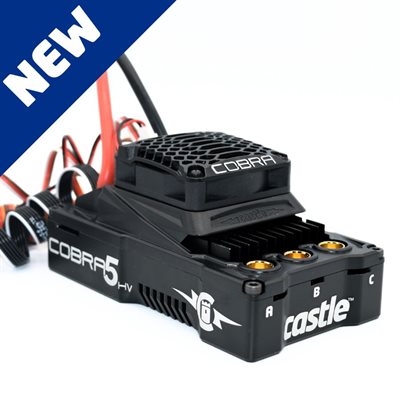

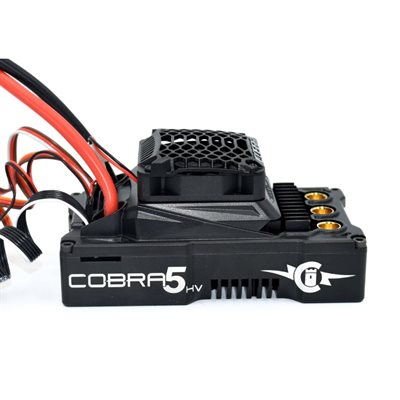

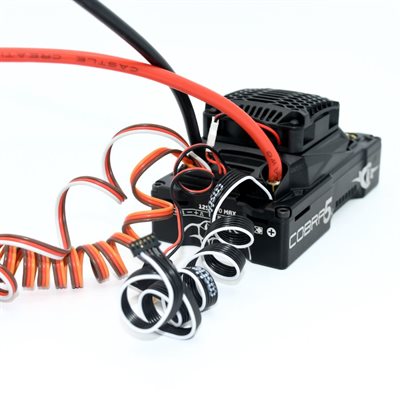

CASTLE COBRA 5 HV, 12S, 50.4V ESC 010-0178-00

COBRA 5 HV - HIGH VOLTAGE. NO COMPROMISE

The Castle Cobra 5 HV takes everything  the Cobra 5 has and dials it up to 12. With 50.4V support (12S LiPo) this ESC is built to tame 1:4 scale monsters weighing up to 50 lbs.

COBRA 5 HV FEATURES:

• 32-Bit processing power for smoother motor control and improved response time.
• Enhanced Data Logging includes:
  • Double the maximum sample frequency of older generations.
  • 8x increased logging time of older generations.
  • ESC electrical motor timing data.
  • Acceleration data via onboard accelerometer.
  • Looping feature prevents interruptions in data log recording.
• Additional tuning features include:
  • Improved braking adjustability
  • Separate brake and reverse curves
  • Highly adjustable internal BEC (5.0V - 8.5V adjustable in 0.1V increments)
• Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase.
• Upgraded current-sensing and thermal protection system actively mitigates the risk of failure in aggressive or high-load setups.

ADDITIONAL FEATURES:

• CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
• ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
• Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
• Oversized factory equipped thermally controlled 50mm cooling fan
• Waterproof design for all weather conditions
• Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake

PURCHASE INCLUDES:

• Cobra 5 HV ESC
• 400mm direct connect sensor wire
• Cobra decals
• Castle Link V4 USB Adapter
• Cobra Quick Start Guide
