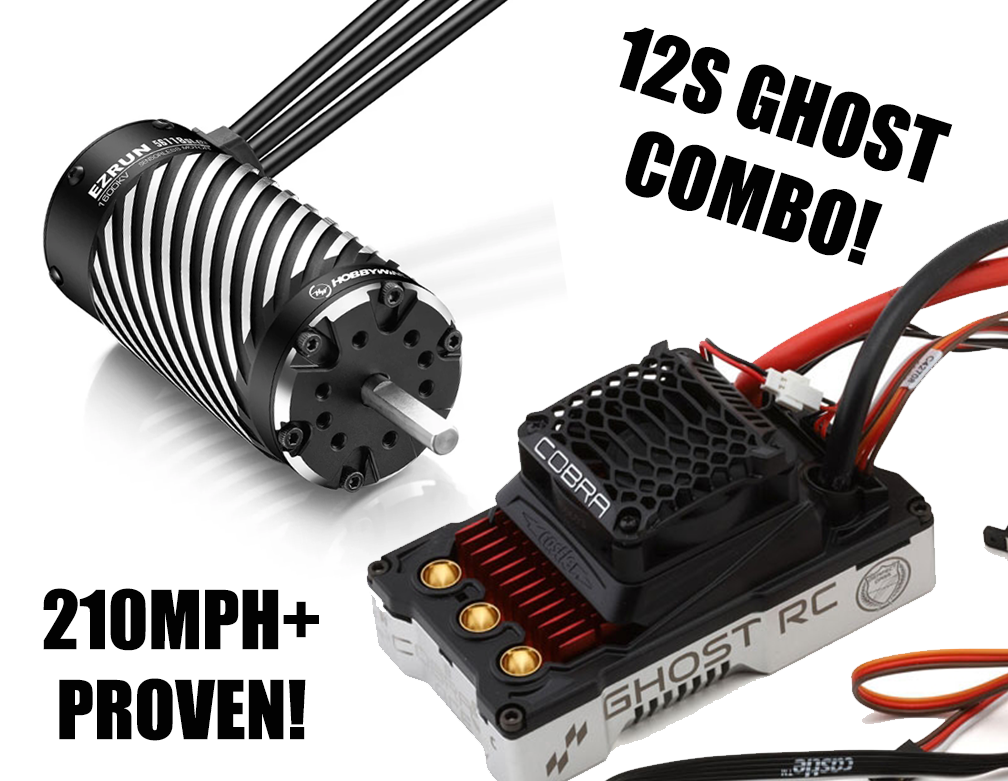

Castle COBRA 5 ACE HV 12S ESC With HW56118 1600kv

TAKE YOUR TRUCK TO THE EXTREME WITH 12S POWER!

I ran 213mph with this combo on the very first run!

Cobra 5 ACE HV: The Speed Demon’s Secret Weapon, supremely capable in bashers too!

Introducing the Cobra 5 ACE HV! This powerhouse is 12s (50.4v) capable and loaded with all the cutting-edge features you expect from the ACE lineup by Ghost RC, along with the Perfect Pass function.

Engineered for the hardcore speed enthusiast and rigorously tested to dominate the record book, this beast has shattered long-standing single-motor speed records during testing!

If you’re eager to push your setup beyond the limits and soar past 200 mph, the Cobra 5 ACE HV is the product to get you there!

- **BATTERY:** Min: 6S LiPo; Max: 12S LiPo, 50.4V

- **WEIGHT:** 16.8oz. (479 grams)

- **MOTOR CONNECTORS:** 8.0mm female bullets; matching 8.0mm male bullets required.

-**POWER WIRE** 6 AWG.

- **PEAK BEC:** 5.0V - 8.5V adjustable in 0.1V increments; (20A Peak, 5.5V default)

**FEATURES:**

- **32-BIT PROCESSOR:** High-performance 32-bit microprocessor provides expanded computing power.

- **DESIGN:** Robust 1:4 scale construction.

- **PROGRAMMING:** Castle Link USB V4 programmer (included) or via Transmitter (limited), Bluetooth adapter (coming soon).

- **TIMING:** 45° boost OR 45° turbo. RPM and Time-based ramping (requires Sensored Motor).

- **PERFECT PASS RAMP:** Programmable throttle acceleration (0.1S to 25S).

- **ENHANCED DATA-LOGGING:** Higher sample rate and more data points with added capacity.

- **G-FORCE METER:** On-board accelerometer logs G-forces during each run.

- **REV LIMITER:** Prevents motor damage in the event of a broken gear or other failure.

- **CURRENT LIMITING:** 100A-700A or Disabled.

• **SENSOR SUPPORT:** Smart Sense Brushless and Sensored only.

Normally these ESC’s are sold with zero warranty. Buy from Scorched and we offer Tier 2 warranty. Return you damaged RC and we’ll replace it for 2/3 retail price

Motor:

Exceptional Power for High-Speed Applications
The motor delivers outstanding power and performance, making it an excellent choice for high-speed 1/7th and 1/8th scale RC vehicles.

High Speed Design
The motor rotor has superior anti-explosion performance and supports a maximum speed of up to 78,000 RPM, which can meet the high rotational speed requirements of high-speed RC vehicles.

Optimized Pairing with EzRun MAX5 HV Plus G2 ESC
The motor is engineered for seamless compatibility with the EzRun MAX5 HV Plus G2 ESC, enabling higher speeds and greater power output for maximum performance.

Modular Construction for Easy Maintenance
Featuring a modular and detachable design, the motor is easy to clean and maintain, significantly extending its operational lifespan while ensuring consistent performance.

Dual Specifications to Suit Various Applications
The motor provides two options: 5690-2400KV and 56118-1600KV.

High-Quality Materials for Durability
Constructed using premium materials, the motor offers exceptional reliability and performance:
·CNC-machined Aluminum Housing for High Strength.
·Top-tier Bearings and Ultra-thin Silicon Steel Laminations.
·High-temperature-Resistant Oxygen-free Copper Wires.
·Carbon Fiber-wrapped Explosion-proof Rotor.
·High-toughness Alloy Output Shaft.

Innovative and Stylish Design
The motor's innovative spiral groove heat sink design not only enhances thermal performance but also provides a striking, modern aesthetic.

Specifications

Type

Scale - 1/7th, 1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4

Relevant Parameters

KV Rating - 1600KV
LiPo Cells - 6-12S
No-load Current(A) - 16A

Size & Weight

O.D.(mm) - 56
Length (mm) - 118
Shaft Diameter (mm) - 8
Weight (g) - 1270g
Front Bearing - D22*D8*T7
Rear Bearing - D19*D8*T6

ESC - EZRUN MAX5 HV PLUS G2
Applications - 1/8th, 1/7th and other model cars for extreme speed applications
