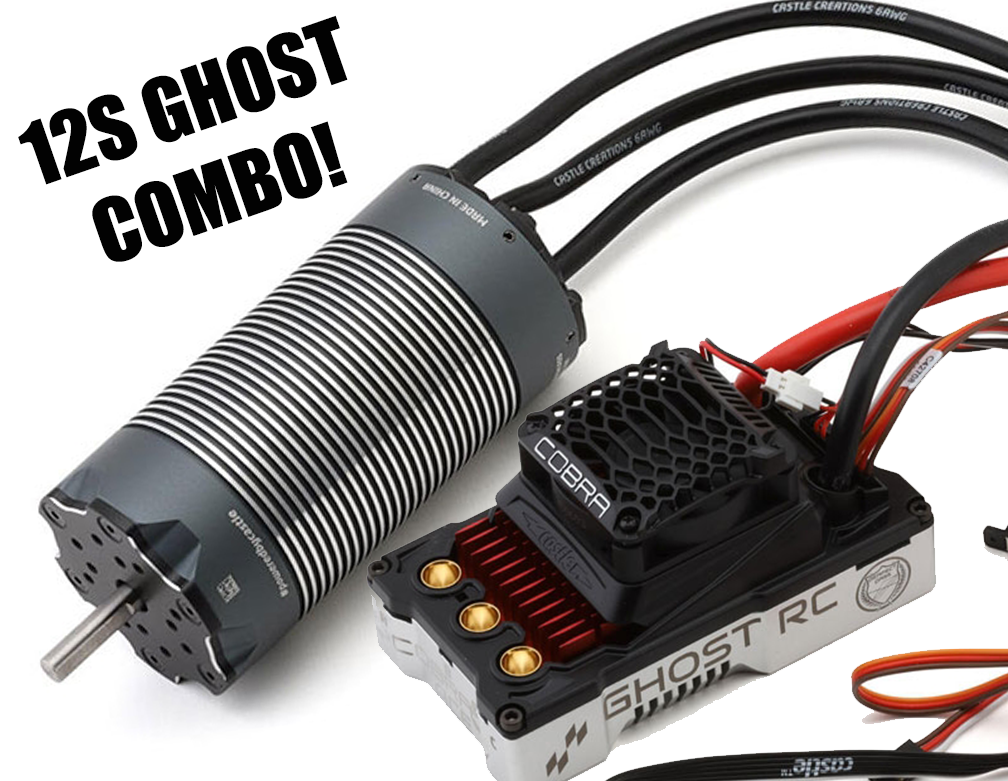

Castle COBRA 5 ACE HV 12S ESC With 2535 680kv Monster Motor

Castle COBRA 5 ACE HV 12S ESC With 2535 680kv Monster Motor

£650.00 GBP
£749.99 GBP £650.00 GBP
Sale Sold out
. Shipping calculated at checkout.

TAKE YOUR TRUCK TO THE EXTREME WITH 12S CASTLE POWER!

Cobra 5 ACE HV: The Speed Demon’s Secret Weapon, supremely capable in bashers too!

Introducing the Cobra 5 ACE HV! This powerhouse is 12s (50.4v) capable and loaded with all the cutting-edge features you expect from the ACE lineup by Ghost RC, along with the Perfect Pass function.

Engineered for the hardcore speed enthusiast and rigorously tested to dominate the record book, this beast has shattered long-standing single-motor speed records during testing!

If you’re eager to push your setup beyond the limits and soar past 200 mph, the Cobra 5 ACE HV is the product to get you there!

- **BATTERY:** Min: 6S LiPo; Max: 12S LiPo, 50.4V

- **WEIGHT:** 16.8oz. (479 grams)

- **MOTOR CONNECTORS:** 8.0mm female bullets; matching 8.0mm male bullets required.

-**POWER WIRE** 6 AWG.

- **PEAK BEC:** 5.0V - 8.5V adjustable in 0.1V increments; (20A Peak, 5.5V default)

**FEATURES:**

- **32-BIT PROCESSOR:** High-performance 32-bit microprocessor provides expanded computing power.

- **DESIGN:** Robust 1:4 scale construction.

- **PROGRAMMING:** Castle Link USB V4 programmer (included) or via Transmitter (limited), Bluetooth adapter (coming soon).

- **TIMING:** 45° boost OR 45° turbo. RPM and Time-based ramping (requires Sensored Motor).

- **PERFECT PASS RAMP:** Programmable throttle acceleration (0.1S to 25S).

- **ENHANCED DATA-LOGGING:** Higher sample rate and more data points with added capacity.

- **G-FORCE METER:** On-board accelerometer logs G-forces during each run.

- **REV LIMITER:** Prevents motor damage in the event of a broken gear or other failure.

- **CURRENT LIMITING:** 100A-700A or Disabled.

  • **SENSOR SUPPORT:** Smart Sense Brushless and Sensored only.

Normally these ESC’s are sold with zero warranty. Buy from Scorched and we offer Tier 2 warranty. Return you damaged RC and we’ll replace it for 2/3 retail price



Motor:

Large Scale Sensored Power
Experience unstoppable power with the Castle Creations 2535 Brushless Motor, engineered to deliver maximum torque, efficiency, and precision for heavy 1:5 and 1:4 scale RC vehicles.

About the 2535 4-Pole Sensored Brushless Motor

Unmatched Power And Torque
The Castle Creations 2535 4-Pole Sensored Brushless Motor is the most powerful motor in Castle’s 28+ year history, capable of handling 1:5 and 1:4 scale RC vehicles weighing up to 50 lbs. Designed for extreme performance, it produces the torque and RPM needed to push heavy vehicles like the Losi 5IVE-T, 5IVE-B, or DBXL-E, making it the perfect upgrade for gas-to-electric conversions and high-demand applications.

Advanced Efficiency And Cooling
Featuring a 4-pole, 12-slot V3 design, the 2535 motor runs cooler and more efficiently, reducing heat buildup and extending motor life. Its oversized NMB bearings, stainless steel sleeve rotor, and high-strength neodymium magnets ensure durability under harsh conditions, while the smooth can exterior and water-resistant design make water cooling simple. Proprietary Castle winding techniques and vibration dampening further enhance performance and reliability.

Smart Sensored Technology
Equipped with SmartSense™ and QuietSense™ technologies, the motor delivers buttery smooth sensored startups and transitions seamlessly to ultra-efficient sensorless operation. Electronic timing automatically optimizes torque and efficiency across all load points, providing precise throttle control, longer run times, and peak performance. When paired with a Castle sensored ESC, users gain access to advanced tuning through Castle Link for the ultimate power and control experience.

Features:
  • Designed for 1:5 and 1:4 scale RC vehicles
  • Handles vehicles weighing up to 50 lbs
  • Compatible with 12S LiPo batteries
  • Max RPM: 38,000
  • Advanced 4-pole, 12-slot V3 design
  • Oversized front and rear NMB bearings
  • Water-resistant construction with smooth can exterior
  • High-strength stainless steel sleeve rotor and neodymium magnets
  • SmartSense for smooth sensored startups and sensorless efficiency
  • QuietSense and Flux Shield for precise, low-noise operation
Includes:
  • (1) 2535 4-Pole Sensored Brushless Motor
  • (1) Sensor Wire
  • (1) Manual
Specifications:
  • Suggested Application 1/6 & 1/5 Scale On-Road & Off-Road
  • Type Brushless Sensored
  • Size 2535
  • kV Rating 680
  • Max. RPM 38,000
  • Input Voltage 3-12S (11.1-44.4V)
  • Connector 8.0mm Male Bullets
  • Dimensions 5.8x2.7in (147.5x68.7mm)
  • Shaft Diameter 0.31in (8mm)
  • Shaft Length 1.18in (30mm)
  • Weight 84.8oz(2.4kg)
