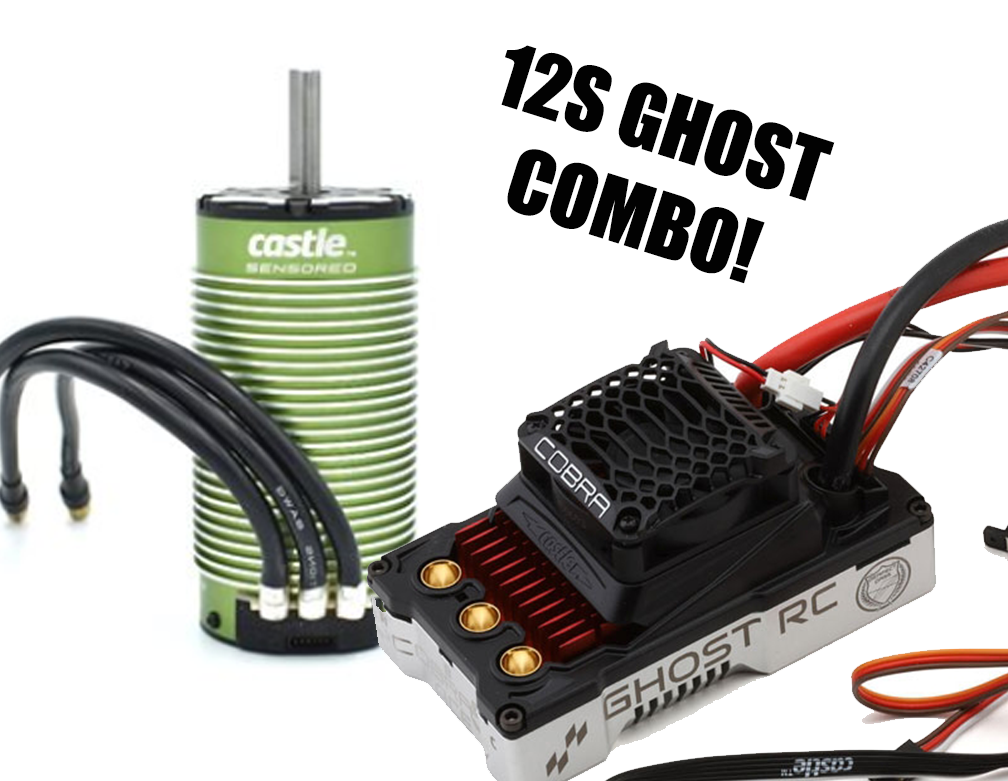

Castle COBRA 5 ACE HV 12S ESC With 2028-800KV Motor

TAKE YOUR TRUCK TO THE EXTREME WITH 12S CASTLE POWER!

Cobra 5 ACE HV: The Speed Demon’s Secret Weapon, supremely capable in bashers too!

Introducing the Cobra 5 ACE HV! This powerhouse is 12s (50.4v) capable and loaded with all the cutting-edge features you expect from the ACE lineup by Ghost RC, along with the Perfect Pass function.

Engineered for the hardcore speed enthusiast and rigorously tested to dominate the record book, this beast has shattered long-standing single-motor speed records during testing!

If you’re eager to push your setup beyond the limits and soar past 200 mph, the Cobra 5 ACE HV is the product to get you there!

- **BATTERY:** Min: 6S LiPo; Max: 12S LiPo, 50.4V

- **WEIGHT:** 16.8oz. (479 grams)

- **MOTOR CONNECTORS:** 8.0mm female bullets; matching 8.0mm male bullets required.

-**POWER WIRE** 6 AWG.

- **PEAK BEC:** 5.0V - 8.5V adjustable in 0.1V increments; (20A Peak, 5.5V default)

**FEATURES:**

- **32-BIT PROCESSOR:** High-performance 32-bit microprocessor provides expanded computing power.

- **DESIGN:** Robust 1:4 scale construction.

- **PROGRAMMING:** Castle Link USB V4 programmer (included) or via Transmitter (limited), Bluetooth adapter (coming soon).

- **TIMING:** 45° boost OR 45° turbo. RPM and Time-based ramping (requires Sensored Motor).

- **PERFECT PASS RAMP:** Programmable throttle acceleration (0.1S to 25S).

- **ENHANCED DATA-LOGGING:** Higher sample rate and more data points with added capacity.

- **G-FORCE METER:** On-board accelerometer logs G-forces during each run.

- **REV LIMITER:** Prevents motor damage in the event of a broken gear or other failure.

- **CURRENT LIMITING:** 100A-700A or Disabled.

• **SENSOR SUPPORT:** Smart Sense Brushless and Sensored only.

Normally these ESC’s are sold with zero warranty. Buy from Scorched and we offer Tier 2 warranty. Return you damaged RC and we’ll replace it for 2/3 retail price

Motor:

The Castle 2028 Extreme 800KV motor now has an IMPROVED 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT.  If you need LARGE-SCALE POWER for LARGE-SCALE VEHICLES the new BRUSHLESS SENSORED 2028-800KV motor will no doubt hold up to the heavy throttle and extended usage that 1/5th scale vehicles like the Losi 5IVE-T, 5IVE-B or DBXL-E encounter. It is the perfect upgrade for any 1:5 scale RC hobby vehicles (including gas to electric conversions) weighing up to 30 lbs for 2WD and 25 lbs. for 4WD.  The 2028 Extreme can easily run in the 10 horsepower range*

*Burst power output for durations typical of vehicle acceleration. FEATURES:

• Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
• High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
• Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
• Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
• Dual sensor ports to ensure optimal installation in your large-scale vehicle.
• Updated modern and sleek design; looks as cool as it performs.

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.
