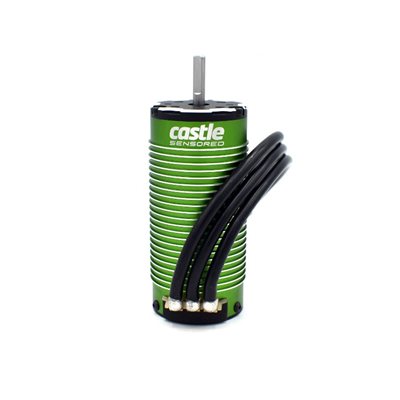

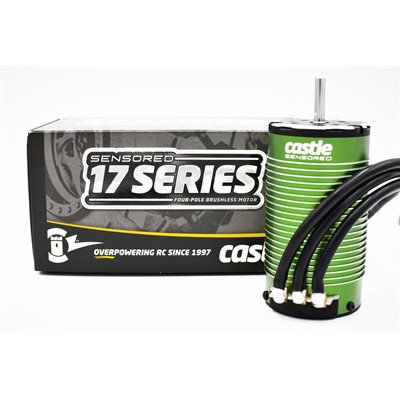

CASTLE 1717 SENSORED MOTOR - 1650KV
CASTLE 1717 SENSORED MOTOR - 1650KV
Couldn't load pickup availability
Product #: 060-0081-00
The Castle 1717 1650KV motor is a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. This motor is a blast from the past with the added benefit of sensored capabilities! It is the perfect upgrade for any 1/6th scale vehicles weighing up to 20 lbs and running up to 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8th scale vehicles.Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
The 1717-1650Kv is ideal for vehicles up to 20lbs running 6s – 8s LiPo. Examples include Losi LST2-E; Arrma™: Limitless™, Typhon™ 6s, Infraction™, Talion™ 6s; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
Note: Recommendations based on vehicle weight and motor capabilities. Verify motor fitment, may require optional motor mount.
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Updated modern and sleek design; looks as cool as it performs.
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.
| Technical Specs | |
|---|---|
| Input Voltage Range: | 3s-8s LiPo Max |
| Kv: | 1650 |
| Max. RPM: | 56,000 |
| Size: | Diameter: 1.87” (47.6mm) at fins, 46mm at can. Length: 3.35” (85.1mm) |
| Weight (w/wires): | 597.6g (21.08 oz); 548g without wires |
| Shaft Size: | Length: 20mm Diameter: 5mm |
| Mounting Hole Specifications: | M3 and M4 @ 25.4mm (1") |
| Cooling Fan: | Optional, 011-0162-00 |
| Connectors: | 6.5mm male bullets |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below) |
| Product Use Statements: |
|
| Application Guidelines: |
|
| Recommended ESC(s): |
Mamba Monster X 8S |
| Max. Recommended Vehicle Weight: | Vehicles weighing less than 20lbs. |
| Tech Notes: |
Running modes: Sensorless and Sensored |
