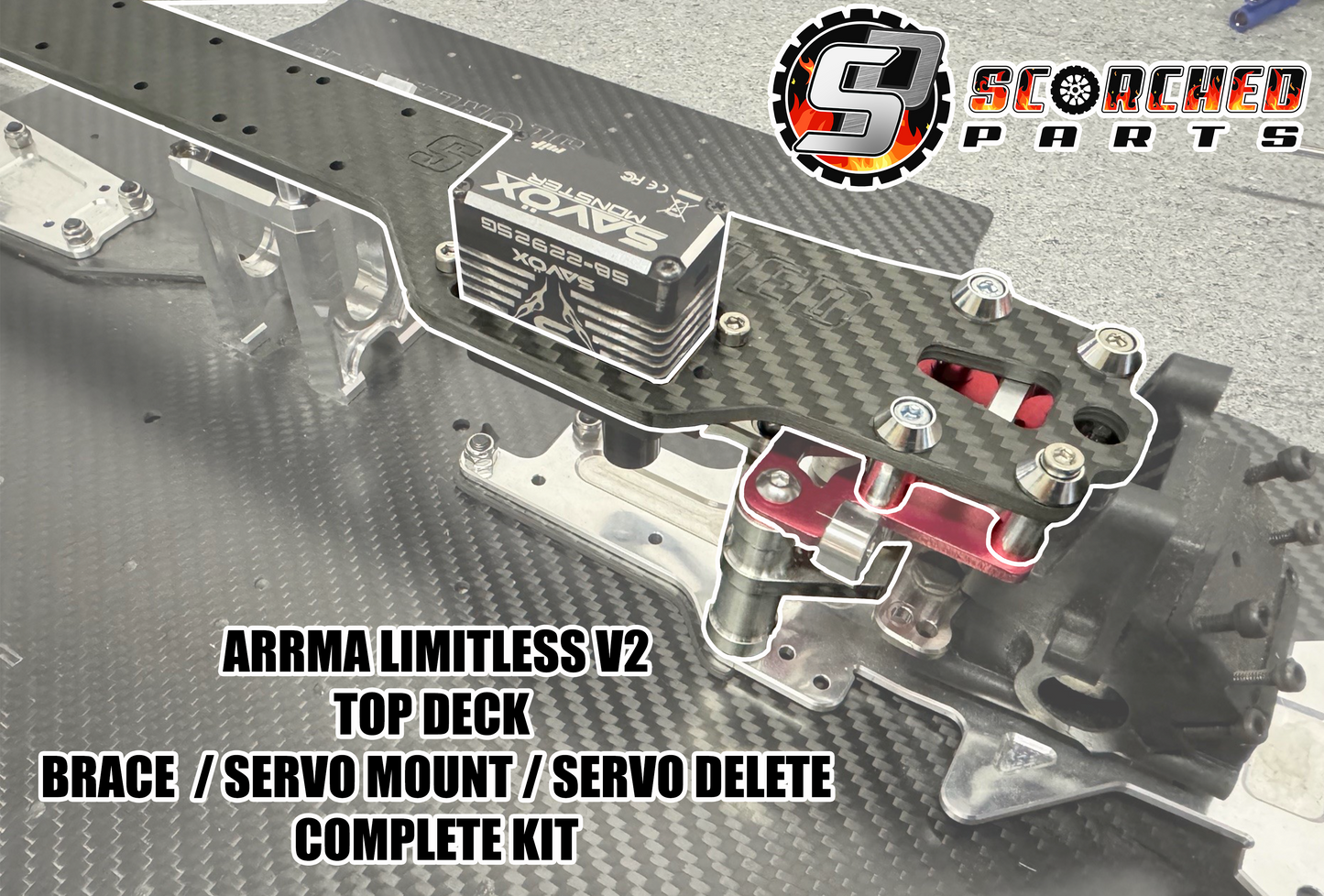

Scorched Parts Carbon Fibre Top Deck Centre Brace with Servo mounting for Arrma Infraction / Limitless V1 & V2
A new innovation from Scorched parts, incorporating the servo mount directly into the top deck.
This allows the servo arm to be tucked under the brace, centrally driving special the servo delete steering pivot via a ball bearing link arm

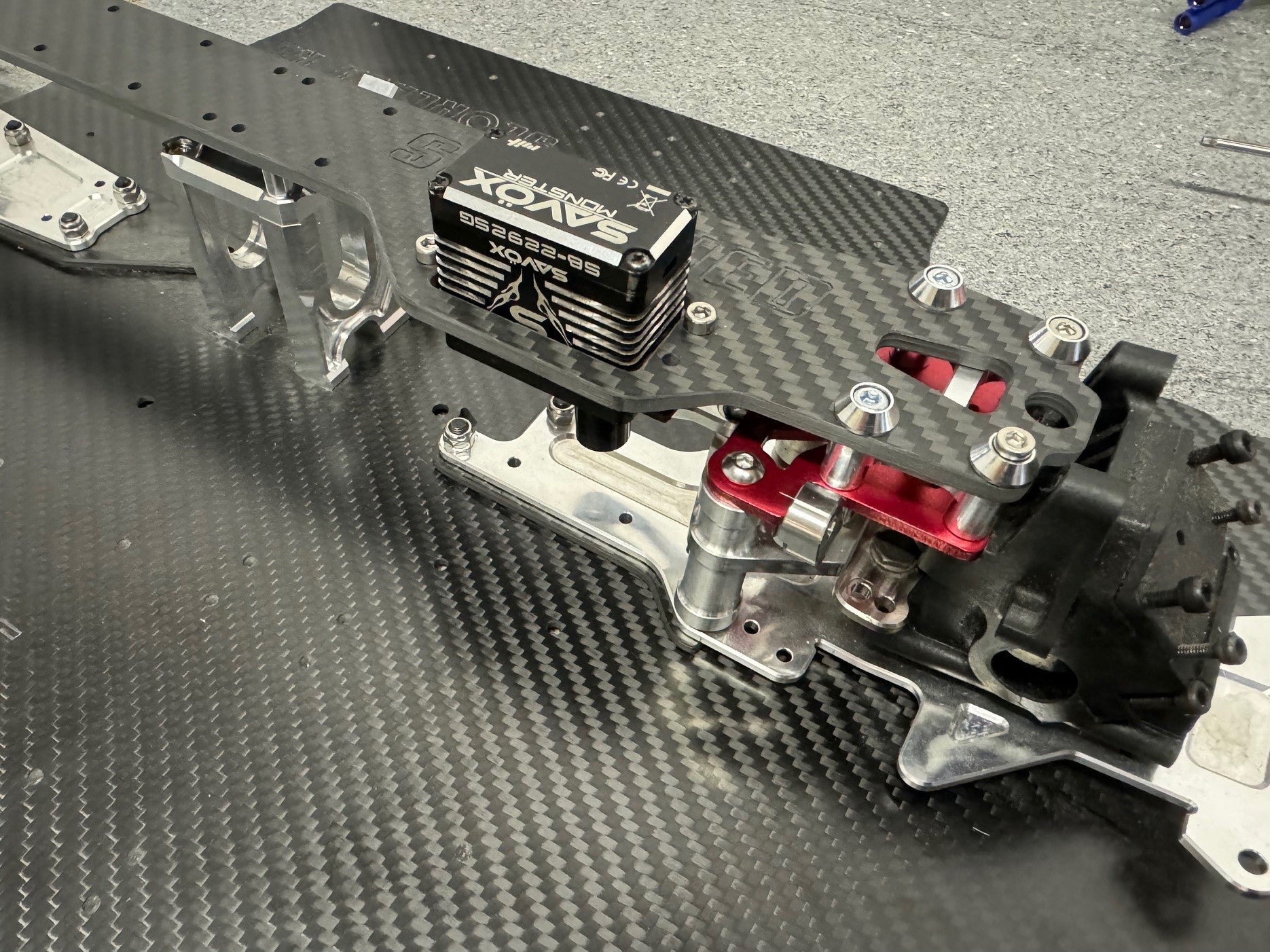

Included (as in picture 2):

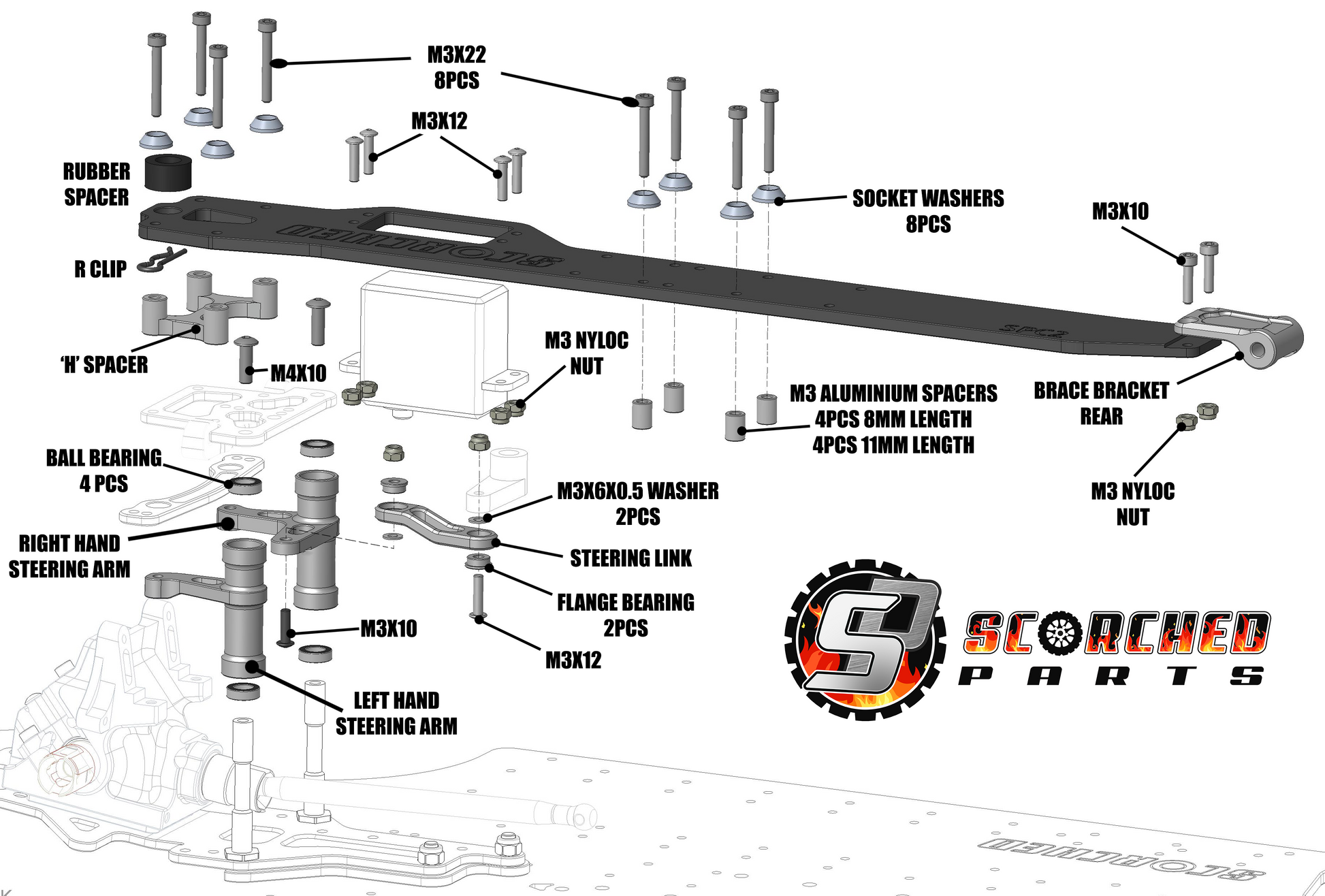

Complete top deck assembly - Carbon plate, aluminium brackets
Complete special servo delete steering arms
Aluminium, ball bearing servo link arm
This is a fantastic way to tidy up the chassis layout and provides much more room up front for either dual motor builds, or for placing batteries up front where the servo would normally be in the way
The centre brace is in beefy 4mm think carbon fibre and stiffens the whole chassis by bolting to the center diff mount and adding torsional rigidity with laterally solid mounting front and rear.
The rear of the brace bolts to the existing brace mount using a billet machined adapter. The front does away with the plastic brace mount and bolts directly through to the front bulkhead assembly.
We use our normal outstanding quality of 3k carbon fibre in a satin finish, precision machined with beautifully finished edges.
Fits with Stock and Scorched motor mounts. Will work with PPS mounts but may require different size spacers on top of the mount (cap holes are too small to accept our spacers).
