Carbon Fibre Chassis - for Hobao VTE2 Full Length Kit

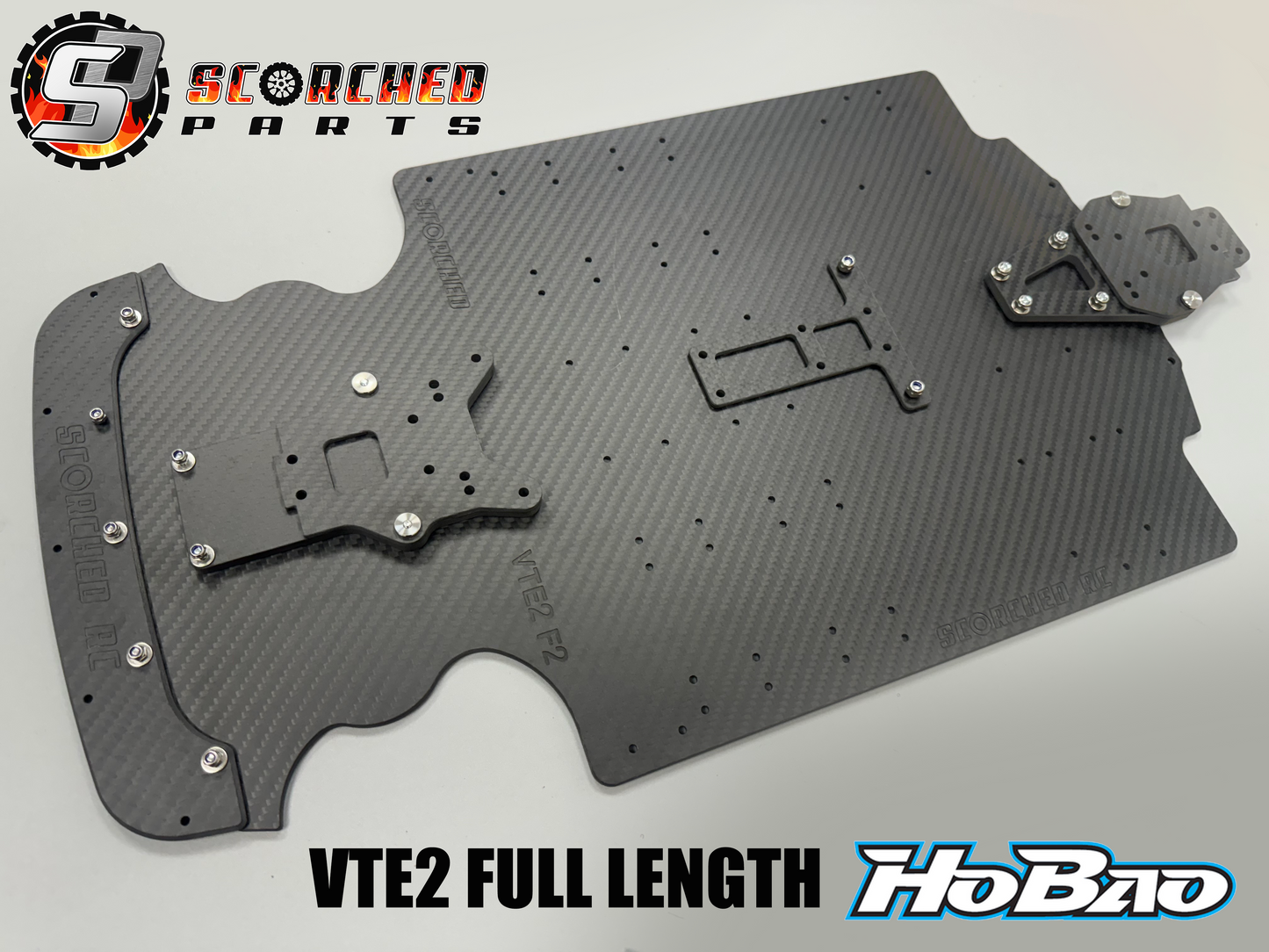

Scorched Parts Carbon Fibre Full Length VTE2 Chassis Kit.

NEW 'F2' VERSION! Includes a full drilled base plate to accept Single or Dual motor setups, XLX2 mountings, battery buckle mountings, side body mount provision. When combined with our servo mount Top Brace, no drilling is required!

Take a great car, and make it AMAZING! Used by the top builders in the world running 200mph+

This is a special kit including a special 6 piece chassis.

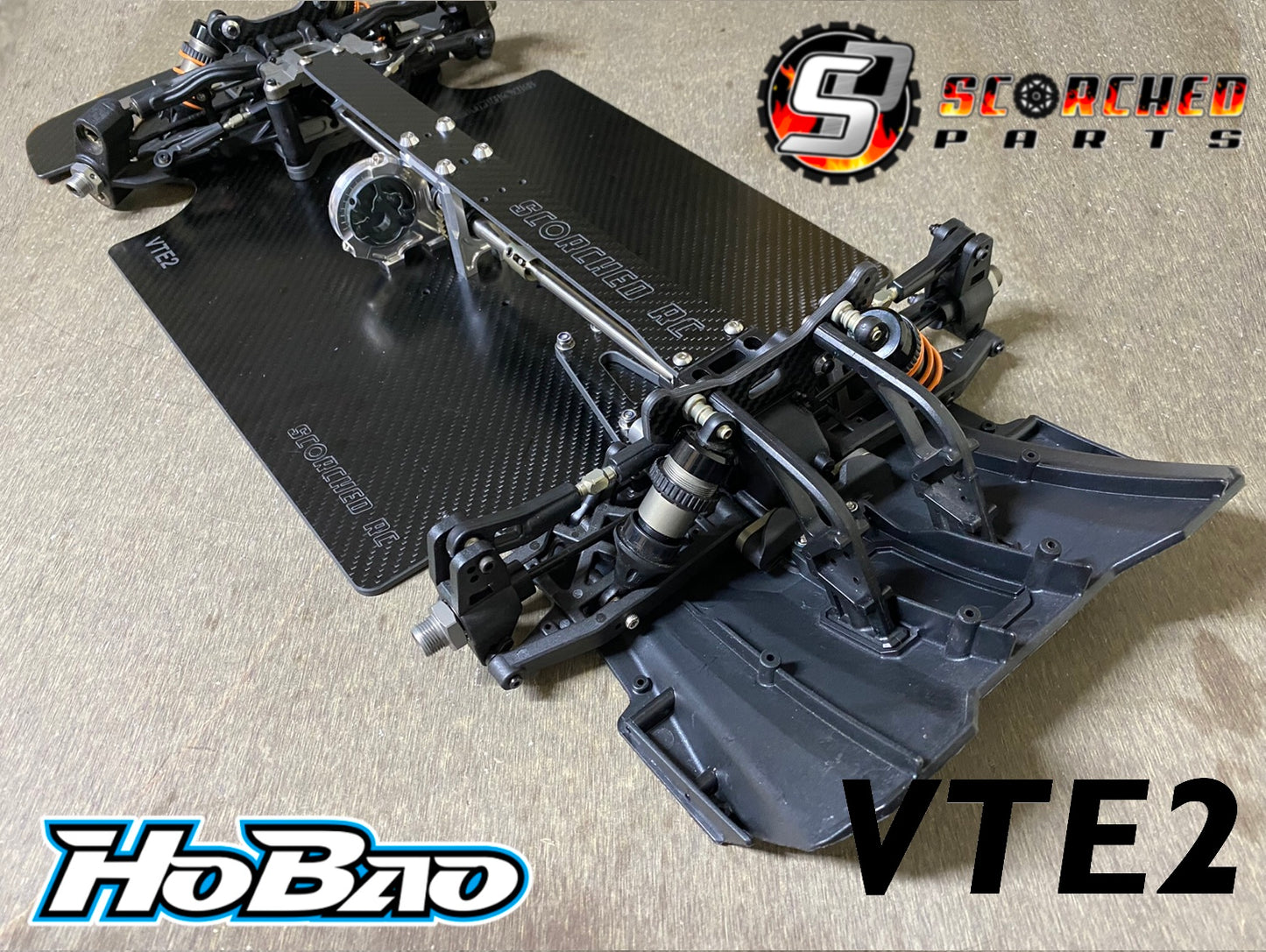

This full length conversion kit enables the use of a rear diffuser and Arrma carbon fibre front splitters, as available for different body types. SPLITTER NOT INCLUDED

This new version also comes ready drilled for our Triple Bearing Spool setup - due for release November 2024

The Chassis can be supplied with optional stainless steel 'high mass' front splitter. Ideal for many applications, improving grip, directional stability and adding 'mechanical' front downforce. A carbon splitter mount is the other option for those not needing additional nose weight.

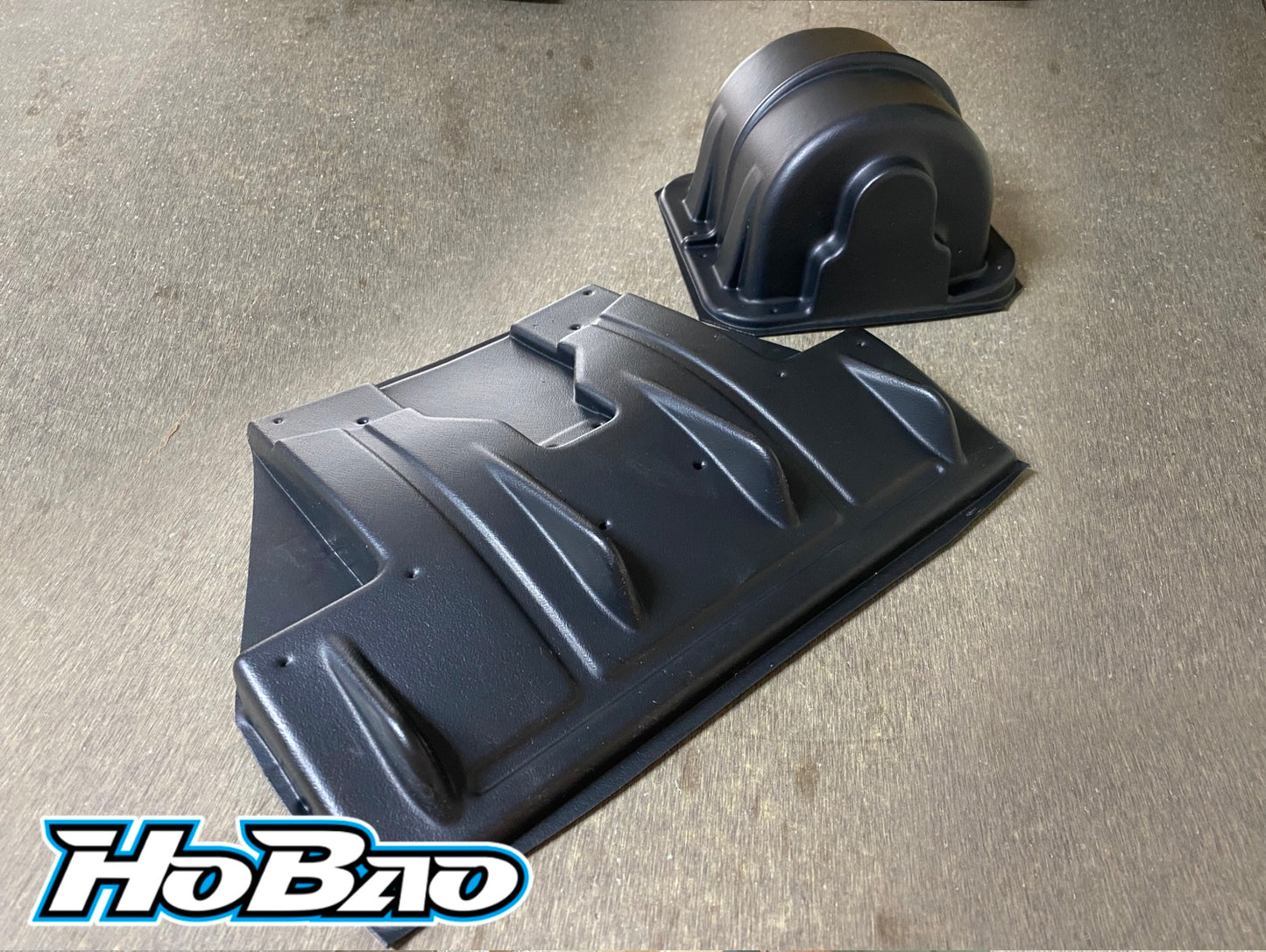

The kit also has an optional Scorched Parts rear diffuser. The Arrma rear diffuser can also be used with some small modifications.

Arrma type wings like our batwing and SP wing will mount on the diffuser with the appropriate Arrma wing assembly parts.

The chassis rises the front and rear diff housings by 9mm. This enables much improved arm and axle shaft angles, straightening out the axles to reduce friction and wear in the joints.

300mm wide to suit all common 1/7th GT type bodies. Made from 4mm top quality Toray 3k carbon fibre, providing fantastic strength to weight ratio. Precision machined for a perfect fit and a high quality satin finish.

Droop screw positions have stainless steel tabs inserted to protect the carbon fibre.

Our Servo Mount Top Brace is recommended.

3D Printed hinge pin keepers included.

Optional rear diffuser is NOT a plug and play part. It is supplied untrimmed and un-drilled. It also comes with full rear inner fenders. Model making skills are required to trim and custom fit this to the chassis and your body. Reinforcement may be required. Fitting an Arrma diffuser is an easier job, but will still require trimming with a sharp knife.

Pre-drilled for our awesome battery strap mounts

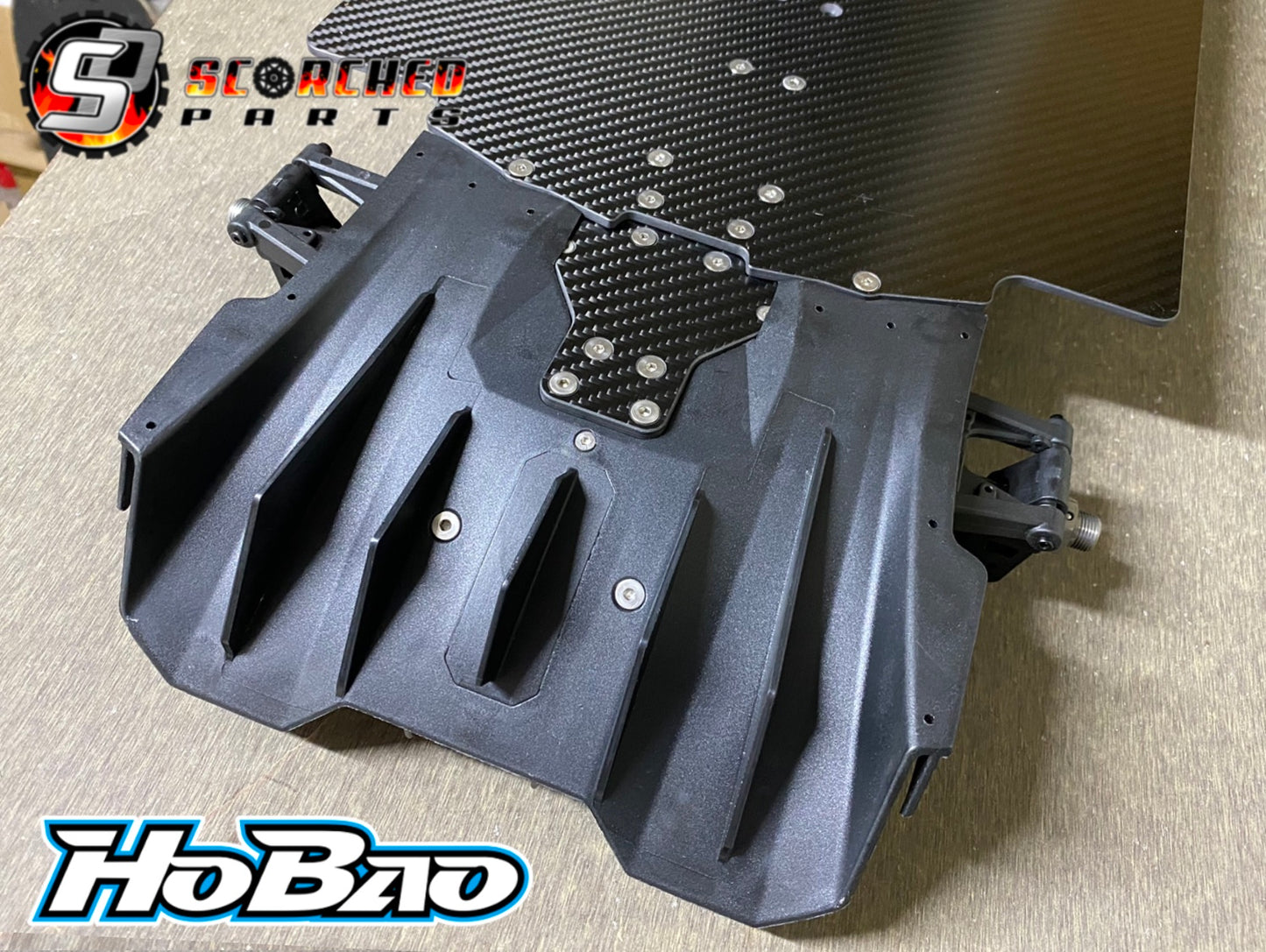

Arrma diffuser: Part number: Z-ARA320518 (available on this website)

Required for diffuser mounting: Arrma Part number: Z-ARA320519 (available on this website)

Modifying your RC from stock condition can result in unexpected results. Operation of modified models must take this into account. Always follow the original manufacturers instructions. Whilst we build our parts to the highest standards we are able, like all rc parts, our parts cannot be guaranteed for performance, strength and durability in every situation or configuration. Do not use your RC in public areas. Do not use your RC where unexpected results could cause injury or damage to property. High Speed RC’s require GREAT CARE and a responsible attitude to use safely.
