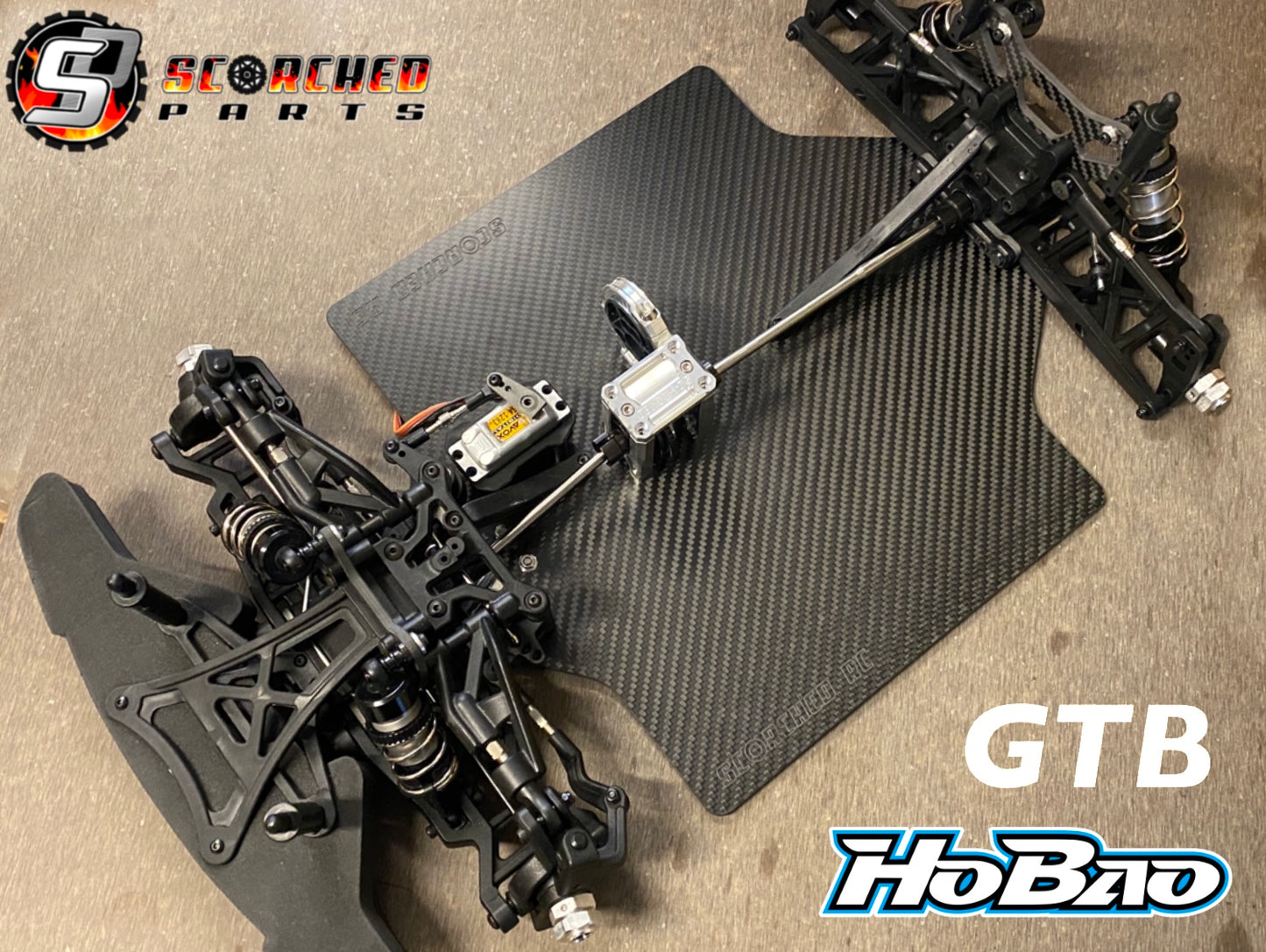

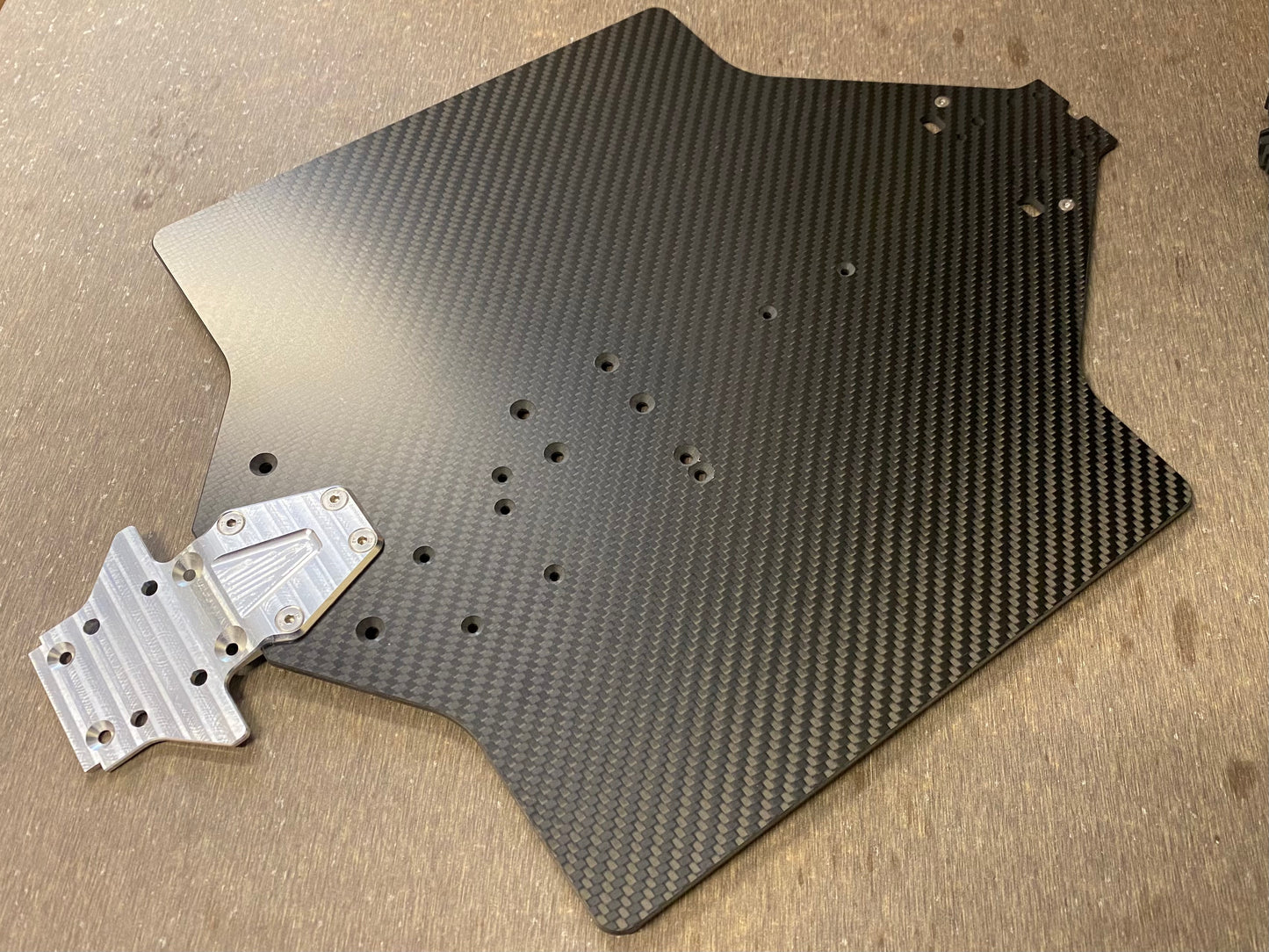

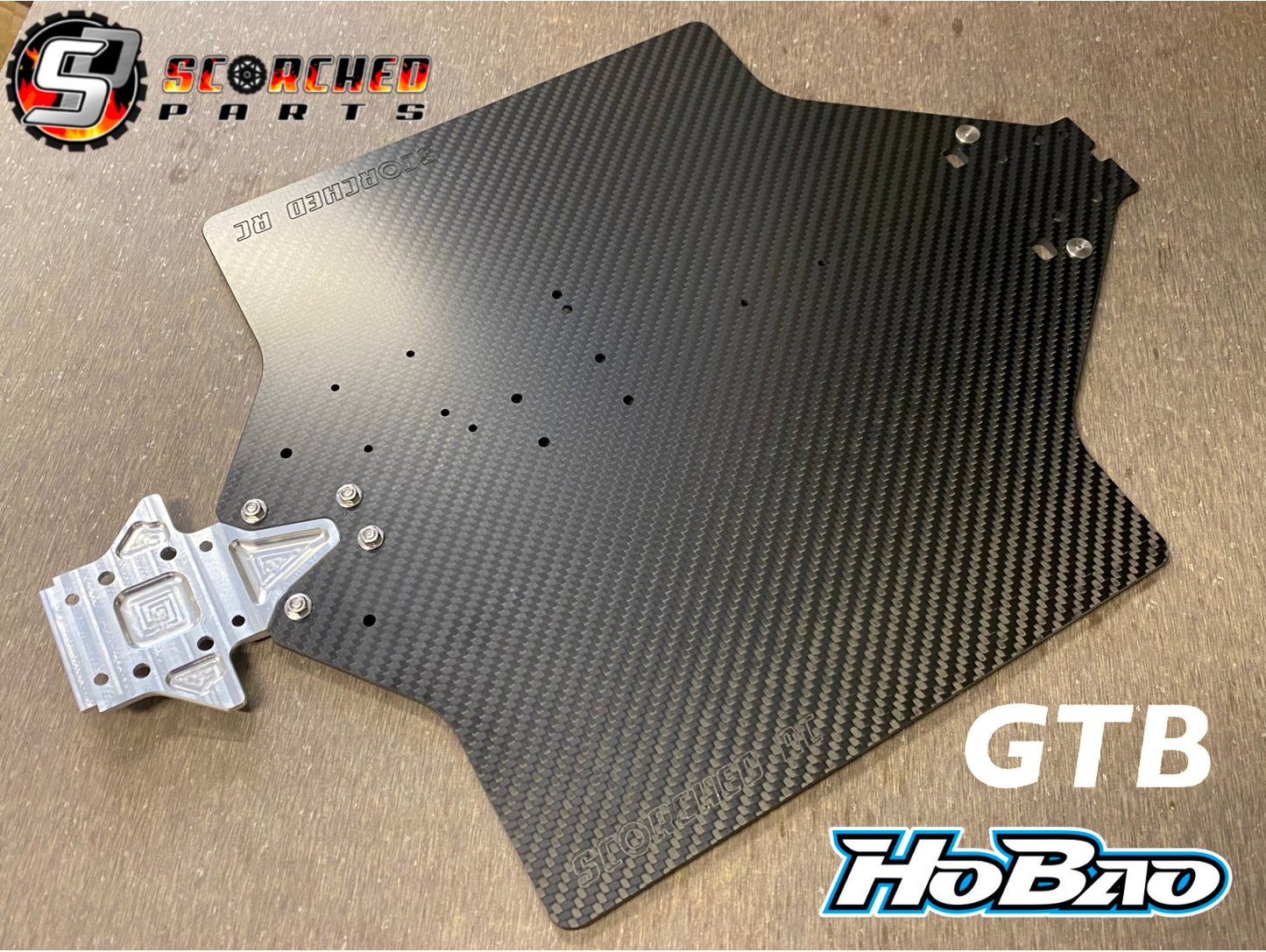

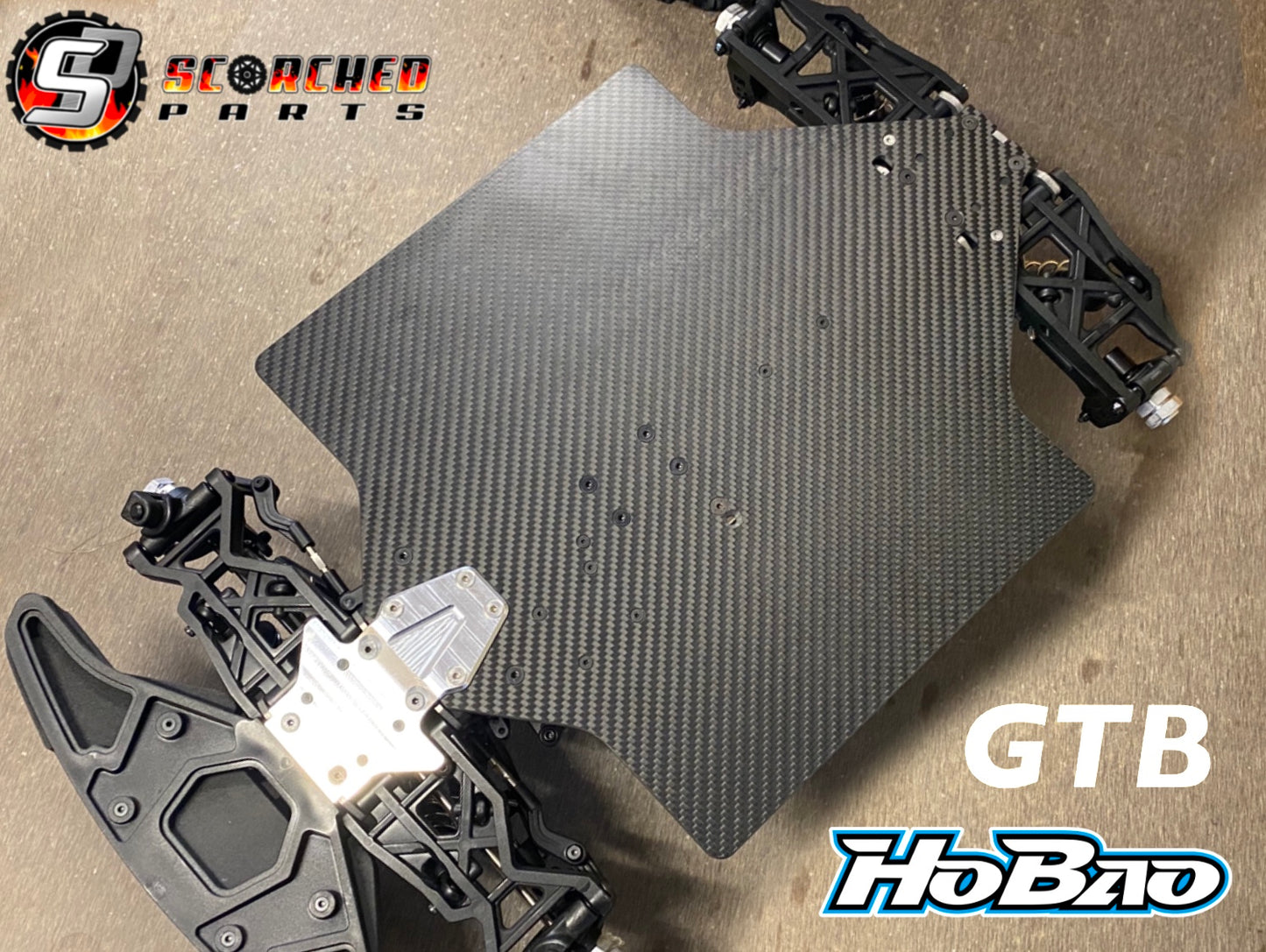

Scorched Parts unique Carbon Fibre and 7075 Aluminium GT width (300mm) Hybrid Chassis. Designed for GTB long wheelbase and SSTE based builds.
Developed by Scorched Parts, this hybrid chassis uses a combination of Carbon Fibre, 7075 T6 aluminium, Titanium and Stainless Steel to bring out the best these materials have to offer.

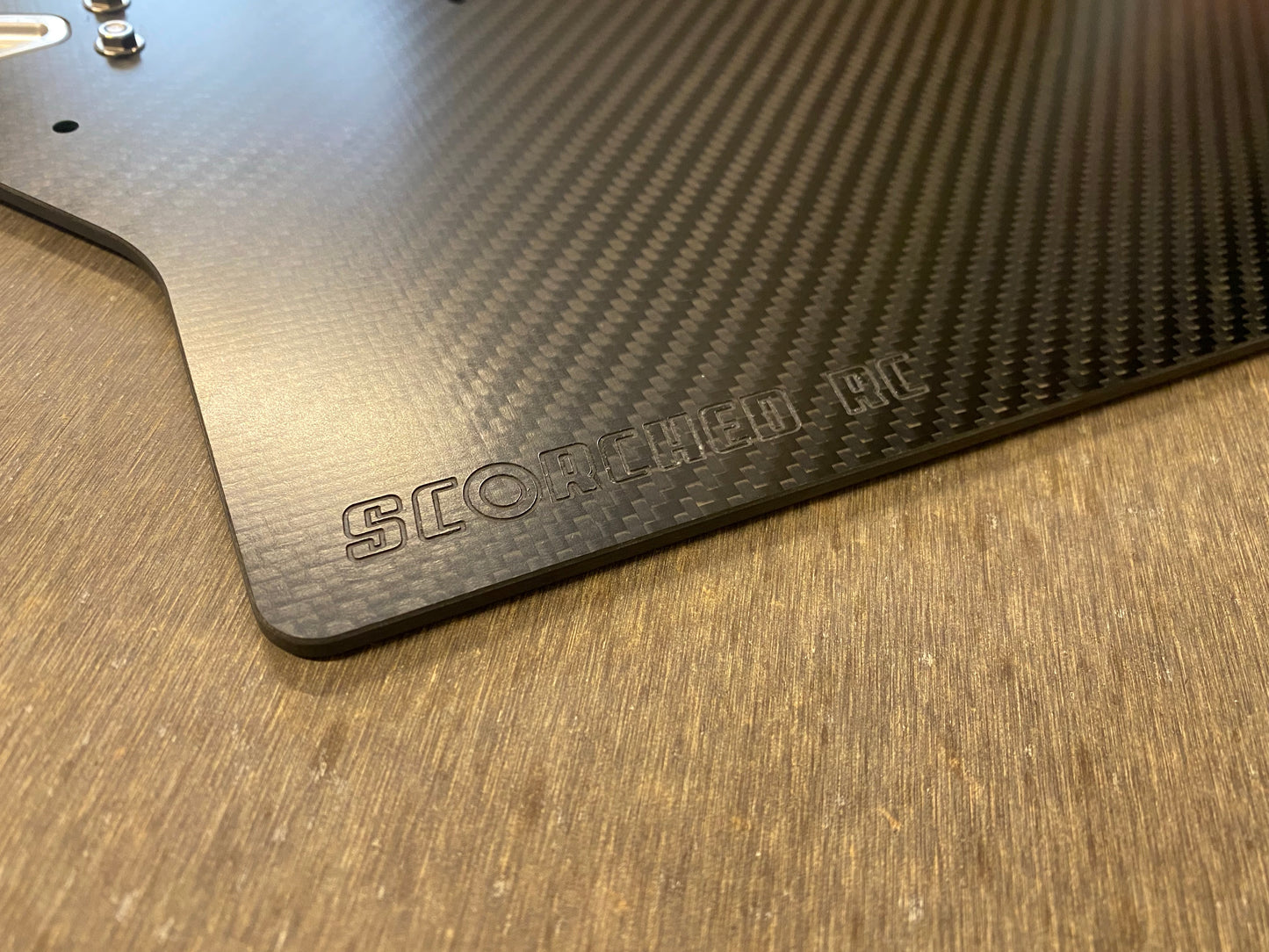

The massively strong main body is made from 4mm thick top quality Toray 3k carbon fibre, providing fantastic strength to weight ratio. Precision machining for a perfect fit and a high quality satin finish.

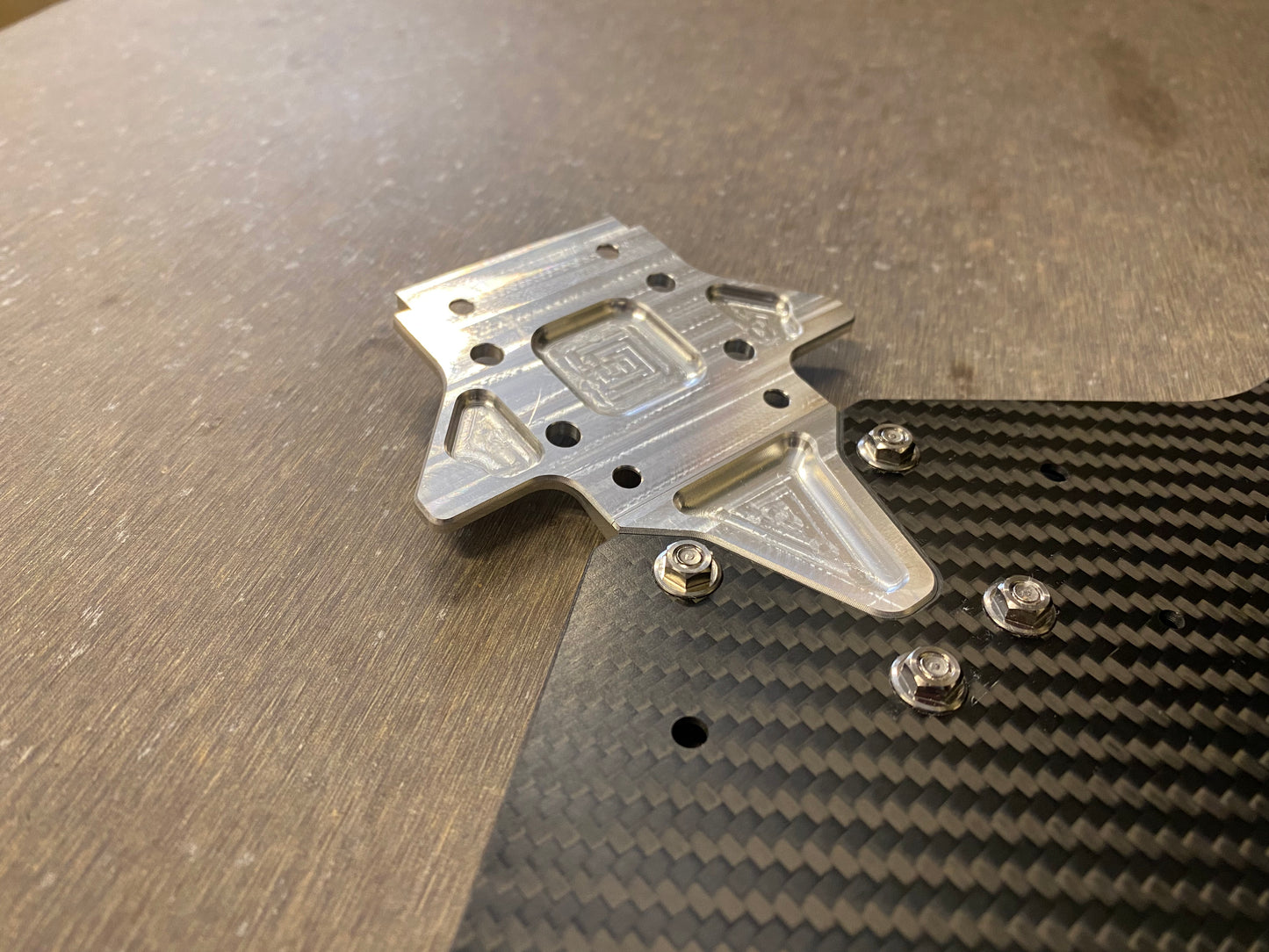

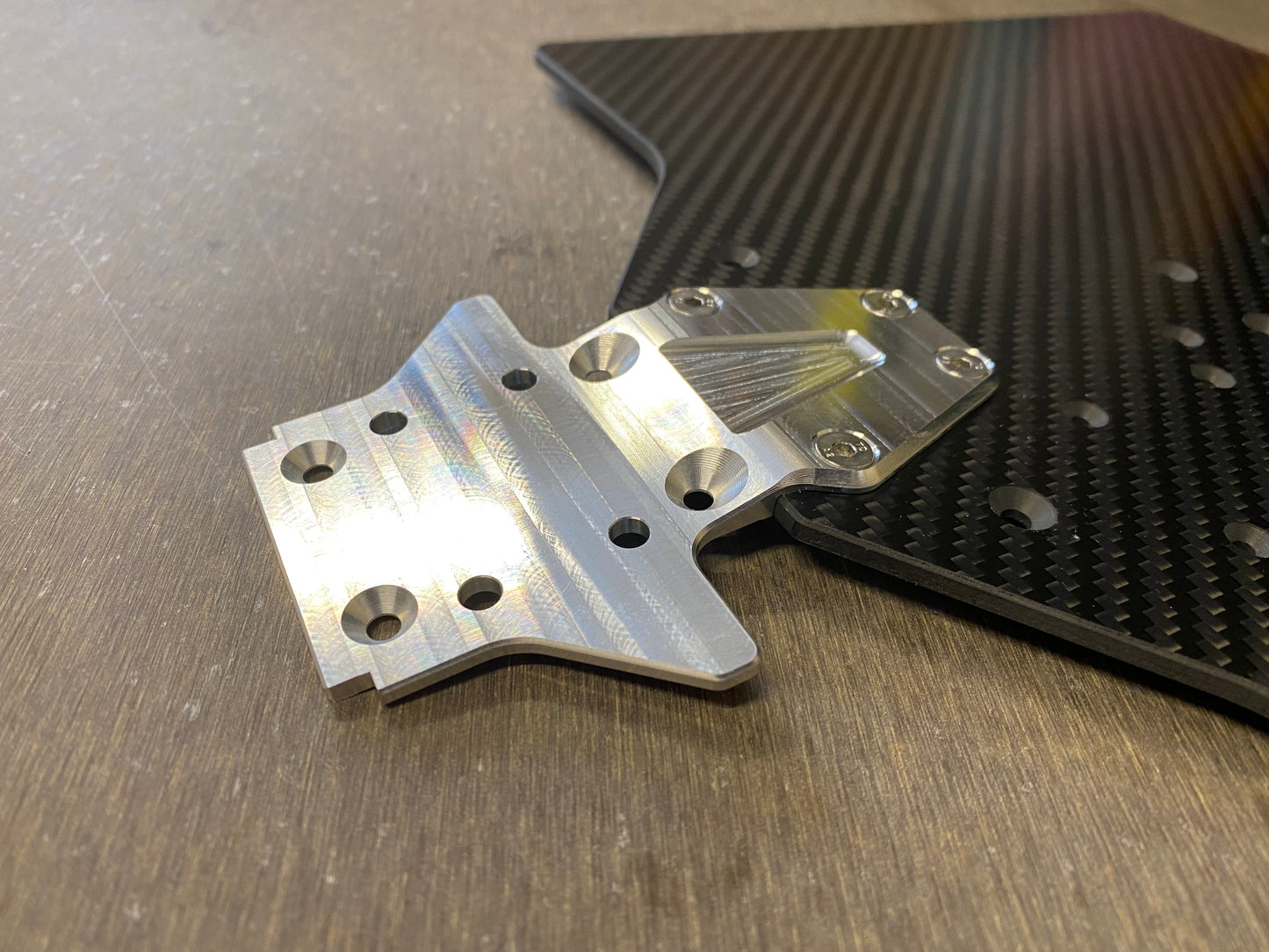

The front section is 7075 T6 aluminium, up to 7.5mm thick in critical areas. With huge strength it includes correct chassis ‘kick up’ at the front to maintain correct steering geometry. Droop screw tabs benefit from the strength and hardness of the 7075.
The front section is dovetailed in using 4 specially developed cone nuts machined from Grade 5 Titanium.
Rear droop screw positions have stainless steel droop screw tabs inserted to protect the carbon fibre.
Chassis is drilled for stock motor mount position.
The servo mount position has been drilled for an Arrma type mount (Scorched Parts Carbon fibre mount available on the website). This enables easy fitting of a wide selection of servos.
No holes for battery or ESC mounts are made, allowing your own custom arrangement.
This is a speed run / drag chassis, so there is no spur cutout. Suitable for 46t spurs and smaller
Check out our awesome battery strap mounts that enable custom battery positioning. Also our side body mounts are a great addition.
