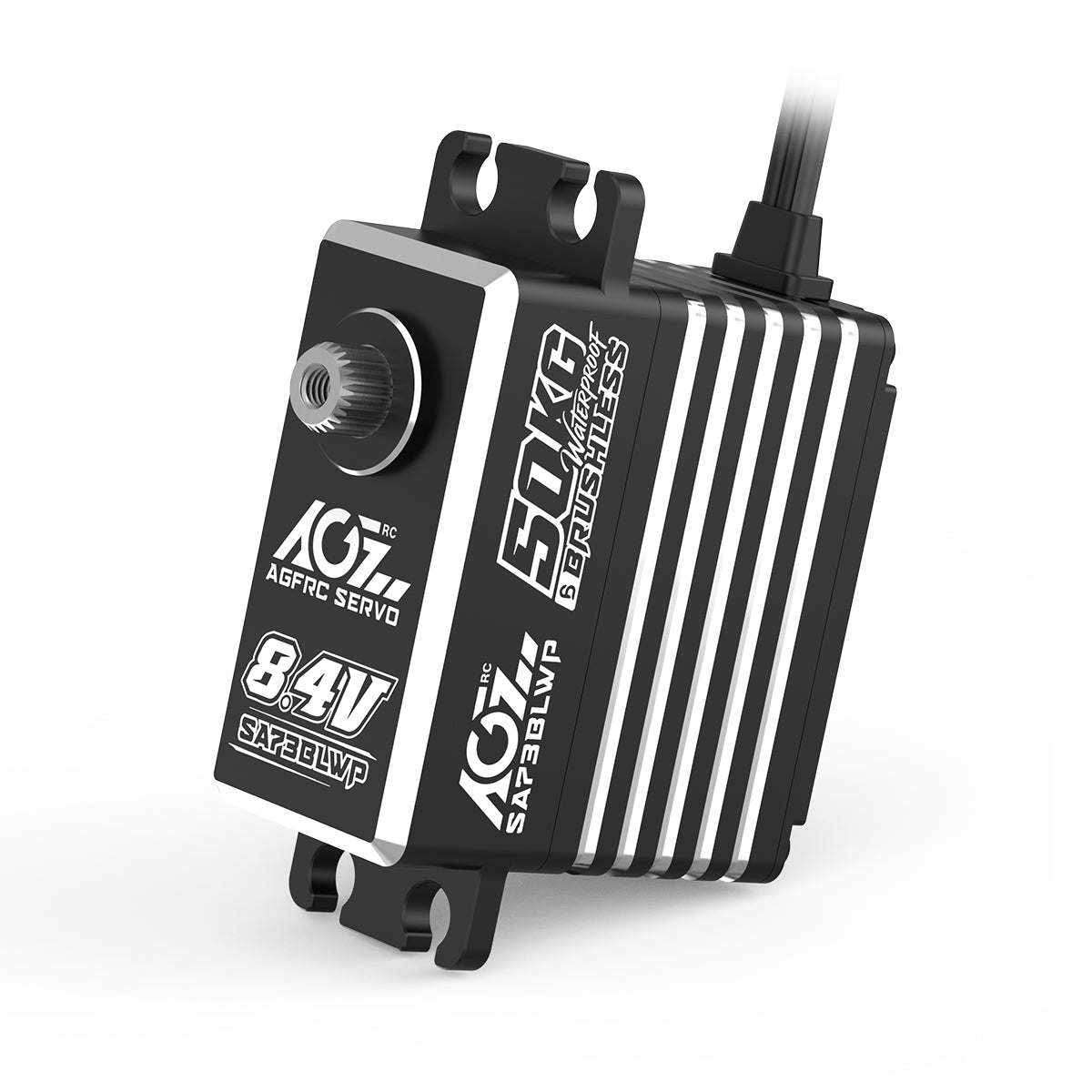

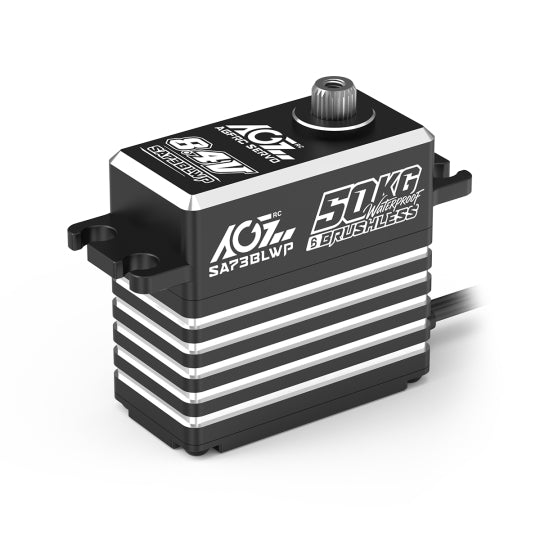

AGF 50Kg High Torque Waterproof Brushless Digital Servo SA73BLWP

AGFRC SA73BLWP 50KG 0.090 Sec IP67 Waterproof Brushless Standard Size Servo For 1/10 1/8 RC Builds

The SA73BLWP Digital Servo is a high-torque, programmable actuator built for extreme conditions. Delivering up to 50 kg-cm (695 oz-in) and 0.090 sec/60°, it supports 4.8V ~ 8.4V input and offers IP65/IP67 waterproof options. With steel/titanium gears, metal bearings, and a 2 µs deadband, it ensures precise, reliable performance in robotics, marine, and industrial applications.

MAIN FEATURES

➤Full CNC Aluminum Case

➤Cooling Servo-Shaped Design

➤Long-lifespan Brushless Motor

➤Super-hardness Steel Gear

➤Magnetic IP67 Waterproof

➤Programmable And Winch Mode

➤Ideal for 1/10 1/8 Touring Cars, Racing Cars On Road, Airplane, 1/10 Scale Surface, Boat, Aircraft Applications.

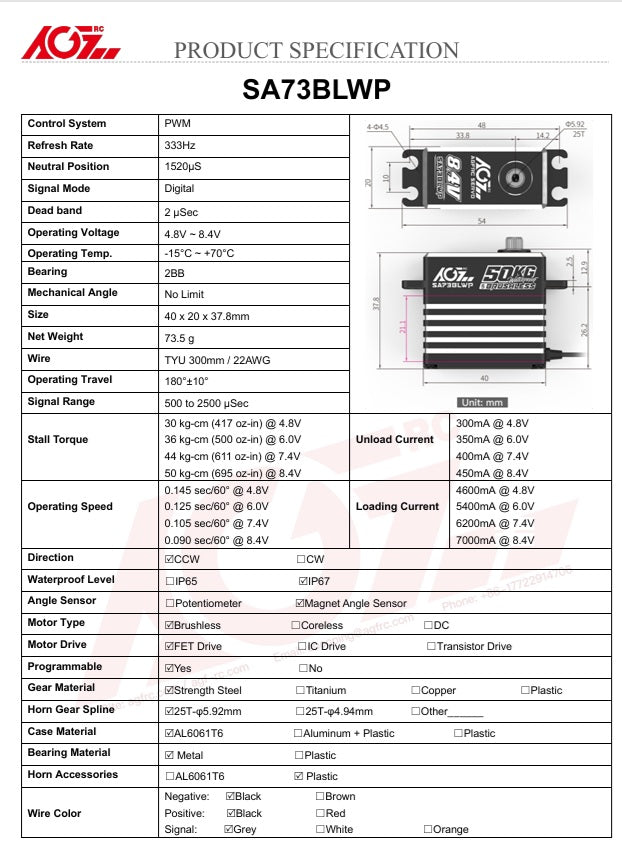

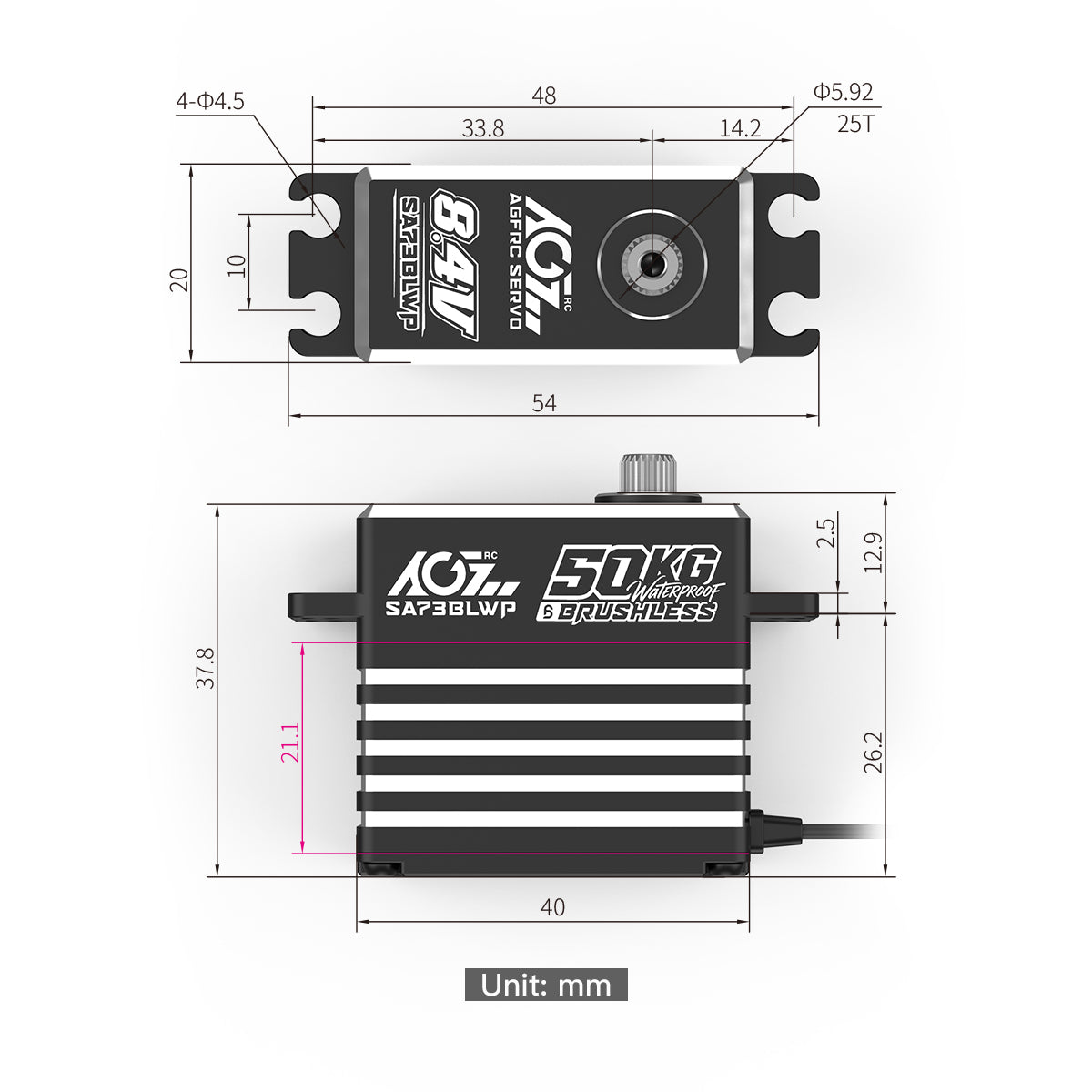

Dimensions

40 x 20 x 37.8 mm

Weight

73.5 g

Operating Speed

0.145 sec/60° @4.8V

0.125 sec/60° @6.0V

0.105 sec/60° @7.4V

0.090 sec/60° @8.4V

Stall Torque

30 kg·cm (417 oz·in) @4.8V

36 kg·cm (500 oz·in) @6.0V

44 kg·cm (611 oz·in) @7.4V

50 kg·cm (695 oz·in) @8.4V
