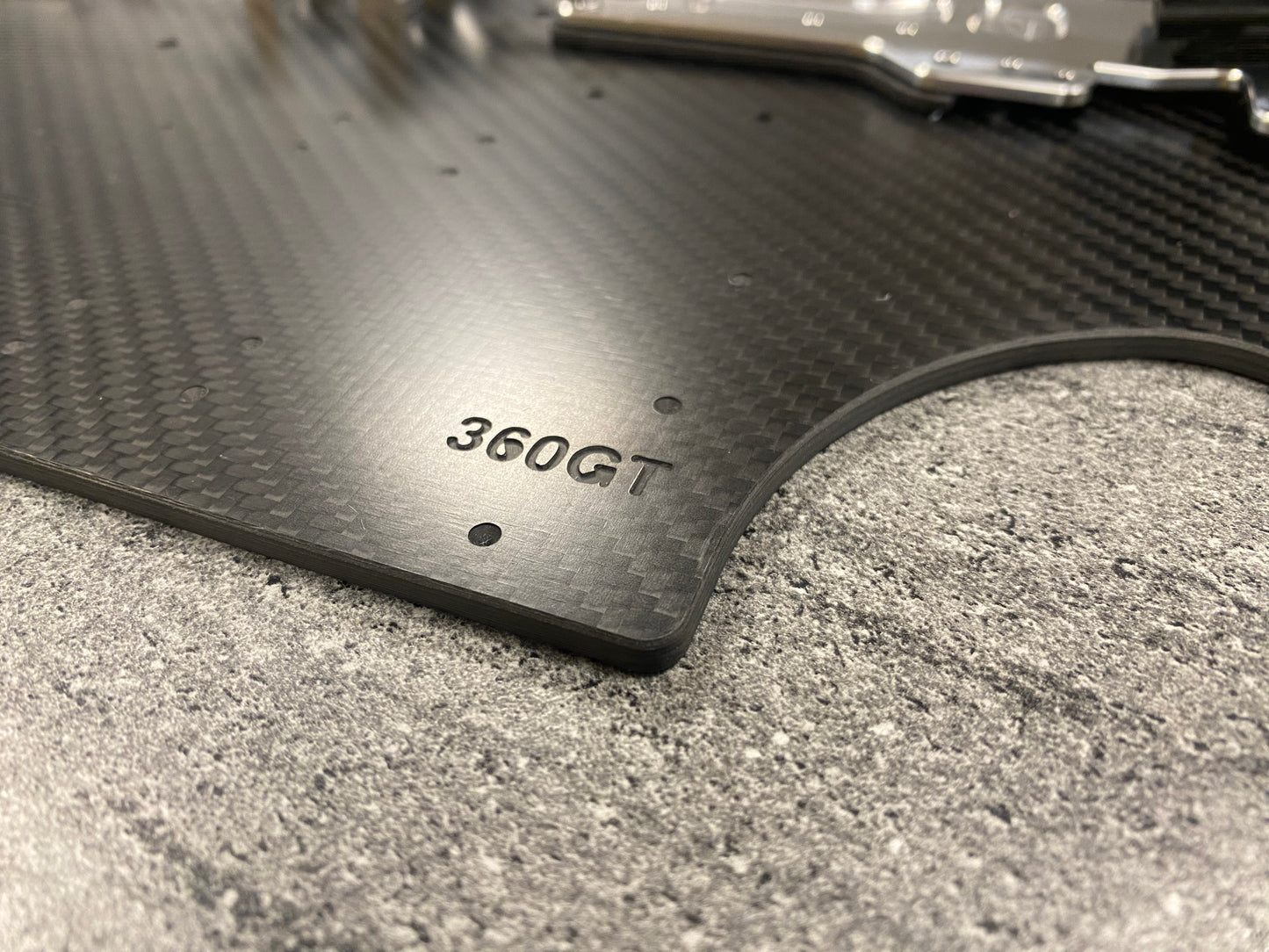

Scorched Parts unique Carbon Fibre and 7075 Chassis, NOW IN 1/8TH SCALE VERSION! 360mm wheelbase.
- Carbon fibre Chassis kit

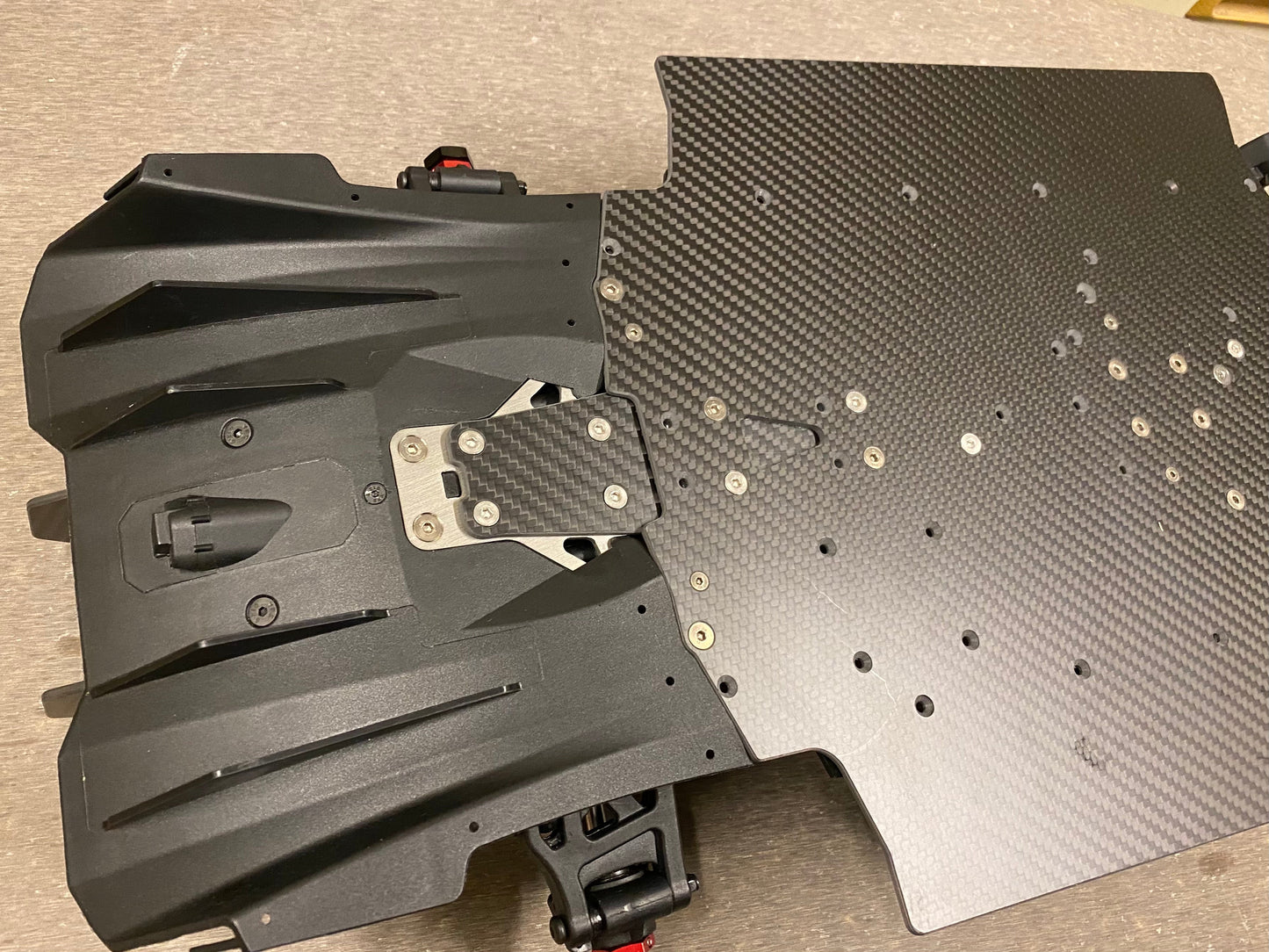

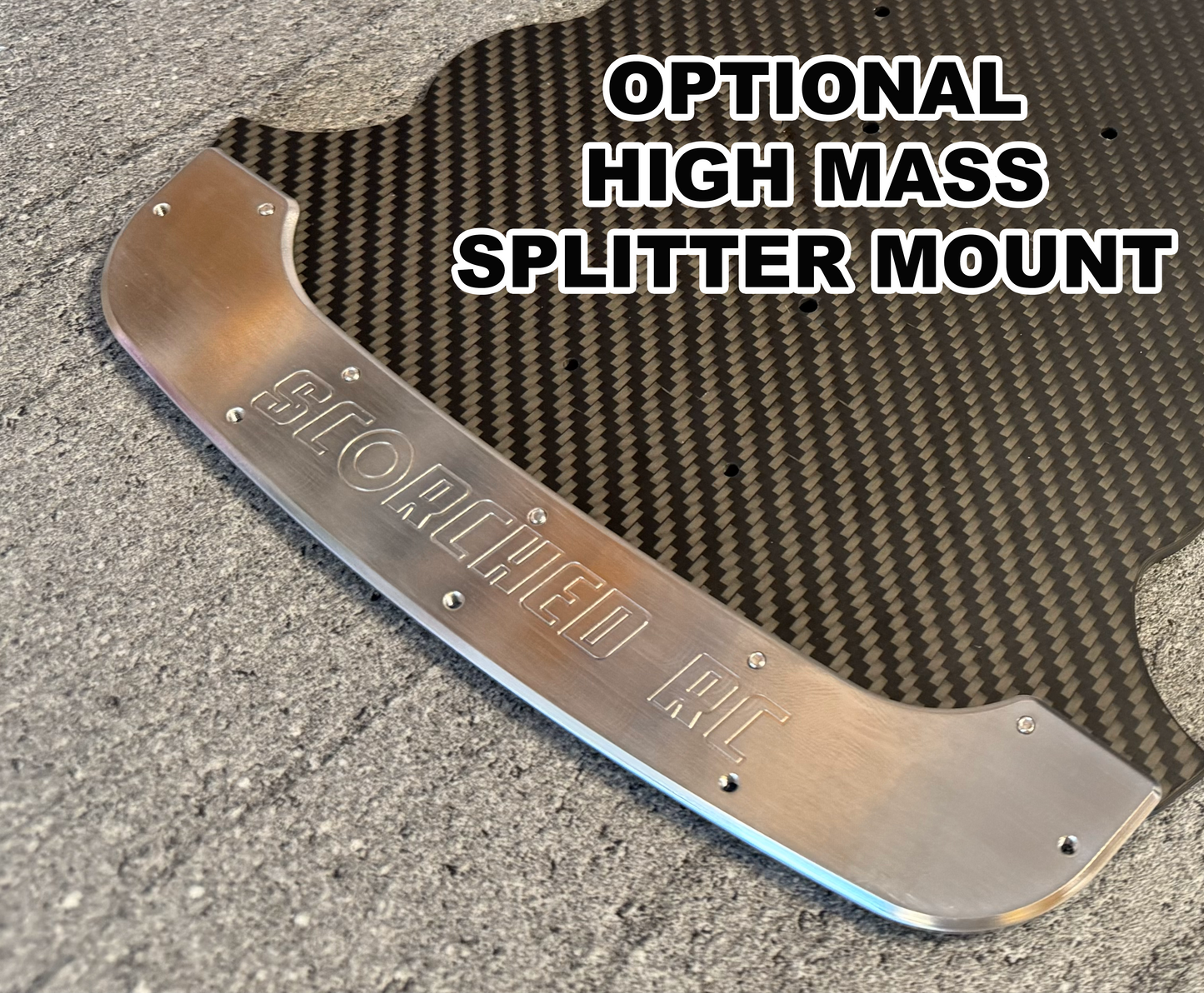

- Carbon Front Splitter mount
Option to also include:

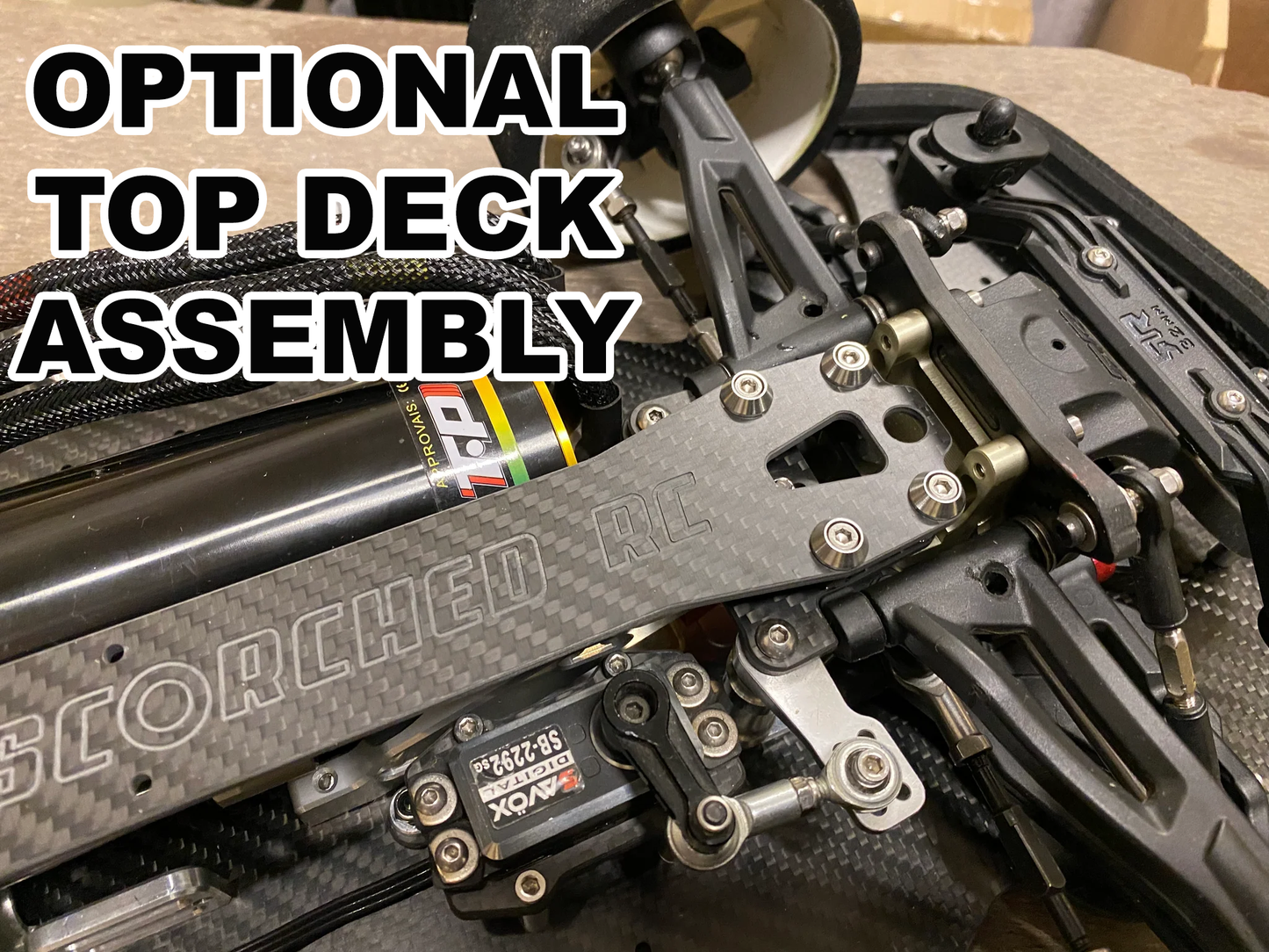

- Full carbon fibre top deck brace assembly for 360mm chassis
Allows use of full Limitless/Infraction type front splitter, plus the rear diffuser and rear wing assembly

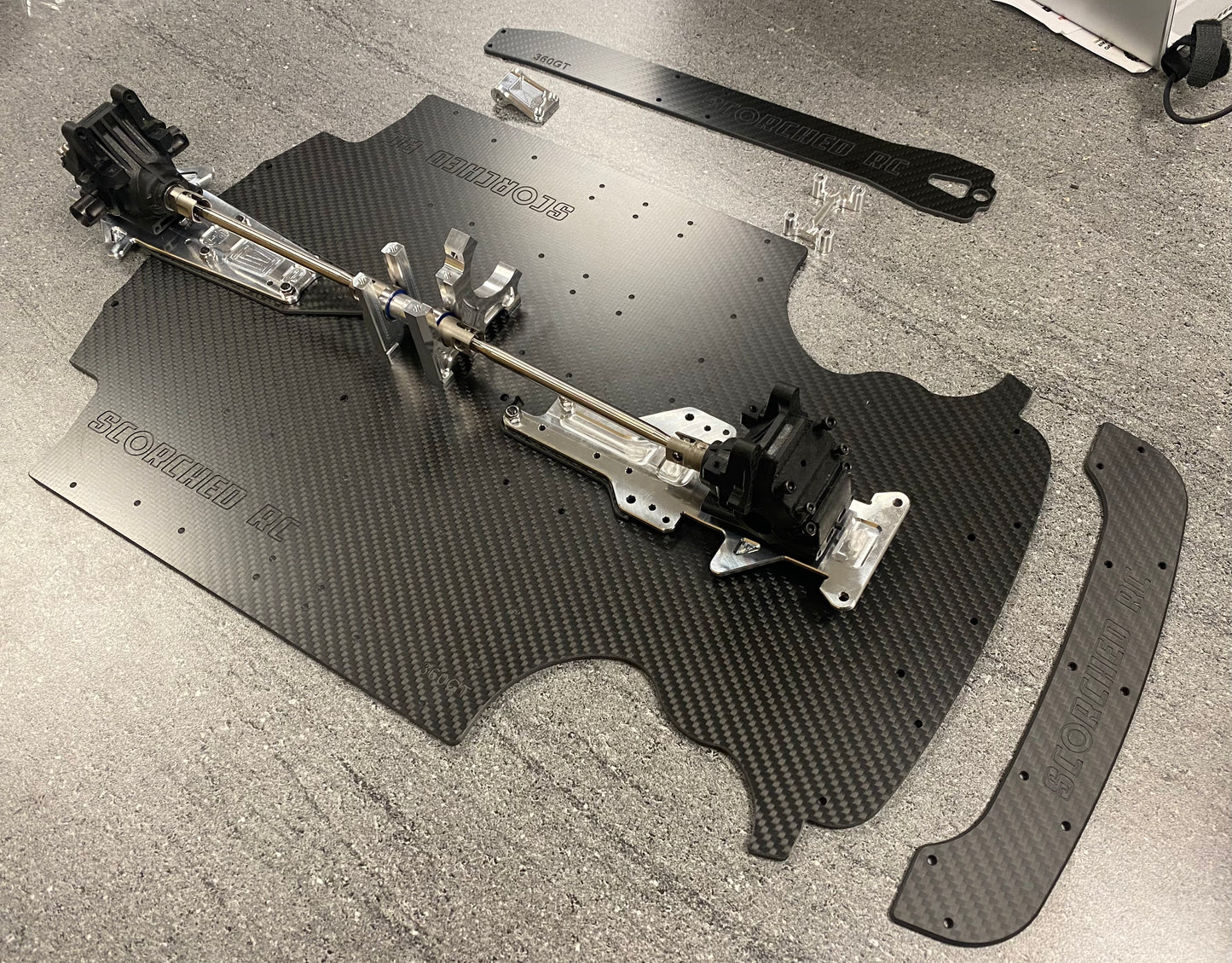

The centre spool is mounted centrally, straightening out the centre drive shafts, reducing friction and wear. Uses 2 116mm shafts (Like Limitless V2) (not included). Shown here with our world record setting TRIDENT drive shaft and Pinocchio Spool setup.
This chassis has a 4mm base giving massive stiffness to resist torque twist. End sections are 7075 T6 aluminium. No problems with droop screws bedding in or weakness in thin sections. Includes correct chassis ‘kick up’ at the front to maintain correct steering geometry.
Made from top quality Toray 3k carbon fibre, providing fantastic strength to weight ratio. Precision machining for a perfect fit and a high quality satin finish.
Chassis is drilled for and Arrma type stand alone servo mount (available separately) and motor mount only. Dimples for possible battery buckle / XLX2 mounts are provided.

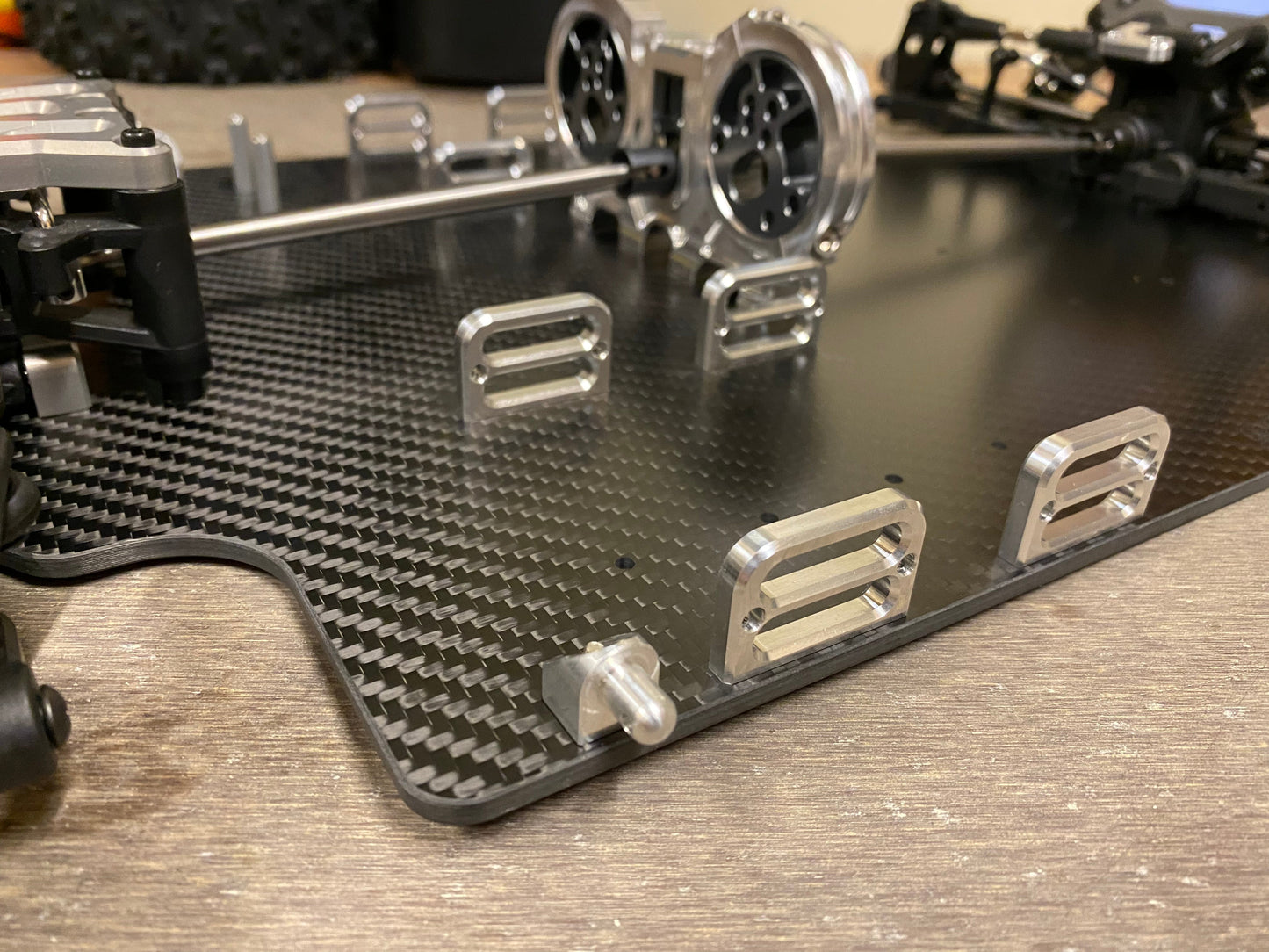

Check out our Side Body Posts and awesome battery strap mounts that enable custom battery positioning!

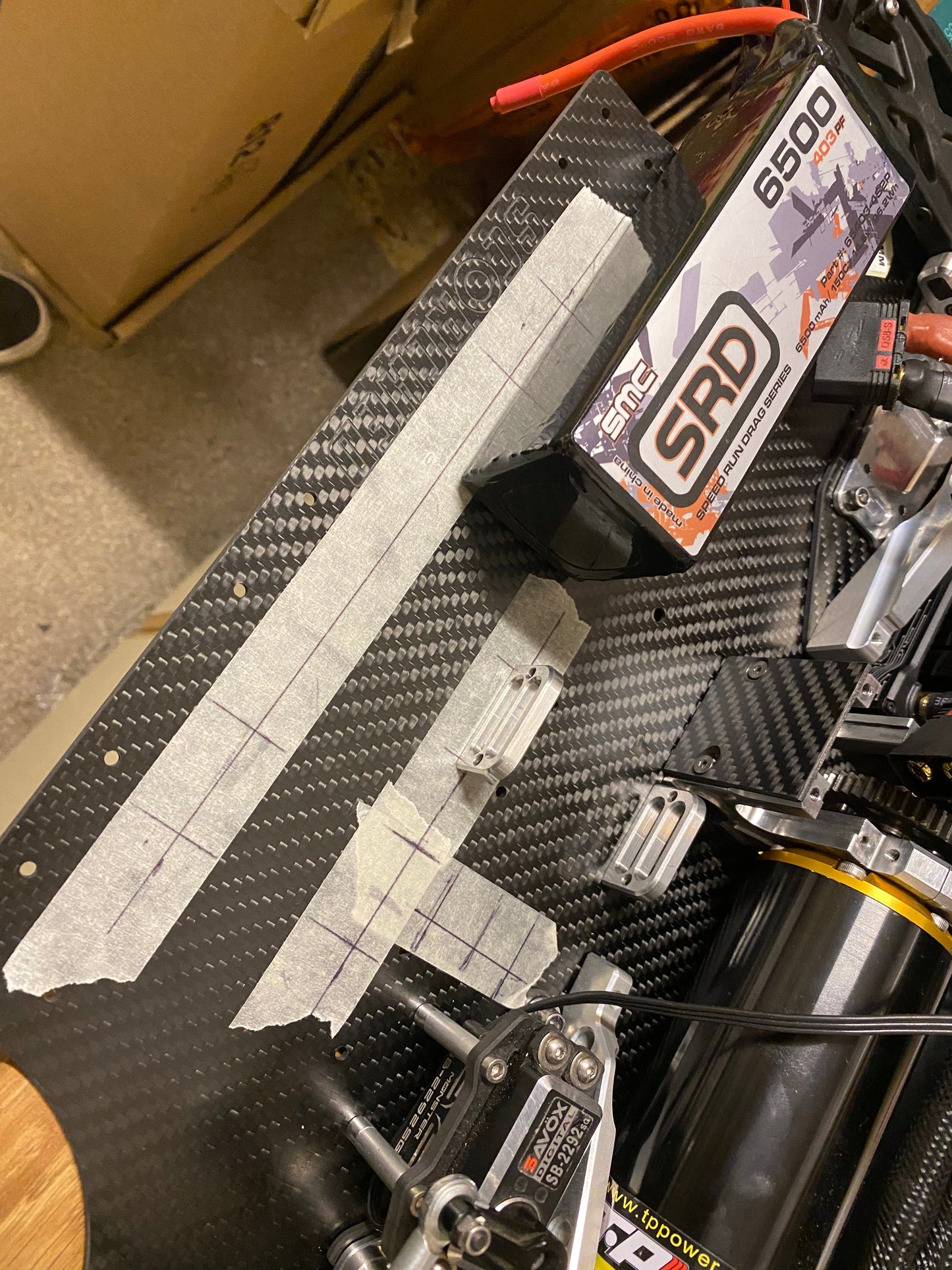

To mount components, we recommend using masking tape to mark out and drill the chassis. Please see our Drill and Countersink set also available on the website!
