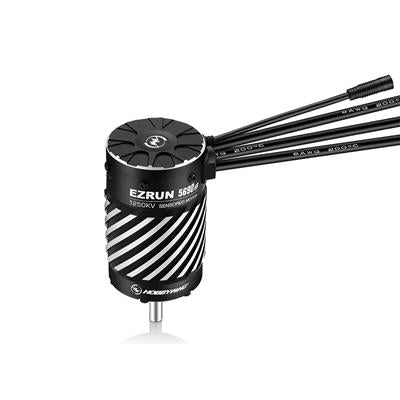

Hobbywing EZRUN - 5690SD - 1250KV - Black - G2 Motor

8S Sensored Motor

Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.

New Sensor Line Interface
All Weather Operation Capability

Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC's that have larger sized 8mm motor plugs like the Max5 G2.

Note:
The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Module design for easy maintenance
The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

Scale - 1/5th-1/6th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 4
KV Rating - 1250KV
LiPo - 3-8s
No-load Current(A) - 6.6A
O.D. (mm) - 56 D22*D8*T7
Length (mm) - 90.2
Shaft Diameter (mm) - 8
Weight (g) - 867g
Front Bearing - D16*D5*T5
Rear Bearing - D19*D8*T6
Timing - Fixed
Applications - 1/6th Short course truck,Truck &1/5th Light-load Truck
