Scorched Parts unique Carbon Fibre and 7075 Chassis
BEWARE OF KNOCK OFF COPIES! We were the original designers of the multi-part carbon fibre Arrma chassis. Others have tried to copy, but none have realised the same quality and durability of the original! We've developed and tested this chassis over a long period of time. Only Scorched parts crash test their chassis at 216mph!

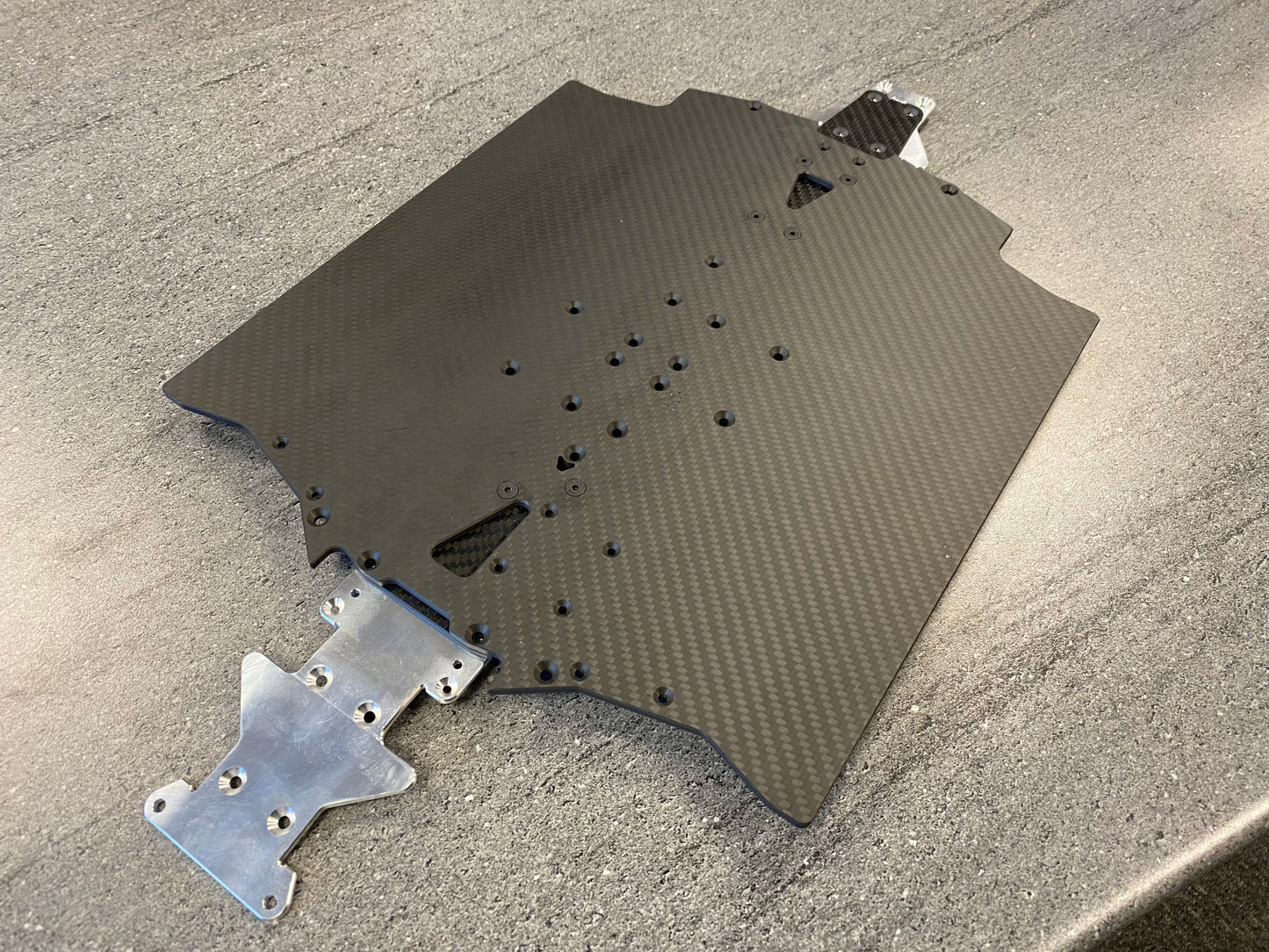

This chassis has 4mm top quality Toray 3k carbon fibre base giving massive stiffness to resist torque twist.
Includes correct chassis ‘kick up’ at the front to maintain correct steering geometry.

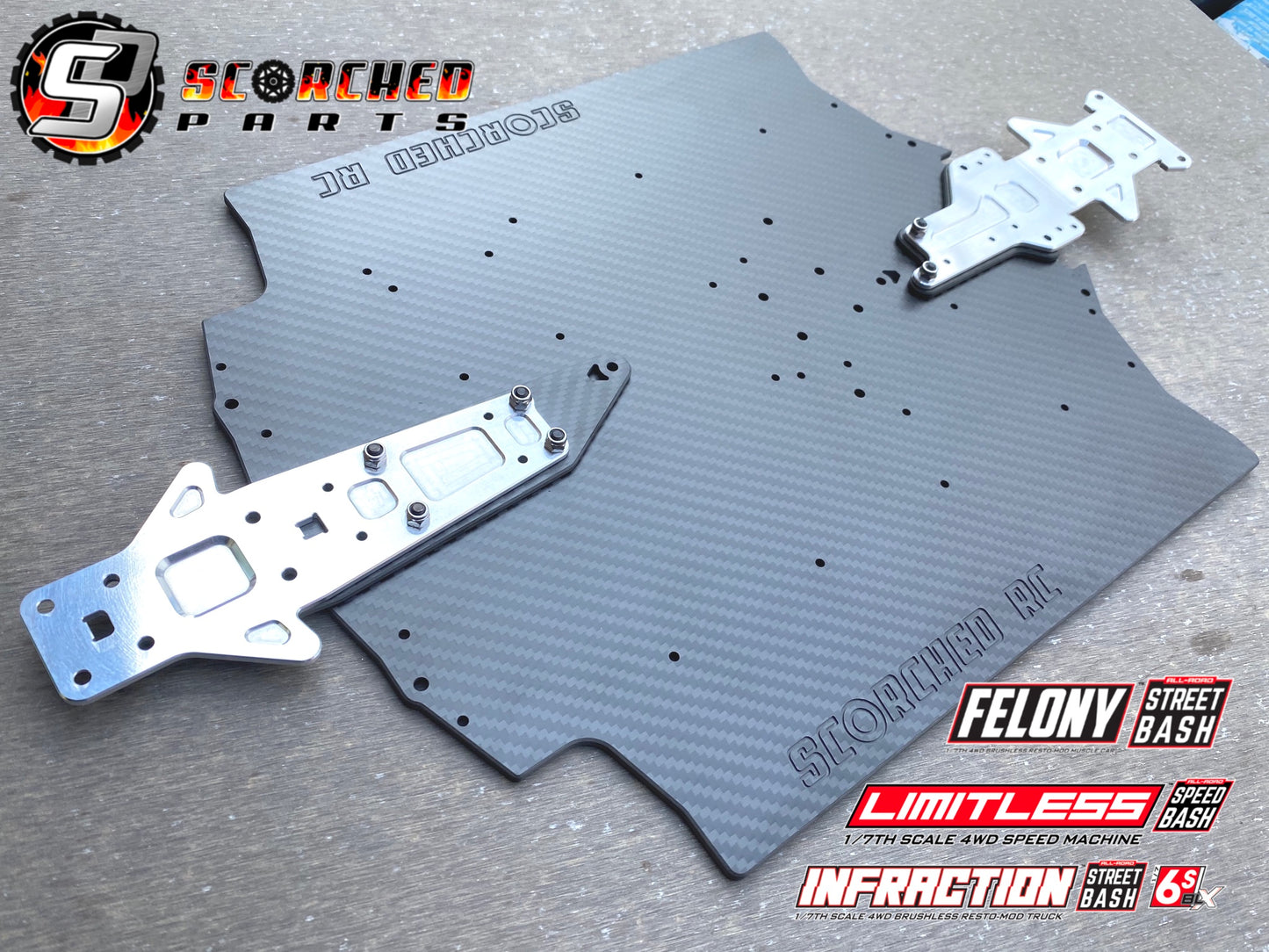

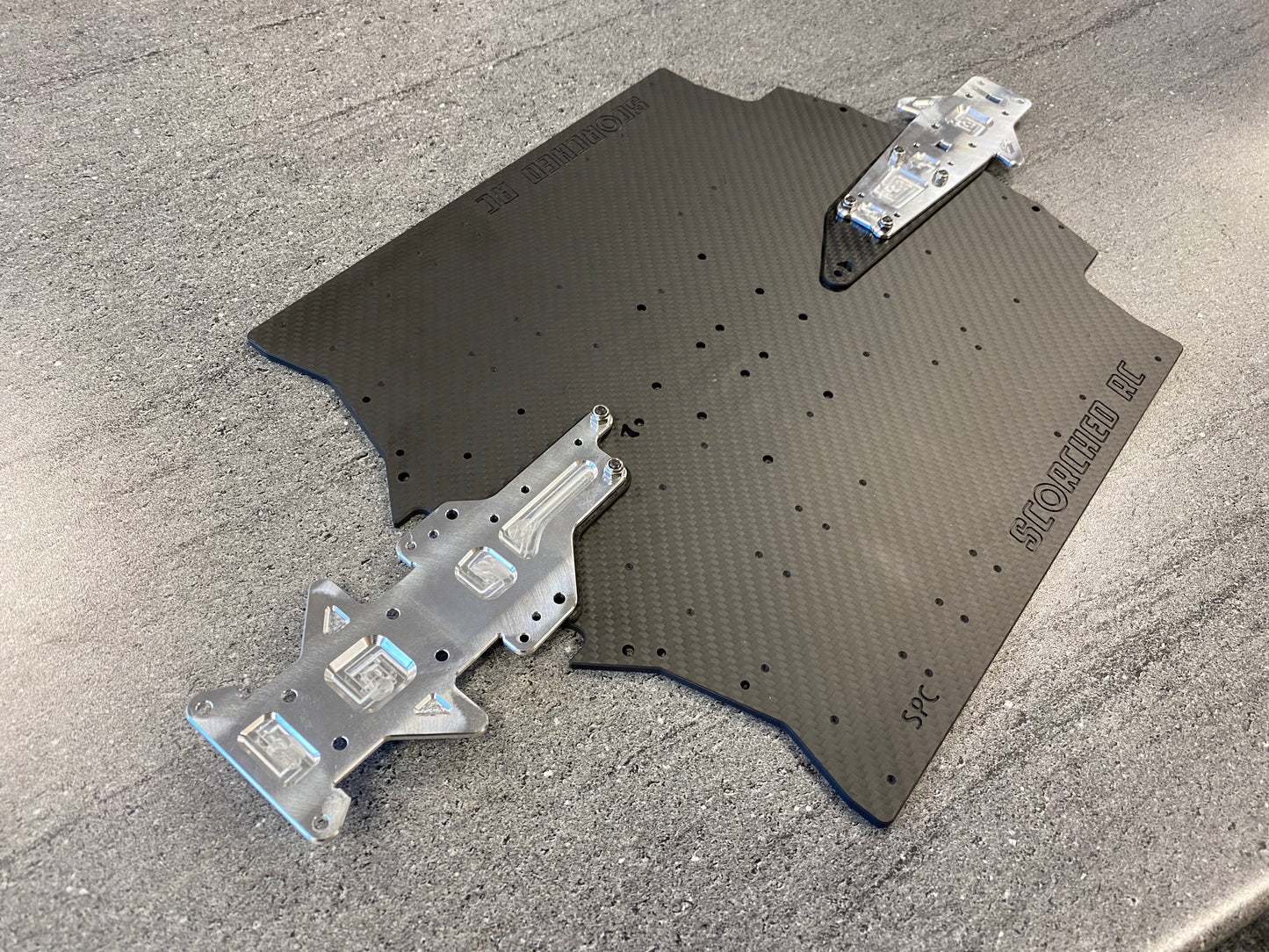

Utilising a composite construction with 7075 T6 aluminium end pieces to take the high loads. No problems with droop screw bed-in or weakness in thin front and rear sections.
Precision machining for a perfect fit and a high quality satin finish.
PLEASE ENSURE YOU SELECT THE CORRECT VARIANT FROM THE THREE OPTIONS.
Also check out our standard width and special FULL LENGTH carbon fibre chassis options elsewhere on the website.
GT Version:
For Infraction V1 and V2, Limitless V1, and Felony if a different body is used.
Choose this if you want to re-use all your stock plastic battery trays and servo mount. Direct replacement for stock chassis including all holes for mounting of stock components. Everything swaps over simply and easily.Spur gear slot is removed (standard gearing still fits). As per the stock chassis the motor mount can be reversed allowing a bigger / longer motor to be assembled on the rear / right hand side of the chassis.
SPC Custom Version:

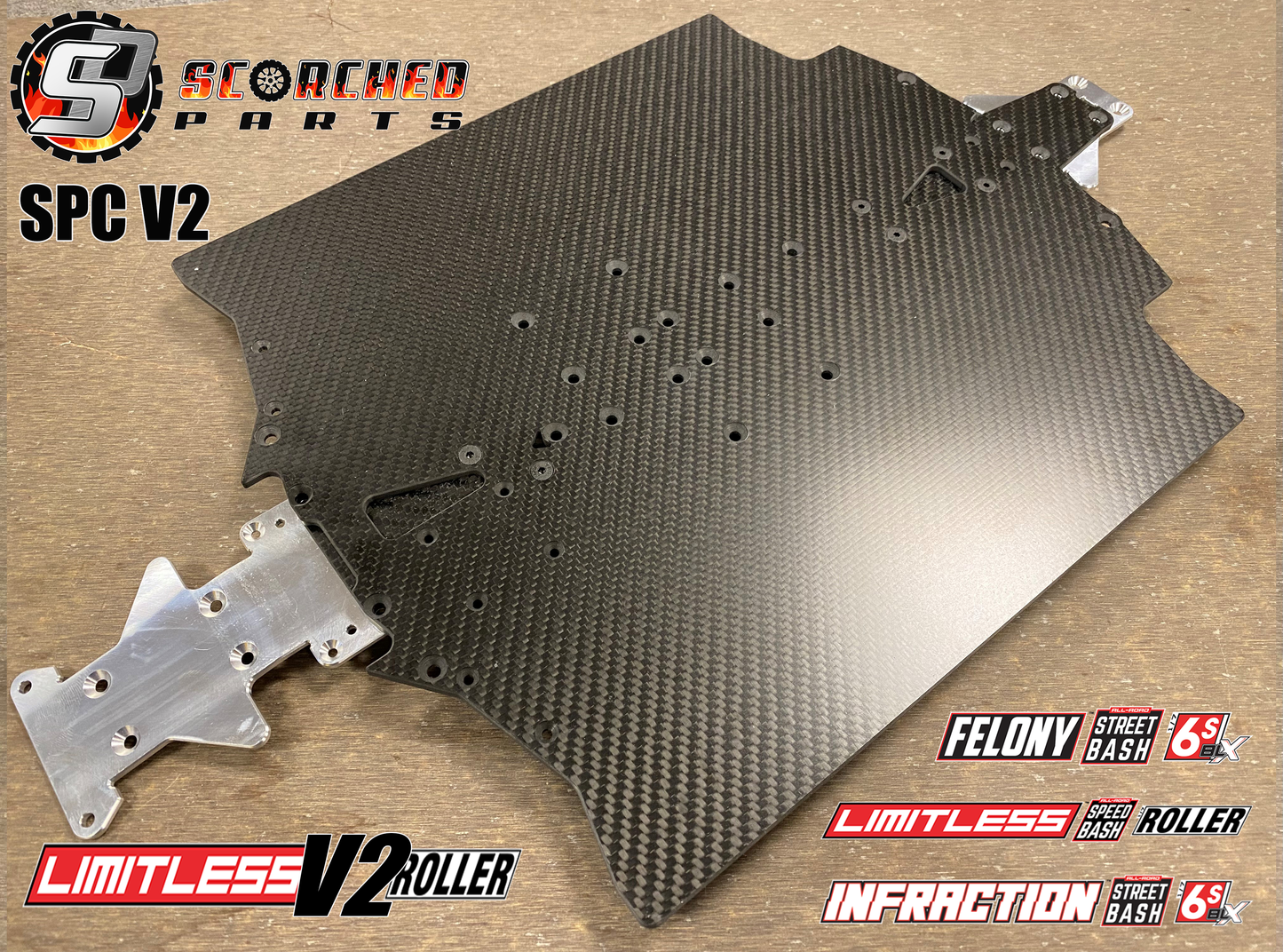

For Infraction V1 and V2, Limitless V1, and Felony if a different body is used. Suitable for Limitless V2 using the rearward motor mount position (see below)
Choose this if you want to custom mount your batteries / esc / servo.

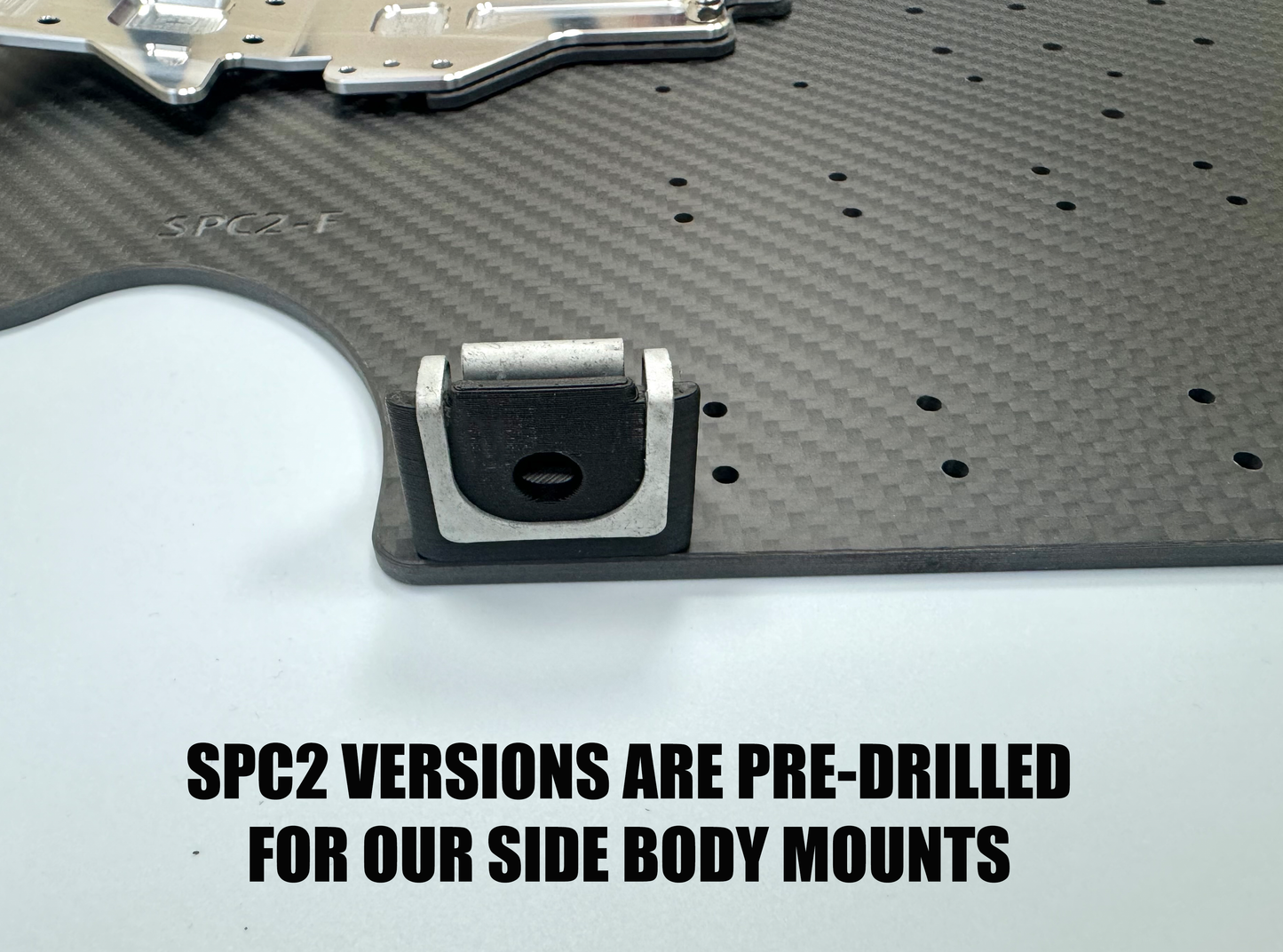

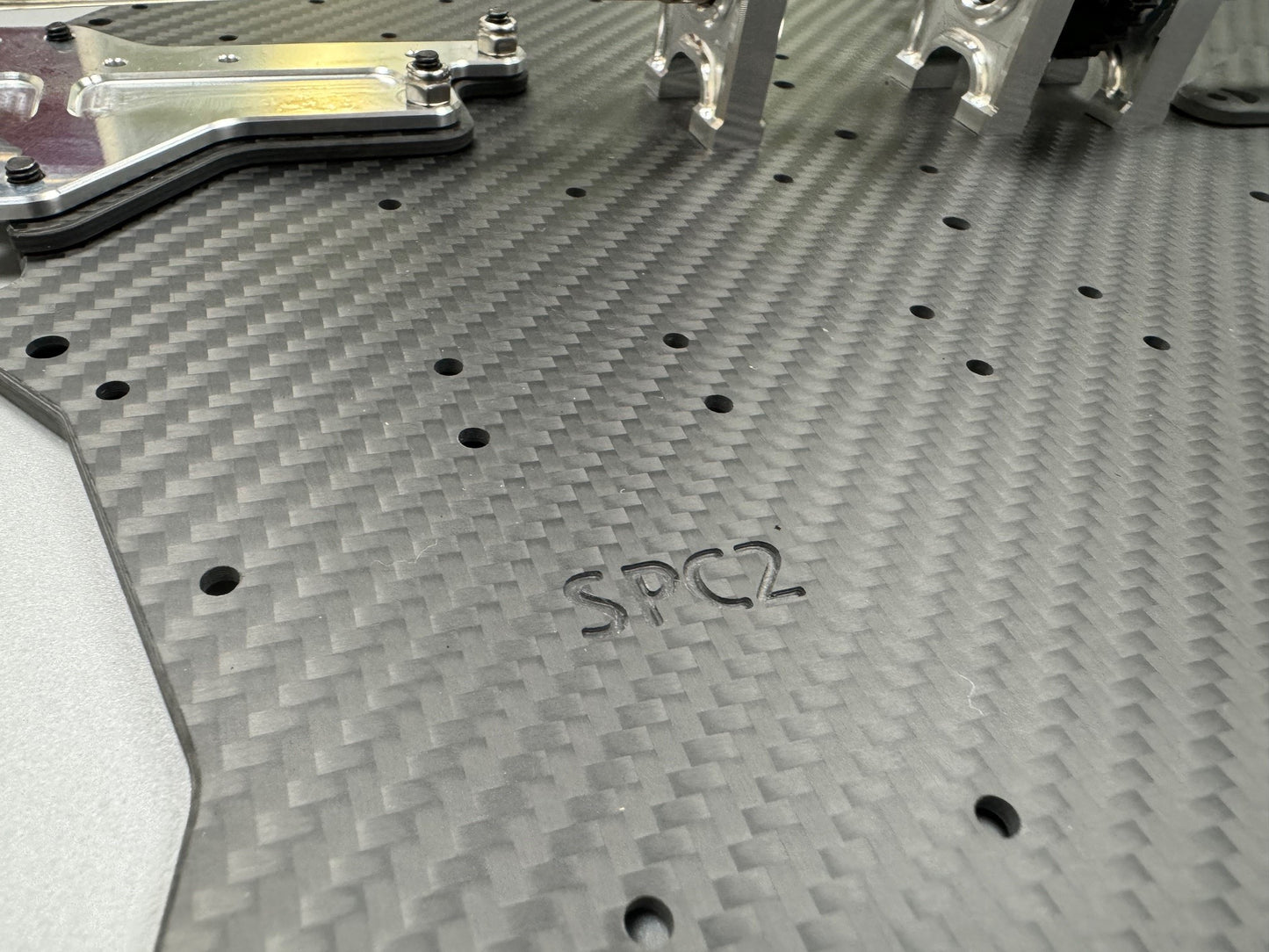

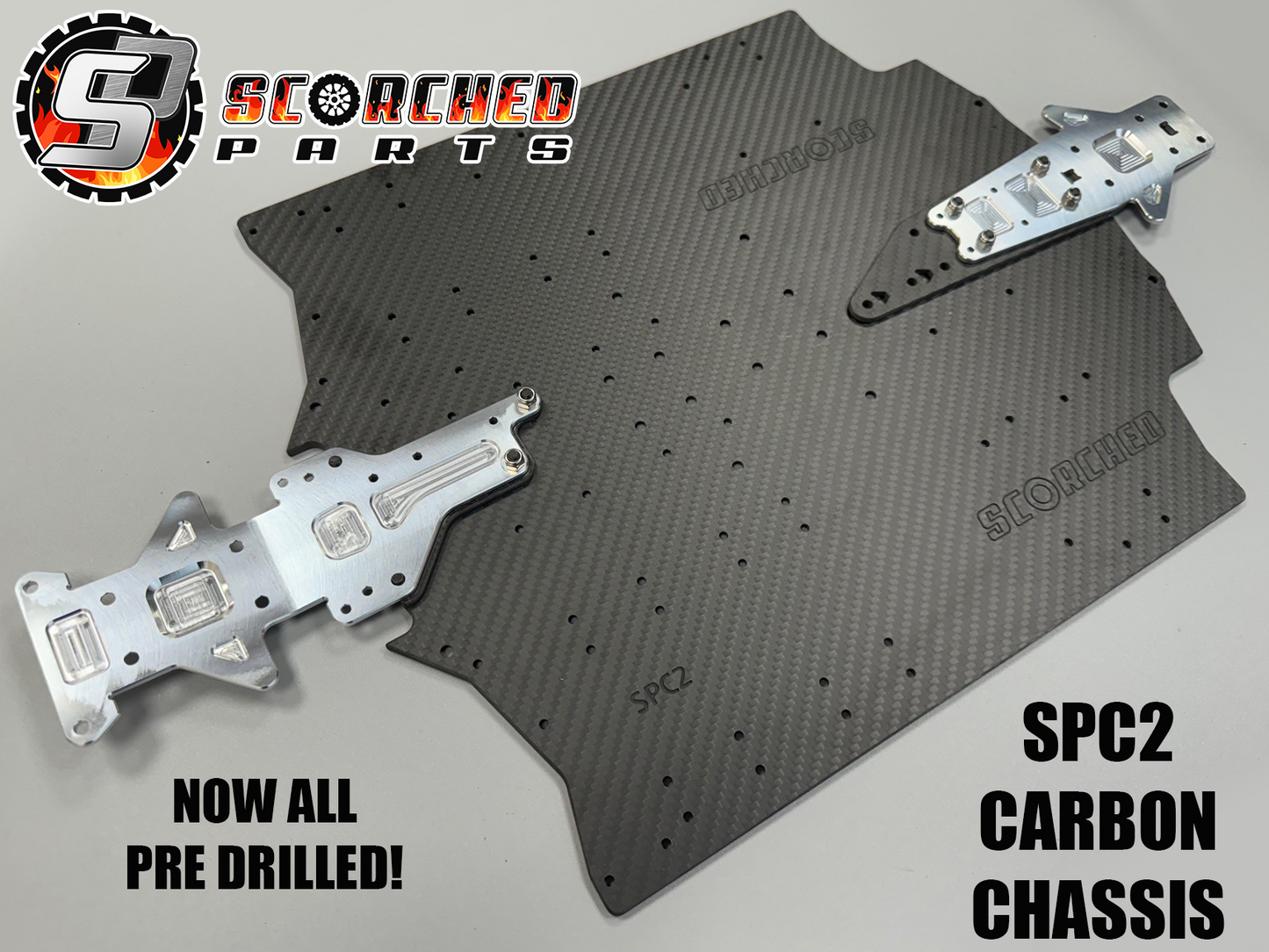

This is the same at the GT version, but all the holes for stock battery tray and receiver box have been removed. The latest version has a series of pre-drilling marks to make layout super easy. XLX2, side body mount and a series of battery strap buckle holes are all pre-marked. Please see the last couple of pictures.
Mounting holes for an Arrma stand alone servo mount (like the Scorched Parts Carbon / Aluminium mount) are provided at the front.

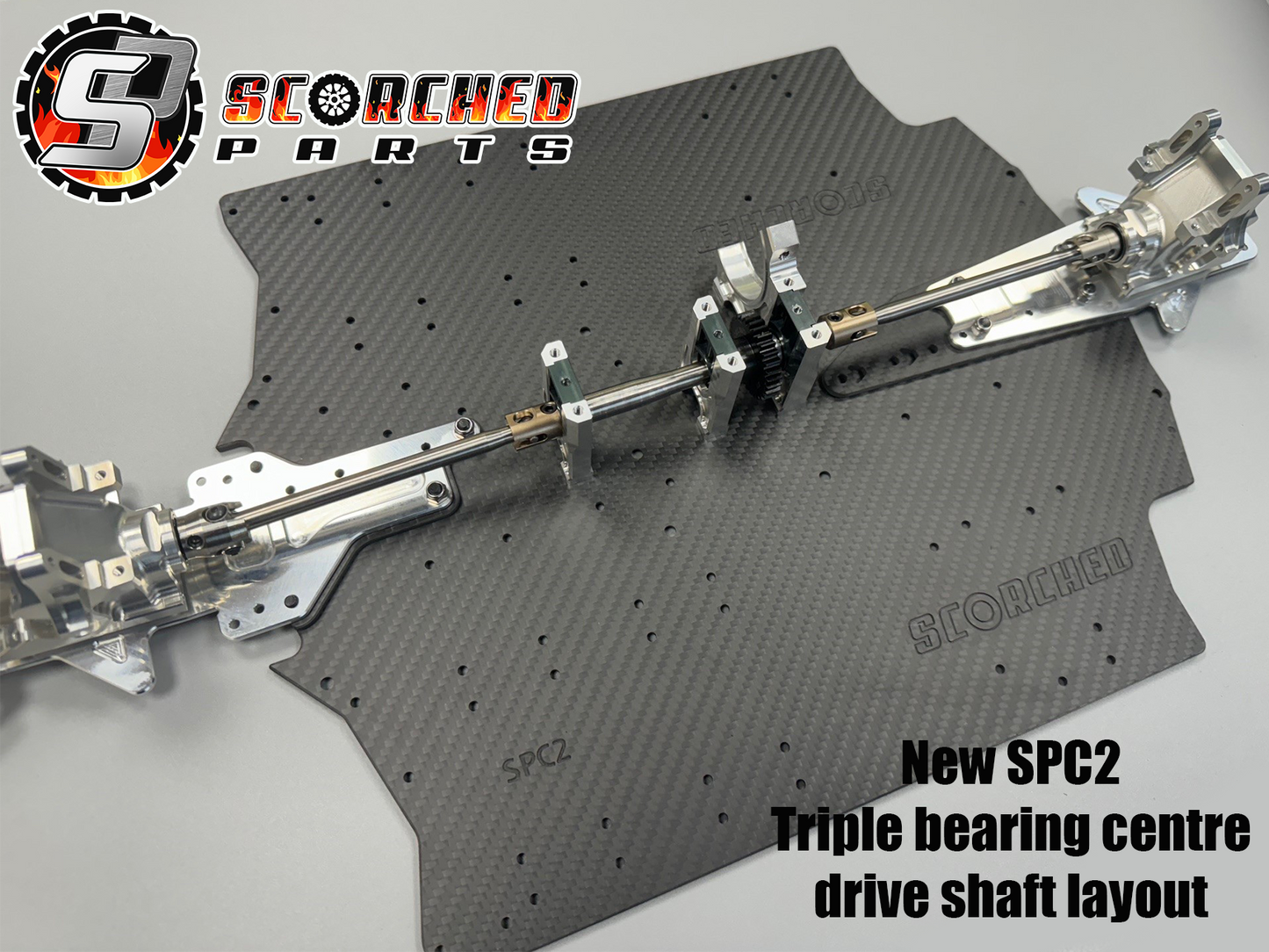

Two options for motor mounting is provided:
Forward position: As per Infraction V1/V2 and Limitless V1. Allows fitment of shafts suitable for those cars or our Pinocchio spool and shaft set (not Lim V2)(recommended!)

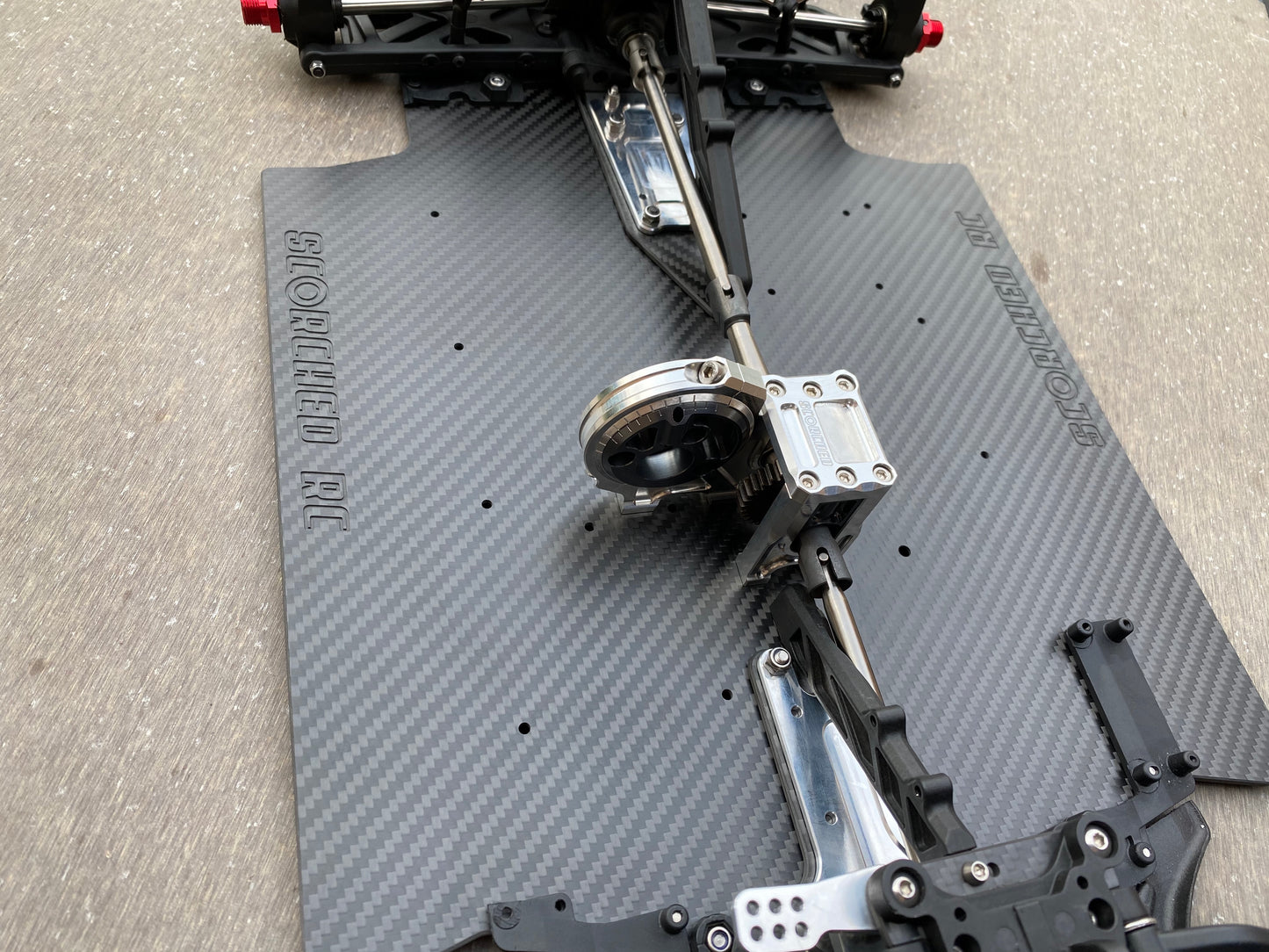

Rearward position: Allowing fitment of a motor up to length 134mm on the front left hand side, keeping motor weight at the front. The Scorched Parts Pinocchio Spool setup, (recommended) or a Limitless V2 spool/shaft set is required to use this position
*Limitless V2 rear braces and other plastics will not fit (not really required if you run our top brace anyway)
Limitless V2 Version:
This is a ‘drop in’ replacement for the stock Limitless V2 chassis. Everything swaps over simply and easily.
Choose this if you want to re-use all your stock plastic battery trays and servo mount. Direct replacement for stock chassis including all holes for mounting of stock components. Everything swaps over simply and easily.Spur gear slot is removed (standard gearing still fits). As per the stock chassis the motor mount can be reversed allowing a bigger / longer motor to be assembled on the rear / right hand side of the chassis.

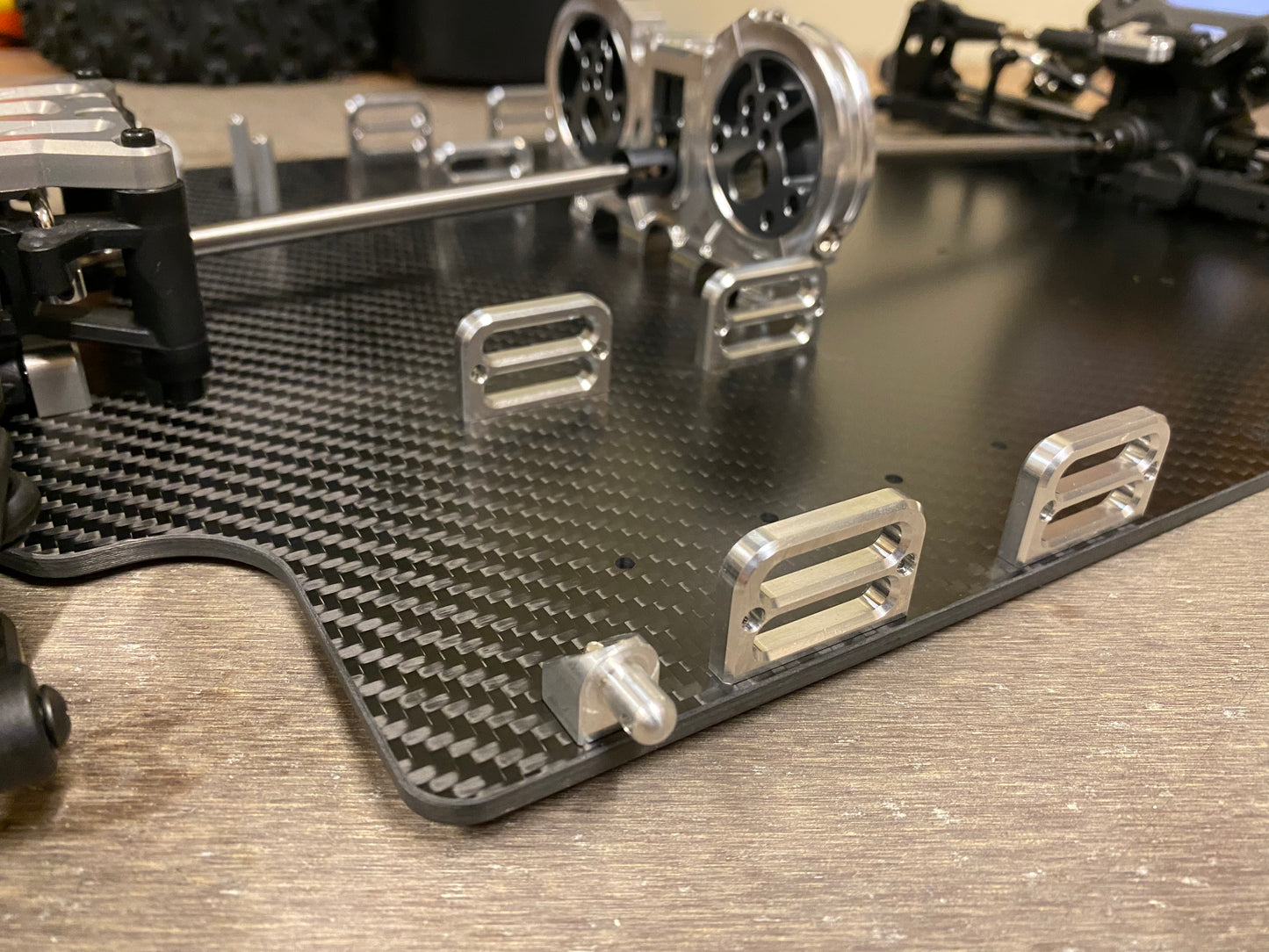

Check out our Side Body Posts and awesome battery strap mounts that enable custom battery positioning!

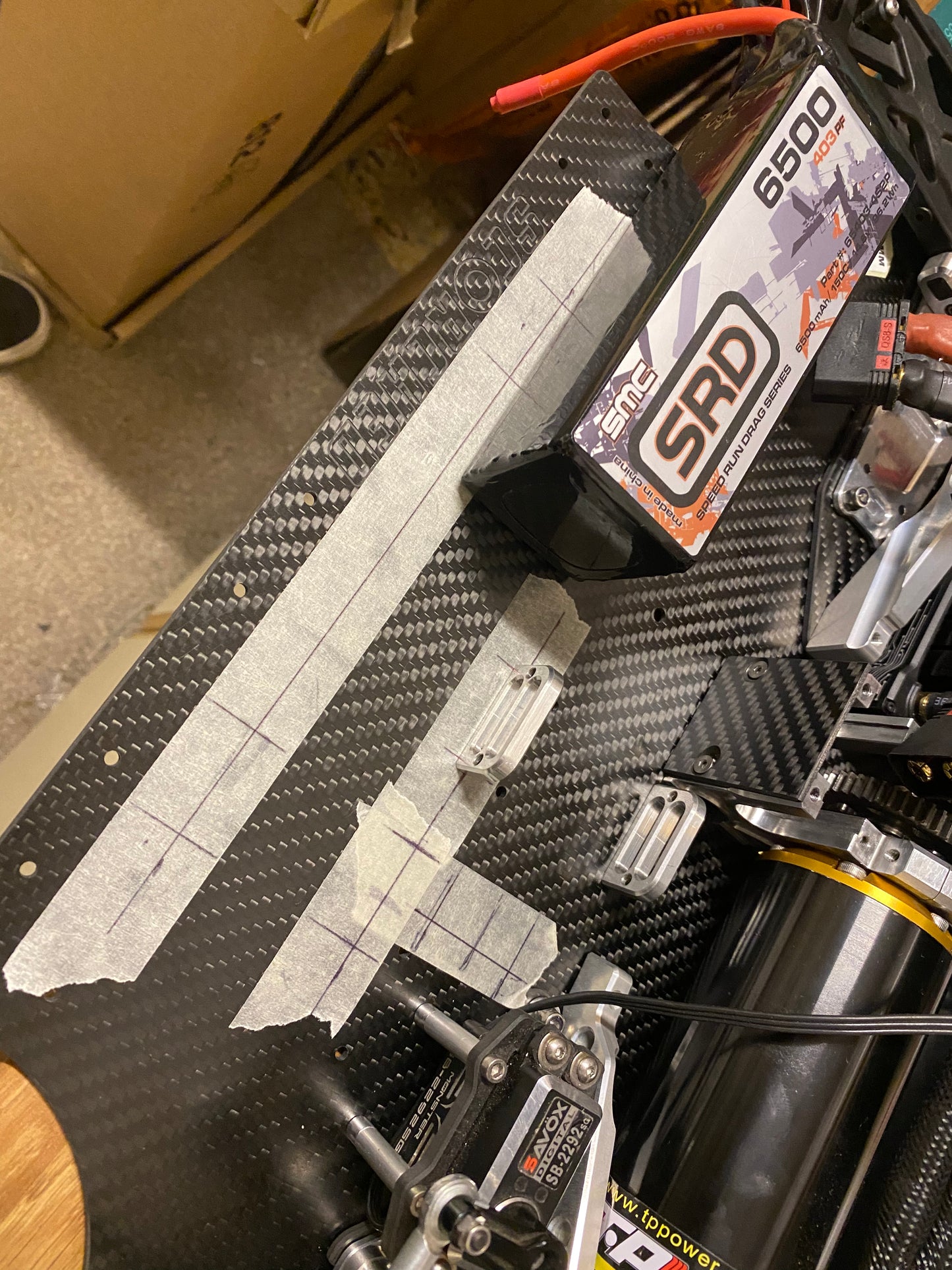

To mount components, we strongly recommend using masking tape to mark out and drill the chassis. Please see our Drill and Countersink set also available on the website!
Modifying your RC from stock condition can result in unexpected results. Operation of modified models must take this into account. Always follow the original manufacturers instructions. Whilst we build our parts to the highest standards we are able, like all rc parts, our parts cannot be guaranteed for performance, strength and durability in every situation or configuration. Do not use your RC in public areas. Do not use your RC where unexpected results could cause injury or damage to property. High Speed RC’s require GREAT CARE and a responsible attitude to use safely.
